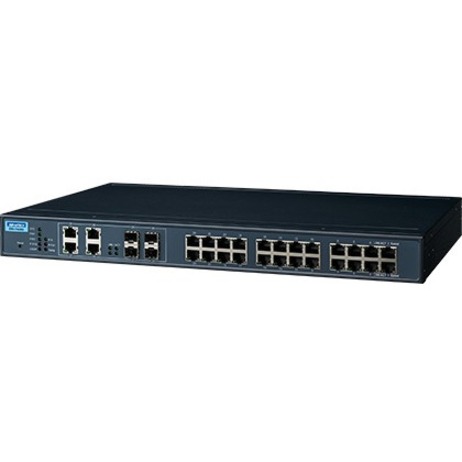

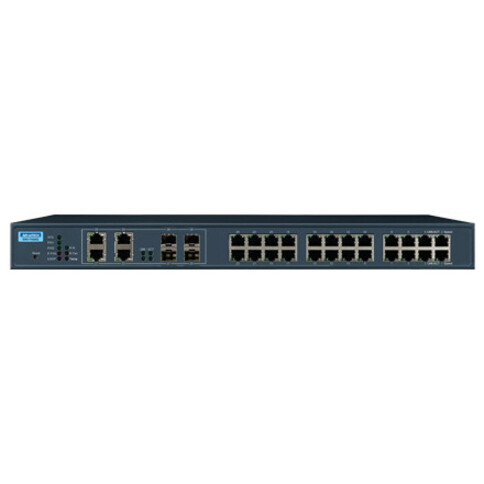

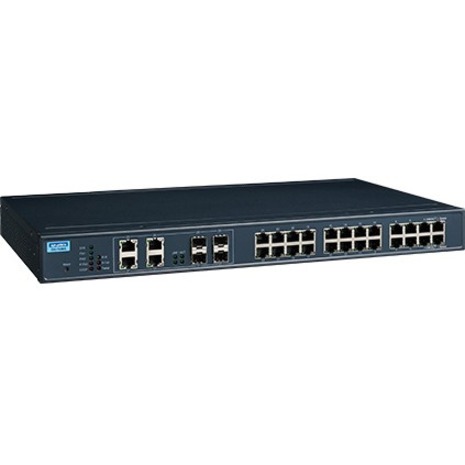

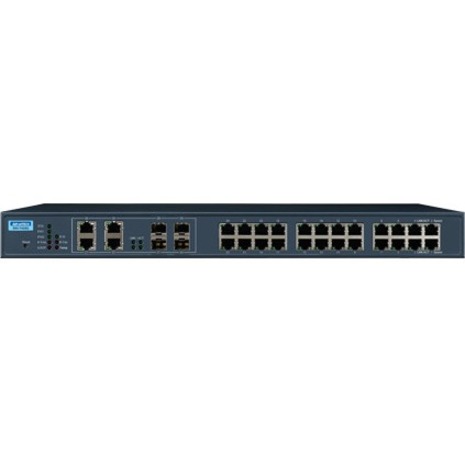

B+B SmartWorx 24G+4G Combo Port L2 Managed Switch
24 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-TX, 1000Base-X - 2 Layer Supported - Modular - 4 SFP Slots - 20 W Power Consumption - Twisted Pair, Optical Fiber - 1U - Rack-mountable - 5 Year Limited Warranty
- SKU
- EKI-7428G-4CI-AU
- Category
- Switches & Bridges
MSRP$1,411.86
$1,128.52
Save 20%Back ordered — ships when restocked.
Genuine Advantech through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- EKI-7428G-4CI-AU
- Category
- Switches & Bridges
Overview
The EKI-7428G is an industrial-class layer 2 full managed switch including 24 Gigabit ports and 4 Gigabit combo ports. It is designed for rack-mount installation, and can be deployed in demanding industrial environments. It is suitable for edge to core industrial networks. It integrates Layer 2 switching software, which is optimized for scale and performance, delivering wire speed across all ports up to 56 Gbps for layer 2 traffic forwarding. In addition, the PoE design provides up to 30 watts per port to fulfill high power consumption device, moreover, it supports high reliability with -40 ~ 70°C operating temperatures, and dual 48 VDC input power design ensure vital network capabilities with minimum downtime. It is also embedded with Advantech IXM, which benefits users by giving them fast deployment and can dramatically save engineer's time and costs.
Highlights
- 24 x IEEE 802.3 af/at PoE Gigabit ports + 4 x Gigabit Copper/SFP combo ports, provide up to 30Watts per port
- SFP socket for Easy and Flexible Fiber Expansion
- Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB
- IXM function enables fast deployment
- Security:802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption),HTTPS,SSH and SNMPv3
- Redundancy: Gigabit X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D),MSTP
- 48VDC power input (46-57 VDC for POE af , 53 -57 VDC is recommended for at) and 2 relay output
- -40 ~ 70°C wide-range operating temperature
- Support Security Pack to against internal and external cyber threats
Specifications
| Product Type | Ethernet Switch |
|---|---|
| Input Voltage | 48 V DC |
| Manufacturer Part Number | EKI-7428G-4CI-AU |
| Power Source | DC |
| Limited Warranty | 5 Year |
| Layer Supported | 2 |
| Weight (Approximate) | 2.43 lb |
| Form Factor | Rack-mountable |
| Manufacturer | Advantech Co., Ltd |
| Product Model | EKI-7428G-4CI |
| Product Name | 24G+4G Combo Port L2 Managed Switch |
| Network Technology | 10/100/1000Base-TX, 1000Base-X |
| Power Consumption | 20 W |
| Product Series | EKI-7428G |
| Brand Name | B+B SmartWorx |
| Expansion Slot Type | SFP (mini-GBIC) |
| Height | 1.7" |
| Width | 17.2" |
| Depth | 10.2" |
| Manageable | Yes |
| Environmentally Friendly | Yes |
| Compatible Rack Unit | 1U |
| Ethernet Technology | Gigabit Ethernet |
| Network (RJ-45) | Yes |
| Number of SFP Slots | 4 |
| Modular | Yes |
| Media Type Supported | Twisted Pair, Optical Fiber |
| Total Number of Network Ports | 24 |
| Shared SFP Slot | Yes |
| Port/Expansion Slot Details | 24 x Gigabit Ethernet Network, 4 x Gigabit Ethernet TP/SFP Combo |
| Total Number of Expansion Slots | 4.0 |
| Networking Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.1D, IEEE 802.1w, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ab |
| Product Material | Metal |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
