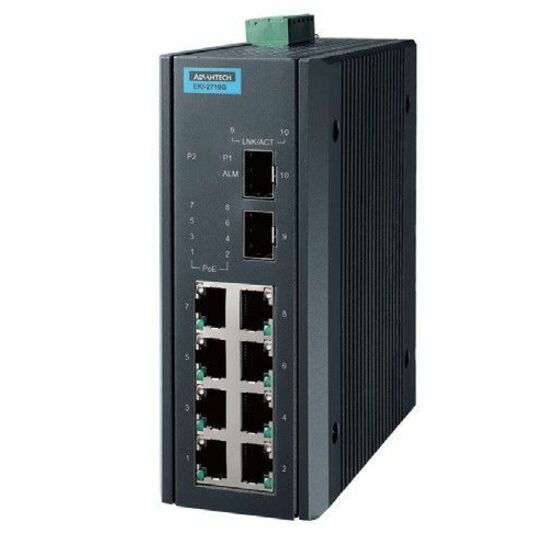

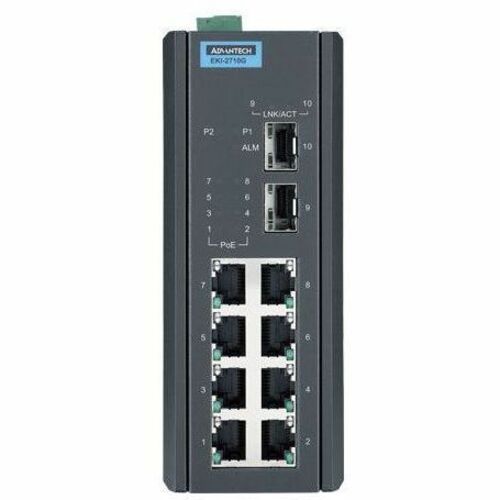

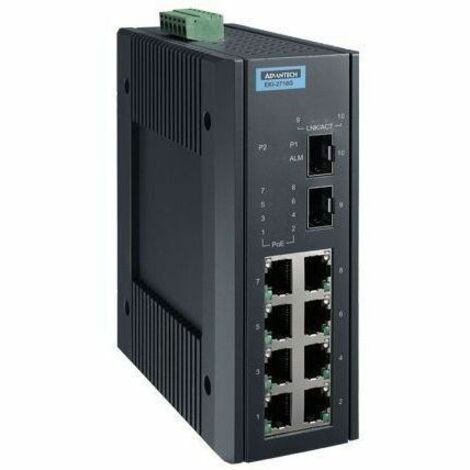

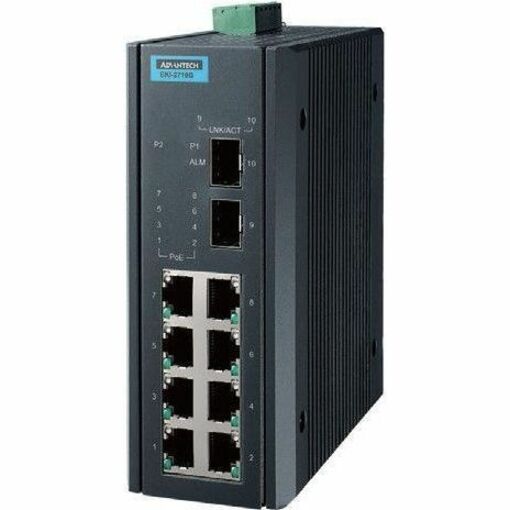

Advantech EKI-2710G-2FPI Ethernet Switch
8 Ports - Gigabit Ethernet - 10/100/1000Base-T, 10/100/1000Base-TX, 100Base-FX, 1000Base-X - 2 Layer Supported - 2 SFP Slots - 5.28 W Power Consumption - 240 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - DIN Rail Mountable, Wall Mountable, Enclosure - 5 Year Limited Warranty
- SKU
- EKI-2710G-2FPI-A
- Category
- Switches & Bridges
MSRP$556.36
$449.52
Save 19%Back ordered — ships when restocked.
Genuine Advantech through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- EKI-2710G-2FPI-A
- Category
- Switches & Bridges
Overview
The EKI-2708G and EKI-2710G PoE switch are unmanaged Ethernet switches supporting 8 ports PoE+ (Power over Ethernet) and compliant with IEEE 802.3at/af standards. Provides up to 30 watts of power per port and fulfill the power budget of max. 240 watts on system with the power input from 12~48VDC. The switch provides a relay output for an event alarm which activate the alarm to notify administrators. Robust design for harsh environment, din rail mounting and fast startup with plug and work.
The EKI-2708G and EKI-2710G support IEEE 802.3/802.3u/802.3z/802.3ab/802.3x with 10/100/1000 Mbps, full/half-duplex, auto-negotiation and MDI/MDI-X auto-sensing to provide an economical solution for your industrial Ethernet network.
Highlights
- 8 x Gigabit Ethernet ports or plus 2 Gigabit SFP ports
- Support 8 x IEEE 802.3at/af PoE ports for PD demands
- Up to 30W output per PoE port
- Supports jumbo frame transmission up to 9k bytes
- DIN-rail with IP30 metal mechanism

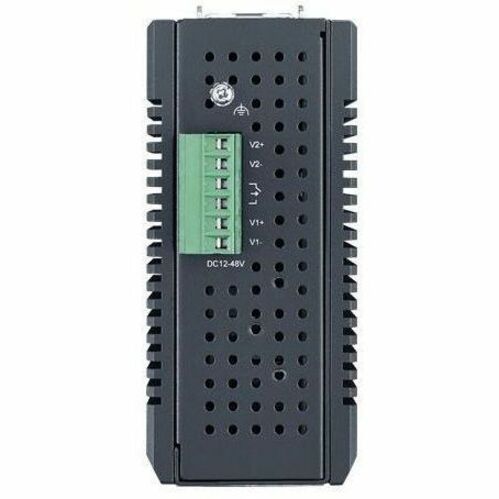

- 12 ~ 48 VDC redundant dual power input and 1 relay output
- Wide operating temperature range of -40 ~ 75°C
- Supports EMC Level 4 protection for extreme outdoor environments
- Supports LAN surge protection up to ±6 kV

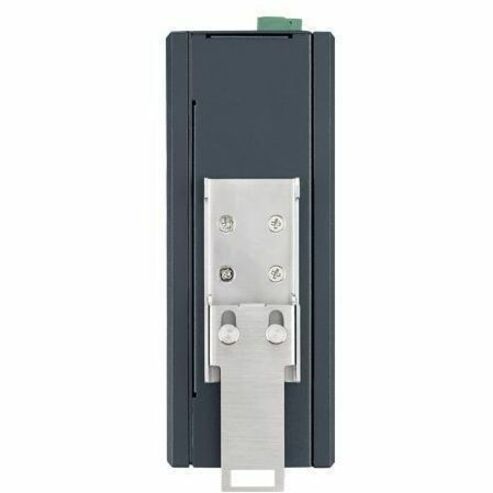

- Equipped with a pull-down DIN rail mounting kit for easy installation across various DIN rail dimensions
Specifications
| Product Type | Ethernet Switch |
|---|---|
| Input Voltage | 12 V DC, 48 V DC |
| Manufacturer Part Number | EKI-2710G-2FPI-A |
| Power Source | DC |
| Limited Warranty | 5 Year |
| Layer Supported | 2 |
| Weight (Approximate) | 2.43 lb |
| Features | IP30, Surge Protection |
| Form Factor | DIN Rail Mountable, Wall Mountable, Enclosure |
| Manufacturer | Advantech Co., Ltd |
| Product Model | EKI-2710G-2FPI |
| Product Name | EKI-2710G-2FPI Ethernet Switch |
| Network Technology | 10/100/1000Base-T, 10/100/1000Base-TX, 100Base-FX, 1000Base-X |
| Power Consumption | 5.28 W |
| Brand Name | Advantech |
| Plug/Connector Type | Terminal Block |
| Expansion Slot Type | SFP (mini-GBIC) |
| Height | 5.5" |
| Width | 2.1" |
| Depth | 4.7" |
| Manageable | No |
| Maximum Data Transfer Rate | 128 MB/s |
| Ethernet Technology | Gigabit Ethernet |
| Network (RJ-45) | Yes |
| Number of SFP Slots | 2 |
| Media Type Supported | Twisted Pair, Optical Fiber |
| Total Number of Network Ports | 8 |
| PoE (RJ-45) Port | Yes |
| Port/Expansion Slot Details | 8 x 10/100/1000BASE-T/TX Gigabit Ethernet PoE RJ-45 Network Port, 2 x Gigabit Ethernet SFP Expansion Slot |
| Total Number of Expansion Slots | 2 |
| Redundant Power Supply Supported | Yes |
| PoE Budget | 240 W |
| Networking Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at |
| Product Material | Metal |
