Advantech EKI-2706G Ethernet Switch
Advantech

Advantech EKI-2706G Ethernet Switch

6 Ports - Gigabit Ethernet - 10/100/1000Base-T - 2 Layer Supported - 4.32 W Power Consumption - Twisted Pair - PoE Ports - DIN Rail Mountable, Wall Mountable - 5 Year Limited Warranty

SKU
EKI-2706G-2GPI-A
Category
Switches & Bridges

MSRP$434.09

$349.73

Save 19%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Advantech through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
EKI-2706G-2GPI-A
Category
Switches & Bridges

Overview

6GE Port Gigabit Unmanaged Industrial PoE Ethernet Switch

• 6 Gigabit RJ-45 Ethernet ports

• Support 4 x IEEE 802.3at/af PoE ports for PD demands

• Up to 30W output per PoE port

• Supports jumbo frame transmission up to 9k bytes

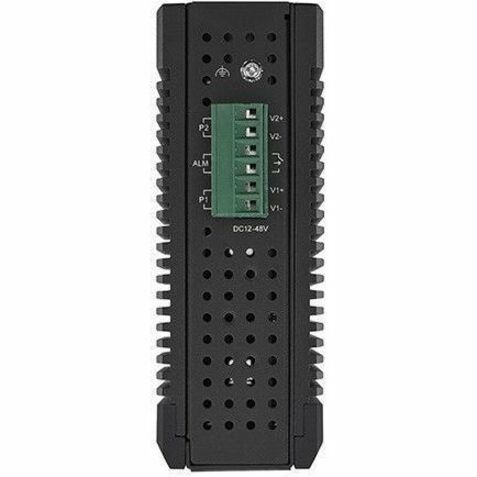

• 12 ~ 48 VDC redundant dual power input and 1 relay output

• Wide operating temperature range of -40 ~ 75°C

• Supports EMC Level 4 protection for extreme outdoor environments

Highlights

  • Effectively increases available bandwidth on your network
  • Terminal Block plug/connector type for convenient Ethernet Switch usage with added power supply dependability
  • Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 6 ports
  • With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
  • DIN Rail Mountable form factor for your convenience and simplicity of usage
  • The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
  • Gigabit Ethernet port for ultra-fast network speeds
  • Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters

Specifications

Product TypeEthernet Switch
Input Voltage12 V DC, 48 V DC
Manufacturer Part NumberEKI-2706G-2GPI-A
Power SourceDC
Limited Warranty5 Year
Layer Supported2
Weight (Approximate)2.20 lb
FeaturesIP30, Surge Protection
Form FactorDIN Rail Mountable, Wall Mountable
ManufacturerAdvantech Co., Ltd
Product ModelEKI-2706G
Product NameEKI-2706G Ethernet Switch
Network Technology10/100/1000Base-T
Power Consumption4.32 W
Brand NameAdvantech
Plug/Connector TypeTerminal Block
Country of OriginTaiwan
Height5.5"
Width1.8"
Depth5.1"
ManageableNo
Maximum Data Transfer Rate128 MB/s
Ethernet TechnologyGigabit Ethernet
Network (RJ-45)Yes
Media Type SupportedTwisted Pair
Total Number of Network Ports6
PoE (RJ-45) PortYes
Port/Expansion Slot Details4 x 10/100/1000BASE-T Gigabit Ethernet PoE RJ-45 Network Port, 2 x 10/100/1000BASE-T Gigabit Ethernet RJ-45 Network Port
Redundant Power Supply SupportedYes
Networking StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3af, IEEE 802.3at
Product MaterialMetal
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
