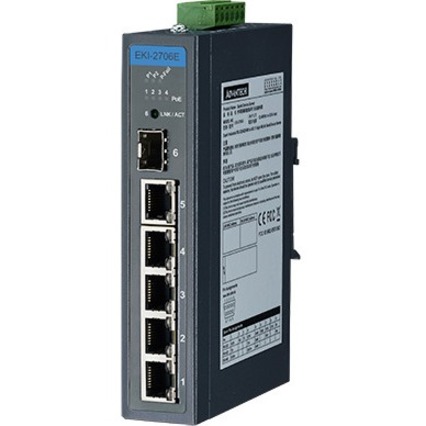

Advantech Ethernet Device, 4FE+1GE+1G SFP Unmanaged Ind. PoE Switch W/T
4 Ports - Fast Ethernet - 100Base-TX - 2 Layer Supported - Modular - 1 SFP Slots - Twisted Pair, Optical Fiber - DIN Rail Mountable, Wall Mountable
- SKU
- EKI-2706E-1GFPI-AE
- Category
- Switches & Bridges
MSRP$460.73
$429.42
Save 7%Back ordered — ships when restocked.
Genuine Advantech through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- EKI-2706E-1GFPI-AE
- Category
- Switches & Bridges
Overview
The EKI-2706 series supports 48V DC redundant power input and is secured with a double protection mechanism: Power Polarity Reverse Protection and an Overload Current Fuse. The EKI-2706 series supports up to 4-port IEEE 802.3 af/at PoE /PoE+ ports. Each port of EKI-2706 has two LED's to show the link status, transmission speed, and collision status. It also provides a relay output for an event alarm. In the event of a power failure, the built-in LED will activate the alarm to notify, administrators. Engineers can simply verify the hardware status by checking the LED to make troubleshooting quick and easy. EKI-2706 comes with a compact metal housing rated at IP30 to protect against dusty industrial environments.
Highlights
- Effectively reduces downtime with improved network performance
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 4 ports
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- DIN Rail Mountable form factor for your convenience and simplicity of usage
- The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
- Featuring Fast Ethernet ports to speed up the transfer rate up to 100mb/sec of large files and digital assets across your network
- Twisted Pair media support ensures maximum convenience and great usability
Specifications
| Product Type | Ethernet Switch |
|---|---|
| Manufacturer Part Number | EKI-2706E-1GFPI-AE |
| Layer Supported | 2 |
| Form Factor | DIN Rail Mountable, Wall Mountable |
| Manufacturer | Advantech Co., Ltd |
| Product Model | EKI-2706E-1GFPI |
| Product Name | Ethernet Device, 4FE+1GE+1G SFP Unmanaged Ind. PoE Switch W/T |
| Network Technology | 100Base-TX, 10/100/1000Base-T, 1000Base-X |
| Product Series | EKI-2706 |
| Brand Name | Advantech |
| Expansion Slot Type | SFP (mini-GBIC) |
| Country of Origin | China |
| Height | 5.5" |
| Width | 1.2" |
| Depth | 3.7" |
| Manageable | No |
| Ethernet Technology | Fast Ethernet, Gigabit Ethernet |
| Number of SFP Slots | 1 |
| Modular | Yes |
| Uplink Port | No |
| Stack Port | No |
| Media Type Supported | Twisted Pair, Optical Fiber |
| Total Number of Network Ports | 4 |
| Shared SFP Slot | No |
| Port/Expansion Slot Details | 4 x Fast Ethernet Network, 1 x Gigabit Ethernet Network, 1 x Gigabit Ethernet Expansion Slot |
| Total Number of Expansion Slots | 1.0 |
