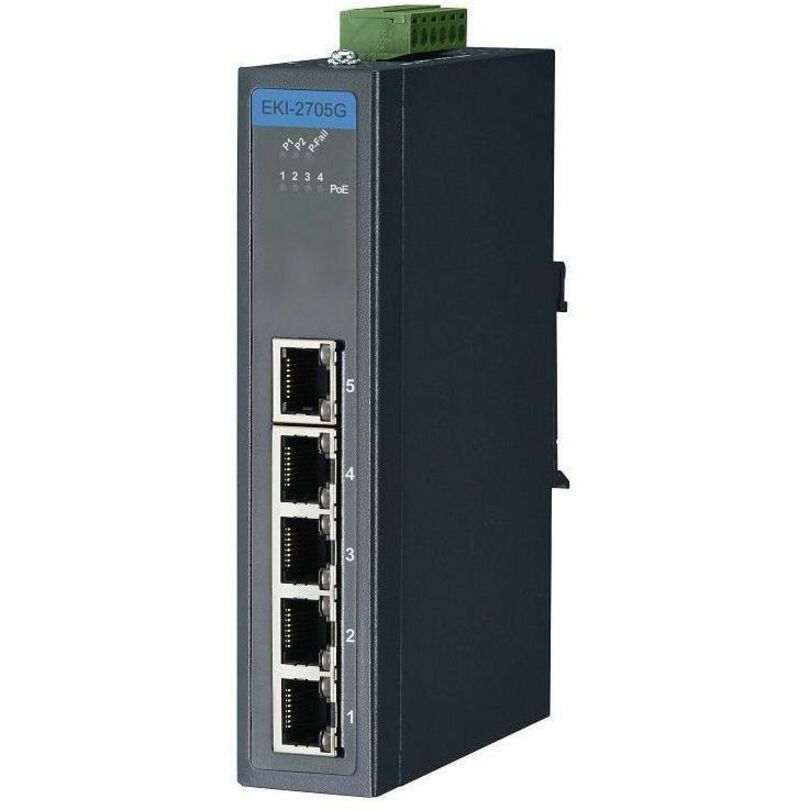

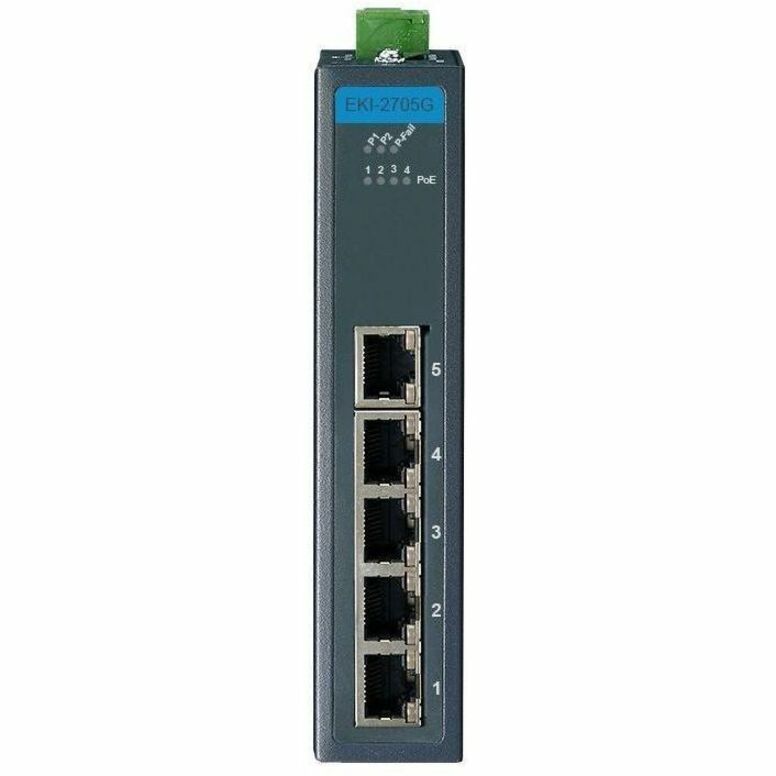

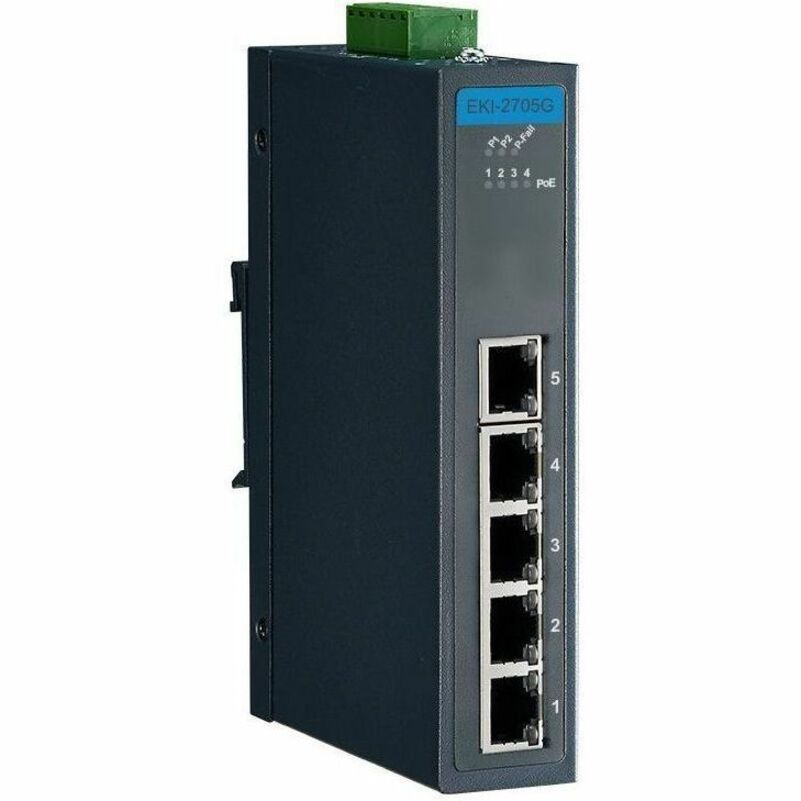

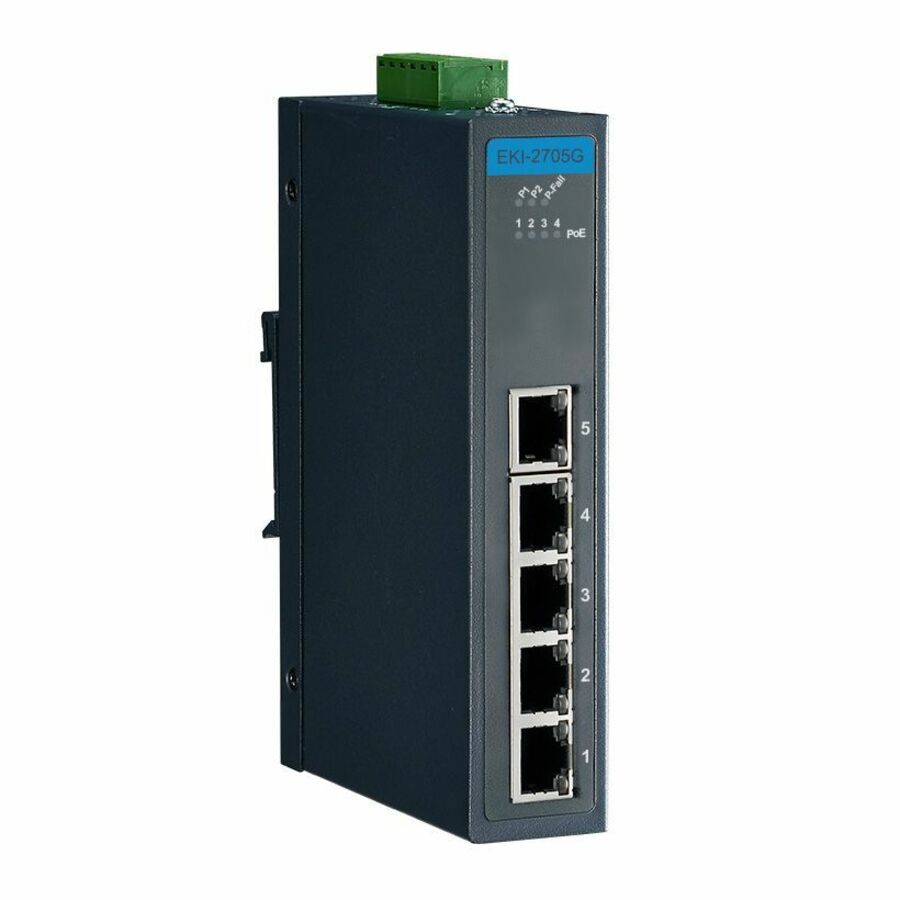

Advantech EKI-2705G-1GPI Ethernet Switch
Advantech

Advantech EKI-2705G-1GPI Ethernet Switch

5 Ports - Gigabit Ethernet - 10/100/1000Base-T - 2 Layer Supported - 2 W Power Consumption - 90 W PoE Budget - Twisted Pair - PoE Ports - DIN Rail Mountable, Wall Mountable, Enclosure, Compact - 5 Year Limited Warranty

SKU
EKI-2705G-1GPI-AU
Category
Switches & Bridges

MSRP$217.65

$176.13

Save 19%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Advantech through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
EKI-2705G-1GPI-AU
Category
Switches & Bridges

Overview

The EKI-2705 series supports 24 ~ 48VDC redundant power input and is secured with a double protection mechanism: power polarity reverse protection and an overload current fuse. The EKI-2705 series supports up to 4-port IEEE 802.3 af/at PoE /PoE+ ports. Each port of EKI-2705 has two LED indicators to show the link status transmission speed. It also provides a relay output for an event alarm. In the event of a power failure, the built-in LED will activate the alarm to notify, administrators. Engineers can simply verify the hardware status by checking the LED to make troubleshooting easily and fast. EKI-2705 comes with a compact metal housing rated at IP30 to protect against dusty industrial environments.

Highlights

  • Supports 10/100/1000 Mbps Auto Negotiation
  • Supports jumbo frame transmission up to 9 kbytes
  • DIN-rail with IP30 metal mechanism
  • Redundant 24~48 VDC power input
  • 4 x IEEE 802.3 af/at PoE ports + 1 x Gigabit Copper

Specifications

Product TypeEthernet Switch
Input Voltage24 V DC, 48 V DC
Manufacturer Part NumberEKI-2705G-1GPI-AU
Power SourceDC
Limited Warranty5 Year
Layer Supported2
Weight (Approximate)15.87 oz
FeaturesIP30
Form FactorDIN Rail Mountable, Wall Mountable, Enclosure, Compact
ManufacturerAdvantech Co., Ltd
Product ModelEKI-2705G-1GPI
Product NameEKI-2705G-1GPI Ethernet Switch
Network Technology10/100/1000Base-T
Power Consumption2 W
Product SeriesEKI-2705
Brand NameAdvantech
Plug/Connector TypeTerminal Block
Height5.5"
Width1.2"
Depth3.7"
ManageableNo
Maximum Data Transfer Rate128 MB/s
Ethernet TechnologyGigabit Ethernet
Network (RJ-45)Yes
Media Type SupportedTwisted Pair
Total Number of Network Ports5
PoE (RJ-45) PortYes
Port/Expansion Slot Details4 x 10/100/1000BASE-T Gigabit Ethernet PoE RJ-45 Network Port, 1 x 10/100/1000BASE-T Gigabit Ethernet RJ-45 Network Port
Redundant Power Supply SupportedYes
PoE Budget90 W
Networking StandardsIEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3
Product MaterialMetal
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
