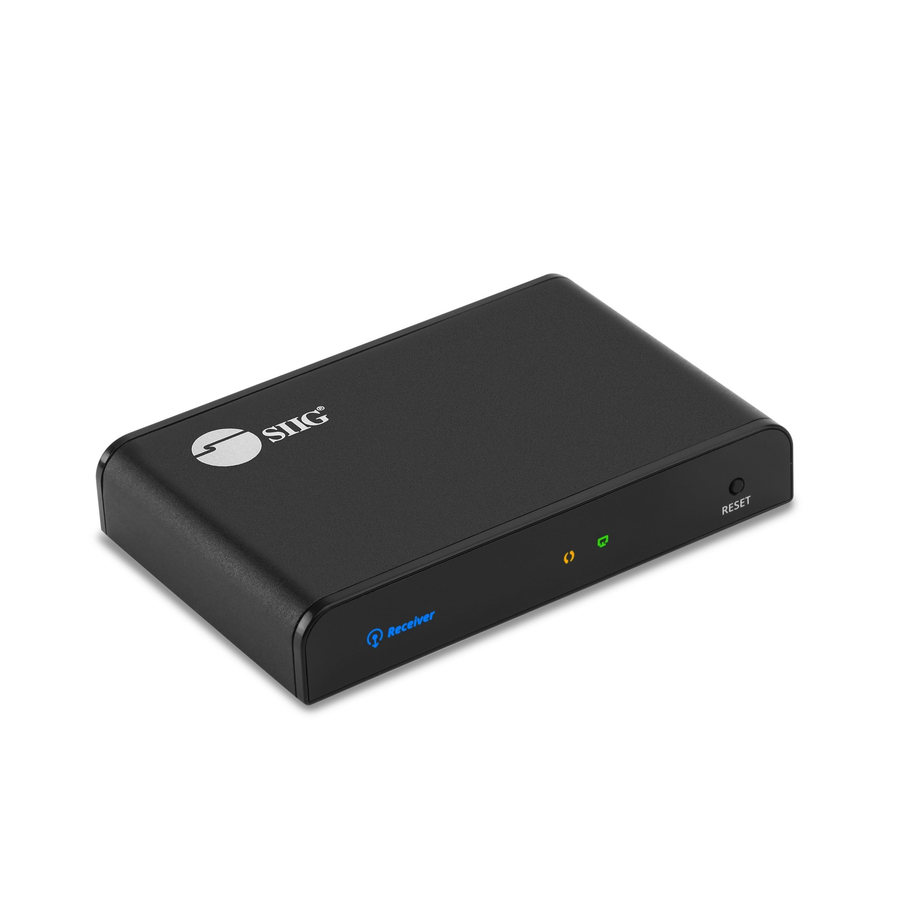

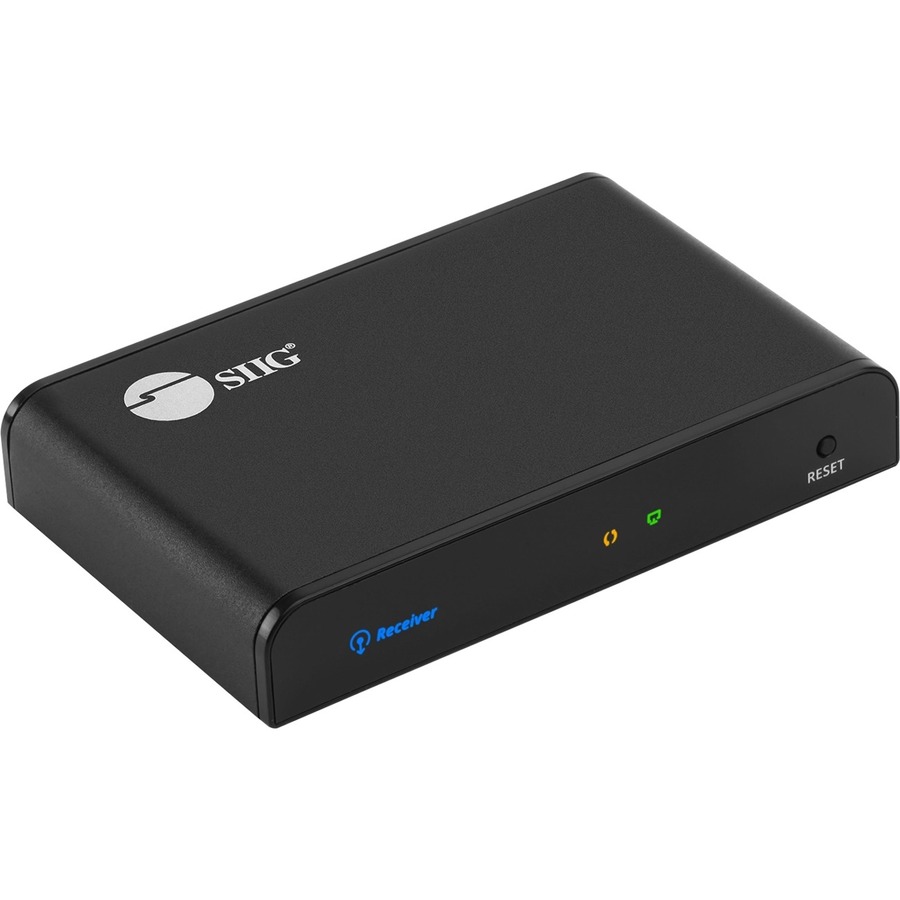

SIIG HDMI HDbitT Over Cat6 Extender with IR & Loop-out - Receiver
SIIG

SIIG HDMI HDbitT Over Cat6 Extender with IR & Loop-out - Receiver

1 Output Device - 393.70 ft Range - 1 x Network (RJ-45) - 1 x HDMI Out - Full HD - 1920 x 1080 - Twisted Pair - Category 6

SKU
CE-H24V11-S1
Category
Audio & Video Consoles/Extenders

MSRP$99.99

$55.34

Save 45%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine SIIG through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
CE-H24V11-S1
Category
Audio & Video Consoles/Extenders

Overview

Receives HDMI signal up to 120 meters away over a single Cat6 cable with IR support

• Receives HDMI A/V signals up to 394ft (120m) away over economical Cat6 cabling

• Delivers Full HD video content up to 1080p @60Hz

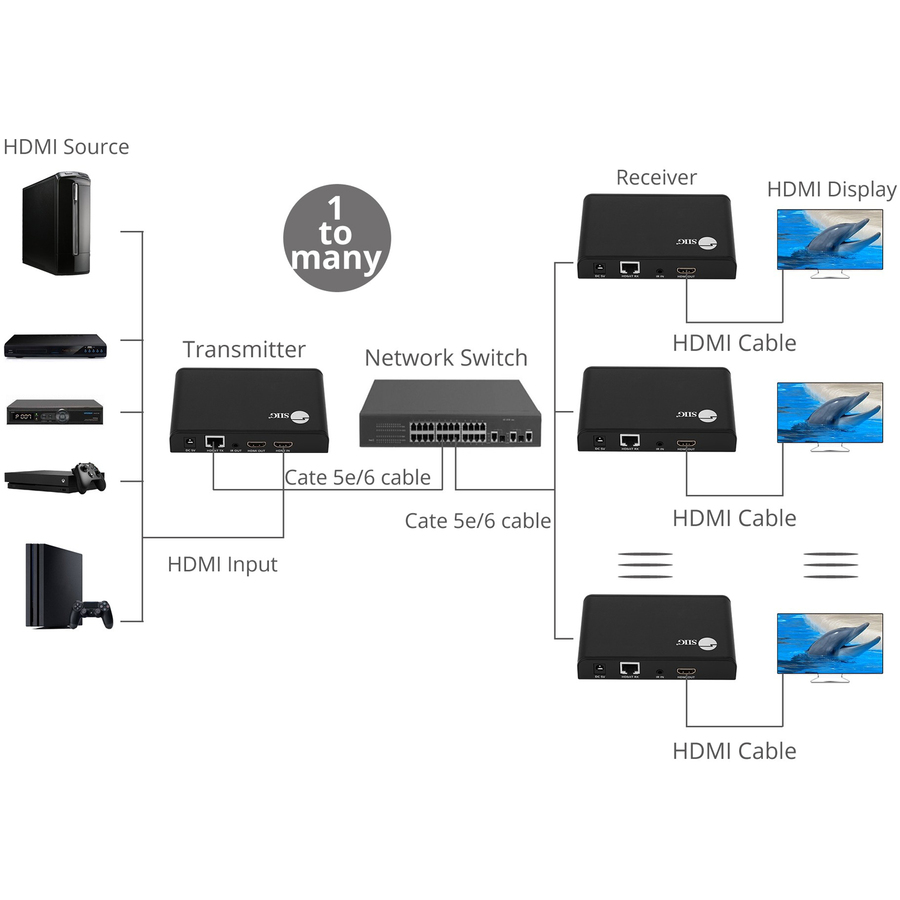

• Features direct 1-to-1 connection or 1-to-multiple through dedicated unmanaged Gigabit network routers or switches (not included). With HDbitT® transport protocol, you can connect up to 30 Receivers per Transmitter to not only extend but split HDMI signals to multiple displays. Note : Requires HDMI HDbitT Over CAT6 Extender with IR & Loop-out - 120m, part # CE-H24B11-S1, sold separately.

• IR remote control over CAT 6 allows to remotely control the HDMI source device from the remote display side

• High quality metal housing with ventilation panels improve heat dissipation and ensure system stability during long hours of operation

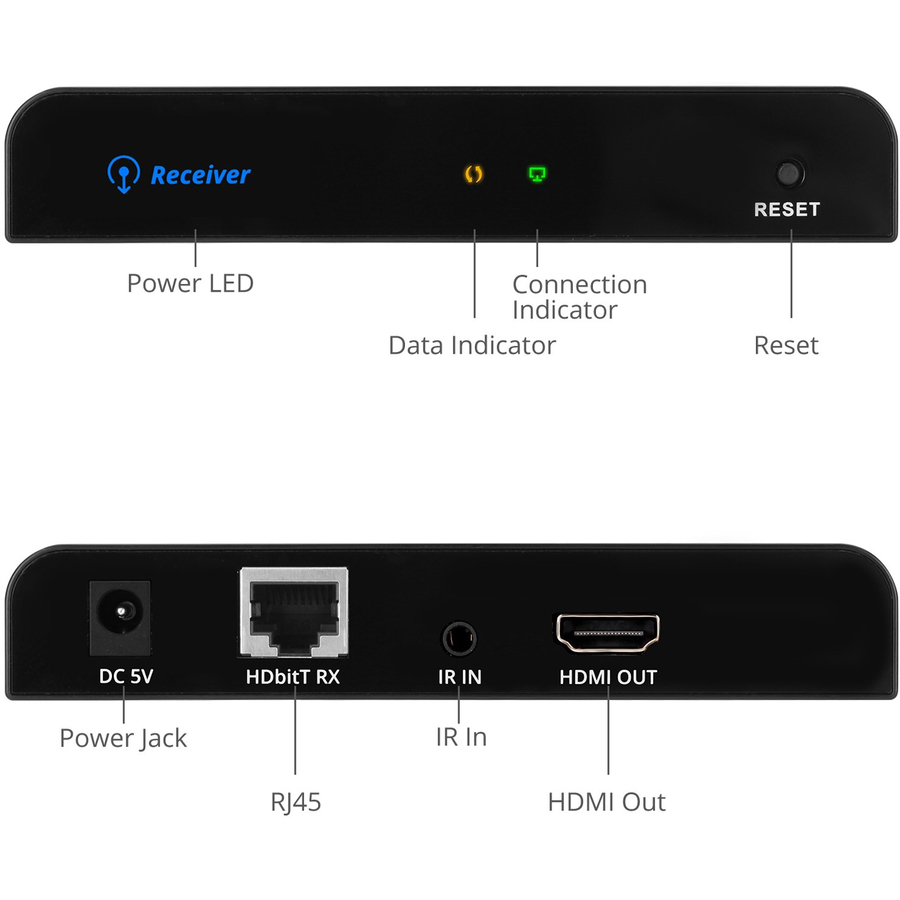

• Built-in power led indicator provides easy power status monitoring

• Plug-n-Play installation, no software installation or hardware setup is required

Specifications

Product TypeVideo Extender Receiver
Manufacturer Part NumberCE-H24V11-S1
Limited Warranty2 Year
Connectivity TechnologyWired
ManufacturerSIIG, Inc
Product NameHDMI HDbitT Over Cat6 Extender with IR & Loop-out - Receiver
Brand NameSIIG
Country of OriginChina
Graphics ModesFull HD
Environmentally FriendlyYes
Maximum Video Resolution1920 x 1080
Twisted Pair Cable StandardCategory 6
Maximum Operating Distance393.70 ft
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Number of HDMI Outputs1
HDMI OutYes
Media Type SupportedTwisted Pair
Number of Output Devices Supported1

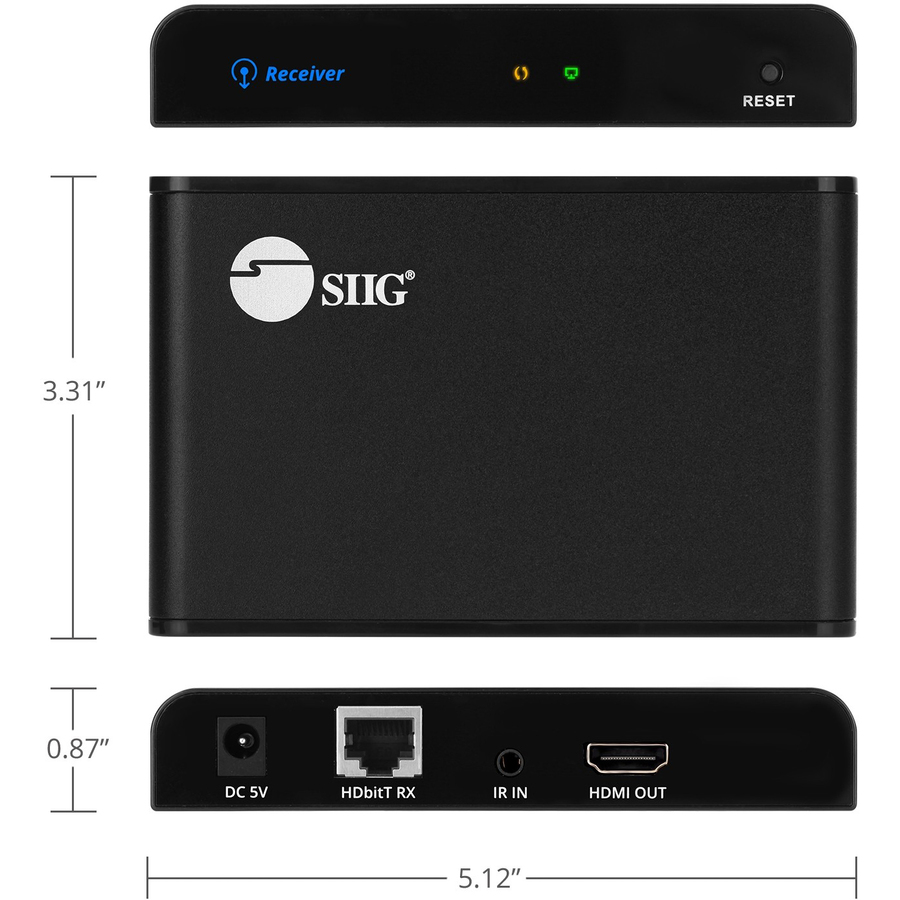

Receiver Height0.89"
Receiver Width3.31"
Receiver Depth5.12"
Receiver Weight (Approximate)6.72 oz
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
