SIIG 4K DisplayPort 1.2 AOC Cable - 15M
SIIG

SIIG 4K DisplayPort 1.2 AOC Cable - 15M

49.21 ft Fiber Optic A/V Cable for Audio/Video Device, Monitor, TV, Projector, HDTV, Desktop Computer, Notebook - First End: 1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Male - Second End: 1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Male - 21.6 Gbit/s - Supports up to 3840 x 2160 - Gold Plated Connector - 26 AWG - Black

SKU
CB-DP2211-S1
Category
Connector Cables

$149.71

Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine SIIG through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
CB-DP2211-S1
Category
Connector Cables

Overview

Premium quality DisplayPort 1.2 active fiber optic cable transmits ultra high resolution signals up to 4K@60Hz over long distances

• Connects DisplayPort source devices to DisplayPort equipped monitors or displays over long distances

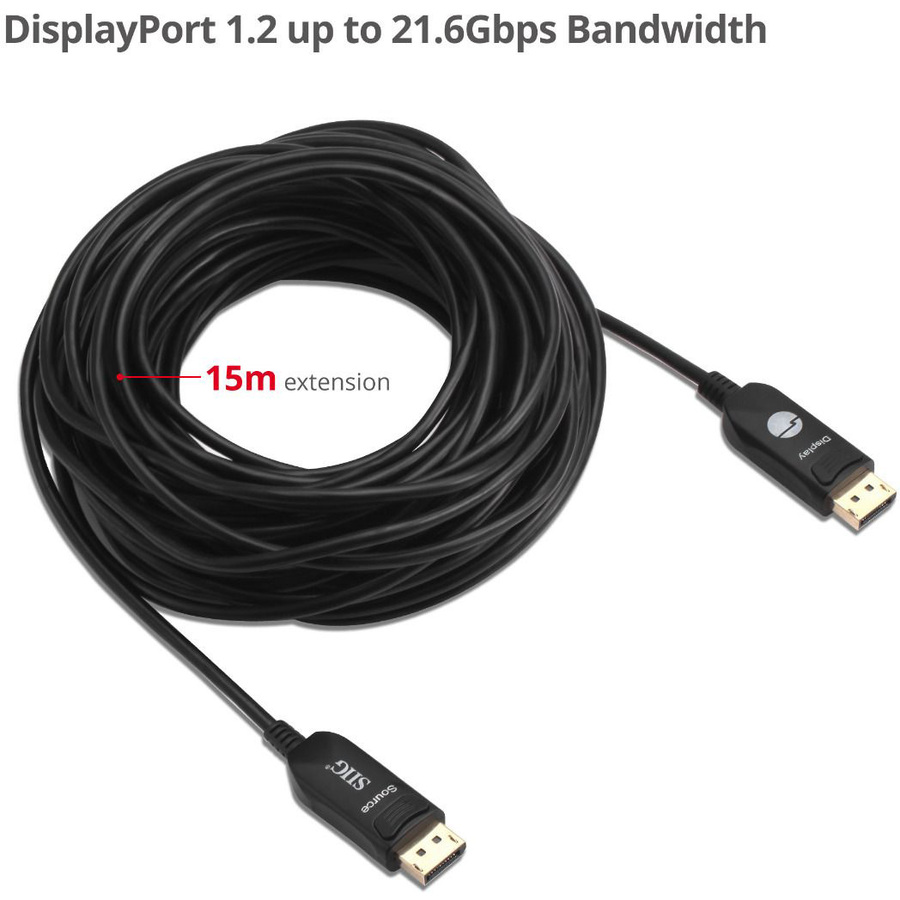

• Transmits Ultra HD 4K signals up to 15 meters (49ft)

• Compliant with DisplayPort 1.2 specification, 1, 2 and 4 lanes at 1.62Gbps, 2.7Gbps & 5.4Gbps

• 21.6Gbps signal bandwidth and up to 4Kx2K 60Hz YUV 4:4:4 resolution

• AOC (Active Optical Cable) Fiber/Copper inner conductor material and gold-plated connectors provide maximum video clarity

• Very low Electro Magnetic Interference (EMI) and Radio Frequency Interference (RFI) profile allows installing the cable into sensitive environments

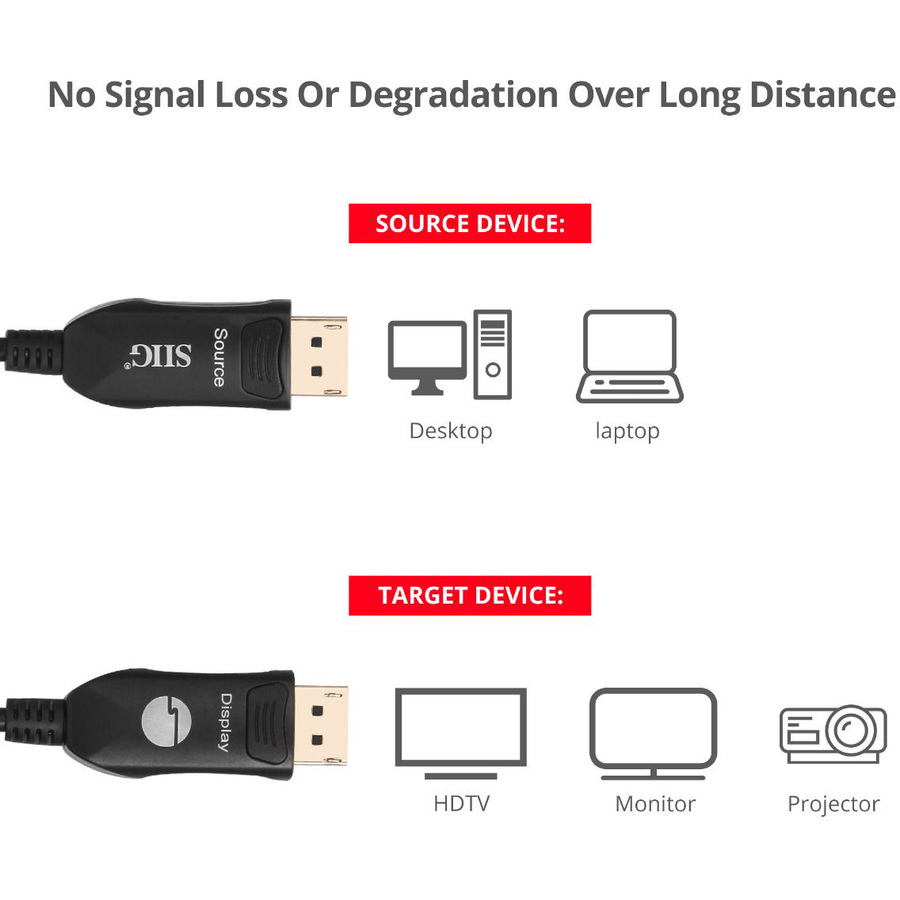

• Features unidirectional connection requiring the cable to be installed in a specific direction, the end marked Source plugs into a DisplayPort source and the end marked Display plugs into a DisplayPort TV, monitor, projector, and other display devices

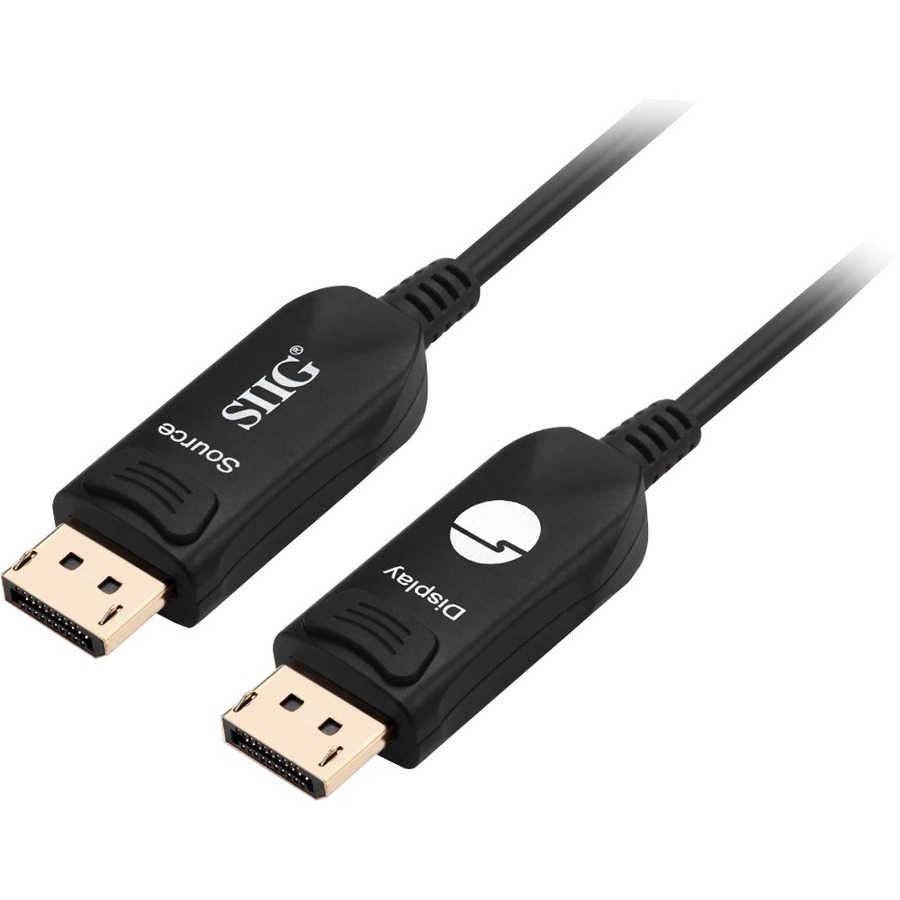

• Premium quality latching DisplayPort connector prevents accidental disconnection

• Plug and Play and hot swappable

Highlights

  • For exceptional quality, upright compatibility and reliability use this a/v cable
  • Features fiber optic cable type to better accommodate your precise power supply requirements with maximum charging productivity
  • Ensures a protection from EMI and RF signals
  • Audio/Video Device device supported for better reliance and optimal performance

Specifications

Cable Length49.21 ft
Product TypeA/V Cable
Data Transfer Rate21.6 Gbit/s
Device SupportedAudio/Video Device, Monitor, TV, Projector, HDTV, Desktop Computer, Notebook
Manufacturer Part NumberCB-DP2211-S1
Limited Warranty2 Year
Weight (Approximate)1.48 lb
FeaturesActive, EMI/RF Protection, Locking Latch, Plug & Play, HDCP 2.2, HDCP 1.4
ManufacturerSIIG, Inc
Product Name4K DisplayPort 1.2 AOC Cable - 15M
Brand NameSIIG
Country of OriginChina
Environmentally FriendlyYes
Cable TypeFiber Optic
Connector Type on First EndDisplayPort 1.2 Digital Audio/Video - Male
Connector Type on Second EndDisplayPort 1.2 Digital Audio/Video - Male
Connector PlatingGold
American Wire Gauge26 AWG
Supported Resolution3840 x 2160
Jacket MaterialPolyvinyl Chloride (PVC)
Product ColorBlack
Connector on First End Details1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Male
Connector on Second End Details1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Male
