Omnitron Systems iConverter 10/100M 8902-0-F Transceiver/Media Converter

Carrier-Grade optical Ethernet Network Interface Device

• Integrated SNMPv1, SNMPv2c, SNMPv3 and IP-less 802.3ah management

• 802.3ah Link OAM for early fault detection and performance monitoring

• VLAN with Q-in-Q for E-Line and E-LAN services

• Quality of Service for Voice/Data/Video over Ethernet

• Bandwidth control (rate limiting)

• Port MIB statistics and optical performance statistics to support Service Level Agreements

• Port Access Control for enhanced security

• Configurable Link Fault Propagation modes

• Small Form Pluggable (SFP) transceivers with Optical Statistics for standard or CWDM applications

• Fixed-fiber connectors available for multimode and single-mode dual fiber and single-mode single-fiber

• UTP auto-crossover and auto-negotiation of data rate, duplex modes and pause capabilities

• Commercial (0 to 50ºC) and wide (-40º to 60ºC) temperature ranges

• MEF Certified Compliant

• NEBS Level 3 Compliant

• Lifetime Warranty and free 24/7 Technical Support

The iConverter 10/100M conforms to the Ethernet in the First Mile (EFM) fiber standards to support Fiber-to-the-X Metropolitan and Enterprise LAN networks. The 10/100M provides intelligent, securely managed service demarcation at the customer premises, offering Quality of Service and Bandwidth Control (rate-limiting) capabilities. The 10/100M features built-in Operations, Administration and Maintenance (OAM) with comprehensive performance monitoring, fault detection and provisioning.

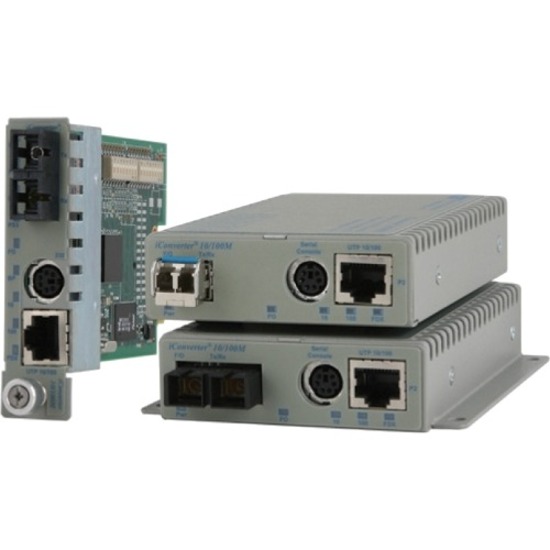

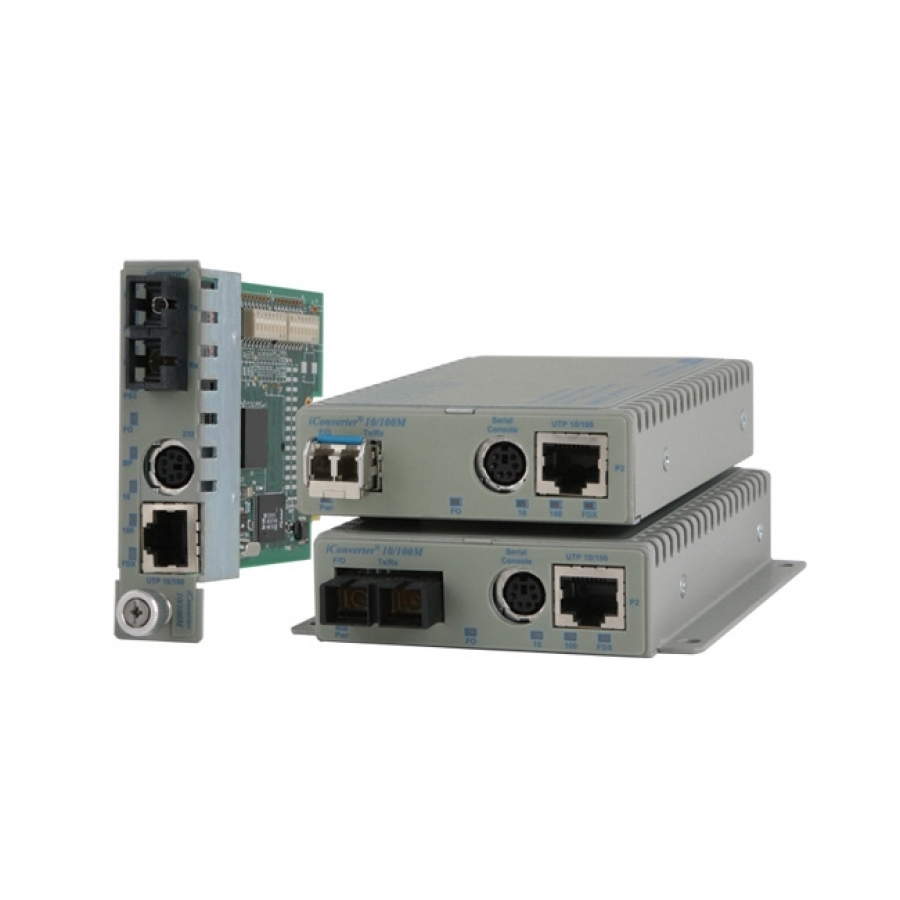

The 10/100M is available as a compact standalone unit or as a chassis plug-in module. The hot-swappable 10/100M plug-in module can be mounted in a 19 or 5-Module chassis with any combination of redundant AC and DC power supplies. It can also be mounted in a 2-Module AC or DC powered chassis, or in a 1-Module chassis with AC or DC power input.

The plug-in module can manage other modules in the same chassis and operate as a managed 10/100 media converter. It features two Ethernet backplane ports for connectivity to adjacent modules in a chassis for multi-port and multi-service configurations.

The standalone 10/100M is available as a tabletop or wall-mount unit. The tabletop model can be DIN-rail mounted using an optional DIN-rail mounting kit. Both the tabletop and the wall-mount models are DC powered and are available with an external AC/DC power adapter or a terminal connector for DC power. The 10/100M standalone unit combines management capability with a compact chassis for deployment at the demarcation point.

Carrier-Grade Optical Ethernet

iConverter fiber access Network Interface Devices and media converters are MEF certified compliant and NEBS Level 3 compliant. iConverter NIDs enable Carrier-Grade Optical Ethernet with reliability and performance monitoring to support Service Level Agreements (SLAs).

The modular design of iConverter fiber access equipment future-proofs Metro Ethernet services with scalability of network services and lowers operating costs with comprehensive OAM management and provisioning.
