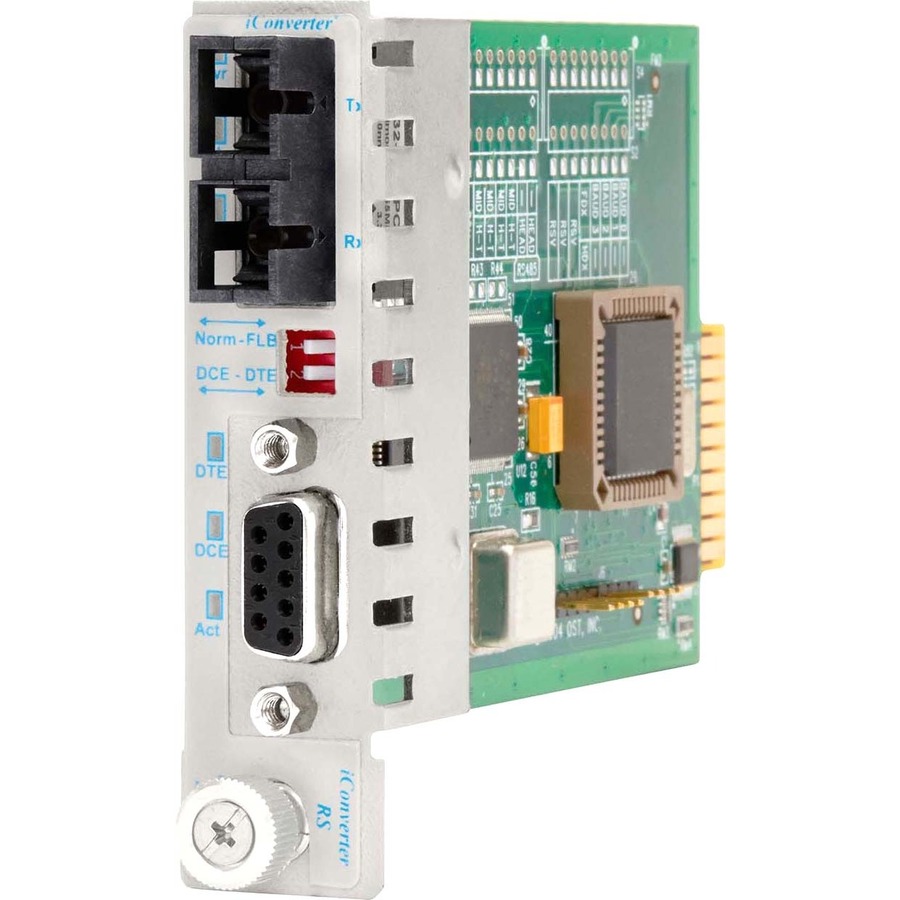

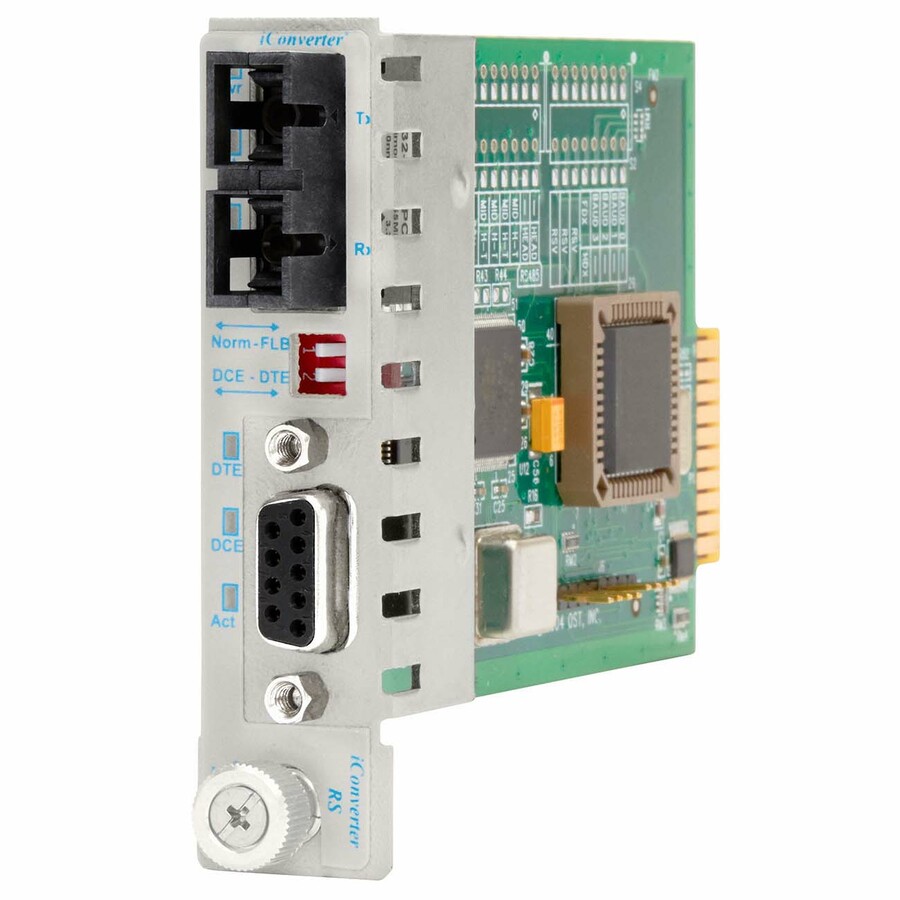

iConverter RS-232 Serial Fiber Media Converter DB-9 SC Single-Mode 30km Module
1 x RS-232; 1 x SC Single-Mode; Internal Module; Lifetime Warranty
- SKU
- 8763-1
- Category
- Transceivers/Media Converters
MSRP$1,161.66
$861.22
Save 26%Back ordered — ships when restocked.
Genuine Omnitron Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 8763-1
- Category
- Transceivers/Media Converters
Overview
The Omnitron iConverter RS232 is a manageable serial RS-232 to fiber converter that transmits serial protocol over fiber media. Fiber transmission extends the serial signals up to 120km, and is immune from electrical and magnetic interference.
The serial port interface is available with either a DB-9 female connector or terminal block connector for field wiring.
The RS232 automatically detects the signal baud rate of the connected serial device, ranging from 110 to 921,600 baud. It also automatically adjusts to changes in the connected device's baud rate during operation without reconfiguration or interruption of service.
Highlights
- Supports optical fiber cable to span longer distances and provides data transmission rates par excellence between networks and different devices
- Attach multiple devices together or expand the number of devices connected to your existing network by using 2 transceiver/media converter
- Rackmountable feature for convenient and safe installation of device
Specifications
| Package Contents |
|
|---|---|
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | 8763-1 |
| Maximum Distance Supported | 30 km |
| Limited Warranty | Lifetime |
| Weight (Approximate) | 8 oz |
| Form Factor | Rack-mountable, Desktop, Internal, Wall Mountable, Mountable |
| Manufacturer | Omnitron Systems |
| Product Model | 8763-1-x |
| Product Name | iConverter RS232 DB-9 SC Single-Mode 30km Plug-In Module |
| Package Type | Retail |
| Product Line | iConverter |
| Product Series | RS232 |
| Brand Name | Omnitron Systems |
| Country of Origin | United States |
| Height | 2.8" |
| Width | 0.9" |
| Depth | 4.5" |
| Environmentally Friendly | Yes |
| Number of SC Ports | 1 |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Total Number of Ports | 2 |
| SC Port Type | Duplex |
| Fiber Optic Cable Wavelength | 1310 nm |
