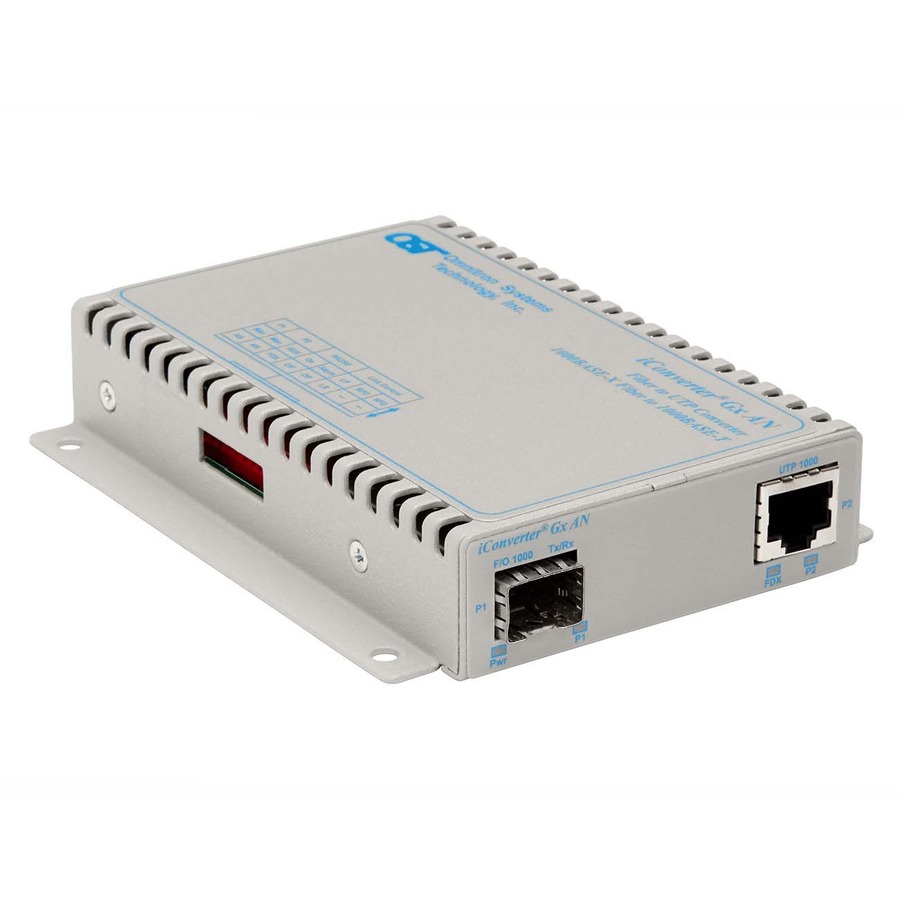

iConverter 1000Mbps Gigabit Ethernet Fiber Media Converter RJ45 SFP
1 x 1000BASE-T; 1 x 1000BASE-X (SFP); Wall-Mount Standalone; US AC Powered; Lifetime Warranty
- SKU
- 8519N-0-D
- Category
- Transceivers/Media Converters
MSRP$595.00
$443.23
Save 26%Back ordered — ships when restocked.
Genuine Omnitron Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 8519N-0-D
- Category
- Transceivers/Media Converters
Overview
The iConverter Gx AN Media Converter is a manageable media converter that provides 1000BASE-T UTP to 1000BASE-X fiber conversion between Gigabit networking devices.
The UTP port supports auto-negotiation or forced negotiation of duplex modes and pause capability while the fiber port supports both manual or auto-negotiation.
• SFP models support Small Form Pluggable (SFP) transceivers with Optical Statistics for standard or CWDM applications
• Fixed-fiber connectors available for multimode and single-mode dual fiber and single-mode single-fiber
• UTP auto or forced negotitaion of duplex modes and pause capabilities
• Fiber port supports auto or manual negotiation
• User-selectable link fault detection modes facilitate quick fault detection, isolation and reporting
• Management of the plug-in module is available with the addition of a management module to the chassis
• SNMP management via NetOutlook" provides module information, remote parameter configuration and trap notification
• Plug-in modules are hot-swappable in 19-Module, 5-Module, 2-Module or 1-Module chassis
• LED displays for immediate visual status of each port
• Lifetime Warranty and free 24/7 Technical Support
Highlights
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Connect different types of media within a network with this single port
- With 1000Base-BX10-D technology get up to 1000Mbps data transfer rate over optical fiber cable
- Rack mounting enables you to organize wires & secure cables for professional installation
Specifications
| Package Contents |
|
|---|---|
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | 8519N-0-D |
| Limited Warranty | Lifetime |
| Weight (Approximate) | 1 lb |
| Form Factor | Rack-mountable, Desktop, External, Wall Mountable, Mountable |
| Manufacturer | Omnitron Systems |
| Product Model | 8519N-0-x |
| Product Name | iConverter Gx AN SFP Wall-Mount Standalone US AC Powered |
| Network Technology | 1000Base-BX10-D, 1000Base-LX, 1000Base-X, 1000Base-LX10, 1000Base-BX-D, 1000Base-T, 1000Base-ZX, 1000Base-BX10-U, 1000Base-BX, 1000Base-LX/SX, 1000Base-LX/LH, 1000Base-SX/LX, 1000Base-BX-U, 1000Base-SX |
| Package Type | Retail |
| Product Line | iConverter |
| Product Series | Gx AN |
| Brand Name | Omnitron Systems |
| Expansion Slot Type | SFP |
| Country of Origin | United States |
| Height | 1" |
| Width | 3.8" |
| Depth | 4.8" |
| Environmentally Friendly | Yes |
| Ethernet Technology | Gigabit Ethernet |
| USB | No |
| DVI | No |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of SFP Slots | 1 |
| Management Port | No |
| Media Type Supported | Twisted Pair, Optical Fiber |
| Total Number of Ports | 1 |
| Total Number of Expansion Slots | 1 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
