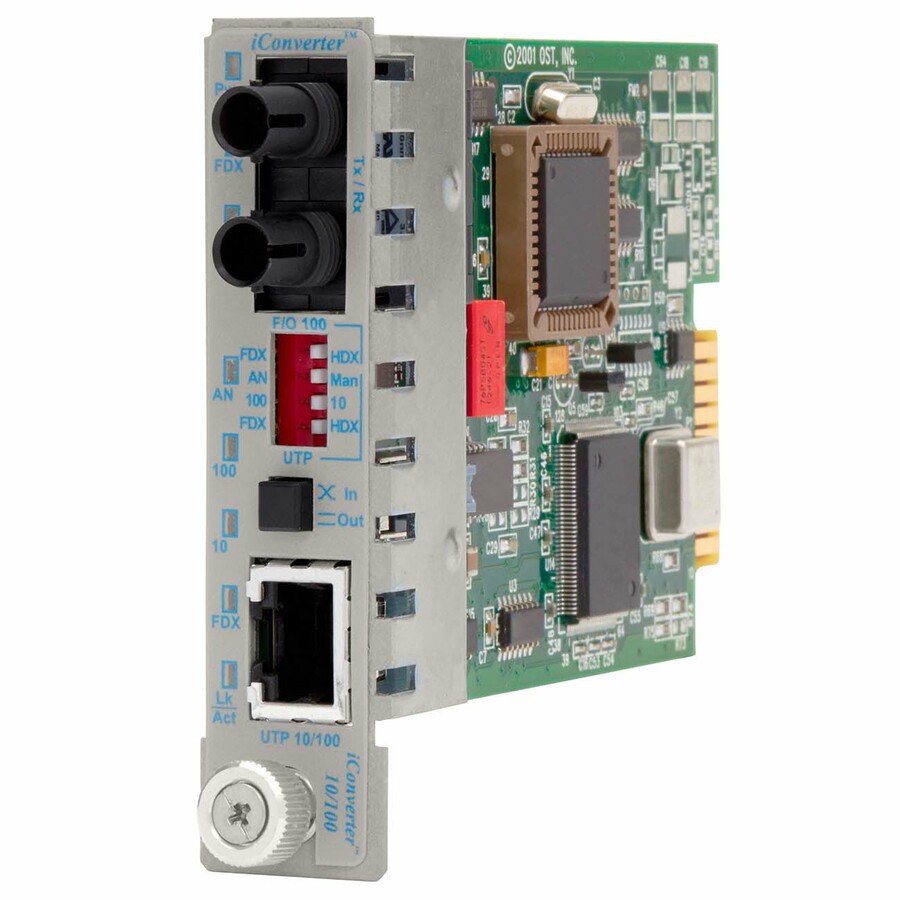

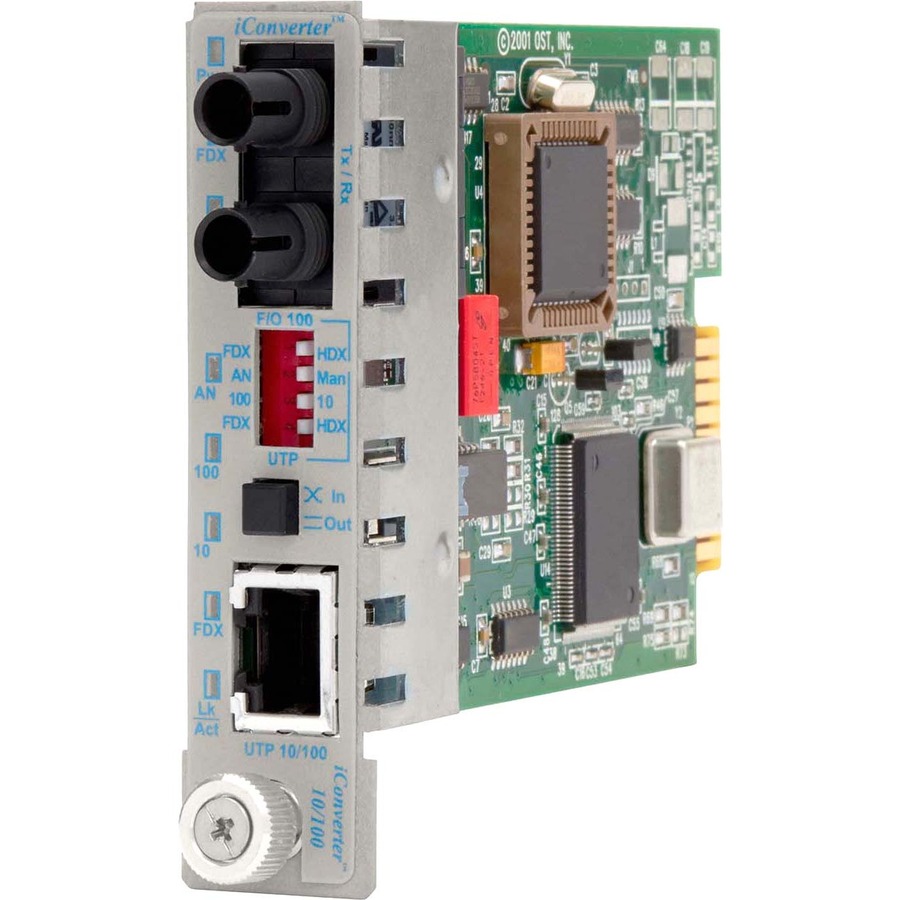

iConverter 10/100 Ethernet Fiber Media Converter RJ45 ST Single-Mode 30km Module
1 x 10/100BASE-TX; 1 x 100BASE-LX; Internal Module; Lifetime Warranty
- SKU
- 8381-1
- Category
- Transceivers/Media Converters
MSRP$695.00
$515.31
Save 26%Back ordered — ships when restocked.
Genuine Omnitron Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 8381-1
- Category
- Transceivers/Media Converters
Overview
The iConverter 10/100 manageable media converter is a member of the modular iConverter product family. It provides UTP to Fiber conversion as well as rate conversion between 10BASE-T or 100BASE-Tx and 100BASE-Fx fiber. The 10/100 features user-selectable Link Propagate, Link Segment and Remote Fault Detection modes to facilitate quick fault detection, isolation and reporting.
• UTP port with 10/100 automatically supports Half or Full-Duplex auto-negotiation with a manual crossover switch
• User-selectable link fault detection modes facilitate quick fault detection, isolation and reporting
• Management is available with the addition of a management module to the chassis
• Modules are hot-swappable in 19-Module, 5-Module, 2-Module or 1-Module chassis
• Wide Temperature models available with temperature range of -40 to +60" C
• Lifetime Warranty and free 24/7 Technical Support
Highlights
- Supports twisted pair cables for durability and improved signal transfer while ensuring smooth and seamless data transfer
- Attach multiple devices together or expand the number of devices connected to your existing network by using 2 transceiver/media converter
- With 10/100Base-TX technology get up to 100Mbps data transfer rate over twisted pair cable
- The Rail-mountable provides convenient installation
Specifications
| Package Contents |
|
|---|---|
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | 8381-1 |
| Maximum Distance Supported | 30 km |
| Limited Warranty | Lifetime |
| Form Factor | Rail-mountable, Desktop, Internal, Wall Mountable |
| Manufacturer | Omnitron Systems |
| Product Model | 8381-1-x |
| Product Name | iConverter 10/100 ST Single-Mode 30km Plug-In Module |
| Network Technology | 10/100Base-TX, 100Base-LX |
| Package Type | Retail |
| Power Consumption | 3 W |
| Product Line | iConverter |
| Product Series | 10/100 |
| Brand Name | Omnitron Systems |
| Country of Origin | United States |
| Height | 2.8" |
| Width | 1" |
| Depth | 4.5" |
| Environmentally Friendly | Yes |
| Ethernet Technology | Ethernet, Fast Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of ST Ports | 1 |
| Media Type Supported | Twisted Pair, Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Total Number of Ports | 2 |
| ST Port Type | Duplex |
| Fiber Optic Cable Wavelength | 1310 nm |
