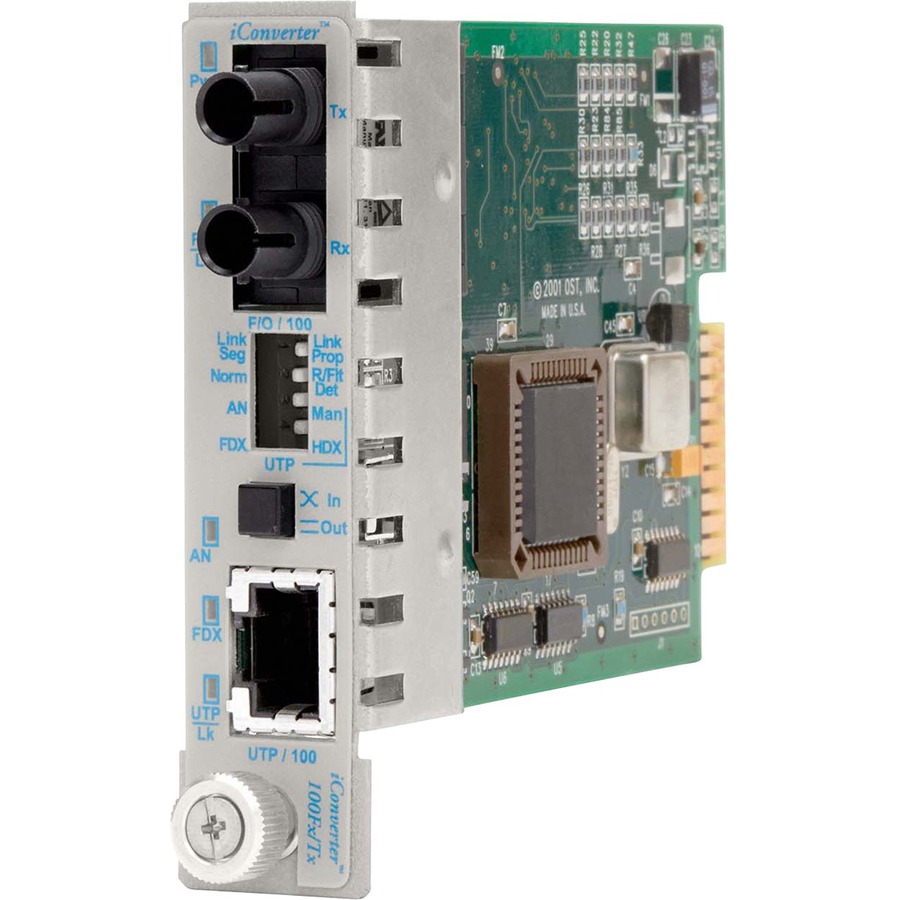

iConverter 100Mbps Ethernet Fiber Media Converter RJ45 ST Multimode 5km Module
1 x 100BASE-TX; 1 x 100BASE-FX; Internal Module; Lifetime Warranty
- SKU
- 8360-0
- Category
- Transceivers/Media Converters
MSRP$555.00
$412.89
Save 26%Back ordered — ships when restocked.
Genuine Omnitron Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 8360-0
- Category
- Transceivers/Media Converters
Overview
The iConverter 100Fx/Tx manageable media converter is a member of the modular iConverter product family. It provides 100Base-Tx UTP to 100Base-Fx Fiber conversion. This iConverter 100Fx/Tx is available single-mode. It support ST connector. The UTP port supports 100Base-Tx in either half or full duplex mode. A UTP crossover switch eliminates the need for a crossover cable and facilitates connectivity to network equipment such as hubs, switches and workstations.
• UTP port supports Full or Half-Duplex 100Mbps Ethernet
• UTP crossover switch eliminates the need for a crossover cable
• User-selectable link fault detection modes facilitate quick fault detection, isolation and reporting
• Management is available with the addition of a management module to the chassis
• Modules are hot-swappable in 19-Module, 5-Module, 2-Module or 1-Module chassis
• LED displays for immediate visual status of each port
• Lifetime Warranty and free 24/7 Technical Support
Highlights
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Expand your network capabilities with this 2 transceiver/media converter
- With 100Base-TX technology get up to 100Mbps data transfer rate over twisted pair cable
- The Rail-mountable provides convenient installation
Specifications
| Package Contents |
|
|---|---|
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | 8360-0 |
| Maximum Distance Supported | 5.01 km |
| Limited Warranty | Lifetime |
| Weight (Approximate) | 8 oz |
| Form Factor | Rail-mountable, Desktop, Internal, Wall Mountable |
| Manufacturer | Omnitron Systems |
| Product Model | 8360-0-x |
| Product Name | iConverter 100Fx/Tx ST Multimode 5km Plug-In Module |
| Network Technology | 100Base-TX, 100Base-FX |
| Package Type | Retail |
| Power Consumption | 2 W |
| Product Line | iConverter |
| Product Series | 100Fx/Tx |
| Brand Name | Omnitron Systems |
| Country of Origin | United States |
| Height | 2.8" |
| Width | 0.9" |
| Depth | 4.5" |
| Environmentally Friendly | Yes |
| Ethernet Technology | Fast Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of ST Ports | 1 |
| Media Type Supported | Twisted Pair, Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Total Number of Ports | 2 |
| ST Port Type | Duplex |
| Fiber Optic Cable Wavelength | 1310 nm |
