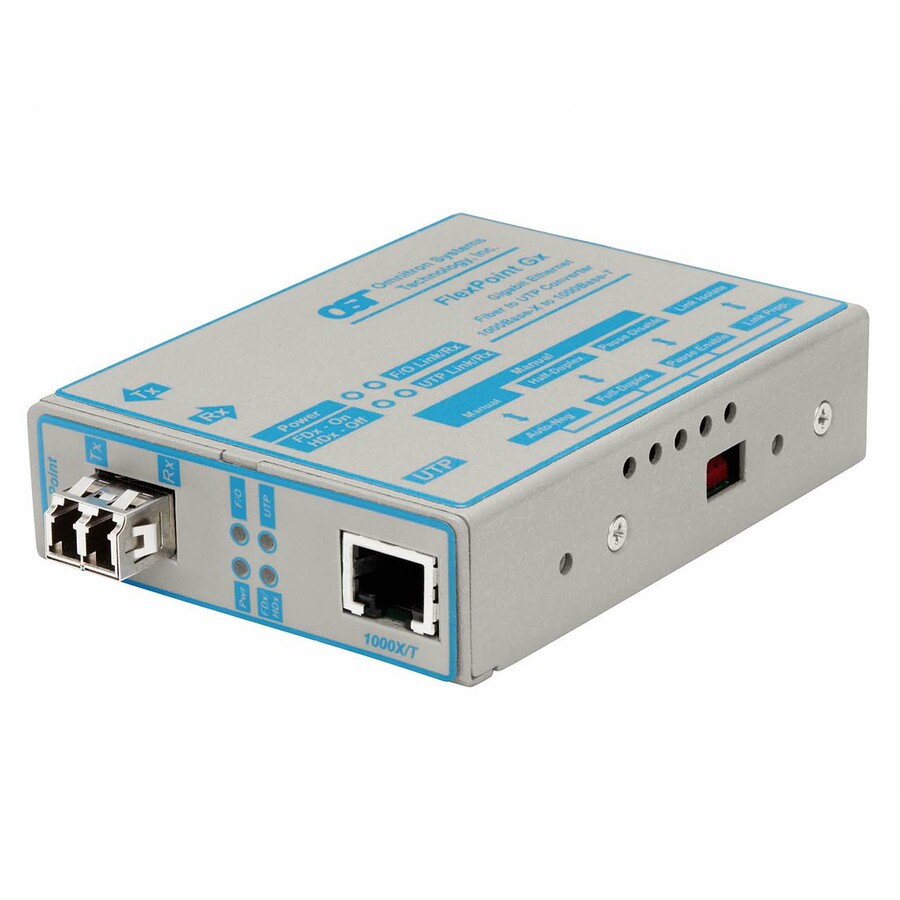

FlexPoint 1000Mbps Gigabit Ethernet Fiber Media Converter RJ45 LC Multimode 550m
1 x 1000BASE-T; 1 x 1000BASE-SX; US AC Powered; Lifetime Warranty
- SKU
- 4672-1
- Category
- Transceivers/Media Converters
MSRP$432.77
$322.31
Save 26%Back ordered — ships when restocked.
Genuine Omnitron Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 4672-1
- Category
- Transceivers/Media Converters
Overview

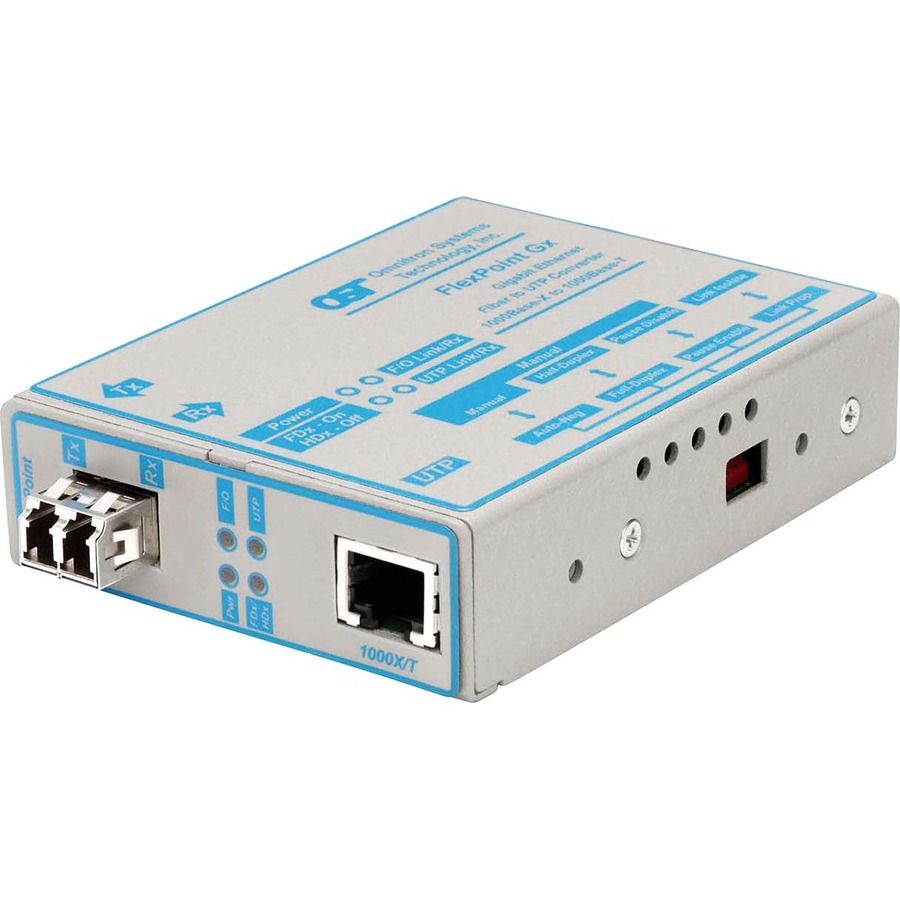

The FlexPoint Gx is a 1000BASE-T UTP to 1000BASE-SX/LX fiber media converter that provides reliable and cost-effective network connectivity and fiber extension.
The FlexPoint Gx auto-negotiates with most network devices for quick installations. Manual switch settings and LED indicators with on-the-label descriptions enable easy configuration with different network requirements.
The FlexPoint Gx features an auto-sensing UTP port that adjusts to the duplex and pause mode of the attached device. A switch provides manual control over the Half/Full-Duplex operation of UTP port. The port features a crossover switch that facilitates connection to a workstation or switch.
• The FlexPoint Gx is a Gigabit Ethernet 1000BASE-T to 1000BASE-SX/LX fiber media converter
• Fiber port supports auto or manual negotiation
• UTP port supports Full and Half-Duplex operation
• Extends network distances up to 80km
• User-selectable or Auto-sensing Pause flow control
• Supports most network interfaces with a wide variety of cable and connector types
• User-selectable Link Modes for quick fault detection
• Labeled status LEDs and switches for quick and easy installation
• Features a crossover switch for connection to switches or workstations
• Wall-mount or rack-mount on a 5-Module shelf or in a 14-Module power-redundant FlexPoint
• Powered Chassis
• Completely software independent with no installation of drivers required
• Peace-of-mind reliability backed by a lifetime warranty and free 24/7 technical support
Highlights
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Attach multiple devices together or expand the number of devices connected to your existing network by using 2 transceiver/media converter
- With 1000Base-T technology get up to 1000Mbps data transfer rate over twisted pair cable
- Rackmountable feature for convenient and safe installation of device
Specifications
| Package Contents |
|
|---|---|
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | 4672-1 |
| Maximum Distance Supported | 0.55 km |
| Limited Warranty | Lifetime |
| Weight (Approximate) | 6 oz |
| Form Factor | Rack-mountable, Desktop, External, Wall Mountable |
| Manufacturer | Omnitron Systems |
| Product Model | 4672-x |
| Product Name | FlexPoint Gx LC Multimode 550m US AC Powered |
| Network Technology | 1000Base-T, 1000Base-SX |
| Package Type | Retail |
| Product Line | FlexPoint |
| Brand Name | Omnitron Systems |
| Country of Origin | United States |
| Height | 1" |
| Width | 3" |
| Depth | 4" |
| Environmentally Friendly | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of LC Ports | 1 |
| Media Type Supported | Twisted Pair, Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Total Number of Ports | 2 |
| LC Port Type | Duplex |
| Fiber Optic Cable Wavelength | 850 nm |
