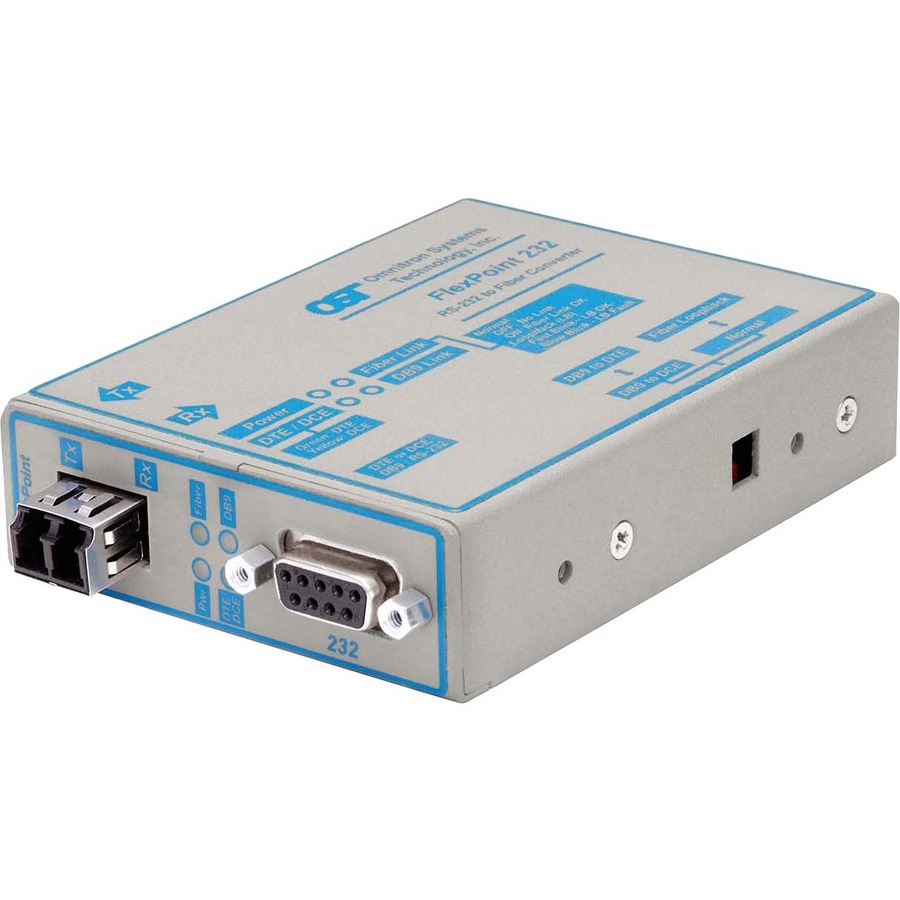

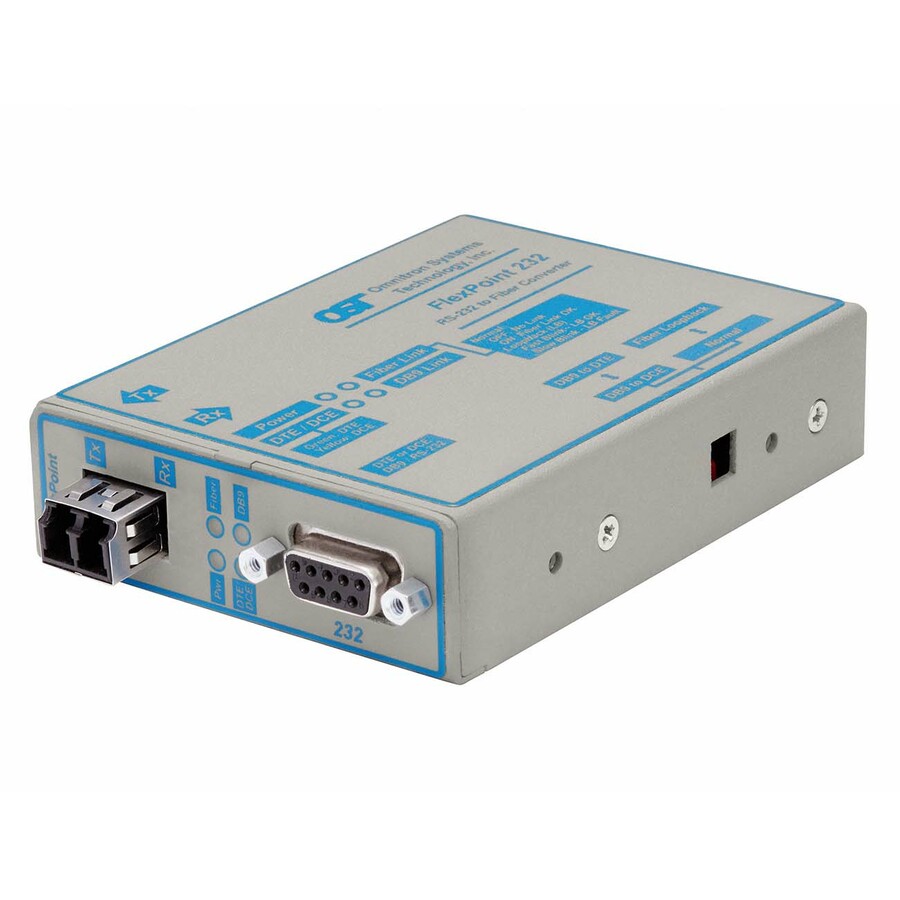

FlexPoint RS-232 Serial Fiber Media Converter DB-9 LC Single-mode 30km
1 x RS-232; 1 x LC Single-mode; US AC Powered; Lifetime Warranty
- SKU
- 4489-21
- Category
- Transceivers/Media Converters
MSRP$1,044.91
$775.00
Save 26%Back ordered — ships when restocked.
Genuine Omnitron Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 4489-21
- Category
- Transceivers/Media Converters
Overview
The FlexPoint 232 is a serial RS-232 to fiber media converter, automatically supporting speeds of up to 115,200 baud. Models are available with multimode or single-mode fiber port, capable of extending serial connection up to 28km.
The FlexPoint 232 supports both half-duplex and full-duplex modes of operation. It features a DTE/DCE configuration for easy connection to DTE or DCE devices using straight-through cabling. Also supports software flow control via XON and XOFF, and hardware flow control via RTS, CTS, DCD, DTR and DCR. It can be mounted stand-alone utilizing optional wall-mounting hardware. It can also be rack-mounted using a 5-unit rack-mounting shelf or in a 14-unit FlexPoint Powered Chassis.
Highlights
- Supports optical fiber cable to span longer distances and provides data transmission rates par excellence between networks and different devices
- Attach multiple devices together or expand the number of devices connected to your existing network by using 2 transceiver/media converter
- Rack mounting enables you to organize wires & secure cables for professional installation
Specifications
| Package Contents |
|
|---|---|
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | 4489-21 |
| Maximum Distance Supported | 30 km |
| Limited Warranty | Lifetime |
| Weight (Approximate) | 6 oz |
| Form Factor | Rack-mountable, Desktop, External, Wall Mountable |
| Manufacturer | Omnitron Systems |
| Product Model | 4489-x |
| Product Name | FlexPoint 232 DB-9 LC Single-mode 30km US AC Powered |
| Package Type | Retail |
| Product Line | FlexPoint |
| Product Series | 232 |
| Brand Name | Omnitron Systems |
| Country of Origin | United States |
| Height | 1" |
| Width | 3" |
| Depth | 4" |
| Environmentally Friendly | Yes |
| Number of LC Ports | 1 |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Total Number of Ports | 2 |
| LC Port Type | Duplex |
| Fiber Optic Cable Core/Cladding Specification | 9/125 µm |
| Fiber Optic Cable Wavelength | 1310 nm |
