FlexPoint 100Mbps Ethernet Fiber to Fiber Media Converter SC Multimode 5km to Single-Mode 30km
1 x 100BASE-FX; 1 x 100BASE-LX; US AC Powered; Lifetime Warranty
- SKU
- 4411-1
- Category
- Transceivers/Media Converters
MSRP$312.40
$233.65
Save 25%Back ordered — ships when restocked.
Genuine Omnitron Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 4411-1
- Category
- Transceivers/Media Converters
Overview

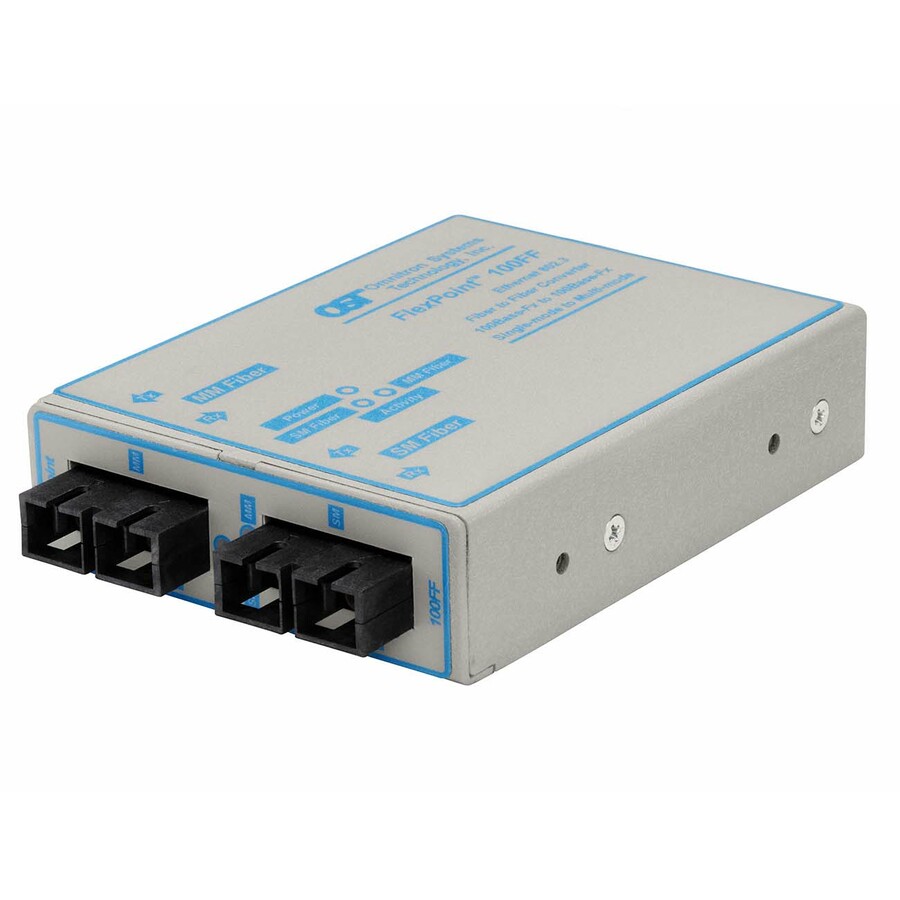

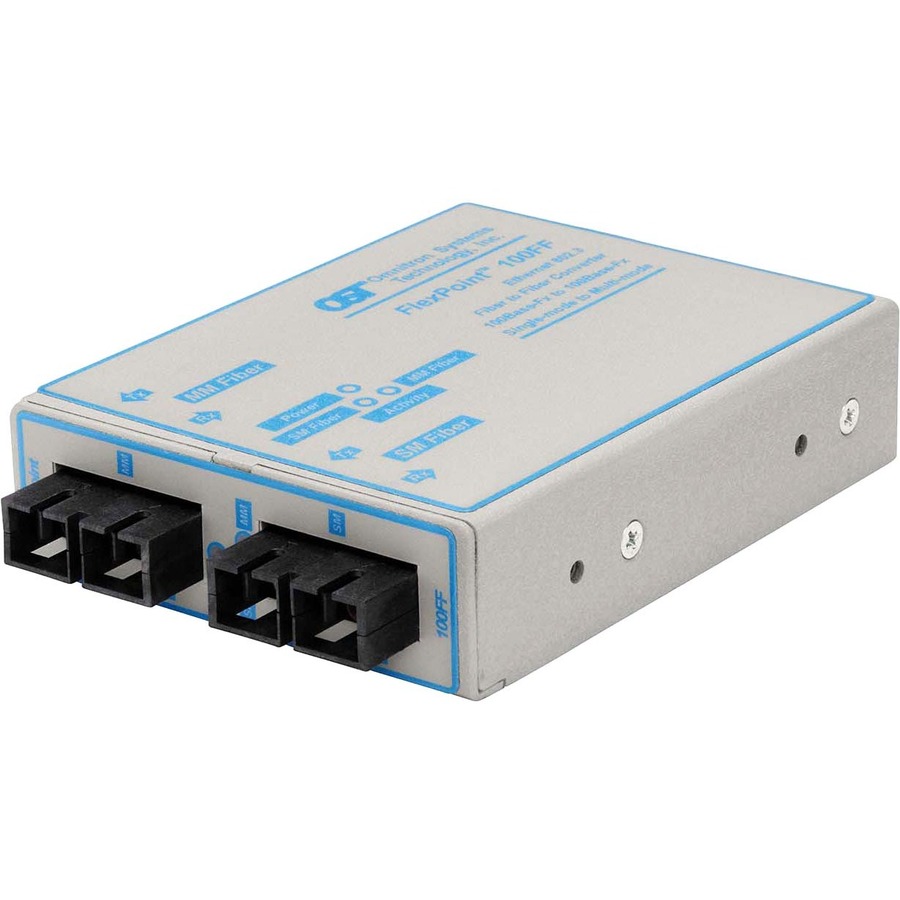

The FlexPoint 100FF is a protocol-transparent fiber converter that provides reliable and cost-effective extension of network distances by connecting multimode fiber networks or devices over single-mode fiber cabling.
The FlexPoint 100FF is designed to operate with a constant rate signal between 1Mbps to 100Mbps allowing the converter to be used in Ethernet networks as well as other fiber-to-fiber protocol applications.
No manual configuration is required with the plug-and-play FlexPoint 100FF. Connect the fiber cables to the appropriate interface and the installation is complete.
The FlexPoint 100FF features descriptions of the LED indicators on the label for easy in-the-field installation and maintenance. The LEDs report the availability of power and the detection of devices attached to the fiber ports.
FlexPoint modules can be mounted utilizing optional wall-mounting hardware or with DIN-rail mounting brackets. They can also be rack-mounted in a 5-Module shelf or in a high-density 14-Module, power-redundant Powered Chassis.
Highlights
- Supports optical fiber cable to span longer distances and provides data transmission rates par excellence between networks and different devices
- Meet the multiple network connectivity needs of today's network environment with this 2 transceiver/media converter
- With 100Base-FX technology get up to 100Mbps data transfer rate over optical fiber cable
- Rackmountable feature for convenient and safe installation of device
Specifications
| Package Contents |
|
|---|---|
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | 4411-1 |
| Maximum Distance Supported | 30 km |
| Limited Warranty | Lifetime |
| Weight (Approximate) | 6 oz |
| Form Factor | Rack-mountable, Desktop, External, Wall Mountable |
| Manufacturer | Omnitron Systems |
| Product Model | 4411-x |
| Product Name | FlexPoint 100FF SC Multimode 5km to SC Single-Mode 30km US AC Powered |
| Network Technology | 100Base-FX, 100Base-LX |
| Package Type | Retail |
| Product Line | FlexPoint |
| Product Series | 100FF |
| Brand Name | Omnitron Systems |
| Country of Origin | United States |
| Height | 1" |
| Width | 3" |
| Depth | 4" |
| Environmentally Friendly | Yes |
| Ethernet Technology | Fast Ethernet |
| Number of SC Ports | 2 |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode, Single-mode |
| Total Number of Ports | 2 |
| SC Port Type | Duplex |
