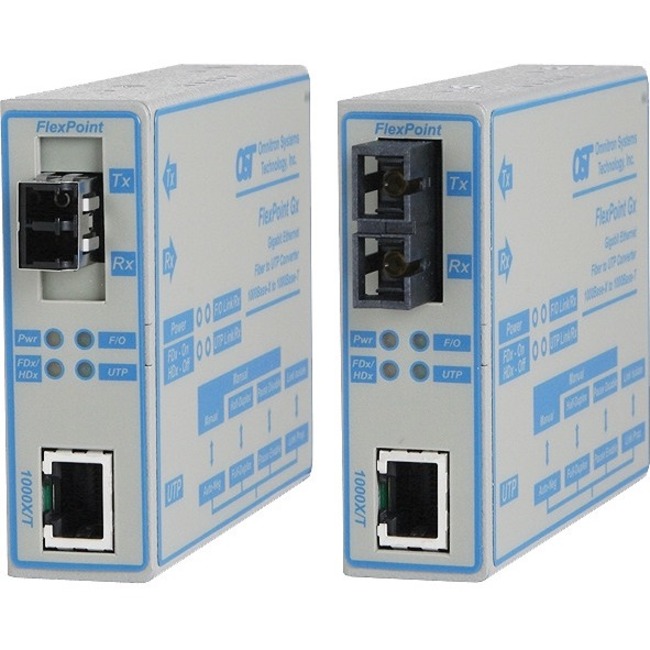

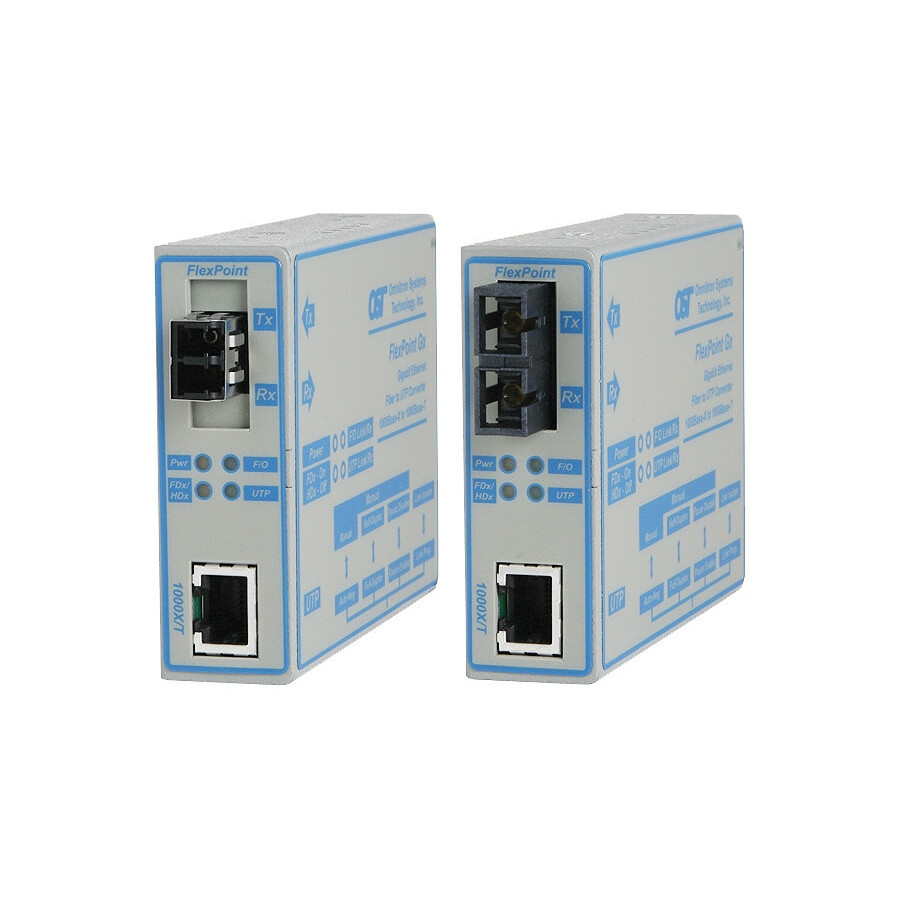

Omnitron Systems Gigabit Ethernet Copper to Fiber Media Converter
1 x Network (RJ-45) - 1 x ST Ports - DuplexST Port - Multi-mode - 850 nm Fiber - Gigabit Ethernet - 1000Base-X, 1000Base-T - 0.55 km - AC Adapter - Wall Mountable, DIN Rail Mountable, Rack-mountable, Standalone
- SKU
- 4376-2
- Category
- Transceivers/Media Converters
MSRP$398.10
$296.79
Save 25%Back ordered — ships when restocked.
Genuine Omnitron Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 4376-2
- Category
- Transceivers/Media Converters
Overview
The FlexPoint Gx is a 1000BASE-T copper to 1000BASE-SX/LX fiber media converter that provides reliable and cost-effective network connectivity and fiber extension.
The FlexPoint Gx auto-negotiates with compatible network devices for quick installations. Manual switch settings and LED indicators with on-the-label descriptions enable easy configuration with legacy network requirements.
The FlexPoint Gx features an auto-sensing RJ-45 port that adjusts to the duplex and pause mode of the attached device. A switch provides manual control over the Half/Full-Duplex operation of RJ-45 port. The port features a crossover switch that facilitates connection to a workstation or switch.
Network flow control is supported via an auto-selected or user-selected Pause function that assists in management of network congestion.
The fiber port operates at 850nm, 1310nm or 1550nm and supports SC, MT-RJ or LC connectors. Multimode models support distances of up to 550m and the single-mode models support distances of up to 140km.
User-selectable link modes are available to facilitate the detection of link faults. Faults can be propagated to managed devices or isolated to a per segment basis.
Diagnostic data is provided through LED indicators that assist in network installation and maintenance. The LEDs report the availability of power, port activity and link status and duplex mode.
FlexPoint modules can be mounted utilizing optional wallmounting hardware or with DIN-rail mounting brackets. They can also be rack-mounted in a 5-Module shelf or in a highdensity 14-Module, power-redundant Powered Chassis.
FlexPoint modules installed in the 5-Module shelf or used as standalone devices can be powered by an external AC to DC power adapter, or through the 5VDC chassis connector. Standalone modules can also be powered by attaching an external DC power supply (18-60VDC). When used in the 14-Module power-redundant Powered Chassis with any combination of AC and DC power supplies, the installed modules are powered via the 5VDC chassis connector.
The wide variety of FlexPoint mounting and power options provide flexible upgrade paths as network requirements change and grow.
FlexPoint unmanaged media converters are easy to use and provide dependable fiber connectivity in Enterprise and Government networks around the world.
Highlights
- The FlexPoint Gx is a Gigabit Ethernet 1000BASE-T copper to 1000BASE-SX/LX fiber media converter
- Fiber port supports auto or manual negotiation
- RJ-45 port supports Full and Half-Duplex operation
- Extends network distances up to 140km
- User-selectable or Auto-sensing Pause flow control
- Supports most network interfaces with a wide variety of cable and connector types
- User-selectable Link Modes for quick fault detection
- Labeled status LEDs and switches for quick and easy installation
- Auto MDI/MDI-X crossover
- Wall-mount or rack-mount on a 5-Module shelf or in a 14-Module power-redundant FlexPoint Powered Chassis
Specifications
| Package Contents |
|
|---|---|
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | 4376-2 |
| Maximum Distance Supported | 0.55 km |
| Power Source | AC Adapter |
| Limited Warranty | Lifetime |
| Weight (Approximate) | 6 oz |
| Form Factor | Wall Mountable, DIN Rail Mountable, Rack-mountable, Standalone |
| Manufacturer | Omnitron Systems |
| Product Model | 4376-2 |
| Product Name | Gigabit Ethernet Copper to Fiber Media Converter |
| Network Technology | 1000Base-X, 1000Base-T |
| Product Line | FlexPoint |
| Product Series | Gx |
| Brand Name | Omnitron Systems |
| Plug/Connector Type | IEC Connector |
| Country of Origin | United States |
| Height | 1" |
| Width | 3" |
| Depth | 4" |
| Environmentally Friendly | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of ST Ports | 1 |
| Media Type Supported | Optical Fiber, Twisted Pair |
| Fiber Mode Supported | Multi-mode |
| Total Number of Ports | 2 |
| ST Port Type | Duplex |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS) 2, Restriction of Hazardous Substances (RoHS) |
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm, 62.5/125 µm |
| Fiber Optic Cable Wavelength | 850 nm |
