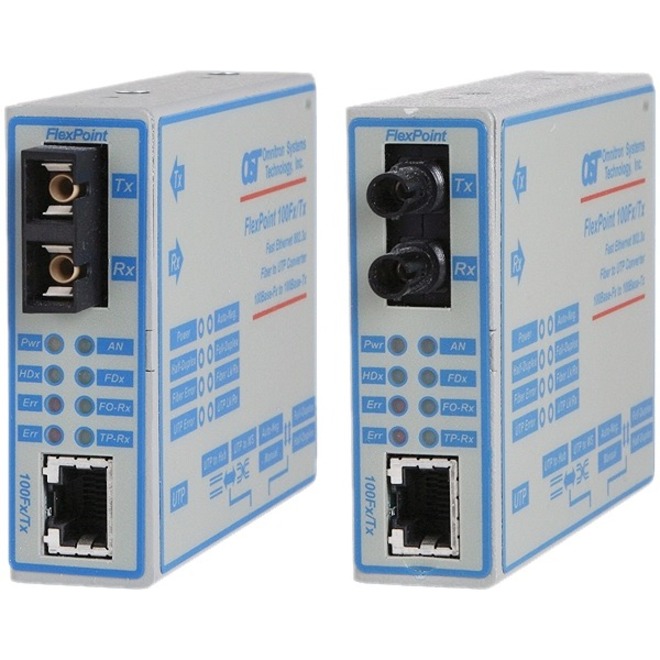

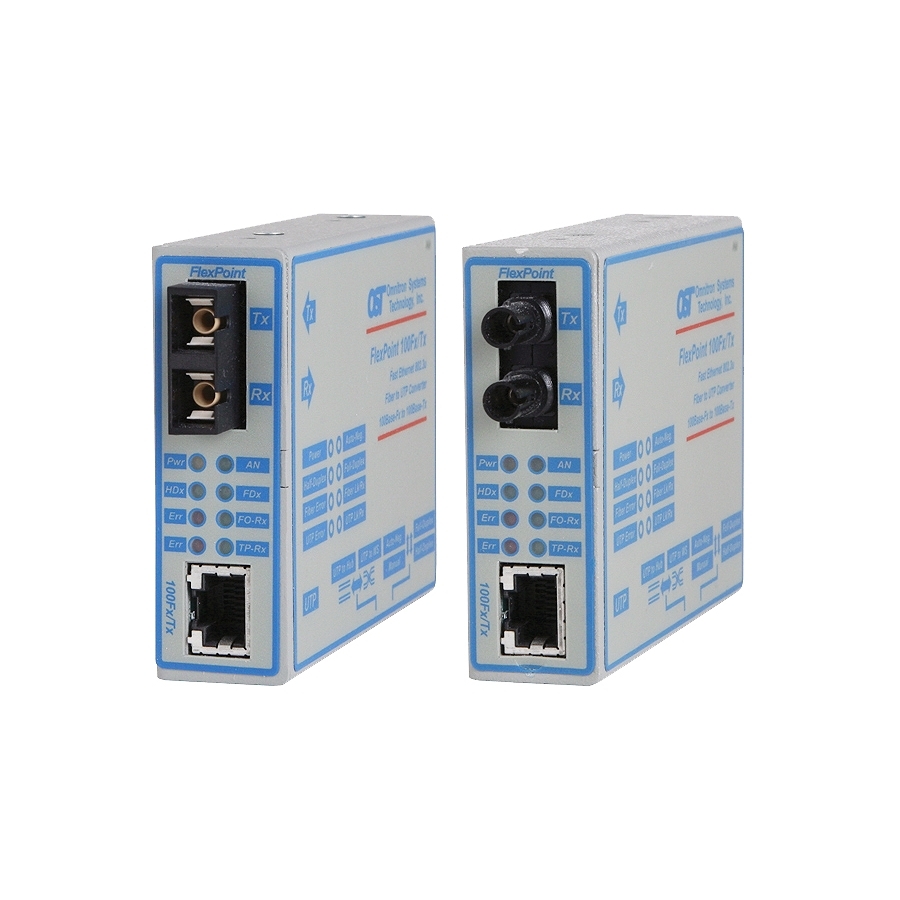

Omnitron Systems FlexPoint 100Fx/Tx Fast Ethernet Copper to Fiber Media Converter
1 x Network (RJ-45) - 1 x SC Ports - SimplexSC Port - Single-mode - 1310 nm, 1550 nm Fiber - Fast Ethernet - 100Base-TX, 100Base-FX - 20 km - AC Adapter - Rail-mountable, Standalone, Wall Mountable, Rack-mountable - TAA Compliant
- SKU
- 4352-21
- Category
- Transceivers/Media Converters
MSRP$728.88
$540.74
Save 26%Back ordered — ships when restocked.
Genuine Omnitron Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 4352-21
- Category
- Transceivers/Media Converters
Overview
The FlexPoint 100Fx/Tx is a 100BASE-TX copper to fiber 100BASE-FX media converter that provides reliable and cost-effective network connectivity and fiber extension.
The FlexPoint 100Fx/Tx RJ-45 port auto-negotiates to the highest level of performance supported by the attached device. Manual switch settings and LED indicators with on-the-label descriptions enable easy configuration to legacy devices or matching specific network requirements.
The FlexPoint 100Fx/Tx fiber port operates at 1310nm or 1550nm and supports ST, SC, MT-RJ or LC connectors. Multimode models support distances of up to 5km and single-mode models support distances of up to 120km.
Diagnostic data is provided through LED indicators that assist in network installation and maintenance. The LEDs report the availability of power, port activity and link status, duplex mode and error indicators.
The FlexPoint 100Fx/Tx features a crossover switch that eliminates the need for a crossover cable and facilitates connectivity to network equipment such as switches or workstations.
FlexPoint modules can be mounted utilizing optional wall-mounting hardware or with DIN-rail mounting brackets. They can also be rack-mounted in a 5-Module shelf or in a high-density 14-Module, power-redundant Powered Chassis.
FlexPoint modules installed in the 5-Module shelf or used as standalone devices can be powered by an external AC to DC power adapter, or through the 5VDC chassis connector. Standalone modules can also be powered by attaching an external DC power supply (18-60VDC). When used in the 14-Module power-redundant Powered Chassis with any combination of AC and DC power supplies, the installed modules are powered via the 5VDC chassis connector.
The wide variety of FlexPoint mounting and power options provide flexible upgrade paths as network requirements change and grow.
FlexPoint unmanaged media converters are easy to use and provide dependable fiber connectivity in Enterprise and Government networks around the world.
Highlights
- Supports auto-negotiation of duplex modes for easy installation
- Extends network distances up to 120km Supports most network interfaces with a wide variety of cable and connector types
- Labeled status LEDs and switches for quick and easy installation
- Features a crossover switch for connection to switches or workstations
- Wall-mount or rack-mount on a 5-Module shelf or in a 14-Module power-redundant FlexPoint Powered Chassis
- Commercial (0 to 50°C) and wide (-40 to 60°C) temperature ranges
- Completely software independent with no installation of drivers required
- Peace-of-mind reliability backed by a lifetime warranty and free 24/7 technical support
Specifications
| Package Contents |
|
|---|---|
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | 4352-21 |
| Maximum Distance Supported | 20 km |
| Power Source | AC Adapter |
| Limited Warranty | Lifetime |
| Weight (Approximate) | 6 oz |
| Form Factor | Rail-mountable, Standalone, Wall Mountable, Rack-mountable |
| Manufacturer | Omnitron Systems |
| Product Model | 4352-21 |
| Product Name | FlexPoint 100Fx/Tx Fast Ethernet Copper to Fiber Media Converter |
| Network Technology | 100Base-TX, 100Base-FX |
| Product Line | FlexPoint |
| Product Series | 100Fx/Tx |
| Brand Name | Omnitron Systems |
| Country of Origin | United States |
| Height | 1" |
| Width | 3" |
| Depth | 4" |
| Environmentally Friendly | Yes |
| Ethernet Technology | Fast Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of SC Ports | 1 |
| Media Type Supported | Twisted Pair, Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Total Number of Ports | 2 |
| SC Port Type | Simplex |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2, Waste Electrical and Electronic Equipment Directive (WEEE), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Fiber Optic Cable Core/Cladding Specification | 9/125 µm |
| Fiber Optic Cable Wavelength | 1310 nm, 1550 nm |
