FlexPoint 100Mbps Ethernet Fiber Media Converter RJ45 SC Single-Mode 30km
1 x 100BASE-TX; 1 x 100BASE-LX; No Power Adapter; Lifetime Warranty
- SKU
- 4331-0
- Category
- Transceivers/Media Converters
MSRP$618.10
$459.85
Save 26%Back ordered — ships when restocked.
Genuine Omnitron Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 4331-0
- Category
- Transceivers/Media Converters
Overview

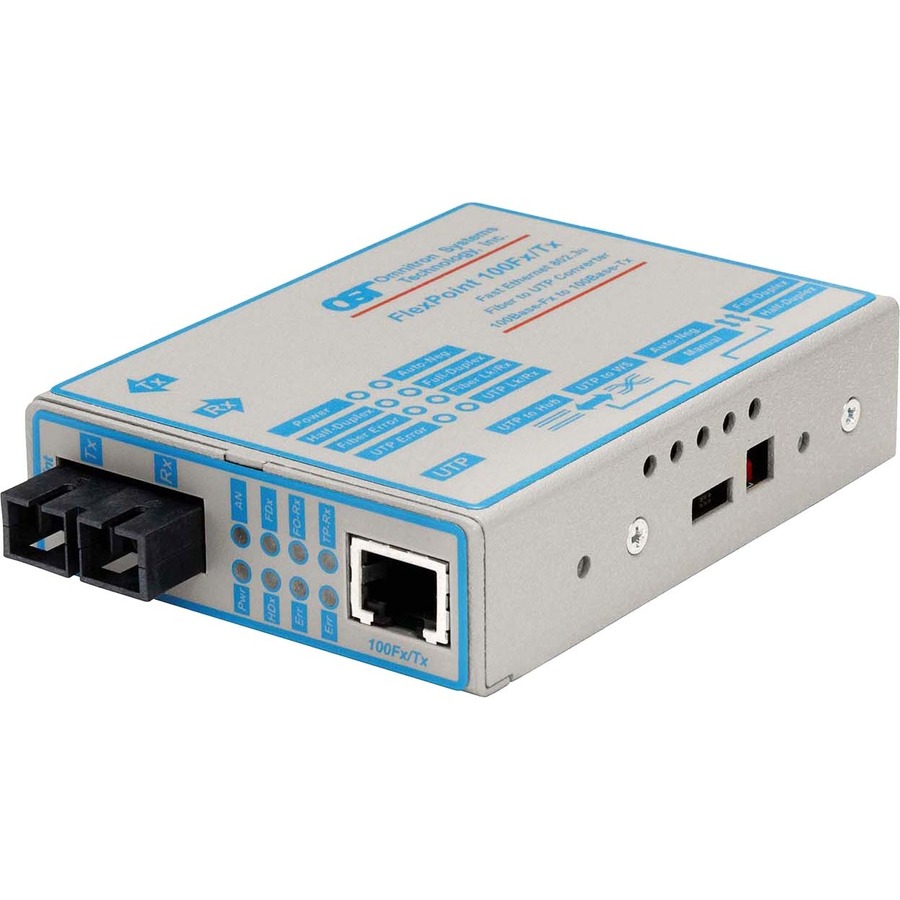

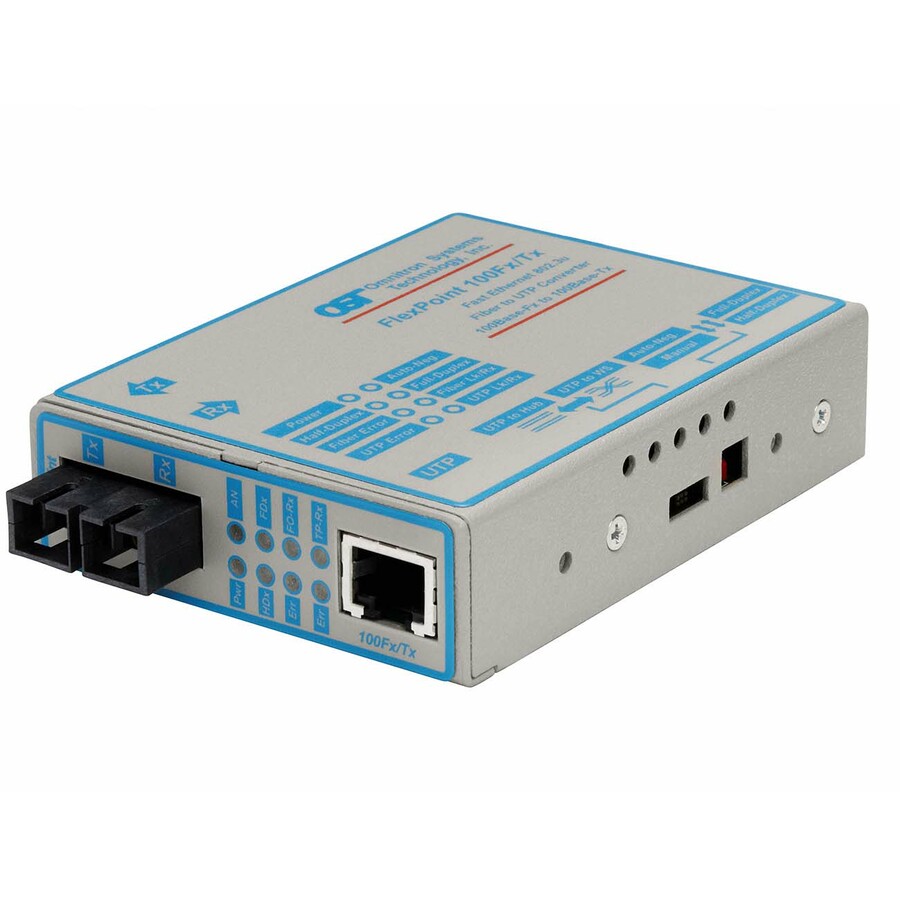

The FlexPoint 100Fx/Tx is a 100BASE-FX fiber to 100BASE-TX UTP media converter that provides reliable and cost-effective network connectivity and fiber extension.
The FlexPoint 100Fx/Tx UTP port auto-negotiates to the highest level of performance supported by the attached device. Manual switch settings and LED indicators with on-the-label descriptions enable easy configuration to legacy devices or matching specific network requirements.
• The FlexPoint 100Fx/Tx is a 100BASE-FX fiber to 100BASE-TX UTP media converter
• Supports auto-negotiation of duplex modes for easy installation
• Extends network distances up to 120km
• Supports most network interfaces with a wide variety of cable and connector types
• Labeled status LEDs and switches for quick and easy installation
• Features a crossover switch for connection to switches or workstations
• Wall-mount or rack-mount on a 5-Module shelf or in a 14-Module power-redundant FlexPoint
• Powered Chassis
• Completely software independent with no installation of drivers required
• Peace-of-mind reliability backed by a lifetime warranty and free 24/7 technical support
Highlights
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Expand your network capacity and fulfill requirement with this 2 transceiver/media converter
- With 100Base-TX technology get up to 100Mbps data transfer rate over twisted pair cable
- The Rail-mountable provides convenient installation
Specifications
| Package Contents |
|
|---|---|
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | 4331-0 |
| Maximum Distance Supported | 30 km |
| Limited Warranty | Lifetime |
| Weight (Approximate) | 6 oz |
| Form Factor | Rail-mountable, Desktop, External, Wall Mountable |
| Manufacturer | Omnitron Systems |
| Product Model | 4331-x |
| Product Name | FlexPoint 100Fx/Tx SC Single-Mode 30km No Power Adapter |
| Network Technology | 100Base-TX, 100Base-LX |
| Package Type | Retail |
| Product Line | FlexPoint |
| Product Series | 100Fx/Tx |
| Brand Name | Omnitron Systems |
| Country of Origin | United States |
| Height | 1" |
| Width | 3" |
| Depth | 4" |
| Environmentally Friendly | Yes |
| Ethernet Technology | Fast Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of SC Ports | 1 |
| Media Type Supported | Twisted Pair, Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Total Number of Ports | 2 |
| SC Port Type | Duplex |
| Fiber Optic Cable Wavelength | 1310 nm |
