FlexPoint 10Mbps Ethernet Fiber Media Converter RJ45 ST Multimode 5km
1 x 10BASE-T; 1 x 10BASE-FX; US AC Powered; Lifetime Warranty
- SKU
- 4302-1
- Category
- Transceivers/Media Converters
MSRP$801.66
$595.15
Save 26%Back ordered — ships when restocked.
Genuine Omnitron Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 4302-1
- Category
- Transceivers/Media Converters
Overview

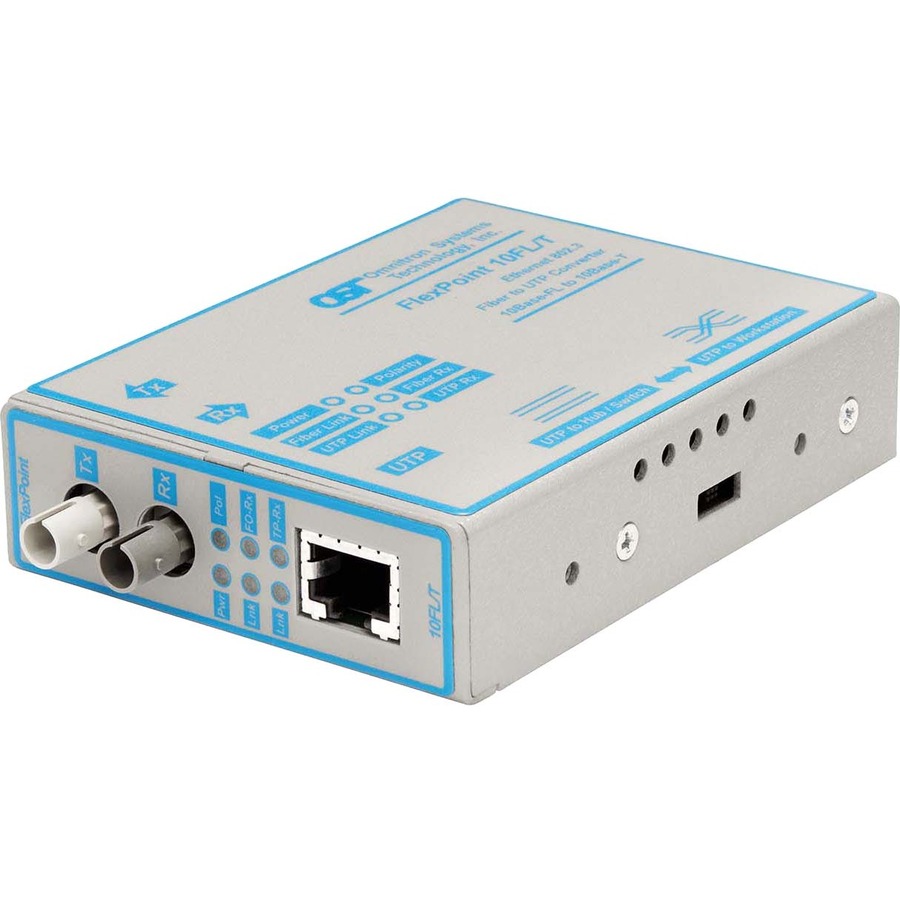

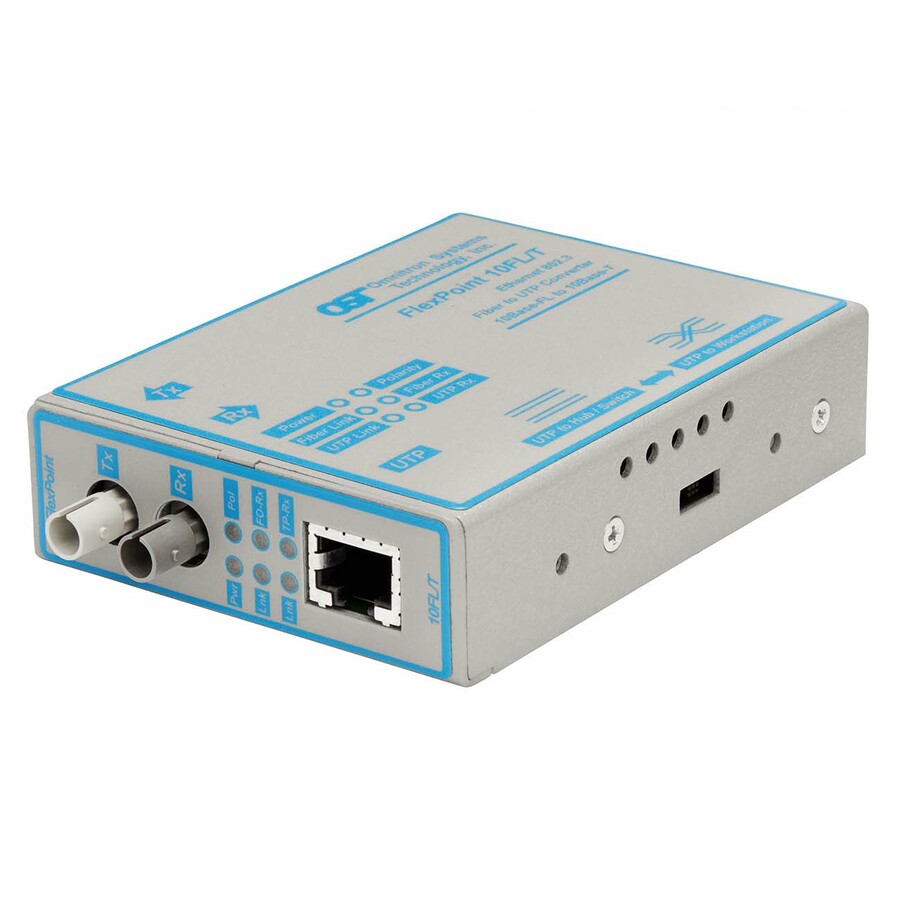

The FlexPoint 10FL/T is a 10BASE-FL fiber to 10BASE-T UTP media converter that provides reliable and cost-effective network connectivity and fiber extension.
The UTP port auto-negotiates the duplex mode of the attached device for plug-and-play installations. The port detects and corrects wiring polarity reversals, and features a crossover switch that eliminates the need for a crossover cable and facilitates connectivity to network equipment such as hubs, switches and workstations.
The fiber port operates at 850nm, 1310nm or 1550nm, and features ST, SC or MT-RJ connectors. Multimode fiber models support distances of up to 5km, and single-mode fiber models support distances of up to 120km.
Highlights
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Attach multiple devices together or expand the number of devices connected to your existing network by using 2 transceiver/media converter
- With 10Base-FL technology get up to 10Mbps data transfer rate over optical fiber cable
- Rack mounting enables you to organize wires & secure cables for professional installation
Specifications
| Package Contents |
|
|---|---|
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | 4302-1 |
| Maximum Distance Supported | 5.01 km |
| Limited Warranty | Lifetime |
| Weight (Approximate) | 6 oz |
| Form Factor | Rack-mountable, Desktop, External, Wall Mountable |
| Manufacturer | Omnitron Systems |
| Product Model | 4302-x |
| Product Name | FlexPoint 10FL/T ST Multimode 5km US AC Powered |
| Network Technology | 10Base-FL, 10Base-T, 10Base-FX |
| Package Type | Retail |
| Product Line | FlexPoint |
| Product Series | 10FL/T |
| Brand Name | Omnitron Systems |
| Country of Origin | United States |
| Height | 1" |
| Width | 3" |
| Depth | 4" |
| Environmentally Friendly | Yes |
| Ethernet Technology | Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of ST Ports | 1 |
| Media Type Supported | Twisted Pair, Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Total Number of Ports | 2 |
| ST Port Type | Duplex |
