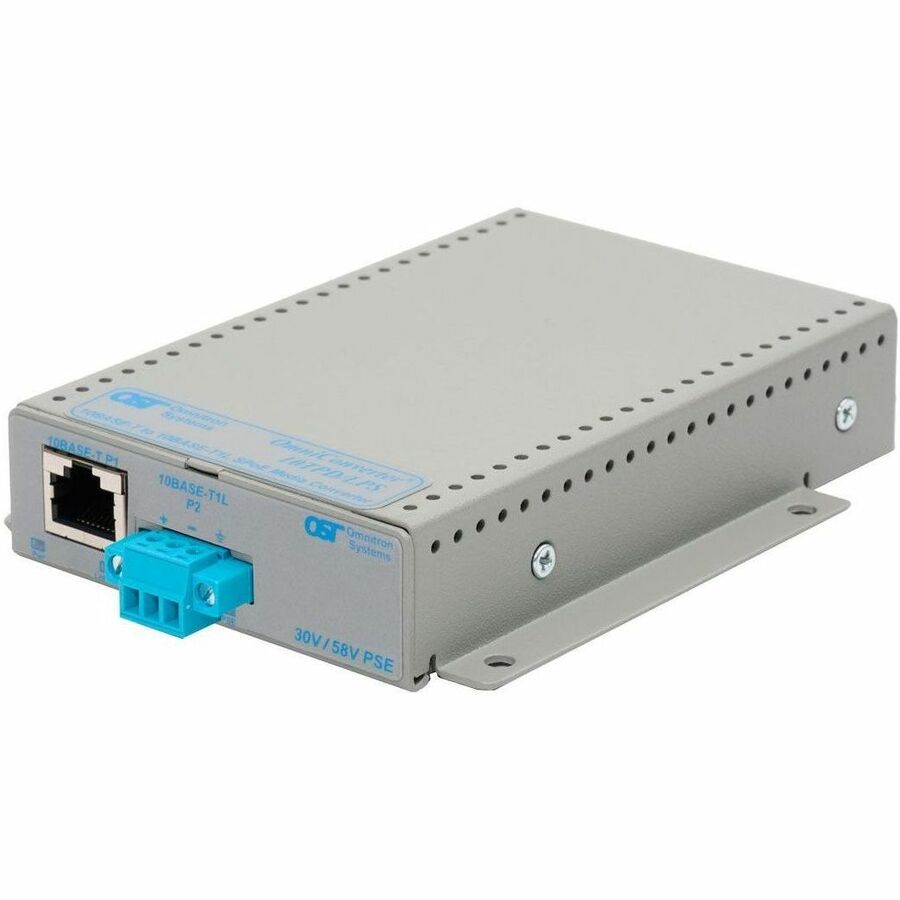

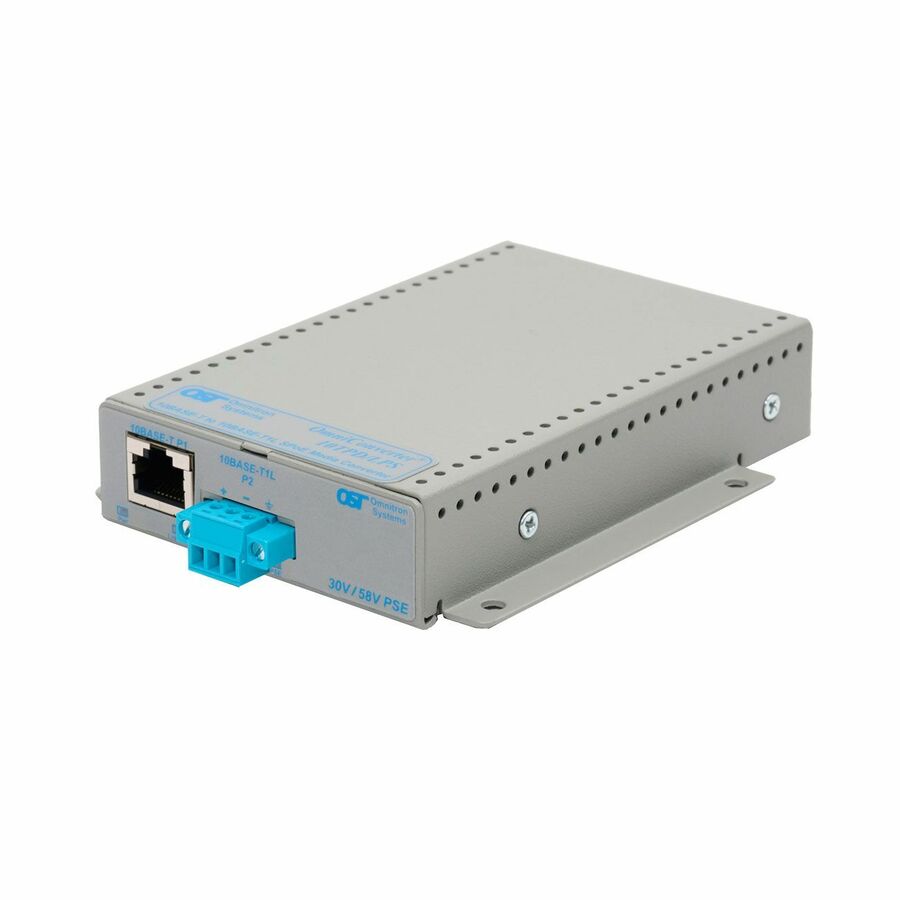

OmniConverter 10T/LPS 1 x 10BASE-T PD RJ-45 and 1 x 10BASE-T1L Terminal SPoE, No Power AC Barrel, Extended Temp, Wall Mount
Omnitron Systems

OmniConverter 10T/LPS 1 x 10BASE-T PD RJ-45 and 1 x 10BASE-T1L Terminal SPoE, No Power AC Barrel, Extended Temp, Wall Mount

1 x 10BASE-T, 1 x 10BASE-T1L, US AC Powered, Lifetime Warranty

SKU
2030-00-10Z
Category
Transceivers/Media Converters

MSRP$1,030.00

$763.94

Save 26%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Omnitron Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
2030-00-10Z
Category
Transceivers/Media Converters

Overview

The OmniConverter Single Pair Power over Ethernet converters are IEEE 802.3cg compliant products that function as PoE injectors and Powered Devices. They convert 10BASE-T PD Ethernet to single-pair 10BASE-T1L Ethernet. They use single-pair Ethernet cabling (SPE) to extend the Ethernet link distance up to 1km. The Single Pair Power over Ethernet converters feature one IEEE 802.3cg compliant 10BASE-T1L terminal or IEC 63171-1 or IEC 63171-2 or IEC 63171-6 SPE port and one 10BASE-T PD RJ-45 port supporting 10Mbps full-duplex data rates.

Highlights

  • Unmanaged 10BASE-T to 10BASE-T1L Single-Pair Power over Ethernet converter
  • IEEE 802.3cg single-pair Ethernet on terminal or IEC 63171-2 SPE connector
  • Power over Ethernet: 10BASET - PoE+/PSE or PoE+/PD - 10BASE-T1L - SPoE/PSE or SPoE/PD
  • Automatic detection of Class 10 through Class 15 PD devices
  • 12VDC or 24VDC Power Splitter output
  • AC to DC Power Adapter or 2-Pin DC terminal
  • DIN-rail mount with optional brackets
  • Commercial (0 to +50ºC), wide (-40 to +60ºC) and extended (-40 to +75ºC) operating temperature ranges
  • TAA, BAA and NDAA compliant
  • Made in the USA

Specifications

Package Contents
  • OmniConverter 10T/LPS 10BASE-T PD to 10BASE-T1L Media Converter RJ-45 T1L SPE 3-Pin Terminal
  • User Manual
Product TypeTransceiver/Media Converter
Manufacturer Part Number2030-00-10Z
Maximum Distance Supported1 km
Power SourcePower Adapter
Limited WarrantyLifetime
Weight (Approximate)1 lb
Form FactorWall Mountable, DIN Rail Mountable
ManufacturerOmnitron Systems
Product Model2030-00-10Z
Product NameOmniConverter 10T/LPS 10BASE-T PD to 10BASE-T1L Media Converter RJ-45 T1L SPE 3-Pin Terminal
Network Technology10Base-T, 10Base-T1L
Package TypeRetail
Product LineOmniConverter
Brand NameOmnitron Systems
Plug/Connector TypeBarrel
Country of OriginUnited States
Height3.8"
Width4.8"
Depth1"
Ethernet TechnologyEthernet
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Media Type SupportedTwisted Pair
Total Number of Ports2
TAA CompliantYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Waste Electrical and Electronic Equipment Directive (WEEE)
