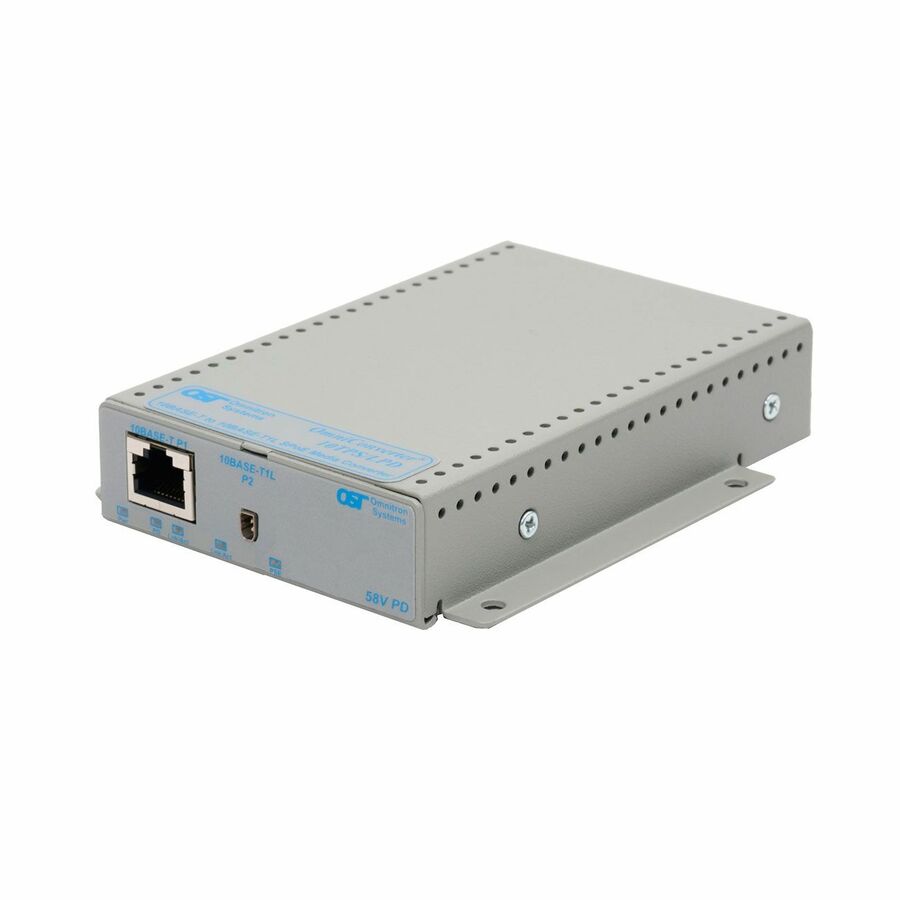

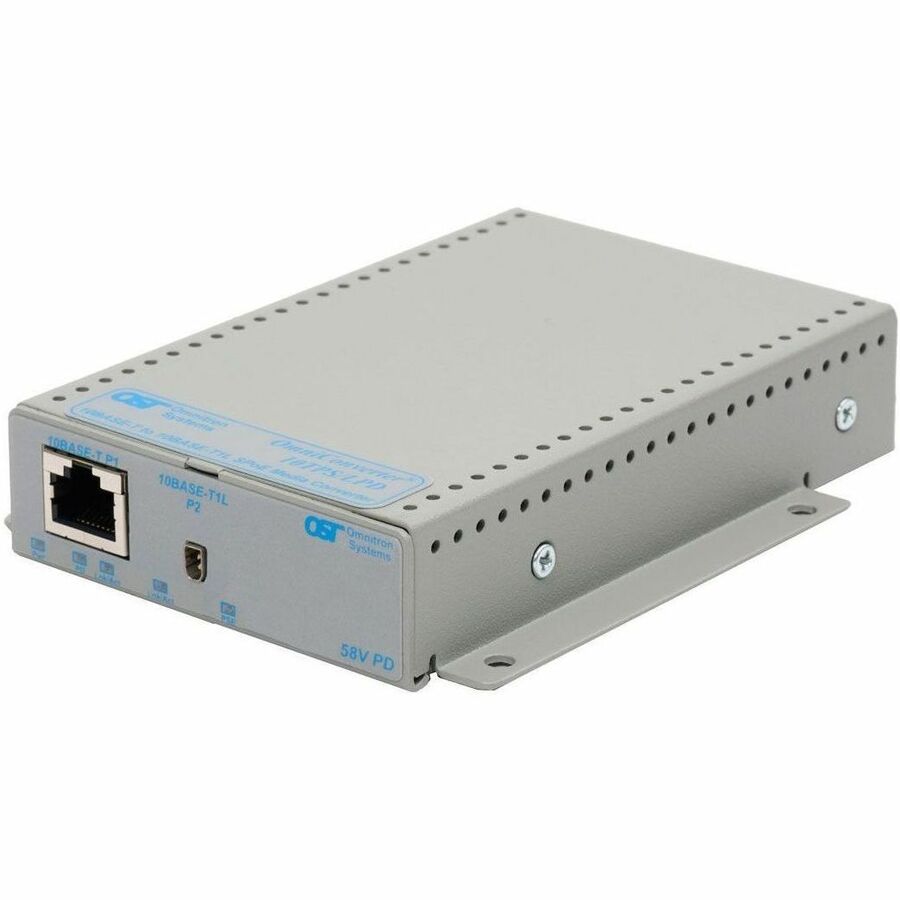

OmniConverter 10T/APS 1 x 10BASE-T RJ-45 and 1 x 10BASE-T1L IEC SPE Jack APS Class A, DC Terminal, Extended Temp
1 x 10BASE-T, 1 x 10BASE-T1L, DC Terminal, Lifetime Warranty
- SKU
- 2022-20-19Z
- Category
- Transceivers/Media Converters
MSRP$682.00
$505.99
Save 26%Back ordered — ships when restocked.
Genuine Omnitron Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 2022-20-19Z
- Category
- Transceivers/Media Converters
Overview
The OmniConverter 10T/APS Single Pair Ethernet converters are 10BASE-T1L products that convert 10BASE-T Ethernet to 10BASE-T1L Ethernet. They are designed for digital instrumentation solutions used for industrial control processes. They utilize single-pair Ethernet cabling (SPE) to extend the Ethernet link distance up to 200 or 1000 meters depending on the model number.
The 10T/APS converters feature one 10BASE-T1L 3-pin terminal or IEC 63171-2 port and one 10BASE-T RJ-45 port supporting 10Mbps full-duplex data rates.
Omnitron 10T/APS converters are interoperable with Ethernet-APL Class A, C, 3 and 4 edge/field devices and act as a Power Source capable of delivering up to 56 watts, depending on the model number. The 10T/APS models 2022 and 2024 support a fixed voltage of 1.0 V peak-to-peak to the field device. The 10T/APS models 2025 and 2027 automatic detection of link segment type and apply either 1.0 V or 2.4 V peak-to-peak to the field device.
The 10T/APS converters are interoperable with Ethernet-APL Field Devices using either Ethernet-APL Spur Segments or Ethernet-APL Trunk Segments. A Spur segment has a maximum distance of 200 meters and data signal amplitude of 1.0 volt peak-to-peak. A Trunk segment has a maximum distance of 1000 meters and data signal amplitude of 2.4 volts peak-to-peak.
They are available as standalone units with integrated mounting brackets. They can be DIN-rail mounted using the optional DIN-rail mounting clip kit (8252-0). Models come with a 2-pin DC power terminal connector.
Highlights
- Supports twisted pair cables for durability and improved signal transfer while ensuring smooth and seamless data transfer
- Expand your network capacity and fulfill requirement with this 2 transceiver/media converter
- With 10Base-T technology get up to 10Mbps data transfer rate over twisted pair cable
- The DIN Rail Mountable provides convenient installation
Specifications
| Package Contents |
|
|---|---|
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | 2022-20-19Z |
| Maximum Distance Supported | 1 km |
| Power Source | DC |
| Limited Warranty | Lifetime |
| Weight (Approximate) | 1 lb |
| Form Factor | DIN Rail Mountable |
| Manufacturer | Omnitron Systems |
| Product Model | 2022-20-19Z |
| Product Name | OmniConverter 10T/APS 10BASE-T to 10BASE-T1L Media Converter RJ-45 T1L SPE IEC 63171-6 SPE Jack |
| Network Technology | 10Base-T, 10Base-T1L |
| Package Type | Retail |
| Product Line | OmniConverter |
| Product Series | 10T/APS |
| Brand Name | Omnitron Systems |
| Country of Origin | United States |
| Height | 3.1" |
| Width | 4.8" |
| Depth | 1" |
| Ethernet Technology | Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Media Type Supported | Twisted Pair |
| Total Number of Ports | 2 |
| TAA Compliant | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
