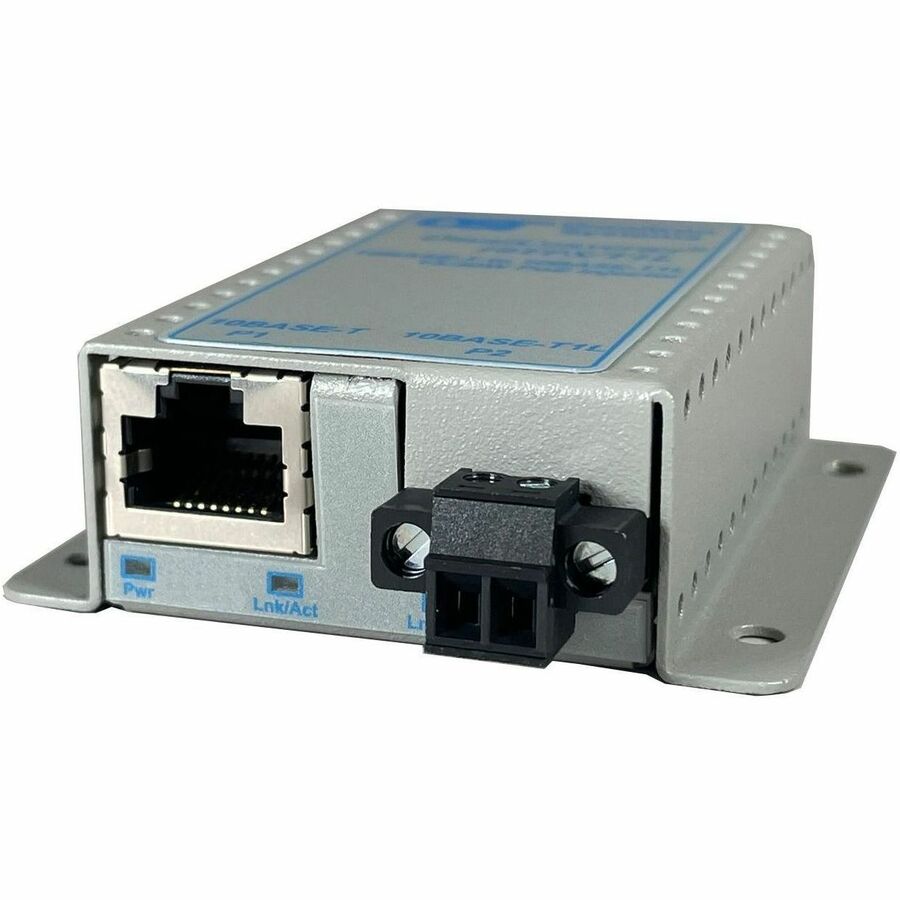

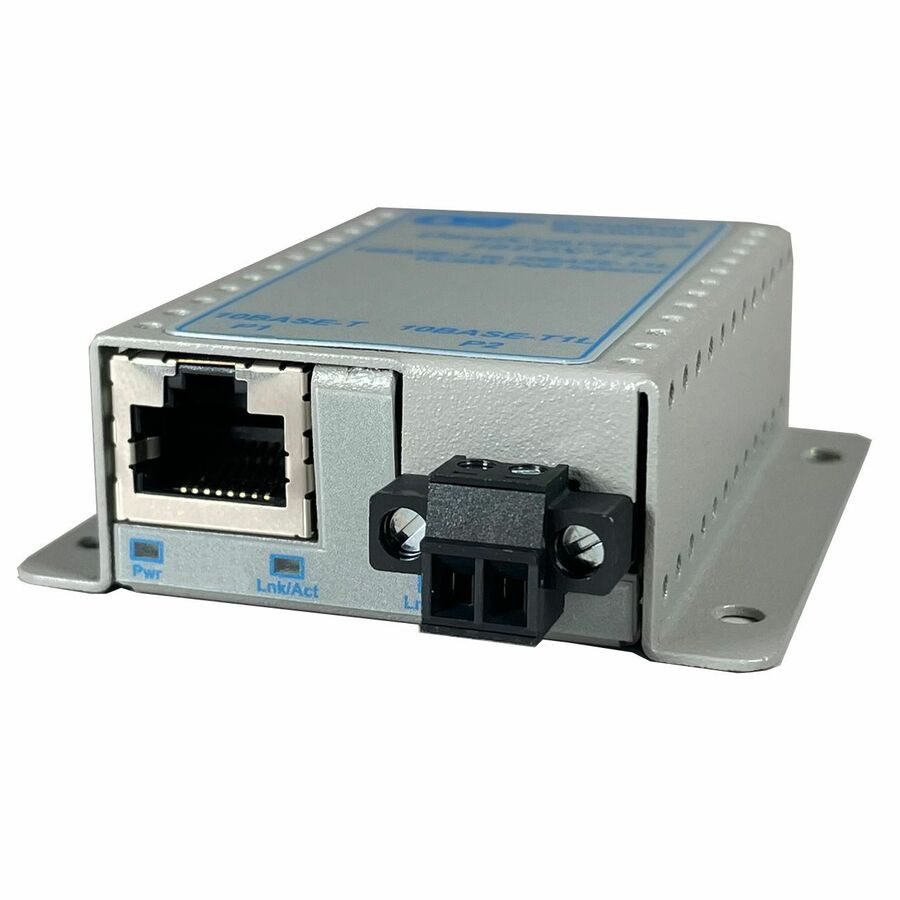

OmniConverter 10T/T1L 10BASE-T to 10BASE-T1L Media Converter RJ-45 T1L Terminal, Wallmount, Wide Temp
1 x 10BASE-T, 1 x 10BASE-T1L, DC Terminal Powered, Lifetime Warranty
- SKU
- 2010-000-FZ
- Category
- Transceivers/Media Converters
MSRP$596.00
$443.48
Save 26%Back ordered — ships when restocked.
Genuine Omnitron Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 2010-000-FZ
- Category
- Transceivers/Media Converters
Overview
The OmniConverter 10T/T1L is a family of IEEE 802.3cg compliant products that converts 10BASE-T Ethernet to single-pair 10BASE-T1L Ethernet. They use single-pair Ethernet cabling (SPE) to extend the Ethernet link distance up to 1km.
The OmniConverter 10T/T1L features one 2-pin terminal block 10BASE-T1L IEEE 802.3cg compliant port and one 10BASE-T RJ-45 port supporting 10Mbps full-duplex data rates. The 10TPS/T1L supports IEEE 802.3at (PoE+) on the 10BASE-T RJ-45 port.
The OmniConverter 10T/T1L achieves seamless Ethernet connectivity to IEEE 802.3cg compliant devices, such as field transmitters, building controllers or cameras.
The modules are plug-and-play devices that support 10Mbps data rates and full duplex for simple in-line installation to instantly extend network distances for industrial and inbuilding automation applications.
They are available as a standalone unit with or without integrated mounting brackets. It can be DIN-rail mounted using the optional DIN-rail mounting clip kit (8252-0). Models are available with an external 100 to 240VAC power adapter or with a 2-Pin DC terminal connector.
Highlights
- Supports twisted pair cables for durability and improved signal transfer while ensuring smooth and seamless data transfer
- Expand your network capabilities with this 2 transceiver/media converter
- With 10Base-T technology get up to 10Mbps data transfer rate over twisted pair cable
- The DIN Rail Mountable provides convenient installation
Specifications
| Package Contents |
|
|---|---|
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | 2010-000-FZ |
| Maximum Distance Supported | 1 km |
| Power Source | DC |
| Limited Warranty | Lifetime |
| Weight (Approximate) | 2.50 oz |
| Form Factor | DIN Rail Mountable, Wall Mountable |
| Manufacturer | Omnitron Systems |
| Product Model | 2010-000-FZ |
| Product Name | OmniConverter 10T/T1L 10Base-T to 10Base-T1L Media Converter RJ-45 T1L 2-Pin Terminal |
| Network Technology | 10Base-T, 10Base-T1L |
| Package Type | Retail |
| Product Line | OmniConverter |
| Brand Name | Omnitron Systems |
| Country of Origin | United States |
| Height | 0.8" |
| Width | 2.1" |
| Depth | 2.5" |
| Ethernet Technology | Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Media Type Supported | Twisted Pair |
| Total Number of Ports | 2 |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Waste Electrical and Electronic Equipment Directive (WEEE) |
