miConverter 1000Mbps Gigabit Ethernet Fiber Media Converter RJ45 SC Single-Mode 80km
Omnitron Systems

miConverter 1000Mbps Gigabit Ethernet Fiber Media Converter RJ45 SC Single-Mode 80km

1 x 1000BASE-T, 1 x 1000BASE-ZX, US AC Powered, Lifetime Warranty

SKU
1203-3-1
Category
Transceivers/Media Converters

MSRP$1,023.72

$759.75

Save 26%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Omnitron Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
1203-3-1
Category
Transceivers/Media Converters

Overview

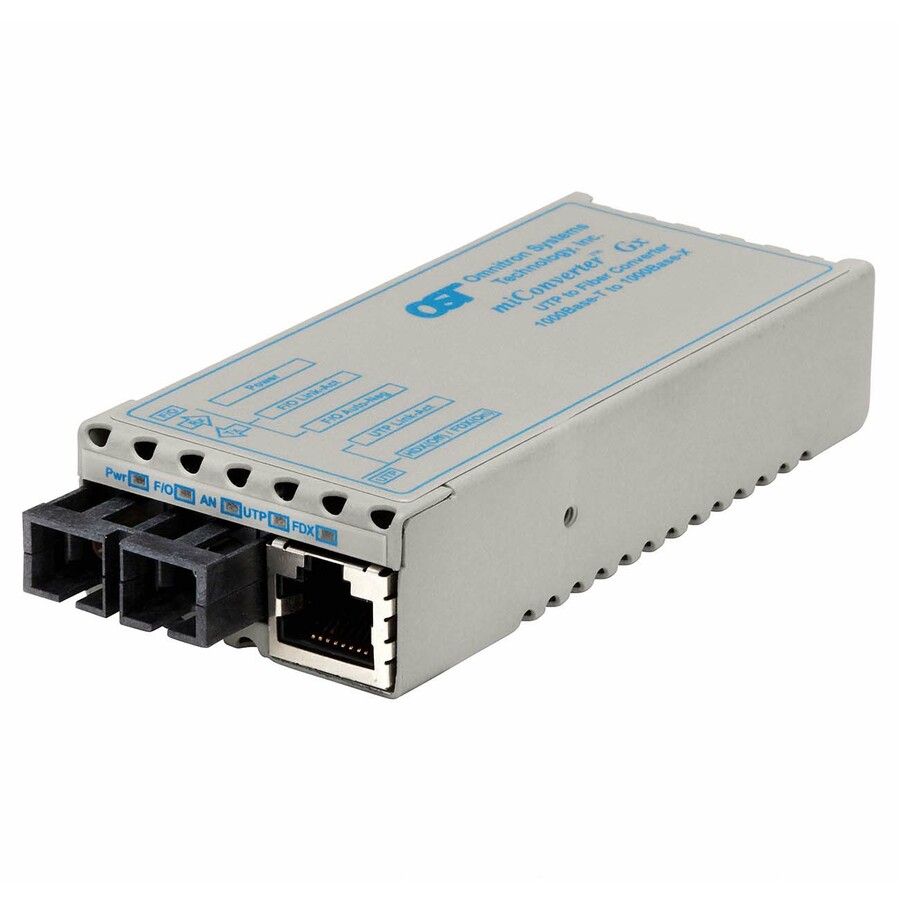

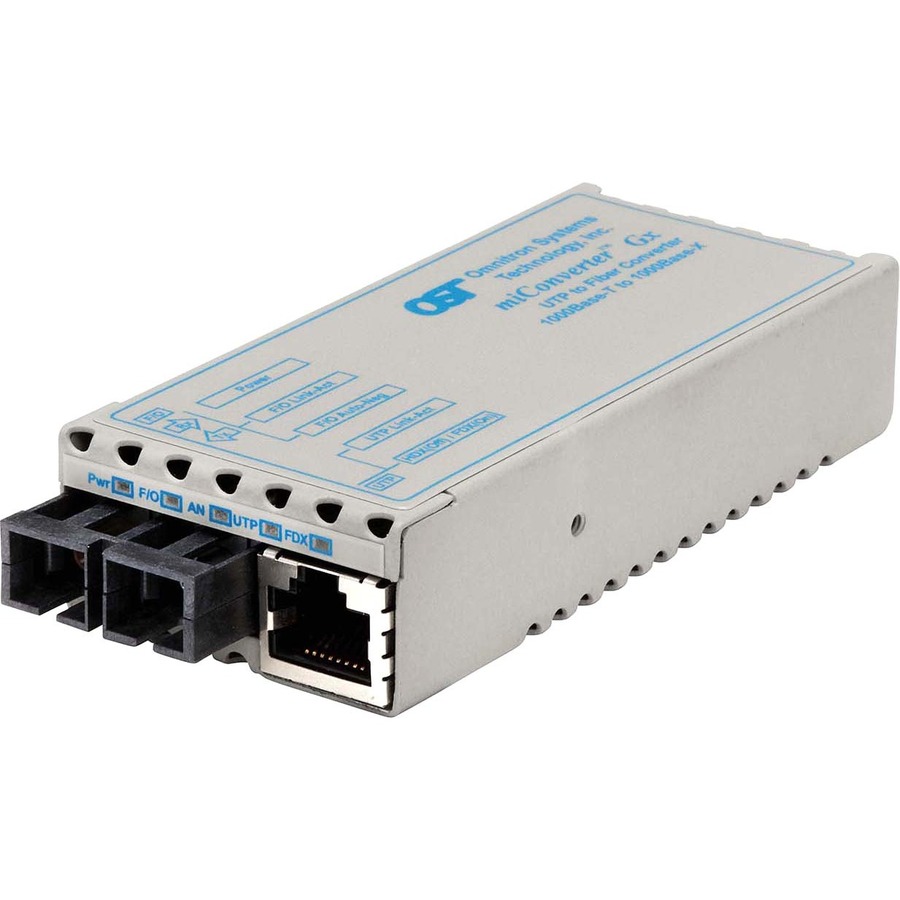

The miConverter Gx is a miniature 1000BASE-T UTP copper to 1000BASE-X fiber Gigabit Ethernet media converter. The miConverter Gx provides cost-effective fiber connectivity from Gigabit switches to diagnostic equipment, desktop and laptop computers.

The miConverter Gx is the first Gigabit media converter powered by a USB port (1.0, 1.1, and 2.0). An optional USB Power Adaptor Cable is available, which reduces the module's weight and eliminates the need to tether the miConverter Gx to an electrical outlet.

• Miniature Gigabit Ethernet media converter

• Supports 1000BASE-T, 1000BASE-X and the IEEE 802.3 specification

• Plug-and-Play capability

• USB power via optional Power Adapter Cable

• Supports Full/Half-Duplex fiber optic auto-negotiation

• Multimode and single-mode fiber options

• LED indicators for UTP and fiber status

• Domestic, Universal and Country/Region specific power supply options

• Wall-mount with optional mounting brackets or included Velcro® strips

• Small and lightweight, only 5 ounces (without power supply)

• Cost-effective

• Lifetime Warranty and free 24/7 Technical Support

Highlights

  • Supports twisted pair cables for durability and improved signal transfer while ensuring smooth and seamless data transfer
  • Attach multiple devices together or expand the number of devices connected to your existing network by using 2 transceiver/media converter
  • With 1000Base-T technology get up to 1000Mbps data transfer rate over twisted pair cable
  • Rackmountable feature for convenient and safe installation of device

Specifications

Package Contents
  • miConverter Gx SC Single-Mode 80km US AC Powered
  • US Power Supply - 120Volt / 60Hz
  • Velcro Strip
  • User Manual
Product TypeTransceiver/Media Converter
Manufacturer Part Number1203-3-1
Maximum Distance Supported80 km
Limited WarrantyLifetime
Weight (Approximate)5 oz
Form FactorRack-mountable, Desktop, External, Wall Mountable
ManufacturerOmnitron Systems
Product Model1203-3-x
Product NamemiConverter Gx SC Single-Mode 80km US AC Powered
Network Technology1000Base-T, 1000Base-ZX
Package TypeRetail
Product LinemiConverter
Product SeriesGx
Brand NameOmnitron Systems
Country of OriginUnited States
Height0.8"
Width1.7"
Depth4.1"
Environmentally FriendlyYes
Ethernet TechnologyGigabit Ethernet
USBNo
DVINo
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Management PortNo
Number of SC Ports1
Media Type SupportedTwisted Pair, Optical Fiber
Fiber Mode SupportedSingle-mode
Total Number of Ports2
SC Port TypeDuplex
Fiber Optic Cable Core/Cladding Specification9/125 µm
Fiber Optic Cable Wavelength1550 nm
