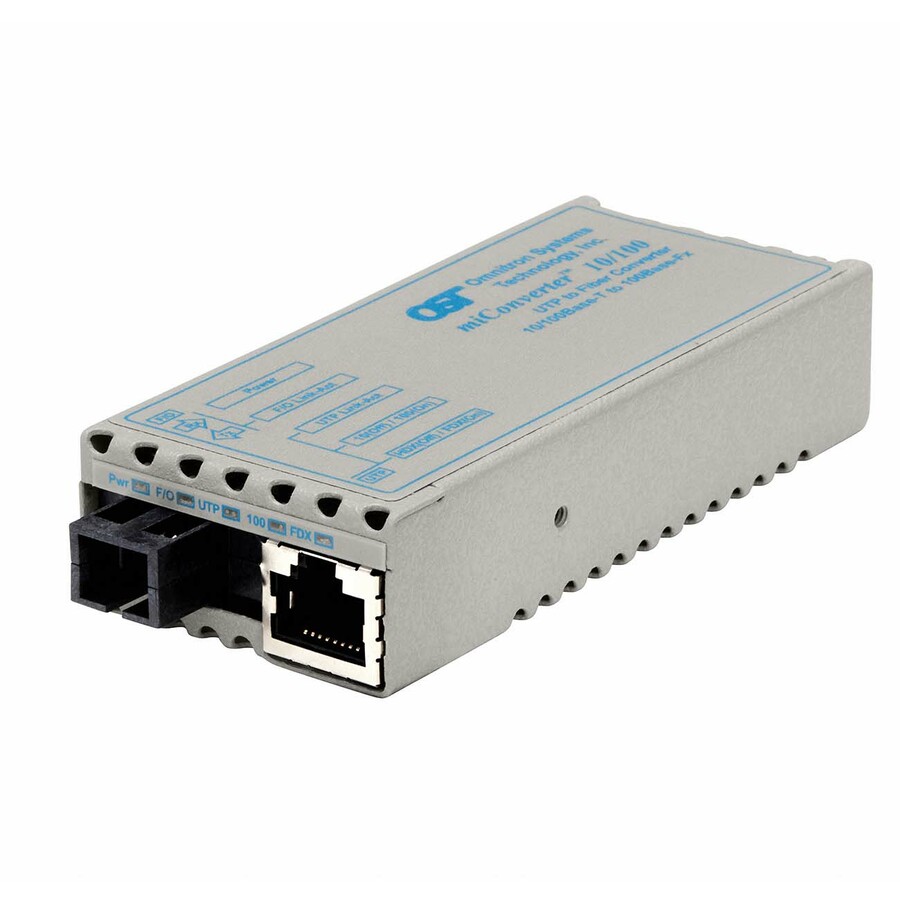

miConverter 10/100 Plus Ethernet Single-Fiber Media Converter RJ45 SC Multimode BiDi 5km
1 x 10/100BASE-TX, 1 x 100BASE-BX (1550/1310), US AC Powered, Lifetime Warranty
- SKU
- 1131-0-1
- Category
- Transceivers/Media Converters
MSRP$335.50
$250.35
Save 25%Back ordered — ships when restocked.
Genuine Omnitron Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 1131-0-1
- Category
- Transceivers/Media Converters
Overview
The miniature miConverter 10/100 and miConverter 10/100 Plus are rate-switching 10/100 UTP copper to 100BASE-FX fiber media converters. The miConverter provides cost-effective fiber connectivity from Ethernet switches to diagnostic equipment, desktop and laptop computers.
They can be powered by a computer's USB port using the optional USB Power Adaptor Cable, which reduces the module's weight and eliminates the need to tether the miConverter to an electrical outlet that provide cost-effective fiber network extension and connectivity.
• Miniature 10/100BASE-TX to 100BASE-FX Ethernet media converter
• Supports 10BASE-T, 100BASE-TX, 100BASE-FX and the IEEE 802.3 specification
• Supports Full/Half-Duplex UTP auto-negotiation
• Automatically detects and adjusts crossover function
• Multimode, single-mode and single-fiber options
• ST or SC fiber connector options
• Domestic, Universal and Country/Region specific AC power supply options available
• Optional USB power adapter cable available for operation without AC power adapter
• The miConverter 10/100 Plus features DIP-switches for UTP and Link Mode configurations
• LED indicators for UTP and fiber status
• Wall-mount with optional mounting brackets
• Cost-effective
• Small and light, weighs only 5 ounces (without power supply)
• Lifetime Warranty and free 24/7 Technical Support
Highlights
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Expand your network capacity and fulfill requirement with this 2 transceiver/media converter
- With 10/100Base-TX technology get up to 100Mbps data transfer rate over twisted pair cable
- Rackmountable feature for convenient and safe installation of device
Specifications
| Package Contents |
|
|---|---|
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | 1131-0-1 |
| Maximum Distance Supported | 5.01 km |
| Limited Warranty | Lifetime |
| Weight (Approximate) | 5 oz |
| Form Factor | Rack-mountable, Desktop, External, Wall Mountable |
| Manufacturer | Omnitron Systems |
| Product Model | 1131-0-x |
| Product Name | miConverter 10/100 Plus SC Multimode Single-Fiber 15/13 5km US AC Powered |
| Network Technology | 10/100Base-TX, 100Base-BX |
| Package Type | Retail |
| Product Line | miConverter |
| Product Series | 10/100 Plus |
| Brand Name | Omnitron Systems |
| Country of Origin | United States |
| Height | 0.8" |
| Width | 1.7" |
| Depth | 4.1" |
| Environmentally Friendly | Yes |
| Ethernet Technology | Ethernet, Fast Ethernet |
| USB | No |
| DVI | No |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Management Port | No |
| Number of SC Ports | 1 |
| Media Type Supported | Twisted Pair, Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Total Number of Ports | 2 |
| SC Port Type | Simplex |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm, 62.5/125 µm, 100/140 µm |
| Fiber Optic Cable Wavelength | 1310 nm, 1550 nm |
