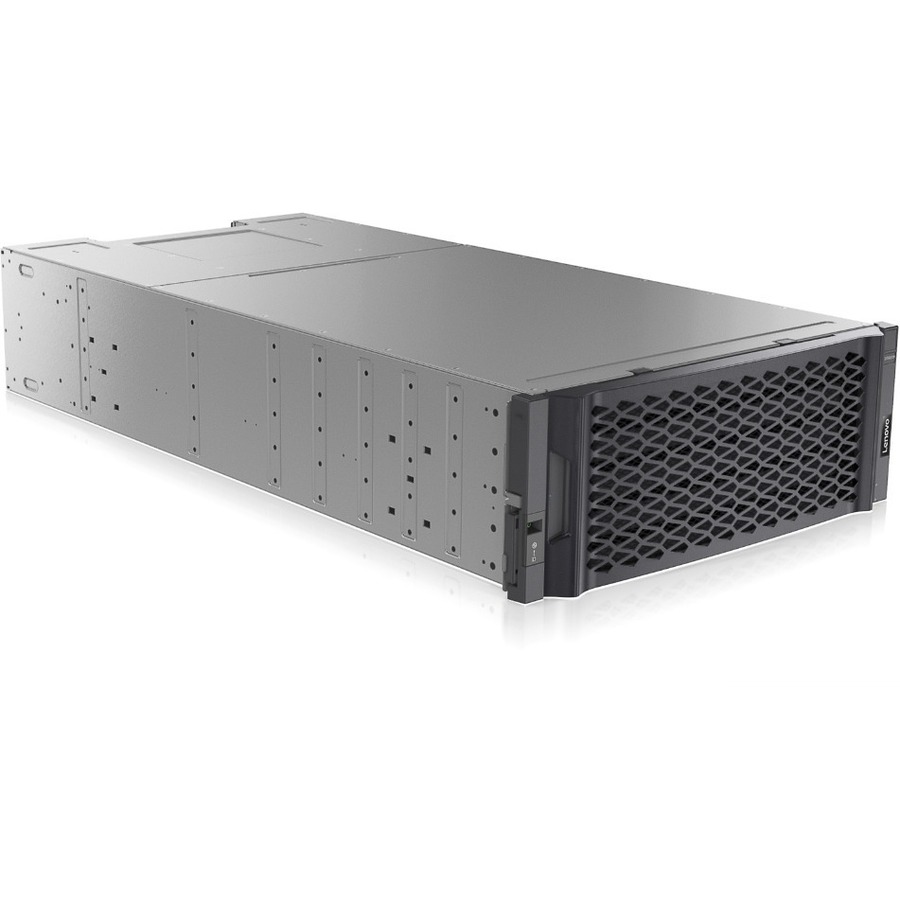

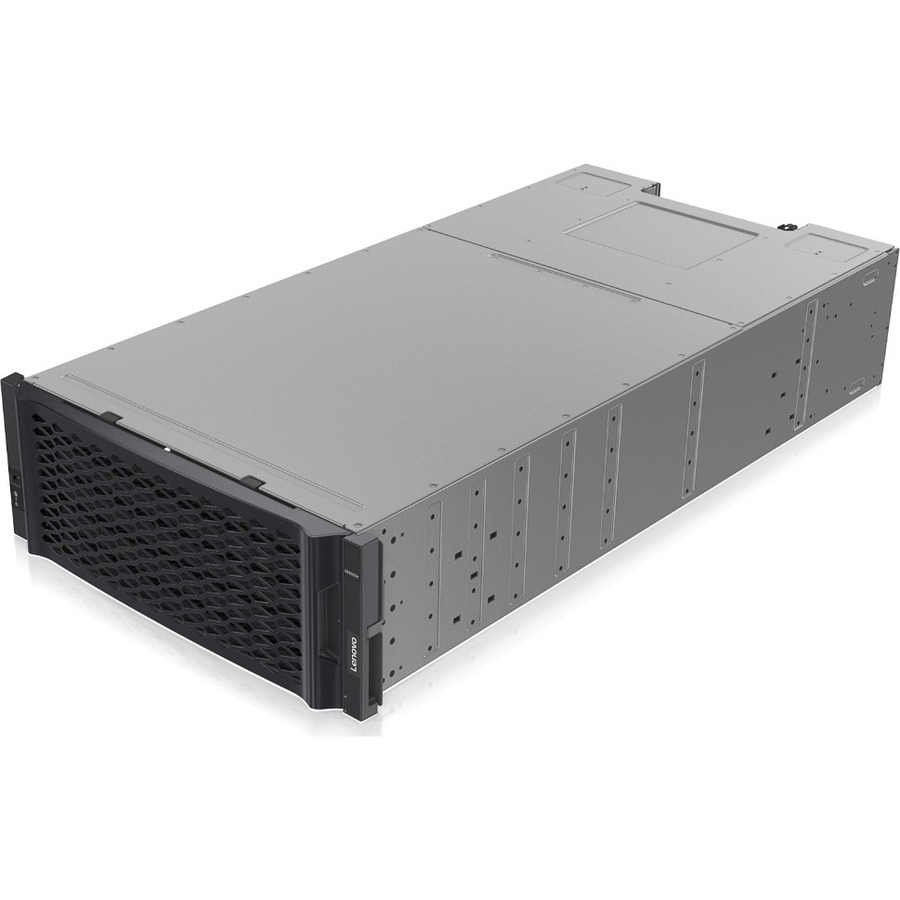

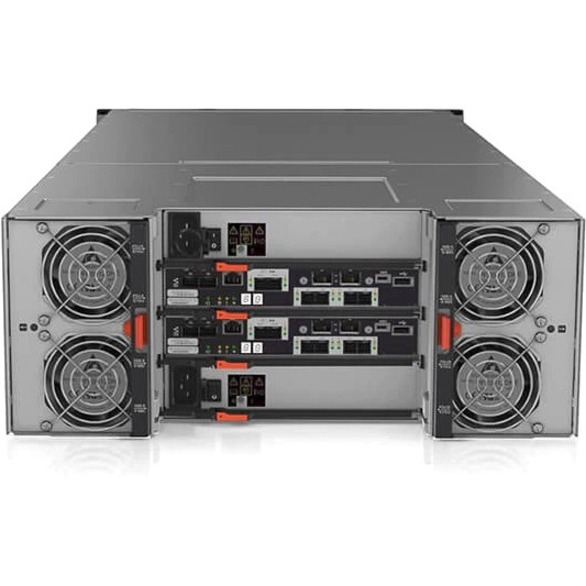

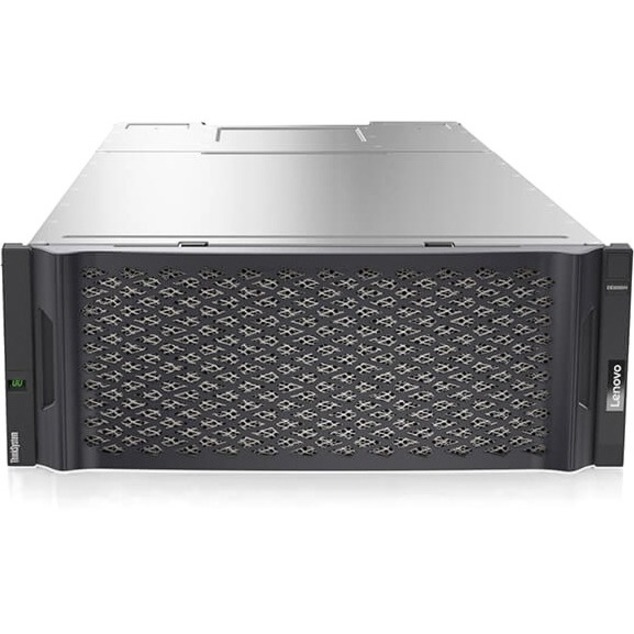

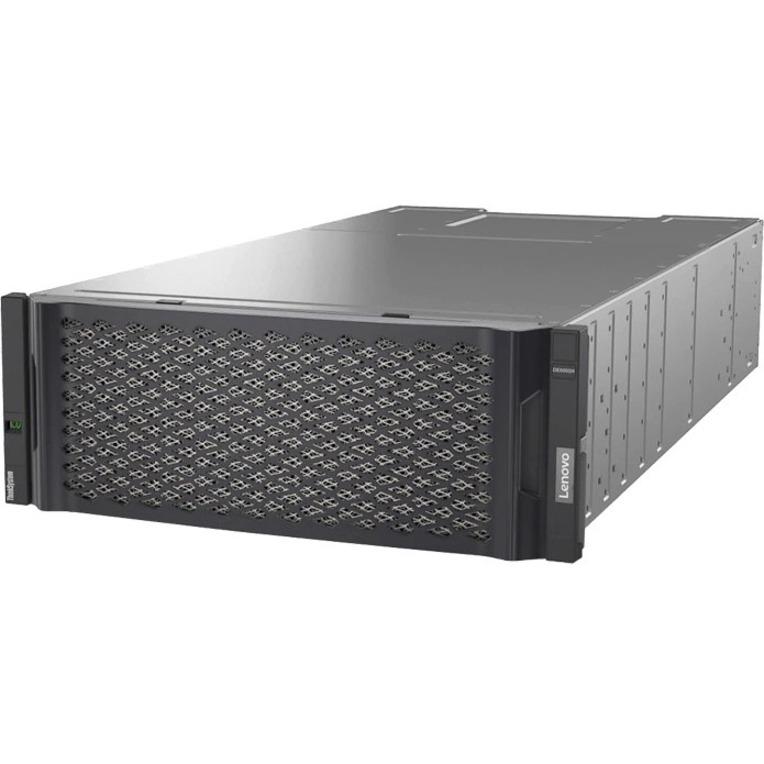

Lenovo ThinkSystem DE6000H SAN Storage System
60 x HDD Supported - 60 x SSD Supported - 2 x Controller - RAID Supported - 0, 1, 3, 5, 6, 10 RAID Levels - 60 x Total Bays - 60 x 3.5" Bay - Gigabit Ethernet - 2 USB Port(s) - Network (RJ-45) - iSCSI, SSH, SMI-S, SNMP, SSL, LDAP - 4U - Rack-mountable
- SKU
- 7Y80A00PWW
- Category
- Storage Arrays & Servers
$36,993.14
Back ordered — ships when restocked.
Genuine Lenovo through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 7Y80A00PWW
- Category
- Storage Arrays & Servers
Overview
Lenovo ThinkSystem DE6000H is a scalable, hybrid mid-range storage system that is designed to provide high performance, simplicity, capacity, security, and high availability for medium to large businesses. The ThinkSystem DE6000H delivers enterprise-class storage management capabilities in a performance-optimized system with a wide choice of host connectivity options, flexible drive configurations, and enhanced data management features. The ThinkSystem DE6000H is a perfect fit for a wide range of enterprise workloads, including big data and analytics, video surveillance, technical computing, backup and recovery, and other storage I/O-intensive applications.
ThinkSystem DE6000H models are available in a 2U rack form-factor with 24 small form-factor (2.5-inch SFF) drives (2U24 SFF) or a 4U rack form-factor with 60 LFF drives (4U60 LFF) and include two controllers, each with 16 GB or 64 GB system memory for a system total of 32 GB or 128 GB. Host interface cards provide 12 Gb SAS, 10/25 Gb iSCSI, 8/16/32 Gb FC or NVMe/FC, or 25/40/100 Gb NVMe/RoCE host connections.
Highlights
- SAN Storage System offers maximum storage efficiency and convenience
- Robust scalability up to 60 drives to let you expand limitlessly
- Through RAID levels (0, 1, 3, 5, 6, 10), RAID provides data reliability, fault tolerance and improves overall performance
- RAID technology - data reliability, fault tolerance and improved overall performance
- Rack-mountable san storage system allows a clutter-free, convenient usage with increased efficiency
- Gigabit Ethernet enables higher aggregate data transfer capacity which results in a better overall performance
Specifications
| Additional Warranty Information | Three-year Customer-replaceable Unit And Onsite Limited Warranty With 9x5 Next Business Day (Nbd) Parts Delivered. |
|---|---|
| Package Contents |
|
| Host Interface | Fibre Channel |
| Product Type | SAN Storage System |
| Manufacturer Part Number | 7Y80A00PWW |
| Protocols | iSCSI, SSH, SMI-S, SNMP, SSL, LDAP |
| Limited Warranty | 3 Year |
| Weight (Approximate) | 239.18 lb |
| Form Factor | Rack-mountable |
| Manufacturer | Lenovo Group Limited |
| Product Model | DE6000H |
| Product Name | ThinkSystem DE6000H SAN Storage System |
| Product Line | ThinkSystem |
| RAID Levels | 0, 1, 3, 5, 6, 10 |
| Product Series | DE |
| Rack Height | 4U |
| Brand Name | Lenovo |
| Fibre Channel | Yes |
| Plug/Connector Type | C19 to IEC 320-C20 |
| Number of Controllers | 2 |
| Height | 6.9" |
| Width | 17.7" |
| Depth | 36.3" |
| Environmentally Friendly | Yes |
| Number of Power Supplies Installed | 2 |
| Redundant Power Supply | Yes |
| RAID Supported | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Number of Total Expansion Bays | 60 |
| Number of 3.5" Bays | 60 |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Maximum Power Supply Wattage | 2325 W |
| Total Number of USB Ports | 2 |
| Number of Hard Drives Supported | 60 |
| Number of Hard Drives Installed | No |
| Number of Solid State Drive Supported | 60 |
| Number of Solid State Drive Installed | No |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
