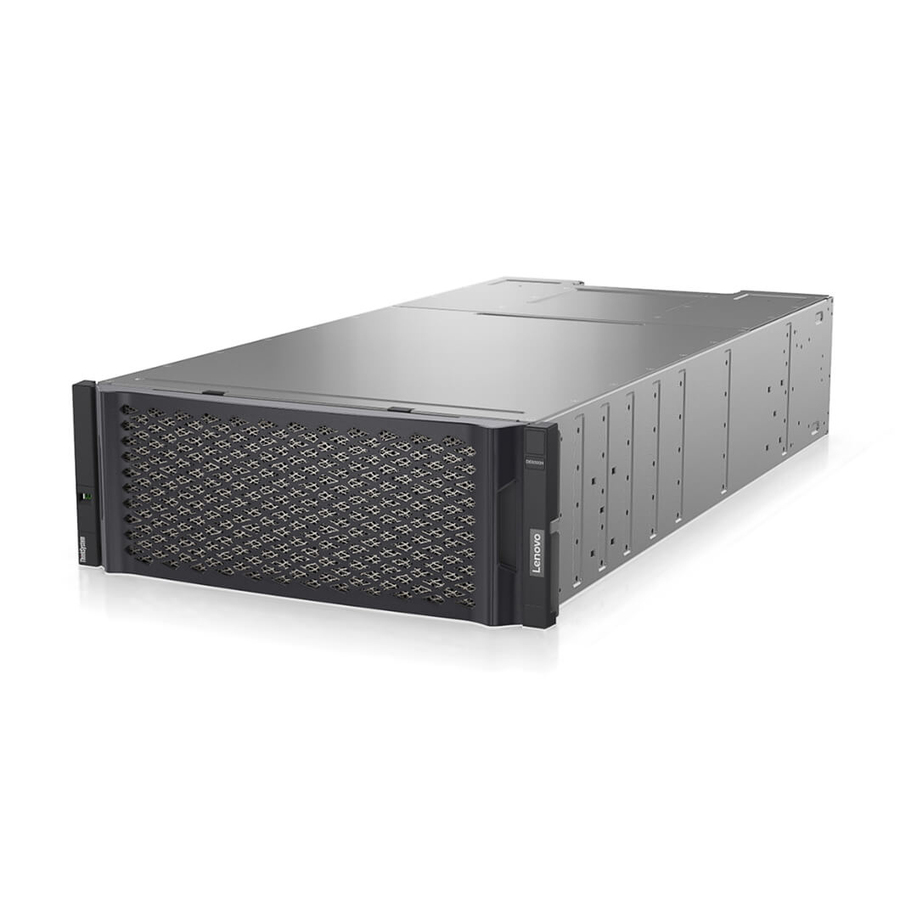

Lenovo ThinkSystem DE4000H DAS/SAN Storage System
60 x HDD Supported - 60 x SSD Supported - 2 x Serial Attached SCSI (SAS) Controller - RAID Supported - 0, 1, 3, 5, 6, 10 RAID Levels - 60 x Total Bays - 60 x 3.5" Bay - Gigabit Ethernet - 2 USB Port(s) - Network (RJ-45) - FCP, SSH, SMI-S, SNMP, SSL, LDAP - 8 GB Flash Memory Capacity - 4U - Rack-mountable
- SKU
- 7Y77A00EWW
- Category
- Storage Arrays & Servers
$45,736.00
Back ordered — ships when restocked.
Genuine Lenovo through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 7Y77A00EWW
- Category
- Storage Arrays & Servers
Overview
Lenovo ThinkSystem DE4000H is a scalable, hybrid entry-level storage system that is designed to provide performance, simplicity, capacity, security, and high availability for medium to large businesses. It delivers enterprise-class storage management capabilities with a wide choice of host connectivity options, flexible drive configurations, and enhanced data management features. The ThinkSystem DE4000H is a perfect fit for a wide range of enterprise workloads, including big data and analytics, video surveillance, technical computing, backup and recovery, and other storage I/O-intensive applications.
ThinkSystem DE4000H models are available in a 2U rack form-factor with 24 small form-factor (2.5-inch SFF) drives (2U24 SFF), 12 large form-factor (3.5-inch LFF) drives (2U12 LFF), or a 4U rack form-factor with 60 LFF drives (4U60 LFF) and include two controllers, each with 8 GB or 32 GB memory for a system total of 16 GB or 64 GB. Host interface cards provide 12 Gb SAS, 10/25 Gb iSCSI, or 8/16/32 Gb FC connections.
The ThinkSystem DE4000H Storage Array scales up to 192 drives with the attachment of Lenovo ThinkSystem DE120S 2U12, DE240S 2U24 SFF, and DE600S 4U60 LFF Expansion Enclosures. It also offers flexible drive configurations with the choice of 2.5-inch (SFF) and 3.5-inch (LFF) form factors, 10 K rpm SAS and 7.2 K rpm NL SAS hard disk drives (HDDs), and SAS solid-state drives (SSDs).
Highlights
- DAS/SAN Storage System offers maximum storage productivity with added dependability
- Robust scalability up to 60 drives to let you expand limitlessly
- Through RAID levels (0, 1, 3, 5, 6, 10), RAID provides data reliability, fault tolerance and improves overall performance
- RAID technology - data reliability, fault tolerance and improved overall performance
- Rack-mountable das/san storage system allows maximum space utilization with easy and convenient access and retrieval of the data
- Gigabit Ethernet enables higher aggregate data transfer capacity which results in a better overall performance
Specifications
| Additional Warranty Information | Three-year customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD) parts delivered. |
|---|---|
| Package Contents |
|
| Product Type | DAS/SAN Storage System |
| Manufacturer Part Number | 7Y77A00EWW |
| Protocols | FCP, SSH, SMI-S, SNMP, SSL, LDAP |
| Limited Warranty | 3 Year |
| Weight (Approximate) | 238.25 lb |
| Form Factor | Rack-mountable |
| Manufacturer | Lenovo Group Limited |
| Product Model | DE4000H |
| Product Name | ThinkSystem DE4000H DAS/SAN Storage System |
| Product Line | ThinkSystem |
| RAID Levels | 0, 1, 3, 5, 6, 10 |
| Controller Type | Serial Attached SCSI (SAS) |
| Product Series | DE |
| Rack Height | 4U |
| Brand Name | Lenovo |
| Fibre Channel | Yes |
| Plug/Connector Type | C19 to IEC 320-C20 |
| Number of Controllers | 2 |
| Height | 6.9" |
| Width | 17.7" |
| Depth | 36.3" |
| Environmentally Friendly | Yes |
| Flash Memory Capacity | 8 GB |
| Number of Power Supplies Installed | 2 |
| Redundant Power Supply | Yes |
| RAID Supported | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Number of Total Expansion Bays | 60 |
| Number of 3.5" Bays | 60 |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Maximum Power Supply Wattage | 2325 W |
| Total Number of USB Ports | 2 |
| Number of Hard Drives Supported | 60 |
| Number of Hard Drives Installed | No |
| Number of Solid State Drive Supported | 60 |
| Number of Solid State Drive Installed | No |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
