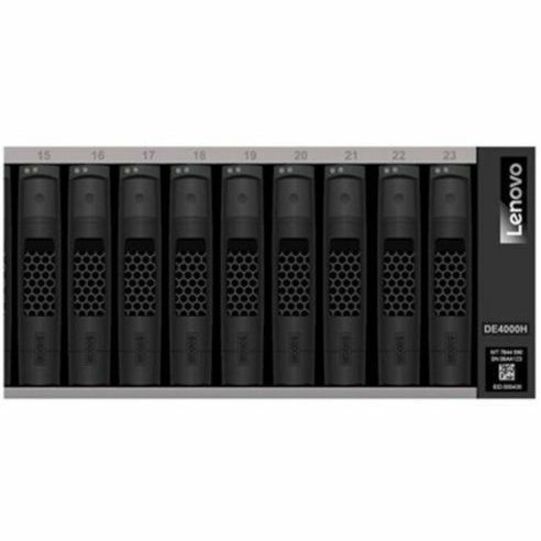

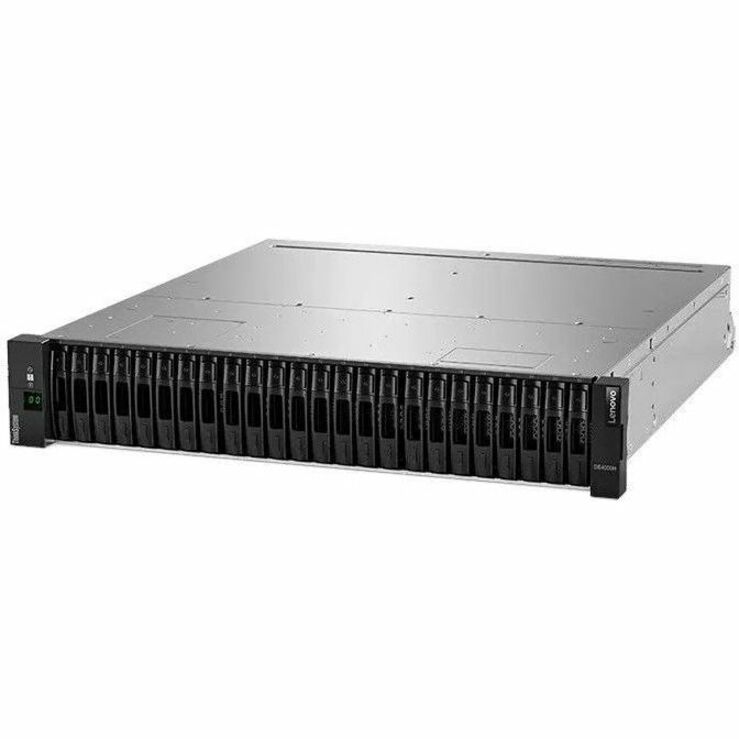

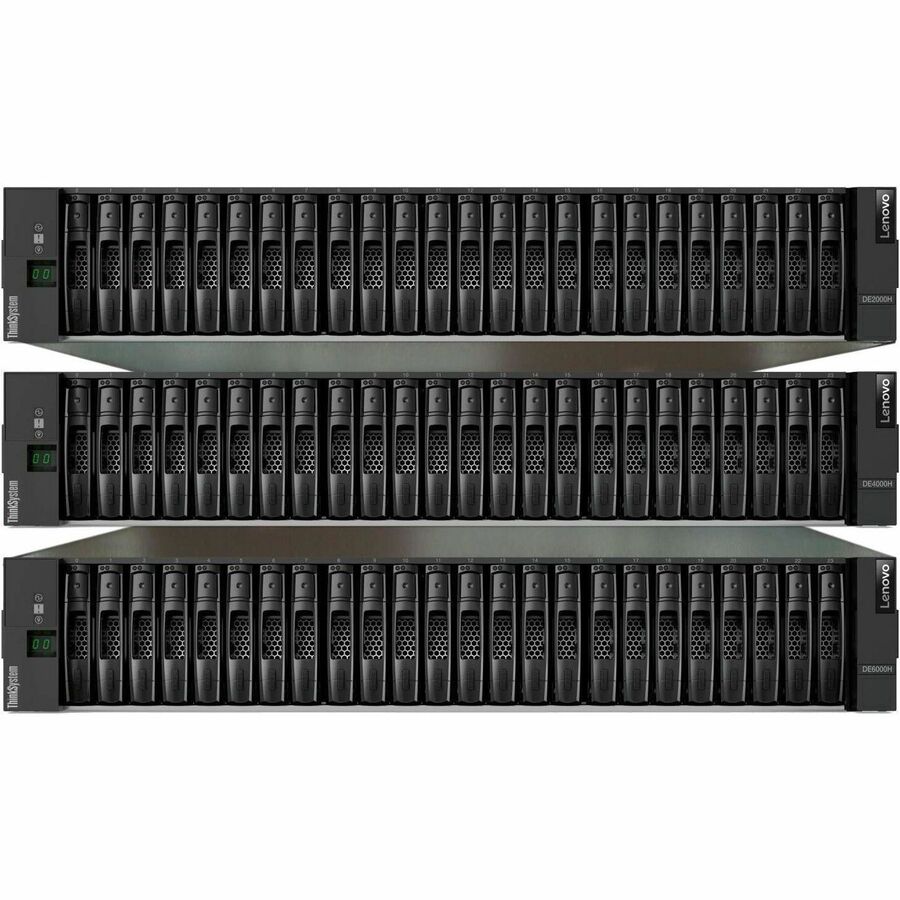

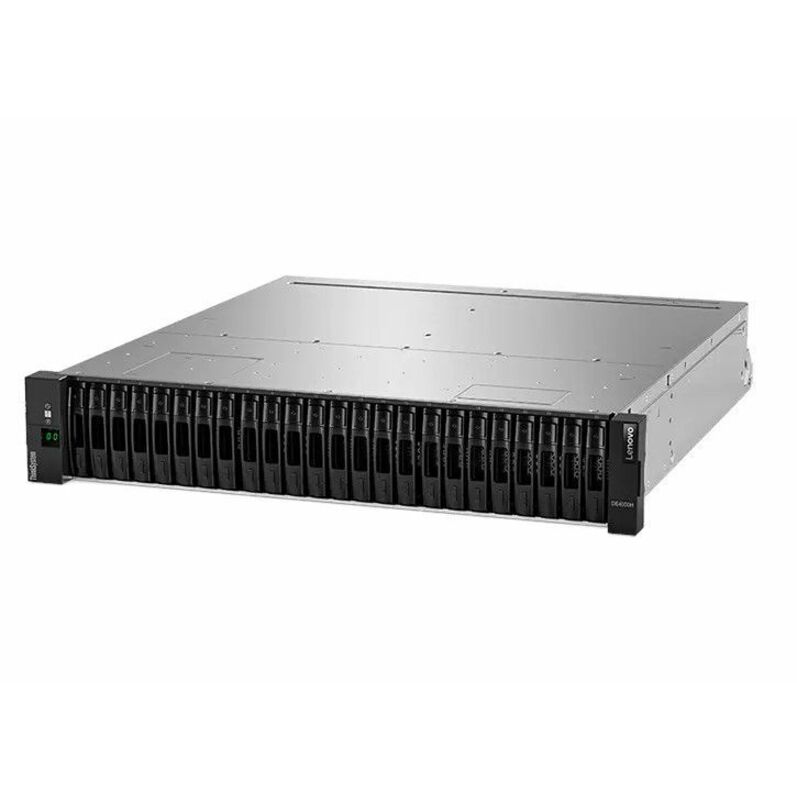

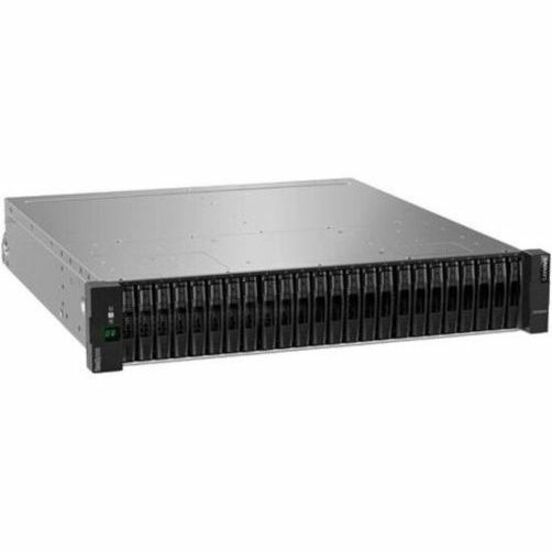

Lenovo ThinkSystem DE4000H DAS/SAN Storage System
24 x HDD Supported - 0 x HDD Installed - 24 x SSD Supported - 0 x SSD Installed - 2 x 12Gb/s SAS Controller - RAID Supported - 0, 1, 3, 5, 6, 10 RAID Levels - 24 x Total Bays - 24 x 2.5" Bay - Gigabit Ethernet - 2 USB Port(s) - Network (RJ-45) - FCP, SSH, SMI-S, SNMP, SSL, LDAP - 8 SAS Port(s) External - 2U - Rack-mountable
- SKU
- 7Y75100BNA
- Category
- Storage Arrays & Servers
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine Lenovo through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 7Y75100BNA
- Category
- Storage Arrays & Servers
Overview
Lenovo ThinkSystem DE4000H is a scalable, hybrid entry-level storage system that is designed to provide performance, simplicity, capacity, security, and high availability for medium to large businesses. It delivers enterprise-class storage management capabilities with a wide choice of host connectivity options, flexible drive configurations, and enhanced data management features. The ThinkSystem DE4000H is a perfect fit for a wide range of enterprise workloads, including big data and analytics, video surveillance, technical computing, backup and recovery, and other storage I/O-intensive applications.
ThinkSystem DE4000H models are available in a 2U rack form-factor with 24 small form-factor (2.5-inch SFF) drives (2U24 SFF), 12 large form-factor (3.5-inch LFF) drives (2U12 LFF), or a 4U rack form-factor with 60 LFF drives (4U60 LFF) and include two controllers, each with 8 GB or 32 GB cache for a system total of 16 GB or 64 GB. Universal 1/10 Gb iSCSI or 4/8/16 Gb Fibre Channel (FC) ports provide base host connectivity, and the host interface cards provide additional 1/10 Gb iSCSI or 4/8/16 Gb FC, 12 Gb SAS, 10/25 Gb iSCSI, or 8/16/32 Gb FC connections.
The ThinkSystem DE4000H Storage Array scales up to 192 drives with the attachment of Lenovo ThinkSystem DE120S 2U12, DE240S 2U24 SFF, and DE600S 4U60 LFF Expansion Enclosures. It also offers flexible drive configurations with the choice of 2.5-inch (SFF) and 3.5-inch (LFF) form factors, 10 K rpm SAS and 7.2 K rpm NL SAS hard disk drives (HDDs), and SAS solid-state drives (SSDs).
Highlights
- DAS/SAN Storage System offers maximum storage productivity with added dependability
- Holds up to 24 HDDs to let you expand limitlessly
- Through RAID levels (0, 1, 3, 5, 6, 10), RAID provides data reliability, fault tolerance and improves overall performance
- RAID technology - data reliability, fault tolerance and improved overall performance
- Rack-mountable form factor for added reliability and dependability
- Gigabit Ethernet is very resourceful when a large number of file transfers are required, such as when performing backups over a network
Specifications
| Additional Warranty Information | Three-year customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD) parts delivered |
|---|---|
| Package Contents |
|
| Host Interface | 12Gb/s SAS |
| Product Type | DAS/SAN Storage System |
| Manufacturer Part Number | 7Y75100BNA |
| Protocols | FCP, SSH, SMI-S, SNMP, SSL, LDAP |
| Limited Warranty | 3 Year |
| Form Factor | Rack-mountable |
| Manufacturer | Lenovo Group Limited |
| Product Model | DE4000H |
| Product Name | ThinkSystem DE4000H DAS/SAN Storage System |
| Product Line | ThinkSystem |
| RAID Levels | 0, 1, 3, 5, 6, 10 |
| Controller Type | 12Gb/s SAS |
| Product Series | DE |
| Rack Height | 2U |
| Brand Name | Lenovo |
| Fibre Channel | Yes |
| Plug/Connector Type | C13 to IEC 320-C14 |
| Number of Controllers | 2 |
| Height | 3.3" |
| Width | 17.7" |
| Depth | 21.8" |
| Environmentally Friendly | Yes |
| Number of Power Supplies Installed | 2 |
| Redundant Power Supply | Yes |
| RAID Supported | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Number of Total Expansion Bays | 24 |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Maximum Power Supply Wattage | 913 W |
| Total Number of USB Ports | 2 |
| Number of Hard Drives Supported | 24 |
| Number of Hard Drives Installed | 0 |
| Number of Solid State Drive Supported | 24 |
| Number of Solid State Drive Installed | 0 |
| Number of 2.5" Bays | 24 |
| Number of SAS Ports (External) | 8 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
