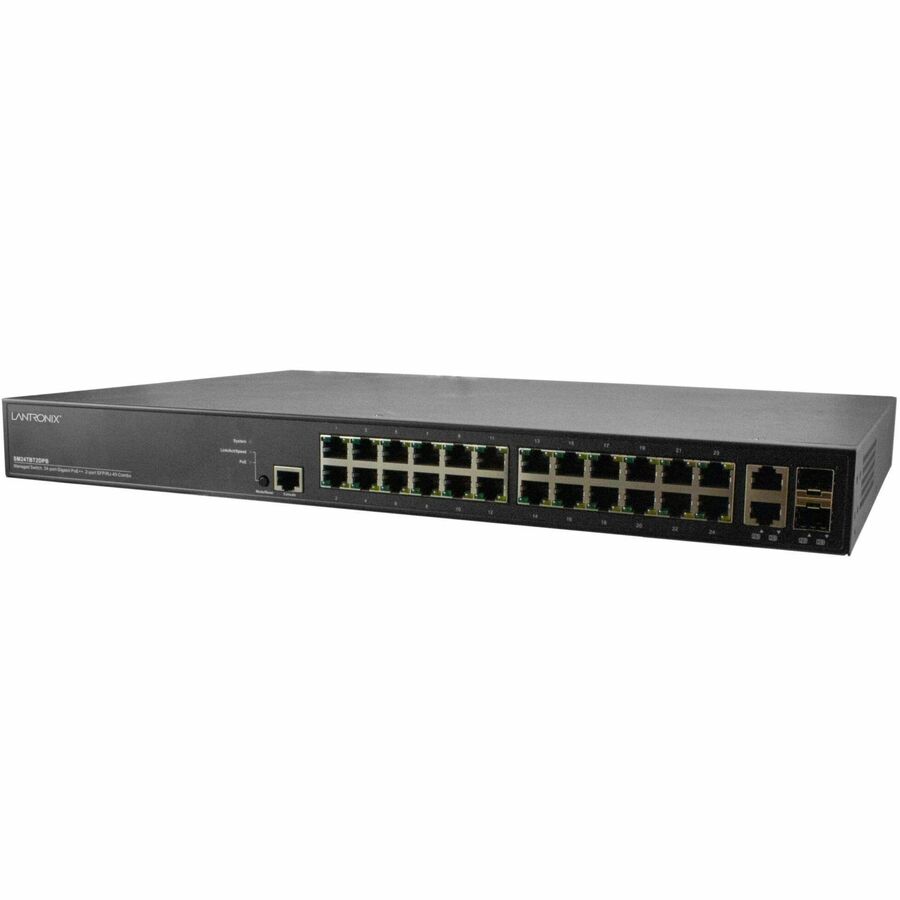

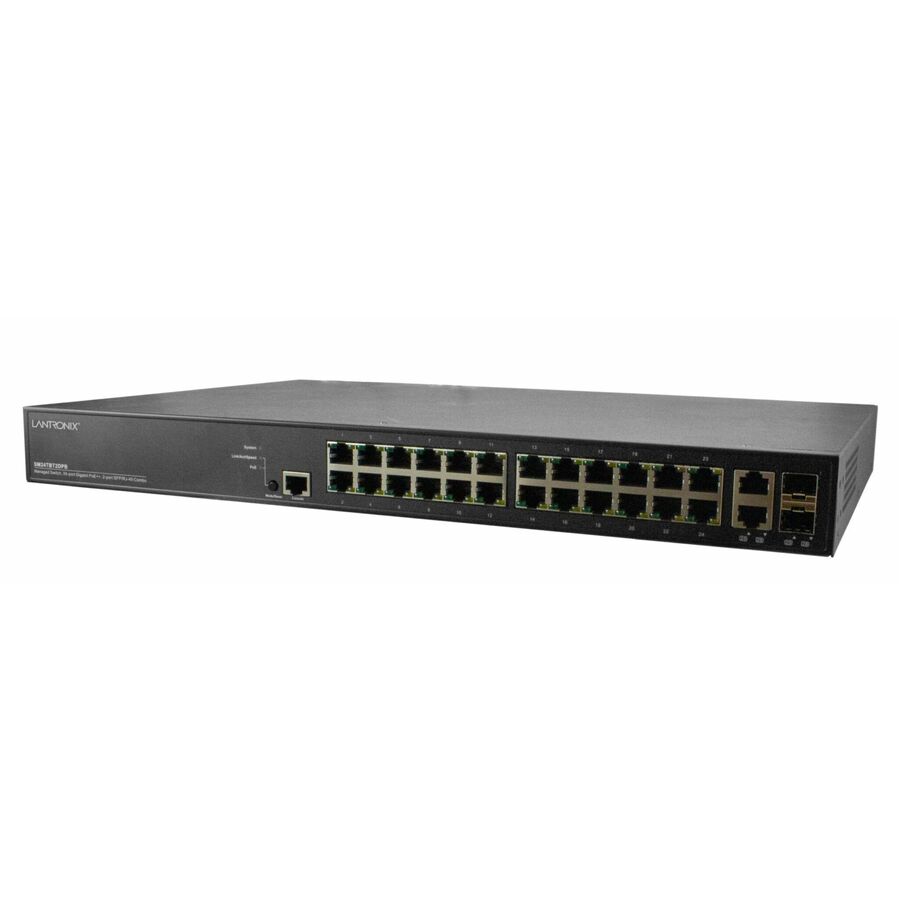

Managed Gigabit Ethernet PoE++ Switch 24 10/100/1000Base-T Ports + 2 100/1000Base-X SFP/RJ-45 Combo Ports
Lantronix

Managed Gigabit Ethernet PoE++ Switch 24 10/100/1000Base-T Ports + 2 100/1000Base-X SFP/RJ-45 Combo Ports

Managed PoE++ Switch, 24-port 10/100/1000Base-T PoE++ and 2 100/1000 SFP/RJ-45 Combo port, single 920 Watt power supply.

SKU
SM24TBT2DPB-920
Category
Switches & Bridges

MSRP$2,496.00

$1,812.79

Save 27%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Lantronix through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
SM24TBT2DPB-920
Category
Switches & Bridges

Overview

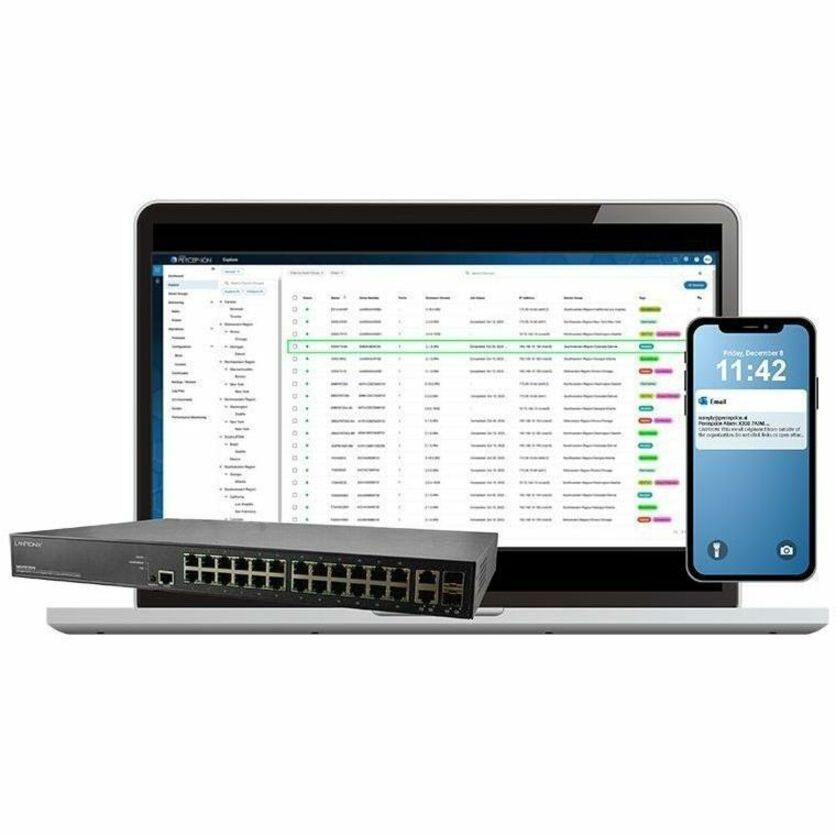

This switch is a high-performance Layer 2 managed switch with 52 Gbps switching capacity. It provides 24 10/100/1000Mbps copper ports with IEEE 802.3bt PoE++ capability and 2 additional 100/1000Mbps dual speed SFP/RJ-45 combo ports.Integrated with Lantronix's Percepxion cloud based IoT edge solutions platform. NDAA Compliant, TAA Compliant

Highlights

  • Hot-swappable dual power supply modules
  • Supports IPv4/IPv6 dual protocol stack
  • Supports Jumbo Frame up to 9K bytes
  • Authentication - RADIUS, TACACS+
  • Security - Supports SSH v1/SSH v2/SSL
  • Port based or tagged IEEE 802.1Q VLAN, MAC based, Management VLAN and Private VLAN Edge
  • DHCP Relay, DHCP Server
  • L2/L3/L4 ACLs Support MAC ACL, IP standard/extended ACL
  • LLDP Link Layer Discovery Protocol
  • IEEE 802.3az Energy Efficiency
  • IP Source Guard, Port Security

Specifications

Package Contents
  • SM24TBT2DPB Ethernet Switch
  • 19" Rack Mount Bracket
  • 1 x Secondary AC Modular Power Supply
Product TypeEthernet Switch
Input Voltage120 V AC, 230 V AC
Manufacturer Part NumberSM24TBT2DPB-920
Power SourcePower Supply
Limited Warranty5 Year
Layer Supported4
Weight (Approximate)11.29 lb
FeaturesHot-swappable, VLAN Segmentation, DHCP Relay, Access Control List, Energy Efficient, Strict Priority Queuing (SPQ)
Form FactorRack-mountable
ManufacturerLantronix, Inc
Product NameSM24TBT2DPB Ethernet Switch
Network Technology10/100/1000Base-T, 1000Base-X
Power Consumption52 W
Product SeriesSM24TBT2DPB
Brand NameLantronix
Expansion Slot TypeSFP (mini-GBIC)
Height1.7"
Width17.4"
Depth11.8"
ManageableYes
Number of Power Supplies Supported2
Maximum Data Transfer Rate128 MB/s
Ethernet TechnologyGigabit Ethernet
Network (RJ-45)Yes
Number of SFP Slots2
Media Type SupportedTwisted Pair, Optical Fiber
Total Number of Network Ports26
Shared SFP SlotYes
PoE (RJ-45) PortYes
Port/Expansion Slot Details24 x Gigabit Ethernet PoE++, 2 x Gigabit Ethernet TP/SFP Combo
Total Number of Expansion Slots2
Redundant Power Supply SupportedYes
TAA CompliantYes
Networking StandardsIEEE 802.3, IEEE 802.3x, IEEE 802.1s, IEEE 802.1ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3ad, IEEE 802.1Q, IEEE 802.3af, IEEE 802.3z, IEEE 802.1D, IEEE 802.1p, IEEE 802.3at, IEEE 802.3ae, IEEE 802.1w, IEEE 802.1ad, IEEE 802.3bt
