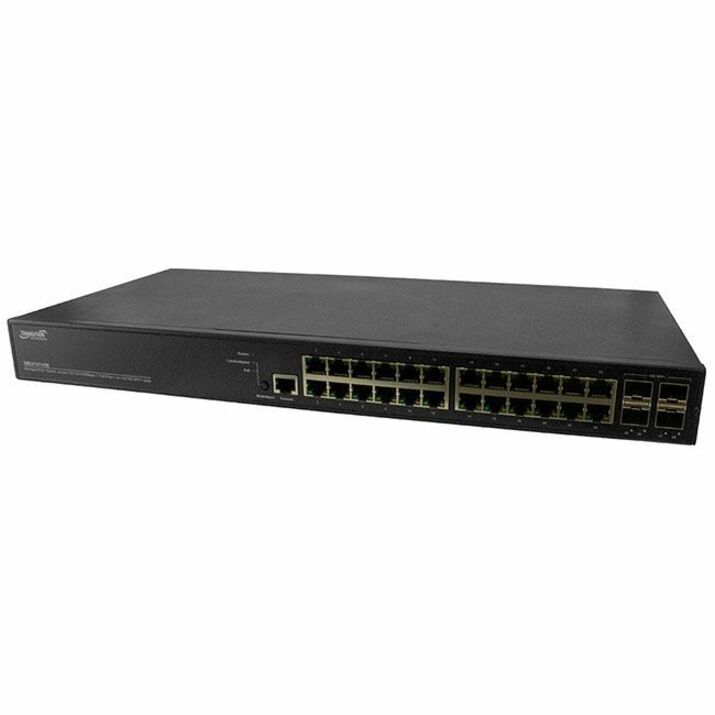

Transition Networks SM24TAT4XB Layer 3 Switch
24 Ports - Manageable - 10 Gigabit Ethernet - 10/100/1000Base-T, 10GBase-X - 3 Layer Supported - Modular - 450 W Power Consumption - 370 W PoE Budget - Optical Fiber, Twisted Pair - PoE Ports - Lifetime Limited Warranty
- SKU
- SM24TAT4XB-BR
- Category
- Switches & Bridges
MSRP$1,478.70
$1,078.56
Save 27%Back ordered — ships when restocked.
Genuine Lantronix through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- SM24TAT4XB-BR
- Category
- Switches & Bridges
Overview
Managed Gigabit Ethernet PoE+ Switch
(24) 10/100/1000Base-T Ports + (4) 1G/10GBase-X SFP+ Ports
This switch is a high performance managed PoE+ switch with (24) 10/100/1000 copper ports and (4) dual speed 1G/10G SFP+ slots.
Highlights
- Supports Jumbo Frame up to 10240 bytes
- Authentication - RADIUS IEEE 802.1X, TACACS+
- Security - Support SSH/SSL
- Port based or tagged (IEEE 802.1Q) VLAN, MAC based VLAN,Management VLAN and Private VLAN Edge
- DHCP Server, Client, Relay
- IEEE 1588v2 PTP (TC)
- ACLs Support for up to 512 entries, drop or rate limitation based on source and destination MAC, VLAN ID or IP address, protocol, port, DSCP/IP precedence, TCP/IP source and destination ports, IEEE 802.1p priority, Ethernet Type / IGMP packets, TCP flag
- LLDP (Link Layer Discovery Protocol)
- IEEE 802.3az Energy Efficiency
Specifications
| Package Contents |
|
|---|---|
| Product Type | Layer 3 Switch |
| Input Voltage | 120 V AC, 230 V AC |
| Manufacturer Part Number | SM24TAT4XB-BR |
| Power Source | AC, PoE+ |
| Limited Warranty | Lifetime |
| Layer Supported | 3 |
| Weight (Approximate) | 8.38 lb |
| Manufacturer | Lantronix, Inc |
| Product Name | SM24TAT4XB Layer 3 Switch |
| Network Technology | 10/100/1000Base-T, 10GBase-X |
| Power Consumption | 450 W |
| Product Series | SM24TAT4XB |
| Brand Name | Transition Networks |
| Expansion Slot Type | SFP+ |
| Height | 1.7" |
| Width | 17.4" |
| Depth | 8.3" |
| Manageable | Yes |
| Environmentally Friendly | Yes |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network (RJ-45) | Yes |
| Modular | Yes |
| Stack Port | No |
| Media Type Supported | Optical Fiber, Twisted Pair |
| Total Number of Network Ports | 24 |
| Shared SFP Slot | No |
| PoE (RJ-45) Port | Yes |
| Port/Expansion Slot Details | 24 x Gigabit Ethernet Network PoE+, 4 x 10 Gigabit Ethernet |
| Total Number of Expansion Slots | 4 |
| PoE Budget | 370 W |
| Networking Standards | IEEE 802.3at, IEEE 802.1p, IEEE 802.3az, IEEE 802.3x, IEEE 802.1x, IEEE 802.3z, IEEE 802.1Q, IEEE 802.1D, IEEE 802.1ab, IEEE 802.1w, IEEE 802.3af, IEEE 802.3ad, IEEE 802.1ad, IEEE 802.3u, IEEE 802.3, IEEE 802.1s |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
