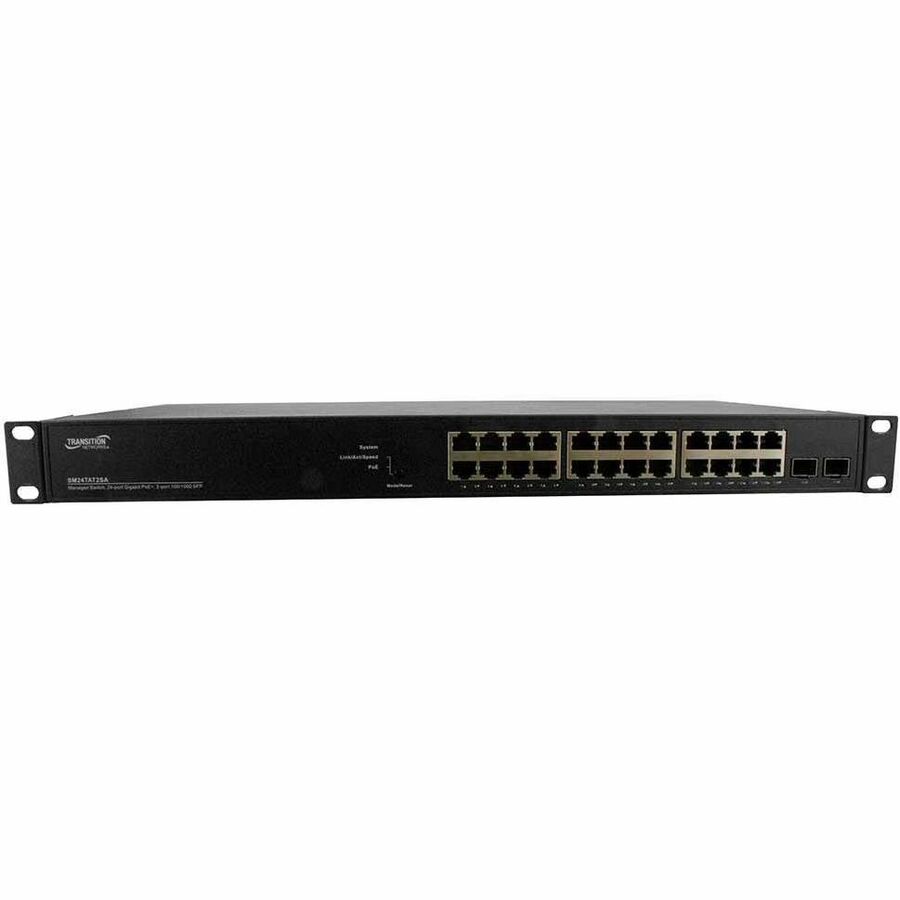

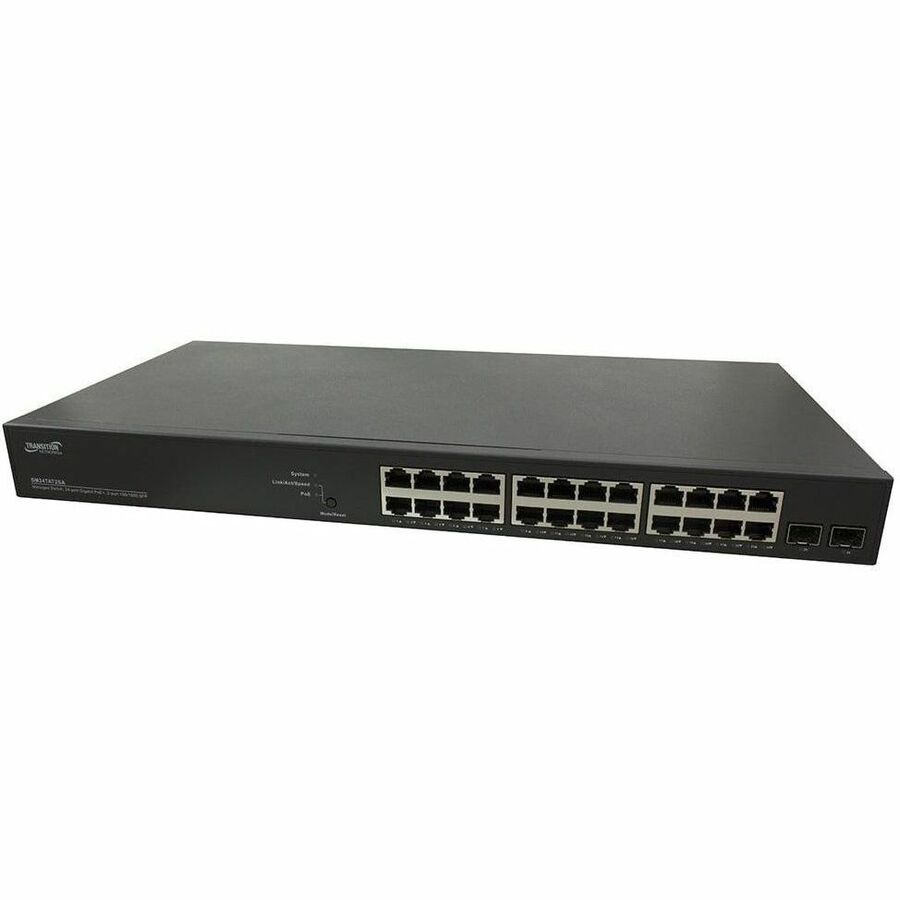

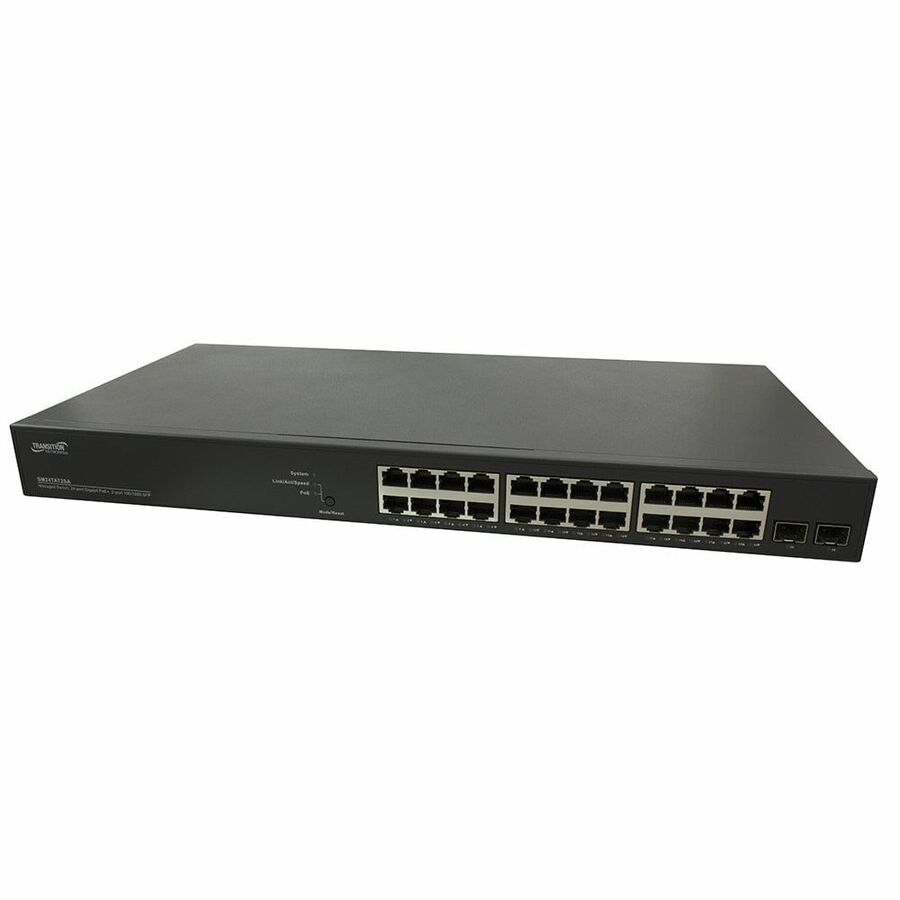

Lantronix SMTATSA Ethernet Switch
24 Ports - Manageable - Gigabit Ethernet - 100/1000Base-FX, 10/100/1000Base-TX - 4 Layer Supported - Modular - 2 SFP Slots - 438 W Power Consumption - 370 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - Rack-mountable - 5 Year Limited Warranty
- SKU
- SM24TAT2SA-LA
- Category
- Switches & Bridges
MSRP$858.60
$629.28
Save 27%Back ordered — ships when restocked.
Genuine Lantronix through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- SM24TAT2SA-LA
- Category
- Switches & Bridges
Overview
(8/16/24) 10/100/1000Base-T PoE++ Ports + (2) 100/1000Base-X SFP Slots
These Smart Managed PoE+ Switches with embedded Device Management System (DMS) software provides the benefits of ease of use in IP surveillance, Wireless Access Point and other applications. The DMS capability built into the switch provides time-saving features enabling security integrators or network administrators to establish and document a baseline deployment, automatically discover and remotely configure attached IP-powered devices (PDs).
Highlights
- IPv6 Access Management
- Support Jumbo Frame up to 9K bytes
- Authentication - RADIUS, TACACS+
- DHCP Relay, DHCP Snooping, DHCP Server
- L2/L3/L4 ACLs Support MAC ACL, IP standard/extended ACL
- LLDP (Link Layer Discovery Protocol)
- IEEE 802.3az Energy Efficiency
- IP Source Guard, Port Security
- Syslog
- Fanless Design
Specifications
| Package Contents |
|
|---|---|
| Product Type | Ethernet Switch |
| Input Voltage | 120 V AC, 230 V AC |
| Manufacturer Part Number | SM24TAT2SA-LA |
| Power Source | PoE+, AC |
| Limited Warranty | 5 Year |
| Layer Supported | 4 |
| Weight (Approximate) | 6.60 lb |
| Features | Fanless |
| Form Factor | Rack-mountable |
| Manufacturer | Lantronix, Inc |
| Product Name | SMTATSA Ethernet Switch |
| Network Technology | 100/1000Base-FX, 10/100/1000Base-TX |
| Power Consumption | 438 W |
| Product Series | SMTATSA |
| Brand Name | Lantronix |
| Expansion Slot Type | SFP (mini-GBIC) |
| Height | 1.7" |
| Width | 17.4" |
| Depth | 8.3" |
| Manageable | Yes |
| Environmentally Friendly | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Network (RJ-45) | Yes |
| Number of SFP Slots | 2 |
| Modular | Yes |
| Stack Port | No |
| Media Type Supported | Twisted Pair, Optical Fiber |
| Total Number of Network Ports | 24 |
| Shared SFP Slot | No |
| PoE (RJ-45) Port | Yes |
| Port/Expansion Slot Details | 24 x Gigabit Ethernet Network PoE+, 2 x Gigabit Ethernet SFP |
| Total Number of Expansion Slots | 2 |
| PoE Budget | 370 W |
| Networking Standards | IEEE 802.3az, IEEE 802.3x, IEEE 802.3ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.3at, IEEE 802.1ab, IEEE 802.3ad, IEEE 802.1s, IEEE 802.3u, IEEE 802.3, IEEE 802.3z, IEEE 802.1w, IEEE 802.3af, IEEE 802.1D, IEEE 802.1Q |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
