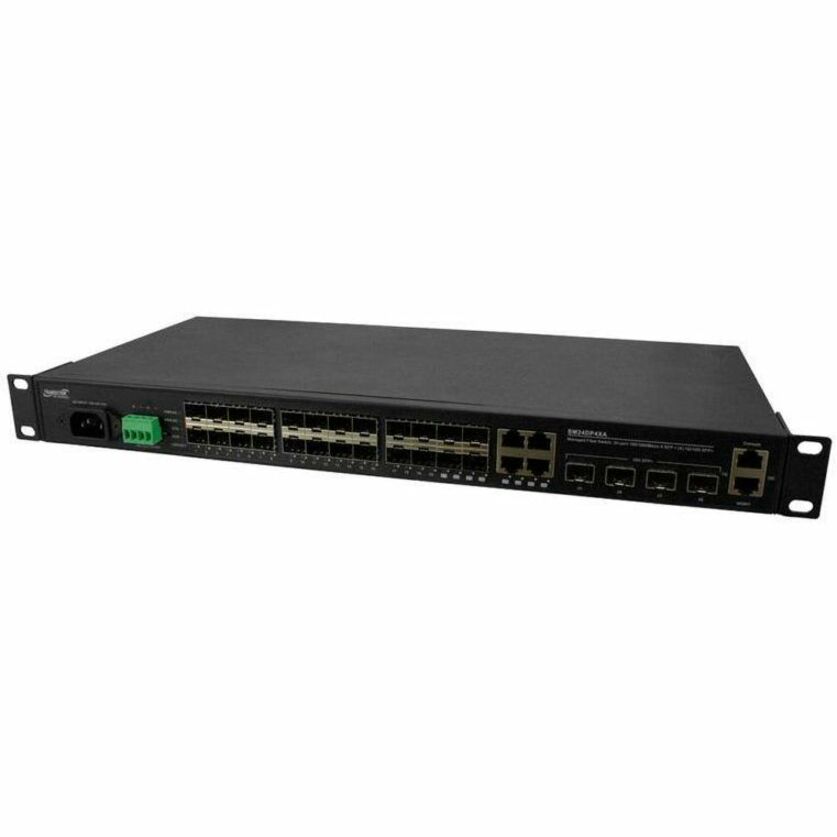

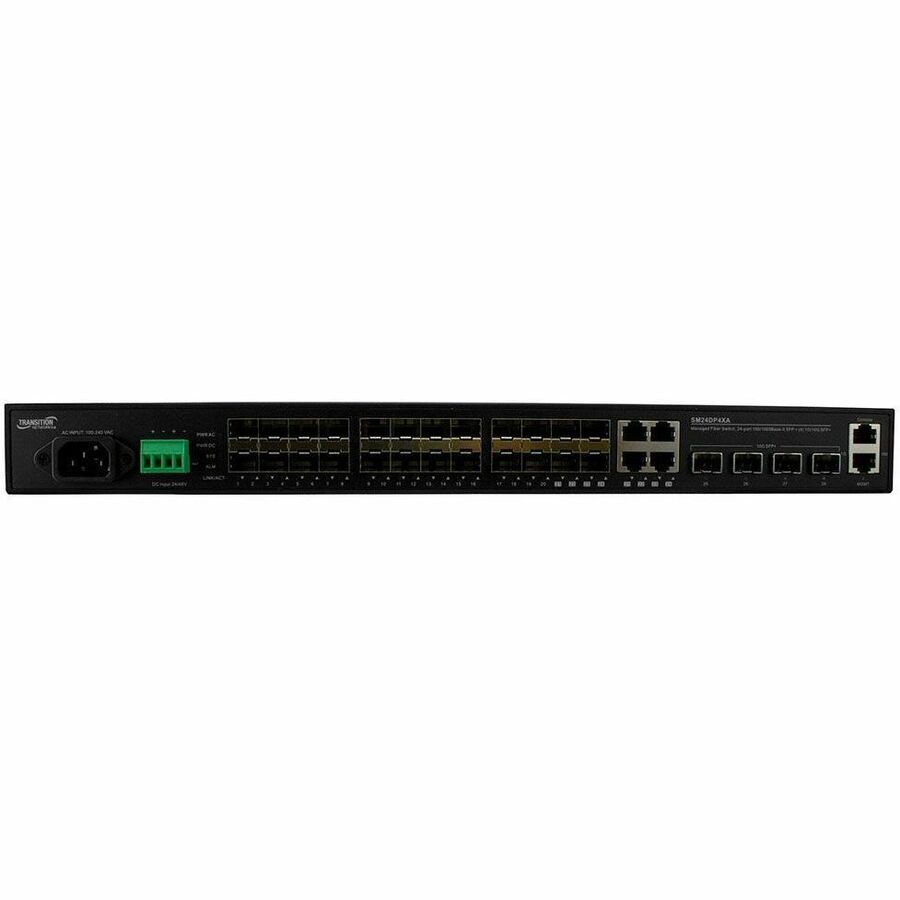

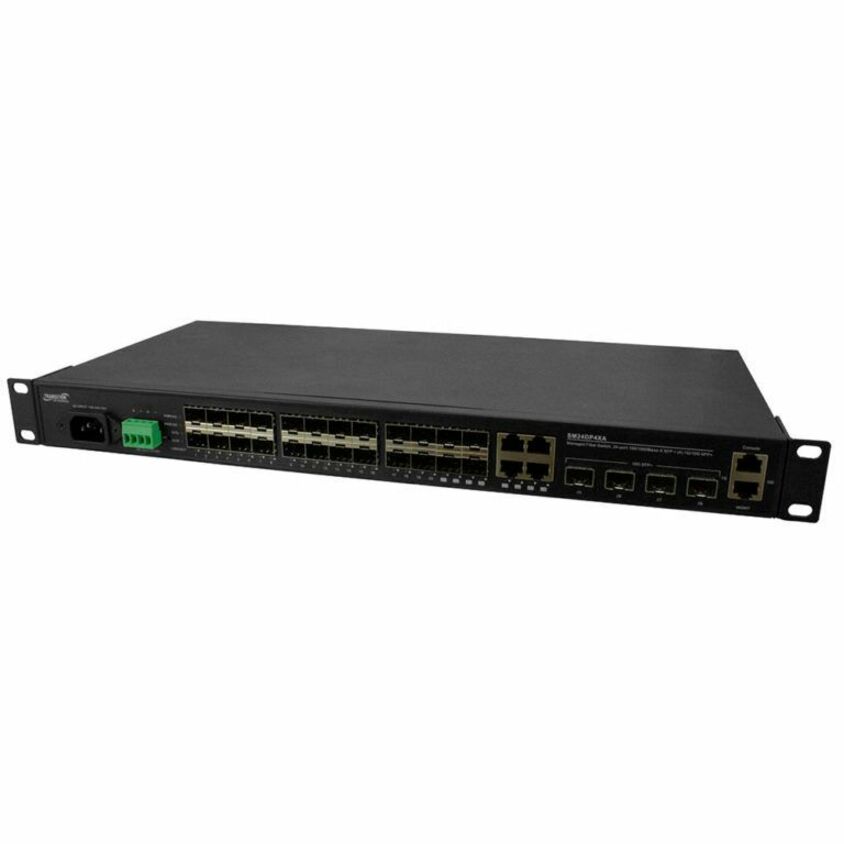

Lantronix SM24DP4XA Ethernet Switch
4 Ports - Manageable - 10 Gigabit Ethernet - 10GBase-X, 1000Base-X, 1000Base-TX, 100/1000Base-FX - 4 Layer Supported - Modular - 24 SFP Slots - 60 W Power Consumption - Optical Fiber, Twisted Pair - Rack-mountable - 5 Year Limited Warranty
- SKU
- SM24DP4XA-LA
- Category
- Switches & Bridges
MSRP$1,685.40
$1,228.48
Save 27%Back ordered — ships when restocked.
Genuine Lantronix through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- SM24DP4XA-LA
- Category
- Switches & Bridges
Overview
Managed Gigabit Ethernet Fiber Switch
(20) 100/1000Base-X SFP Slots + (4) 100/1000Base SFP/RJ-45 Combo Ports + (4) 1G/10GBase-X SFP+ Slots
This switch is a next generation Layer 2 managed switch with 128Gbps switching capacity. It provides up to (24) dual speed fiber slots and (4) 10Gig aggregation ports, it's an ideal switch for fiber aggregation applications.
Highlights
- Supports IPv4/IPv6 dual protocol stack
- Support Jumbo Frame up to 1518-4776 bytes
- Authentication - IEEE 802.1X, RADIUS, TACACS+
- Security - Supports SSH/SSL
- DHCP Relay, DHCP Option 82
- L2/L3/L4 ACLs Support MAC ACL, IP standard/extended ACL, IEEE 802.1p, Ethernet type
- LLDP (Link Layer Discovery Protocol)
- DHCP Server
- IEEE 802.3az Energy Efficiency
- IP Source Guard, Port Security
- IEEE 1588v2 PTP
- IEEE 802.3ah OAM
- IEEE 802.1ag CFM
- ITU-T Y.1731 Performance Monitoring
- ITU-T G.8031 Ethernet Linear Protection Switching (EPS)
- ITU-T G.8032 Ethernet Ring Protection Switching (ERPS)
- Ethernet Virtual Circuts (EVC) for EPL and EVPL Services
Specifications
| Package Contents |
|
|---|---|
| Product Type | Ethernet Switch |
| Input Voltage | -48 V DC, -24 V DC, 120 V AC, 48 V DC, 230 V AC, 24 V DC |
| Manufacturer Part Number | SM24DP4XA-LA |
| Power Source | Power Supply |
| Limited Warranty | 5 Year |
| Layer Supported | 4 |
| Weight (Approximate) | 2.87 lb |
| Form Factor | Rack-mountable |
| Manufacturer | Lantronix, Inc |
| Product Name | SM24DP4XA Ethernet Switch |
| Network Technology | 10GBase-X, 1000Base-X, 1000Base-TX, 100/1000Base-FX |
| Power Consumption | 60 W |
| Product Series | SM24DP4XA |
| Brand Name | Lantronix |
| Expansion Slot Type | SFP (mini-GBIC), SFP+ |
| Height | 1.7" |
| Width | 17.4" |
| Depth | 8.3" |
| Manageable | Yes |
| Environmentally Friendly | Yes |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network (RJ-45) | Yes |
| Number of SFP Slots | 24 |
| Modular | Yes |
| Stack Port | No |
| Media Type Supported | Optical Fiber, Twisted Pair |
| Total Number of Network Ports | 4 |
| Shared SFP Slot | Yes |
| Port/Expansion Slot Details | 20 x Gigabit Ethernet SFP, 4 x Gigabit Ethernet Combo (Ethernet/SFP), 4 x 10 Gigabit Ethernet SFP+ |
| Total Number of Expansion Slots | 28 |
| Networking Standards | IEEE 802.3, IEEE 802.1s, IEEE 802.3u, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.1ad, IEEE 802.3az, IEEE 802.3x, IEEE 802.3ae, IEEE 1588v2, IEEE 802.3z, IEEE 802.1Q, IEEE 802.1x, IEEE 802.1p, IEEE 802.3ag, IEEE 802.1w, IEEE 802.1D |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
More Switches & Bridges from Lantronix

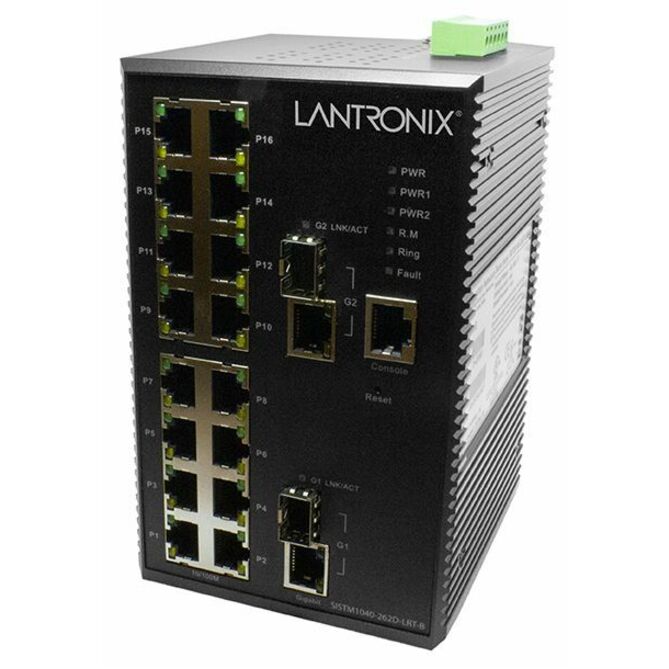

View the Lantronix catalog →- LantronixLantronix Managed Hardened Fast Ethernet Switch - 16 Ports - Manageable - Gigabit Ethernet, Fast Ethernet - 1000Base-X, 10/100/1000Base-TX - 2 Layer Supported - Modular - 2 SFP Slots - 12 W Power Consumption - Optical Fiber, Twisted Pair - Rail-mountable, Wall Mountable - Lifetime Limited Warranty - TAA CompliantSISTM1040-262D-LRT-B
