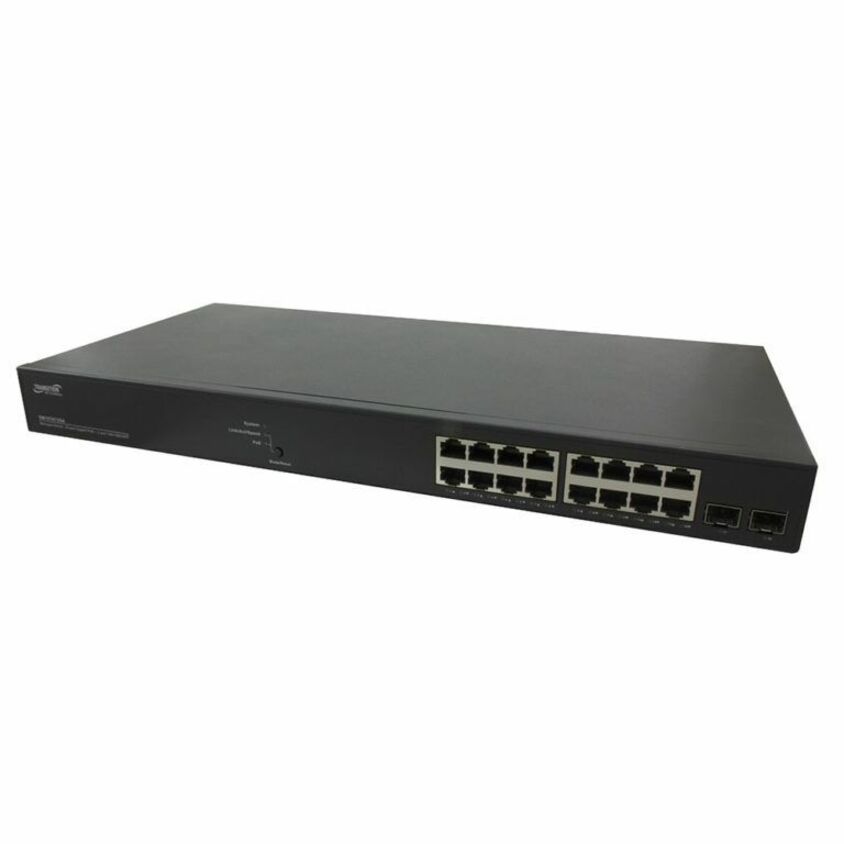

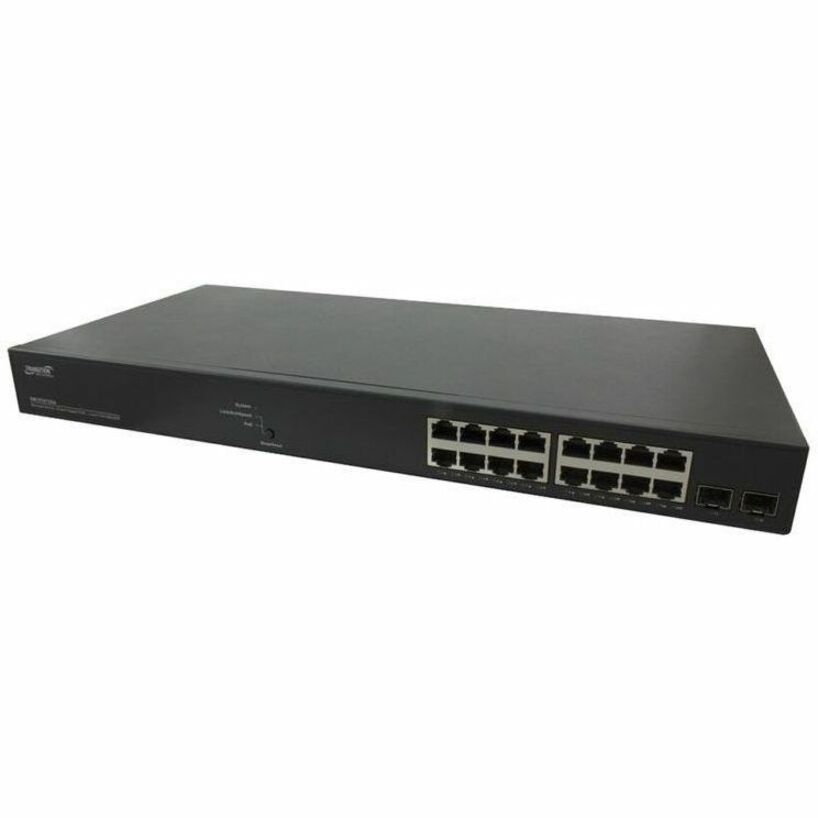

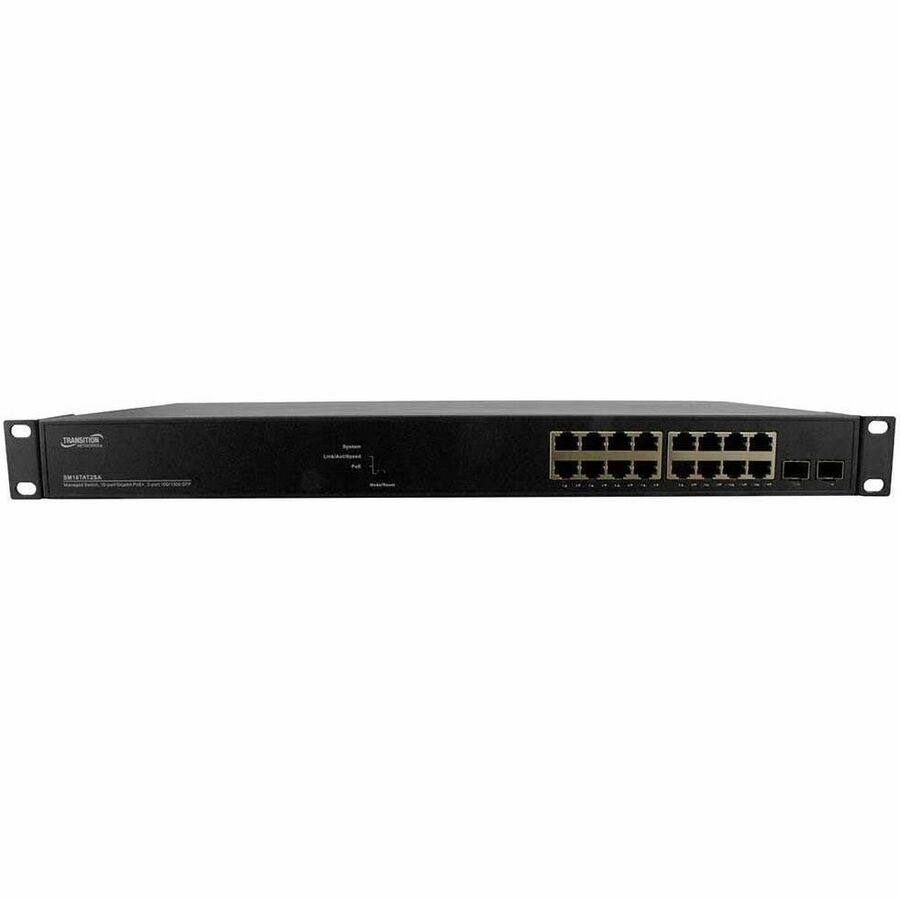

Lantronix SMTATSA Ethernet Switch
Lantronix

Lantronix SMTATSA Ethernet Switch

16 Ports - Manageable - Gigabit Ethernet - 100/1000Base-FX, 10/100/1000Base-TX - 4 Layer Supported - Modular - 2 SFP Slots - 296 W Power Consumption - 250 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - Rack-mountable - 5 Year Limited Warranty

SKU
SM16TAT2SA-EU
Category
Switches & Bridges

MSRP$744.12

$546.25

Save 27%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Lantronix through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
SM16TAT2SA-EU
Category
Switches & Bridges

Overview

(8/16/24) 10/100/1000Base-T PoE++ Ports + (2) 100/1000Base-X SFP Slots

These Smart Managed PoE+ Switches with embedded Device Management System (DMS) software provides the benefits of ease of use in IP surveillance, Wireless Access Point and other applications. The DMS capability built into the switch provides time-saving features enabling security integrators or network administrators to establish and document a baseline deployment, automatically discover and remotely configure attached IP-powered devices (PDs).

Highlights

  • IPv6 Access Management
  • Support Jumbo Frame up to 9K bytes
  • Authentication - RADIUS, TACACS+
  • DHCP Relay, DHCP Snooping, DHCP Server
  • L2/L3/L4 ACLs Support MAC ACL, IP standard/extended ACL
  • LLDP (Link Layer Discovery Protocol)
  • IEEE 802.3az Energy Efficiency
  • IP Source Guard, Port Security
  • Syslog
  • Fanless Design

Specifications

Package Contents
  • SMTATSA Ethernet Switch
  • Power Cord Europe
  • 19" Rack Mount Bracket
Product TypeEthernet Switch
Input Voltage120 V AC, 230 V AC
Manufacturer Part NumberSM16TAT2SA-EU
Power SourcePoE+, AC
Limited Warranty5 Year
Layer Supported4
Weight (Approximate)6.60 lb
FeaturesFanless
Form FactorRack-mountable
ManufacturerLantronix, Inc
Product NameSMTATSA Ethernet Switch
Network Technology100/1000Base-FX, 10/100/1000Base-TX
Power Consumption296 W
Product SeriesSMTATSA
Brand NameLantronix
Expansion Slot TypeSFP (mini-GBIC)
Height1.7"
Width17.4"
Depth8.3"
ManageableYes
Environmentally FriendlyYes
Ethernet TechnologyGigabit Ethernet
Network (RJ-45)Yes
Number of SFP Slots2
ModularYes
Stack PortNo
Media Type SupportedTwisted Pair, Optical Fiber
Total Number of Network Ports16
Shared SFP SlotNo
PoE (RJ-45) PortYes
Port/Expansion Slot Details16 x Gigabit Ethernet Network PoE+, 2 x Gigabit Ethernet SFP
Total Number of Expansion Slots2
PoE Budget250 W
Networking StandardsIEEE 802.3az, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, IEEE 802.1w, IEEE 802.1p, IEEE 802.1ad, IEEE 802.3at, IEEE 802.3ad, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1ab, IEEE 802.3, IEEE 802.3u, IEEE 802.3af
Environmental ComplianceRegistration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
