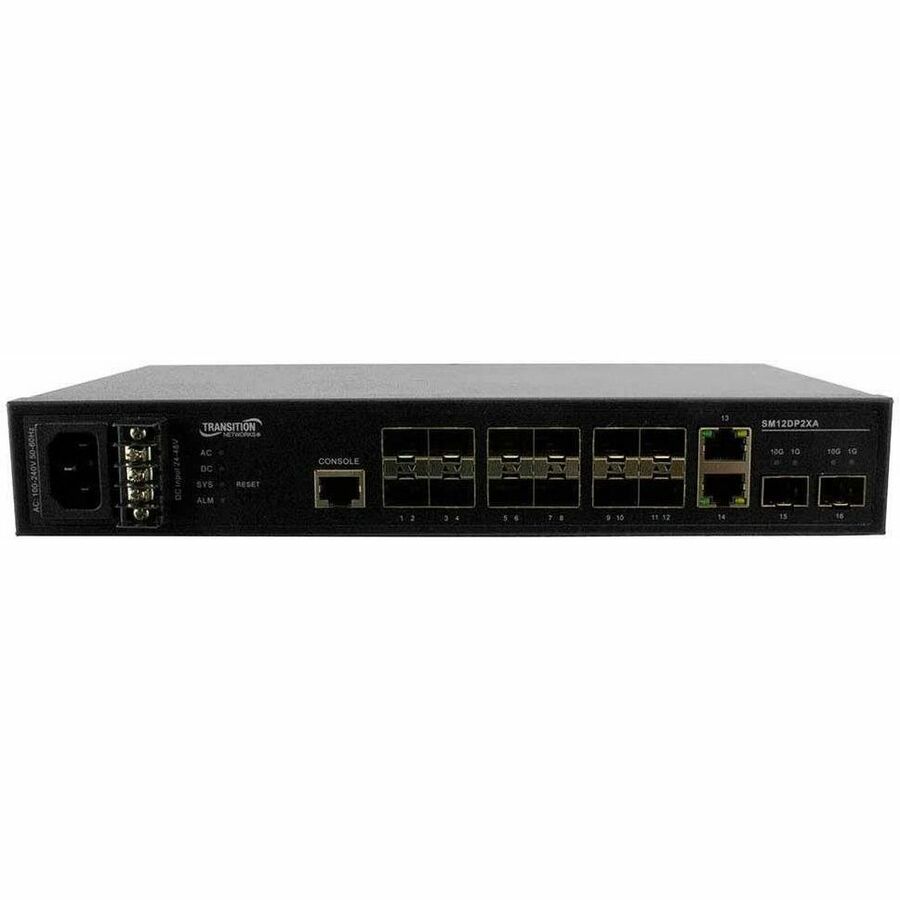

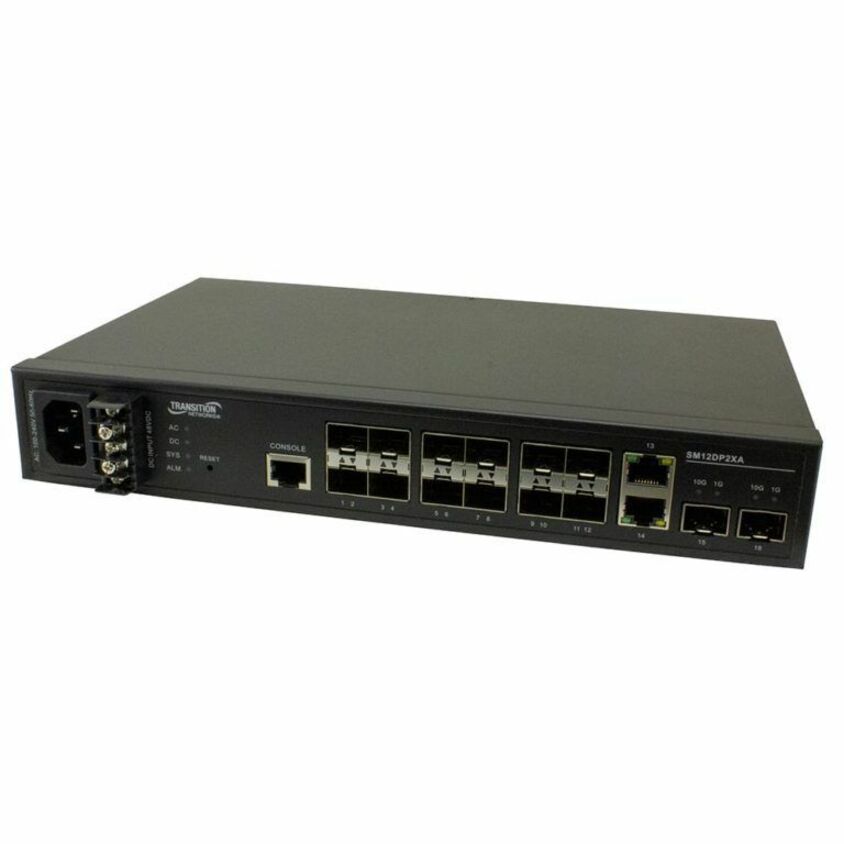

Transition Networks SM12DP2XA Ethernet Switch
2 Ports - Manageable - 10 Gigabit Ethernet - 10GBase-X, 100/1000Base-FX, 1000Base-X, 10/100/1000Base-TX - Modular - 12 SFP Slots - 24 W Power Consumption - Twisted Pair, Optical Fiber - Lifetime Limited Warranty
- SKU
- SM12DP2XA-LA
- Category
- Switches & Bridges
MSRP$837.40
$613.42
Save 27%Back ordered — ships when restocked.
Genuine Lantronix through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- SM12DP2XA-LA
- Category
- Switches & Bridges
Overview
Managed Gigabit Ethernet Fiber Switch
(12) 100/1000Base-X SFP Slots + (2) 1G/10GBase-X SFP+ Slots + (2) 10/100/1000Base-T RJ-45 Ports
This switch is a next generation fully managed fiber switch with 68Gbps switching capacity. It provides (12) 100/1000 dual speed SFP slots, (2) 1G/10G SFP+ slots and (2) additional Gigabit RJ-45 ports.
Highlights
- IPv6 Management
- Support Jumbo Frame up to 9K bytes
- Authentication - RADIUS, TACACS+
- IEEE 802.1X: RADIUS authentication, authorization and accounting, MD5 hash, guest VLAN, single/multiple host mode and single/multiple sessions
- DHCP Relay, DHCP Option 82, DHCP Snooping, DHCP Server
- L2/L3/L4 ACLs Support MAC, VLAN ID or IP, protocol, port, DSCP/IP precedence/TCP.UDP, Ether Type, ICMP, TCP flag
- LLDP (Link Layer Discovery Protocol)
- IEEE 802.3az Energy Efficiency
- IP Source Guard, Port Security
- Port Mirroring
- Firmware Update through TFTP/ HTTP and console
- Syslog
Specifications
| Package Contents |
|
|---|---|
| Product Type | Ethernet Switch |
| Input Voltage | 230 V AC, 48 V DC, 24 V DC, 120 V AC |
| Manufacturer Part Number | SM12DP2XA-LA |
| Power Source | AC, DC |
| Limited Warranty | Lifetime |
| Weight (Approximate) | 2.20 lb |
| Manufacturer | Lantronix, Inc |
| Product Name | SM12DP2XA Ethernet Switch |
| Network Technology | 10GBase-X, 100/1000Base-FX, 1000Base-X, 10/100/1000Base-TX |
| Power Consumption | 24 W |
| Product Series | SM12DP2XA |
| Brand Name | Transition Networks |
| Expansion Slot Type | SFP (mini-GBIC), SFP+ |
| Height | 1.7" |
| Width | 11" |
| Depth | 5.3" |
| Manageable | Yes |
| Environmentally Friendly | Yes |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network (RJ-45) | Yes |
| Number of SFP Slots | 12 |
| Modular | Yes |
| Stack Port | No |
| Media Type Supported | Twisted Pair, Optical Fiber |
| Total Number of Network Ports | 2 |
| Shared SFP Slot | No |
| Port/Expansion Slot Details | 12 x Gigabit Ethernet SFP, 2 x 10 Gigabit Ethernet SFP+, 2 Gigabit Ethernet Network |
| Total Number of Expansion Slots | 14 |
| Networking Standards | IEEE 802.3at, IEEE 802.1s, IEEE 802.3x, IEEE 802.3ae, IEEE 802.1p, IEEE 802.3ah, IEEE 802.3ad, IEEE 802.3, IEEE 802.1ad, IEEE 802.1ag, IEEE 802.3u, IEEE 802.1w, IEEE 802.1Q, IEEE 802.3af, IEEE 802.1ab, IEEE 802.1D, IEEE 802.3z, IEEE 802.3az |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
