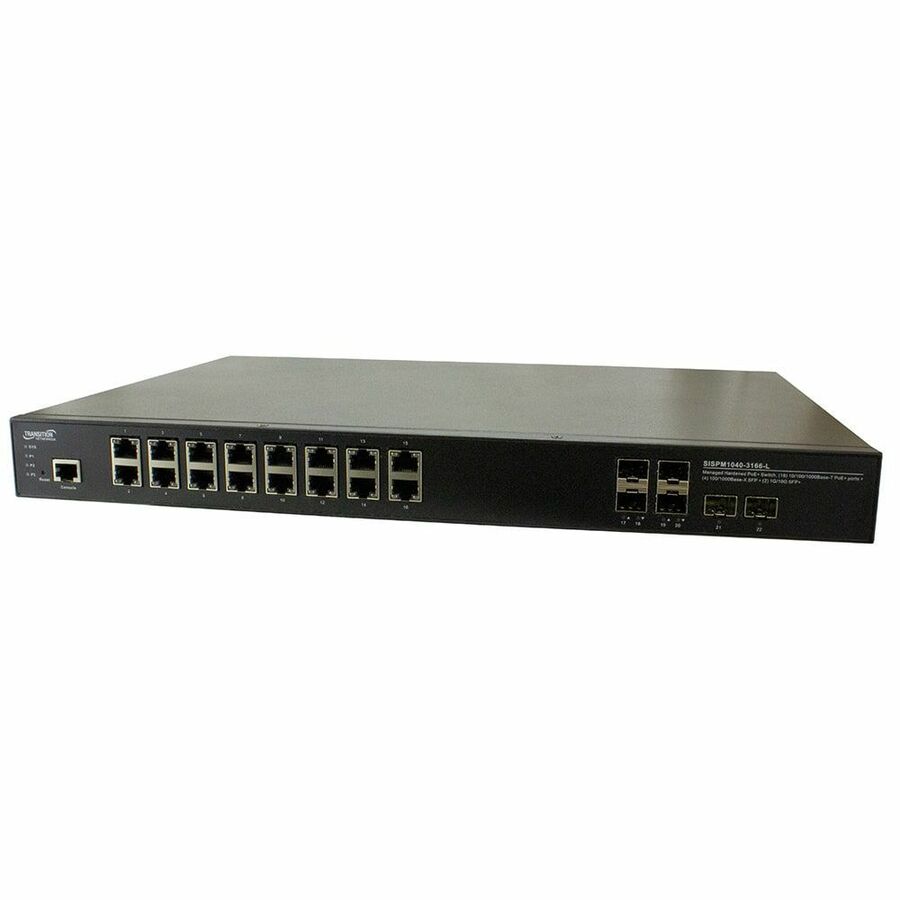

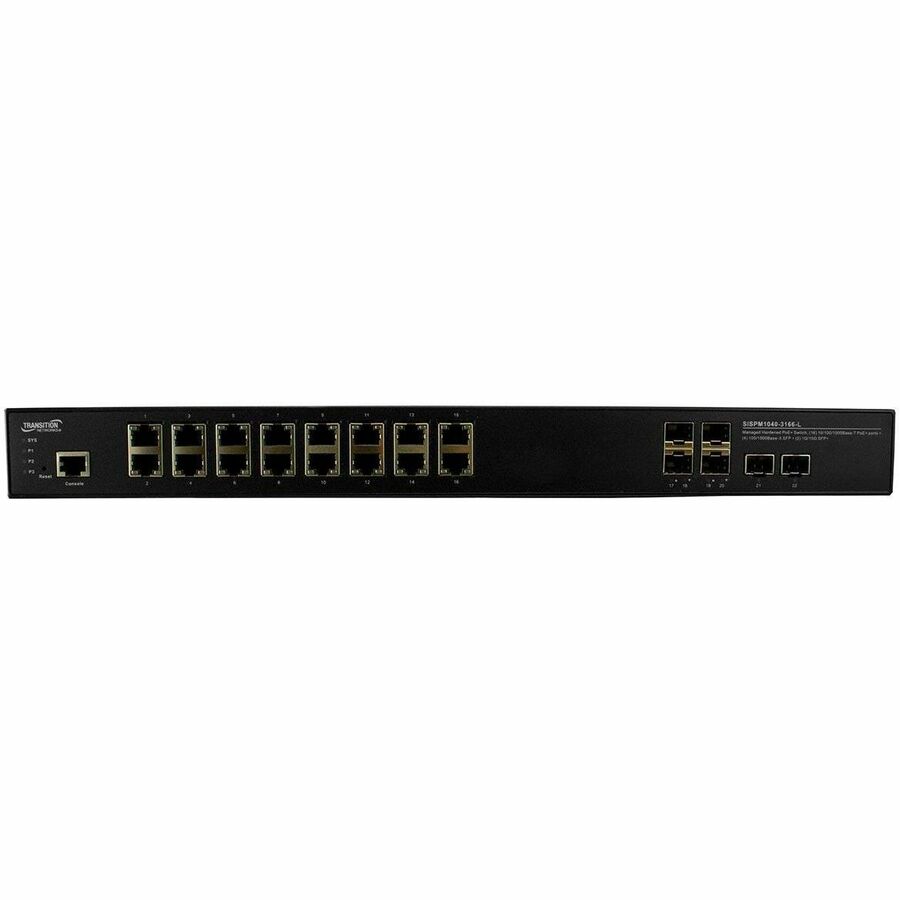

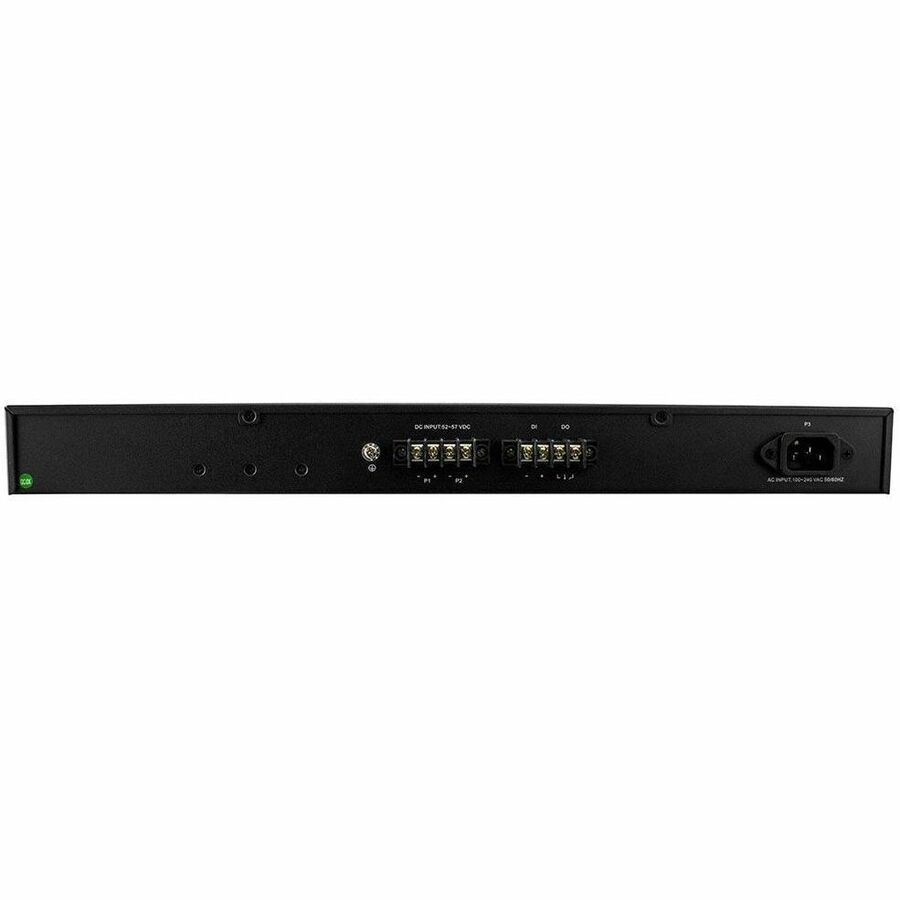

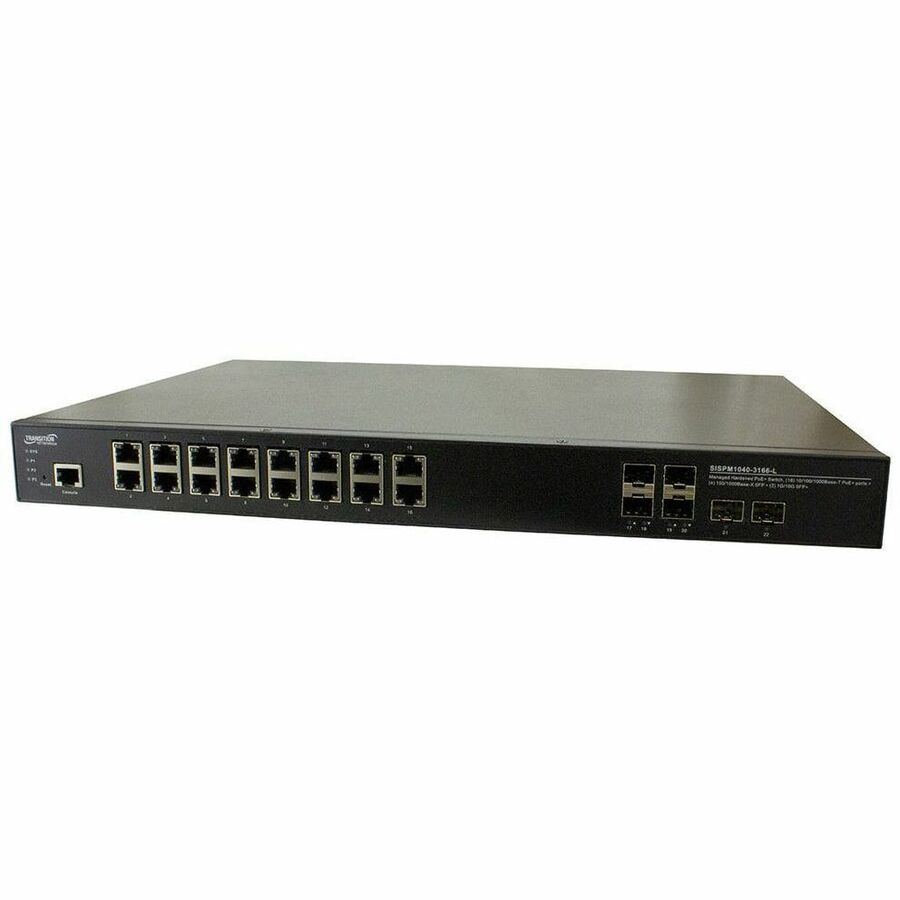

Transition Networks SISPM1040-3166-L Ethernet Switch
16 Ports - Manageable - 10 Gigabit Ethernet - 10/100/1000Base-TX, 100/1000Base-FX, 10GBase-X - 4 Layer Supported - Modular - 4 SFP Slots - 15 W Power Consumption - 250 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - Rack-mountable - 5 Year Limited Warranty
- SKU
- SISPM1040-3166-L-EU
- Category
- Switches & Bridges
MSRP$2,003.40
$1,408.21
Save 30%Back ordered — ships when restocked.
Genuine Lantronix through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- SISPM1040-3166-L-EU
- Category
- Switches & Bridges
Overview
Managed Hardened Gigabit Ethernet PoE+ Rack Mountable Switch
(16) 10/100/1000Base-T PoE+ Ports + (4) 100/1000Base-X SFP Slots + (2) 1G/10GBase-X SFP+ Slots
This switch is a next generation rack mountable hardened switch with 80Gbps switching capacity. It provides (16) 10/100/1000 PoE+ ports, (4) 100/1000 dual speeds SFP ports and has (2) additional 1G/10G SFP+ slots.
Highlights
- IPv4/IPv6 dual protocols
- Supports Jumbo Frame up to 9K bytes
- Authentication - RADIUS, TACACS+
- DHCP Relay, DHCP Snooping, DHCP Server
- L2/L3/L4 ACLs Support MAC, VLAN ID, or IP address, protocol, per port
- LLDP (Link Layer Discovery Protocol)
- ITU-T G.8031 Ethernet Linear Protection
- ITU-T G.8032 Ethernet Ring Protection Switching
- Rapid Ring for fast recovery
- IEC 62439-2 Media Redundancy Protocol (MRP)
- IEEE 802.3az Energy Efficiency
- IP Source Guard, Port Security
- Port Mirroring
- Syslog
- Static Routing, 130 rates (max)
- Fanless Design
- Media Redundancy Protocol (MRP)
Specifications
| Package Contents |
|
|---|---|
| Product Type | Ethernet Switch |
| Input Voltage | 120 V AC, 57 V DC, 52 V DC, 230 V AC |
| Manufacturer Part Number | SISPM1040-3166-L-EU |
| Power Source | Power Supply, PoE+ |
| Limited Warranty | 5 Year |
| Layer Supported | 4 |
| Weight (Approximate) | 10.58 lb |
| Features | Fanless |
| Form Factor | Rack-mountable |
| Manufacturer | Lantronix, Inc |
| Product Name | SISPM1040-3166-L Ethernet Switch |
| Network Technology | 10/100/1000Base-TX, 100/1000Base-FX, 10GBase-X |
| Power Consumption | 15 W |
| Product Series | SISPM1040-3166-L |
| Brand Name | Transition Networks |
| Expansion Slot Type | SFP+, SFP (mini-GBIC) |
| Height | 1.7" |
| Width | 17.4" |
| Depth | 11.8" |
| Manageable | Yes |
| Environmentally Friendly | Yes |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network (RJ-45) | Yes |
| Number of SFP Slots | 4 |
| Modular | Yes |
| Stack Port | No |
| Media Type Supported | Twisted Pair, Optical Fiber |
| Total Number of Network Ports | 16 |
| Shared SFP Slot | No |
| PoE (RJ-45) Port | Yes |
| Port/Expansion Slot Details | 16 x Gigabit Ethernet Network PoE+, 4 x Gigabit Ethernet SFP, 2 x 10 Gigabit Ethernet SFP+ |
| Total Number of Expansion Slots | 6 |
| PoE Budget | 250 W |
| Networking Standards | IEEE 802.1ad, IEEE 802.3ah, IEEE 802.3x, IEEE 802.3z, IEEE 802.3az, IEEE 802.1Q, IEEE 802.3ad, IEEE 802.3at, IEEE 802.3u, IEEE 802.1p, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1w, IEEE 802.1ag, IEEE 802.1D, IEEE 802.3af, IEEE 802.3, IEEE 802.1ab |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
