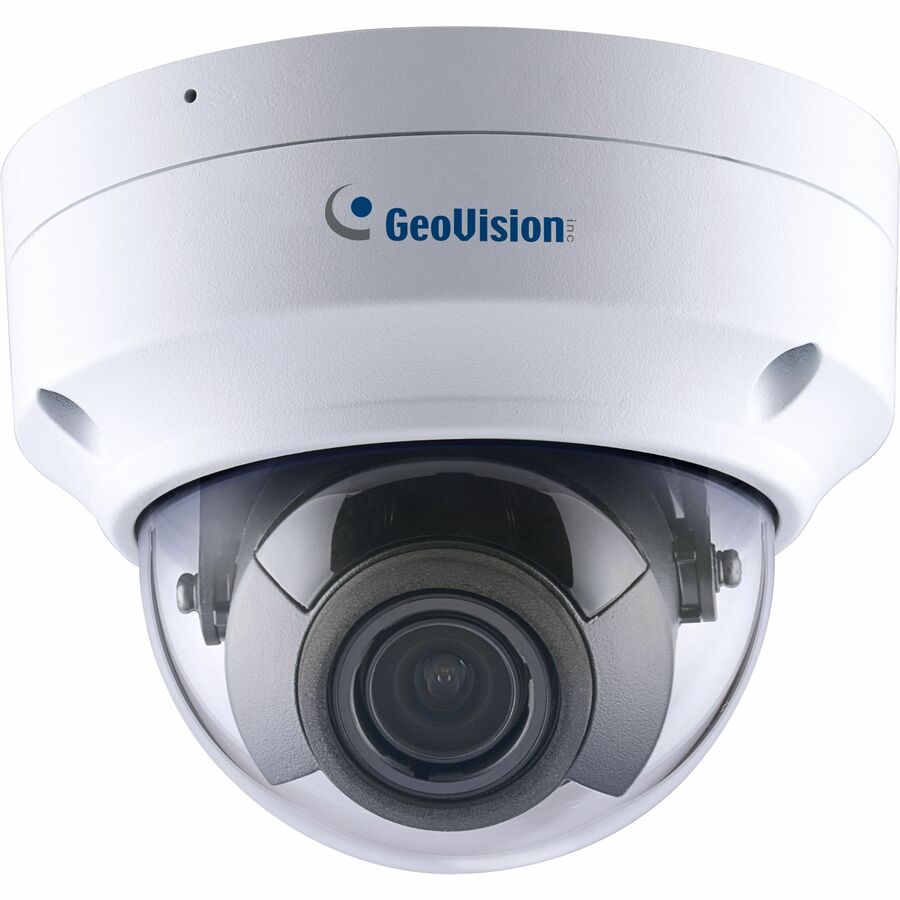

GeoVision GV-TVD4811 4 Megapixel Outdoor Network Camera - Color - Dome
98.43 ft Infrared Night Vision - H.264, H.265, MJPEG - 2688 x 1520 - 2.70 mm- 13.50 mm Varifocal Lens - 5x Optical - 30 fps - CMOS - Fast Ethernet - Wall Mount, Corner Mount, Pole Mount - IK10 - IP66 - Vandal Resistant, Water Resistant, Dust Resistant, Vandal Proof
- SKU
- GV-TVD4811
- Category
- Surveillance/Network Cameras
MSRP$435.00
$307.90
Save 29%Back ordered — ships when restocked.
Genuine GeoVision through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- GV-TVD4811
- Category
- Surveillance/Network Cameras
Overview
GV-TVD4811 is an outdoor camera designed with IK10 vandal resistance and IP66 ingress protection. GV-TVD4811 supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. The camera is equipped with an automatic IR-cut filter and IR LEDs for day and night surveillance. Adjustable in 3 axis (pan, tilt and rotate), it offers an entry-level surveillance solution with all the essential features and excellent image quality.
Empowered by deep learning algorithms, AI technology distinguishes human and vehicles from other moving objects. Integrated with GeoVision Video Management Software (VMS), it supports AI perimeter protection, real time alert, events playback and more.
Highlights
- AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
- 1/2.7" progressive scan CMOS sensor
- Min. illumination at 0.002 lux
- Triple streams from H.265, H.264 or MJPEG
- Up to 30 fps at 2688 x 1520
- Motorized varifocal lens for remote focus / zoom adjustment
- Intelligent IR
- IR distance up to 30 m (100 ft)
- Day and Night function (with removable IR-cut filter)
- Vandal resistance (IK10 for metal casing)
- Ingress protection (IP66)
- 3-axis mechanism (pan / tilt / rotate)
- DC 12V / PoE (IEEE 802.3af)
- Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I, Class 10) for local storage
- Built-in microphone
- Two-way audio capable
- Pigtail-free
- Wide Dynamic Range Pro (WDR Pro)
- Defog
- 3D noise reduction
- Motion detection
- Text overlay
- Privacy mask
- Tampering alarm
- 12 languages supported
- ONVIF (Profile G, S, T) conformant
Specifications
| Package Contents |
|
|---|---|
| Product Type | Network Camera |
| Input Voltage | 12 V DC |
| Manufacturer Part Number | GV-TVD4811 |
| Protocols | 802.1X, ARP, DHCP, DDNS, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTCP, RTSP, RTP, SMTP, SNMP, TCP, UDP, UPnP, ONVIF |
| Limited Warranty | 24 Month |
| Weight (Approximate) | 1.30 lb |
| Color Supported | Color |
| Connectivity Technology | Wired |
| Durability | Vandal Resistant, Water Resistant, Dust Resistant, Vandal Proof |
| Features | Day/Night, Ingress Protection, Wide Dynamic Range, 3D Noise Reduction, Privacy Masking, Motion Detection, Built-in Microphone, AI Analytics, Tampering Alarm, Human Detection |
| Form Factor | Dome |
| Lens Type | Varifocal |
| Manufacturer | GeoVision, Inc |
| Product Model | GV-TVD4811 |
| Product Name | AI 4MP H.265 5x Zoom Super Low Lux WDR Pro IR Vandal Proof IP Dome |
| Mount Type | Wall Mount, Corner Mount, Pole Mount |
| Video Formats | H.264, H.265, MJPEG |
| Product Series | GV-TVD |
| Optical Zoom | 5x |
| Brand Name | GeoVision |
| Diameter | 5" |
| Maximum Aperture | f/1.2 |
| Environmentally Friendly | Yes |
| Image Sensor Size | 1/2.7" |
| Tilt | 70° to 0° |
| Maximum Video Resolution | 2688 x 1520 |
| Maximum Frame Rate | 30 fps |
| Maximum Focal Length | 13.50 mm |
| Minimum Focal Length | 2.70 mm |
| Image Sensor Type | CMOS |
| Effective Camera Resolution | 4 Megapixel |
| Ethernet Technology | Fast Ethernet |
| Field of View | Horizontal: 103.58°~ 31.05° |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Network (RJ-45) | Yes |
| Longest Shutter Speed | 1 Second |
| Shortest Shutter Speed | 1/100000 Second |
| Lens Mount Type | ?14 |
| Remote Management | Yes |
| Maximum Power Consumption | 6.50 W |
| Night Vision | Yes |
| Lens Included | Yes |
| Night Vision Distance | 98.43 ft |
| Number of IR LEDs | 2 |
| Camera Iris | Fixed |
| Storage Type | Memory Card |
| Indoor/Outdoor | Outdoor |
| Power Source Type | DC, PoE |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
| Night Vision Type | Infrared |
| Maximum Operating Humidity | 95% |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
