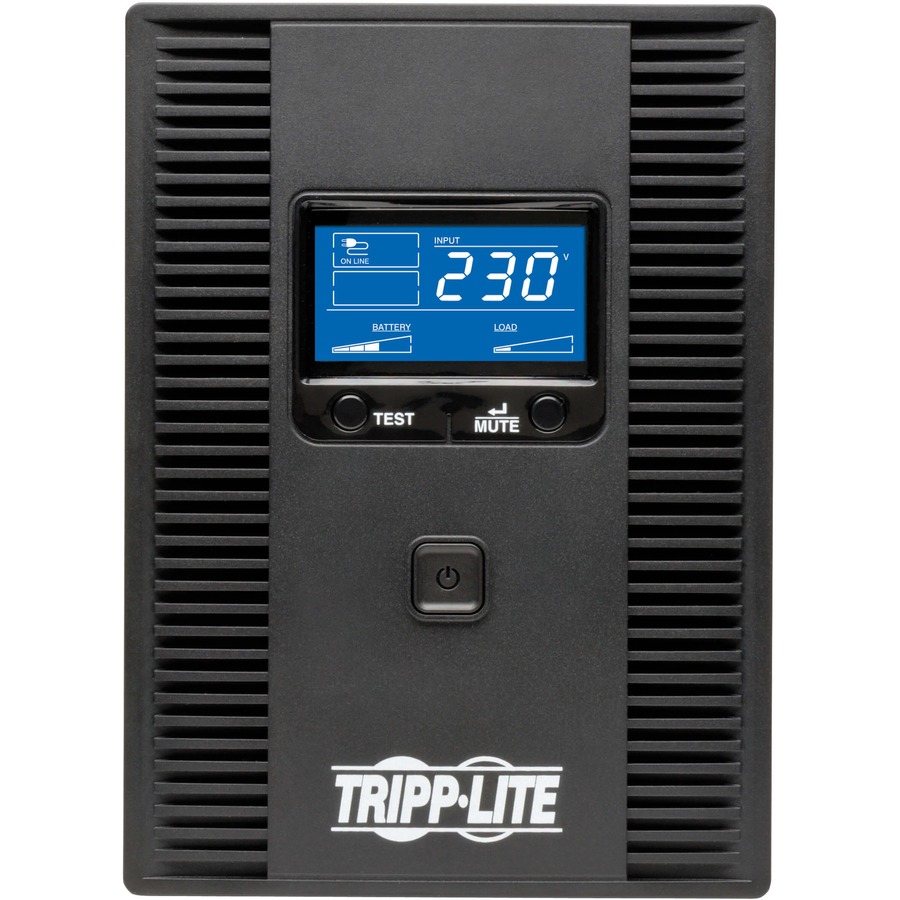

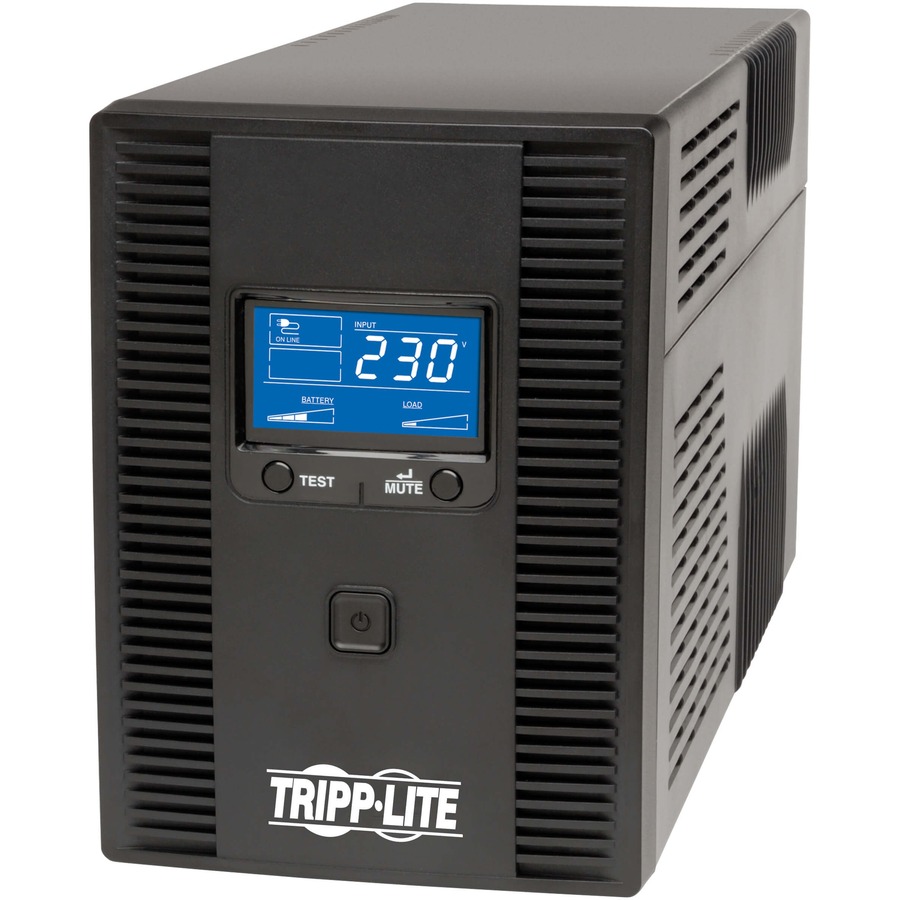

Eaton Tripp Lite Series 1500VA 900W 230V SmartPro Line-Interactive UPS - 8 C13 Outlets, 2 Australian Outlet Adapters, LCD, USB, Tower
Eaton

Eaton Tripp Lite Series 1500VA 900W 230V SmartPro Line-Interactive UPS - 8 C13 Outlets, 2 Australian Outlet Adapters, LCD, USB, Tower

Tower - AVR - 8 Hour Recharge - 230 V AC Input - 220 V AC, 230 V AC, 240 V AC Output - 8 x IEC 60320 C13

SKU
SMX1500LCDTA
Category
General Purpose UPS

Request pricing

Confirmed with stock and TAA status before any payment.

Request a quote

Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
SMX1500LCDTA
Category
General Purpose UPS

Overview

Desktop UPS offers complete power protection for small network applications, including home offices, security systems and digital signage.

Features | 1.5kVA/900W/230V Battery Backup for PCs, Home Theaters or Digital Signage

This SmartPro® line-interactive UPS system with AVR protection provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise that can damage valuable electronics or destroy data. The 230V battery backup is ideal protection for your home office, media center or commerce components, including computers, routers, printers, HDTVs, Blu-ray players, game consoles, ATMs, kiosks, security systems and digital signage equipment.

Allows Time to Back Up Critical Files During a Blackout

Backup support allows you to work through short power failures and gives you enough time to safely save files and shut down your system in case of a prolonged blackout. Backup time varies according to load, but the line-interactive UPS system should keep an energy-efficient desktop computer with small LCD monitor powered as long as 90 minutes. During normal operation, incoming utility power keeps the replaceable internal battery fully charged, so backup power will always be available.

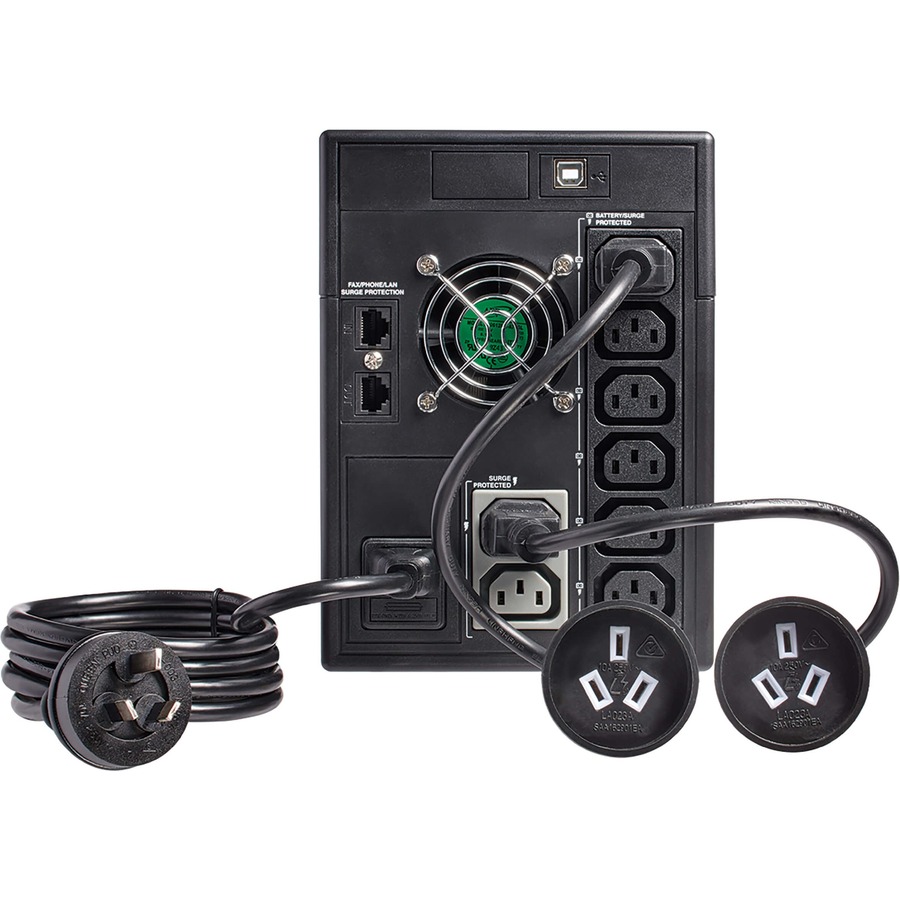

8 IEC 320 C13 Outlets Protect Your Connected Components

Six C13 outlets provide battery backup, surge protection and voltage regulation for your computer, monitor and other crucial components. The other two C13 outlets provide surge suppression only for printers, speakers and other desktop equipment regarded as non-essential during a blackout. Included outlet adapters convert two C13 outlets to 10A Australia/New Zealand-compatible outlets. A high >95% line mode efficiency rating reduces BTU emissions, energy consumption and, ultimately, your energy costs.

Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions

AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts and overvoltages. The SMX1500LCDTA can correct brownouts as low as 170V and overvoltages as high as 280V back to nominal 230V power continuously, all while keeping the battery fully charged and ready to take over in case of power failure.

455 Joules Fight Back Against Unexpected Power Surges

A 455-joule surge suppression rating protects connected components from the harmful effects of power surges. In addition to the C13 outlets, the RJ45 jacks for phone, DSL, fax, modem and Ethernet connections (not compatible with PoE applications) also are protected against surges.

Warranty

Limited Warranty: 2 Year

About Eaton

Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.

Highlights

  • Works adequately in situations where the supply is prone to sags and surges
  • Prevent critical data loss by staying powered during a blackout with up to 900 W load capacity
  • 1500 VA load capacity provides sufficient backup during power failures
  • Overload protection feature effectively prevents motor damage by monitoring the current in the motor circuit and breaking the circuit when an electrical overload is detected
  • 8 Hour typical battery recharge time to allow optimal performance for longer hours with added efficiency
  • Replaceable battery for reliable output for prolonged usage with maximum efficiency
  • IEC 60320 C14 plug/connector type for convenient usage with added dependability
  • IEC 60320 C13 receptacle type offers maximum safety, convenience, and increased usability
  • Single Phase phase for your convenience and optimal usage
  • Line-interactive UPS with computer application/usage to ensure maximum usability and reliable power supply

Specifications

Application/UsageComputer, Network, Home, Office, Security System, Digital Signage, Electronic, Desktop, Phone, POS, Kiosk, ATM, Fax Machine, Modem, DSL

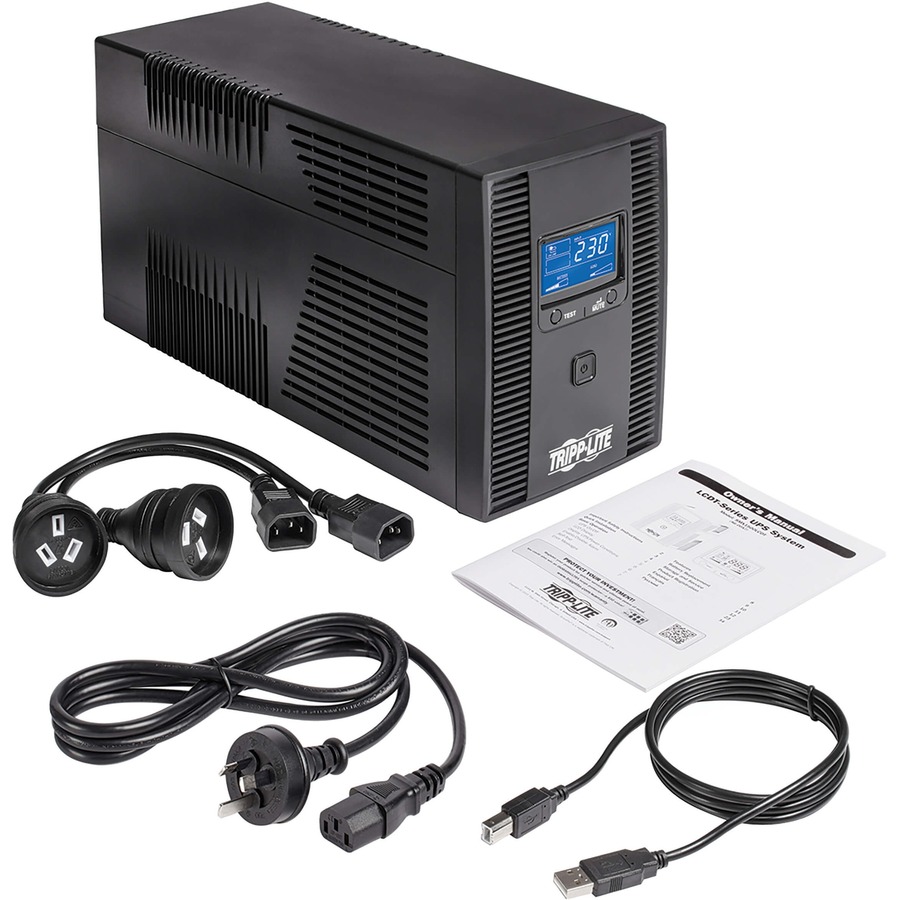

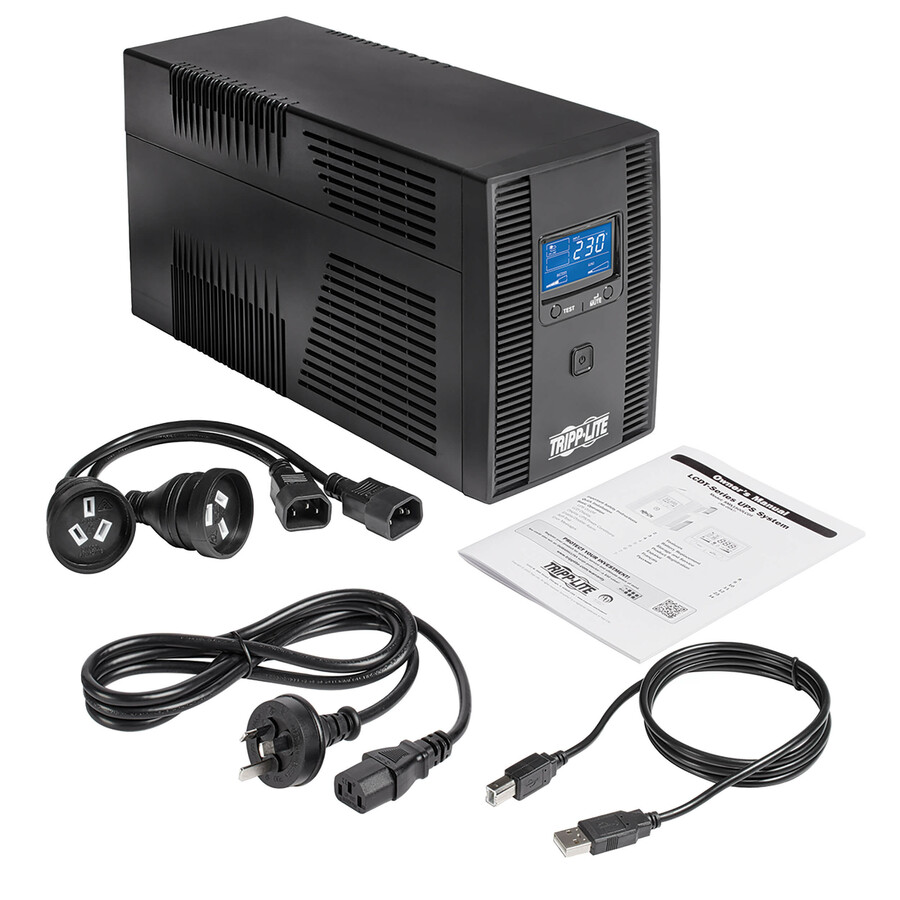

Package Contents
  • SmartPro SMX1500LCDTA 1500VA Tower UPS
  • 2 x C13 to AUS/NZ Outlet Adapters
  • USB Cable
  • Power Cord With 10A AUS/NZ plug, 1.5 m
  • Owner's Manual
Product TypeLine-interactive UPS
Hot SwappableYes
Input Voltage230 V AC
Manufacturer Part NumberSMX1500LCDTA
Limited Warranty2 Year
Output Voltage220 V AC, 230 V AC, 240 V AC
Weight (Approximate)24.69 lb
Dataline ProtectionRJ-45
Form FactorTower

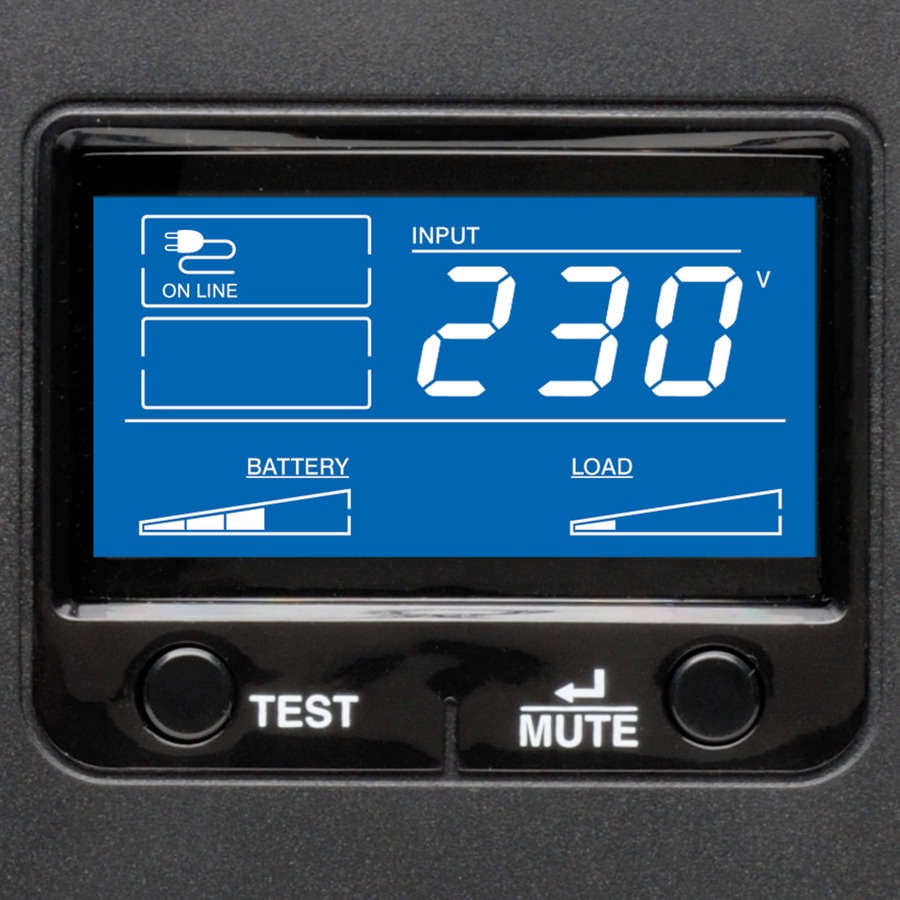

Status IndicatorsLCD Interface: Input Voltage Output Voltage Frequency (Hz) AVR Boost Cut Status Output Load In Watts Output Load Percentage Output Load In Watts Battery Voltage Estimated Runtime In Minutes
ManufacturerEaton Corporation
Product ModelSMX1500LCDTA
Product NameSmartPro SMX1500LCDTA 1500VA Tower UPS
Overload ProtectionYes
Package TypeBulk
Product LineSmartPro
Surge Energy Rating455 J
Thermal Dissipation269.04 W
Waveform TypePulse-width Modulated Sine Wave
Brand NameTripp Lite series
Plug/Connector TypeIEC 60320 C14
Output Frequency60 Hz
AlarmPower Failure, Low Battery, Overload
Country of OriginChina
Height7.99"
Width5.75"
Depth15.51"
PhaseSingle Phase
Receptacle TypeIEC 60320 C13
Environmentally FriendlyYes
Maximum Operating Temperature104°F (40°C)
Backup/Run Time (Half Load)10 Minute
Load Capacity (VA)1500 VA
Load Capacity (Watt)900 W
EMI/RFI Noise FilterYes
Replaceable BatteryYes
AVRYes
AVR RangeBoost +18% / Buck -15%
DC System Voltage24 V DC
USB (HID Compliant) PortYes
Storage Temperature5°F (-15°C) - 122°F (50°C)
Number of Surge-only Outlets2
Transfer Time6 ms
Typical Battery Recharge Time8 Hour
Receptacle Detail8 x IEC 60320 C13
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
