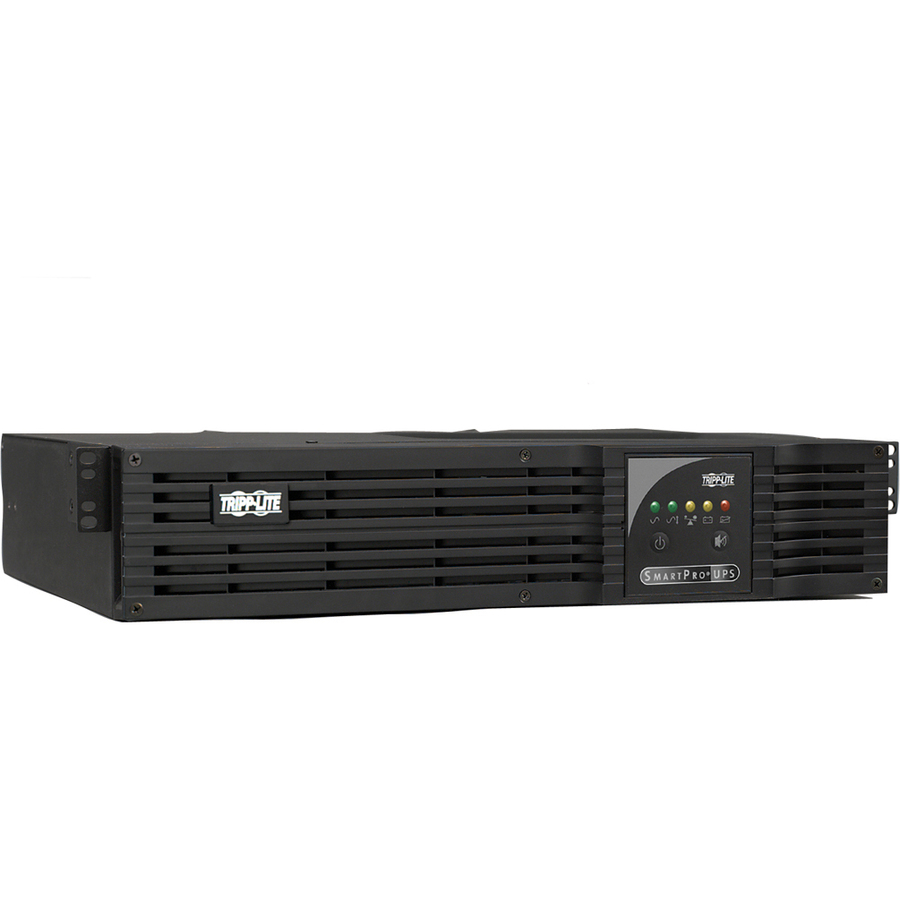

Eaton Tripp Lite Series SmartPro 230V 1kVA 900W Line-Interactive Sine Wave UPS, 2U Rack/Tower, Network Card Options, LCD, USB, DB9, 6 Outlets

Protects Mission-Critical Rack-Mounted Equipment

• Provides fully regulated sine wave AC output for point-of-sale applications, VoIP systems and small business networks

• Audible alarm signals loss of utility power, overload, low battery and fault conditions

• 6 C13 outlets

• C14 inlet accepts user-supplied AC power cord with country-specific plug

• 350-joule surge suppression rating

Reliable Battery Backup

• Supports half load up to 11.9 min. and full load up to 3.6 min.

• Internal batteries designed for hot-swap field replacement

• 97% line-power efficiency rating saves money in energy costs

2 Load Banks with Switchable Outlets

• Can control 4 outlets remotely to reboot equipment or shed nonessential loads

Automatic Voltage Regulation (AVR)

• Maintains 230V nominal output over input range of 182V-278V without using battery power

EMI/RFI Line Noise Filtering

• Removes electromagnetic and radio frequency interference that can disrupt or damage equipment's performance

Interactive LCD Screen

• Front-panel LCD signals voltage, battery and load statuses

• Supports multiple advanced user setup and operating preferences

• Rotates for easy viewing in rack-mount or tower configurations

Optional Network Management Cards

• Compatible with Tripp Lite UPS management card options TLNETCARD, WEBCARDLX and SNMPWEBCARD

• Optional WEBCARDLX (sold separately) with the latest version of PowerAlert Device Manager firmware (PADM20) provides enhanced remote management capabilities

• PADM20 and PowerAlert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations

• IP-based Auto Probe detects lost connectivity and restores service autonomously

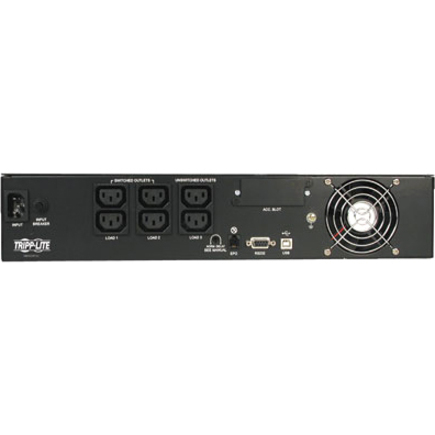

Communications Ports

• USB and DB9 ports enable data-saving unattended shutdown when used with Tripp Lite's Power Alert software (available via free download at

• www.tripplite.com/poweralert)

• EPO port supports emergency shutdown in large facilities

Versatile Installation Options

• Hardware included for 4-post mounting in 2U of EIA-standard 19 in. rack

• Mounts on wall or 2-post rack with optional 2POSTRMKITWM accessory

• Mounts in upright tower position with optional 2-9USTAND accessory
