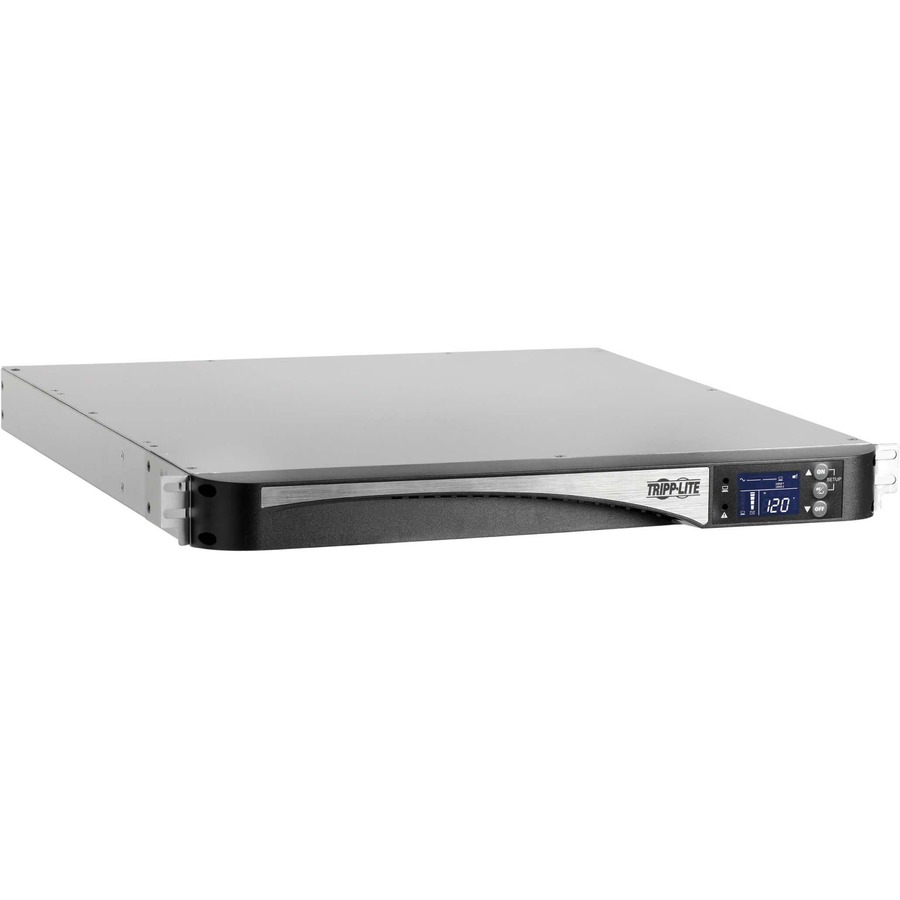

Eaton Tripp Lite Series SmartPro 1000VA 600W 120V Line-Interactive Sine Wave UPS, AVR - 4 NEMA 5-15R Outlets, Network Card Option, LCD, USB, 1U Rack/Tower
1U Rack/Tower - AVR - 6 Hour Recharge - 3 Minute Stand-by - 120 V AC Input - 120 V AC Output - 4 x NEMA 5-15R
- SKU
- SMC1000RT1U
- Category
- General Purpose UPS
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- SMC1000RT1U
- Category
- General Purpose UPS
Overview
1000VA/600W/120V Battery Backup for PC Networks, Security Systems or Digital Signage
This SmartPro® line-interactive UPS system with AVR provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage valuable electronics or destroy data. The thin, compact SMC1000RT1U is ideal protection for servers, switches, phone systems or Pro AV setups in your small-to-mid-size network closet or computer room where you have a rack with unusual space requirements.
Reliable Battery Backup Keeps You Operational Through Power Outages
The field-replaceable, hot-swappable internal battery provides eight minutes of support at half load (300W) and two minutes at full load (600W), allowing you to work through short power failures and giving you enough time to safely save files and shut down your system in case of a prolonged blackout.
Optional WEBCARDLX Network Interface Offers 24/7 Remote Access for Monitoring and Control
The optional WEBCARDLX (sold separately) with the latest version of PowerAlert® Device Manager firmware (PADM20) provides enhanced remote management capabilities, including customizable dashboard graphs to fit user preferences. The PADM20 upgrade and Tripp Lite's PowerAlert Element Manager (PAEM) software form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations.

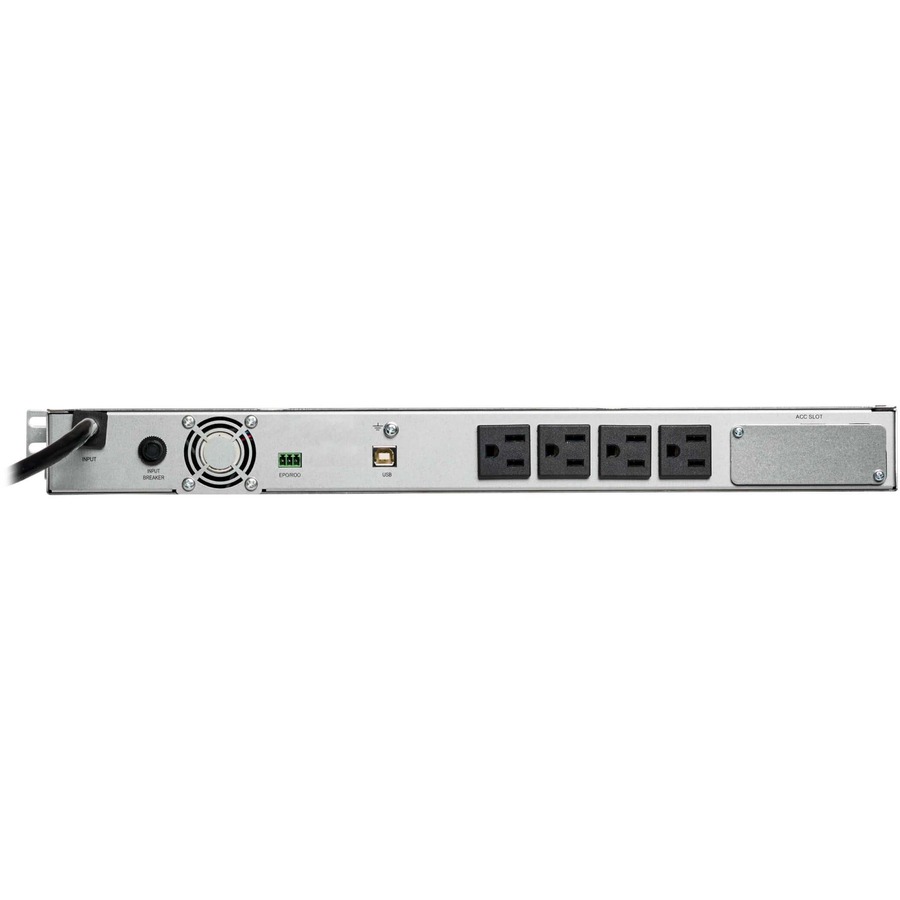

NEMA 5-15R Outlets Protect Your Connected Components
Four 5-15R outlets provide connected equipment with pure sine wave AC output during blackouts, overvoltages and severe brownout conditions. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise.
Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions
AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts. The SMC1000RT1U maintains regulated 120V nominal output during brownouts as low as 90V, while keeping the battery fully charged and ready to take over in case of power failure.
Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better
This UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer.
Designed for High Efficiency to Help You Save Money and Protect the Environment
A 98% efficiency rating reduces BTU emissions, energy consumption and, ultimately, your energy costs.
Warranty
Additional Warranty Information: <p>3 year with registration.</p> Limited Warranty: 2 Year
About Eaton
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
Highlights
- Works adequately in situations where the supply is prone to sags and surges
- Keep your sensitive devices powered with a backup of up to 3 minute at full load
- 600 W load capacity - backup power for your valuable electronics
- 1000 VA load capacity provides sufficient backup during power failures
- 6 Hour typical battery recharge time for better convenience and prolonged, productive usage
- Replaceable battery for maximum feasibility and better usability
- Lead Acid battery chemistry for your convenience and better usability
- NEMA 5-15P plug/connector type for convenient usage with added dependability
- NEMA 5-15R receptacle type offers ease of operation with maximum efficiency
- Single Phase phase for your convenience and optimal usage
Specifications
| Additional Warranty Information | 3 year with registration. |
|---|---|
| Application/Usage | Server, Switch, Telephone System, Network Closet, Computer Room |
| Battery Chemistry | Lead Acid |
| Package Contents |
|
| Product Type | Line-interactive UPS |
| Hot Swappable | Yes |
| Input Voltage | 120 V AC |
| Manufacturer Part Number | SMC1000RT1U |
| Limited Warranty | 2 Year |
| Output Voltage | 120 V AC |
| Weight (Approximate) | 32.63 lb |
| Form Factor | Rack/Tower |
| Status Indicators | LED Indicators: AC Output Status (Green) UPS Fault (Solid Red) UPS Abnormal Conditions (Flashing Red) |
| Manufacturer | Eaton Corporation |
| Product Model | SMC1000RT1U |
| Product Name | SmartPro SMC1000RT1U 1000VA Rack/Tower UPS |
| Network Management | SNMP/Web |
| Product Line | SmartPro |
| Surge Energy Rating | 540 J |
| Waveform Type | Pure Sine Wave |
| Rack Height | 1U |
| Brand Name | Tripp Lite series |
| Plug/Connector Type | NEMA 5-15P |
| Output Frequency | 60 Hz |
| Alarm | UPS StartUp, Power Failure, Low Battery |
| Country of Origin | China |
| Height | 1.73" |
| Width | 17.32" |
| Depth | 21.81" |
| Phase | Single Phase |
| Receptacle Type | NEMA 5-15R |
| Environmentally Friendly | Yes |
| Maximum Operating Temperature | 104°F (40°C) |
| Backup/Run Time (Half Load) | 10 Minute |
| Backup/Run Time (Full Load) | 3 Minute |
| Battery Characteristics | Valve-regulated |
| Load Capacity (VA) | 1000 VA |
| Load Capacity (Watt) | 600 W |
| EMI/RFI Noise Filter | Yes |
| Replaceable Battery | Yes |
| Energy Star | Yes |
| AVR | Yes |
| DC System Voltage | 36 V DC |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Maximum Operating Elevation | 3280 ft |
| Storage Temperature | 5°F (-15°C) - 122°F (50°C) |
| Transfer Time | 8 ms |
| Typical Battery Recharge Time | 6 Hour |
| Receptacle Detail | 4 x NEMA 5-15R |
| Sound Emission (A-Weighted) | 45 dB(A) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
