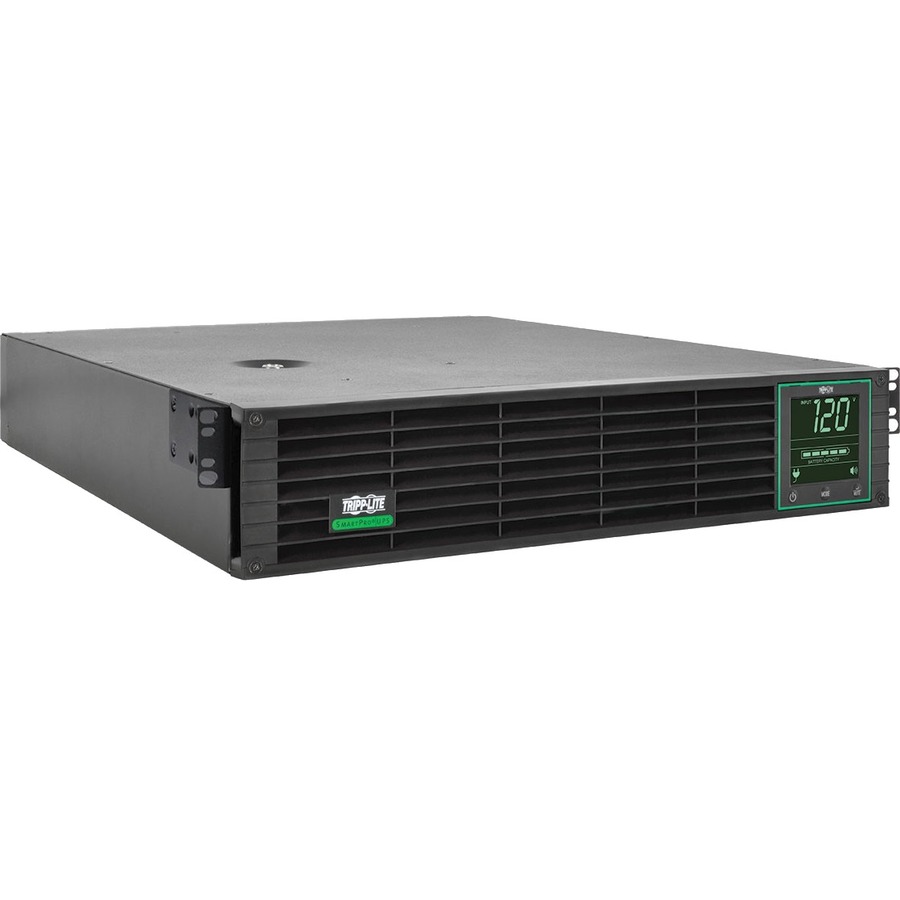

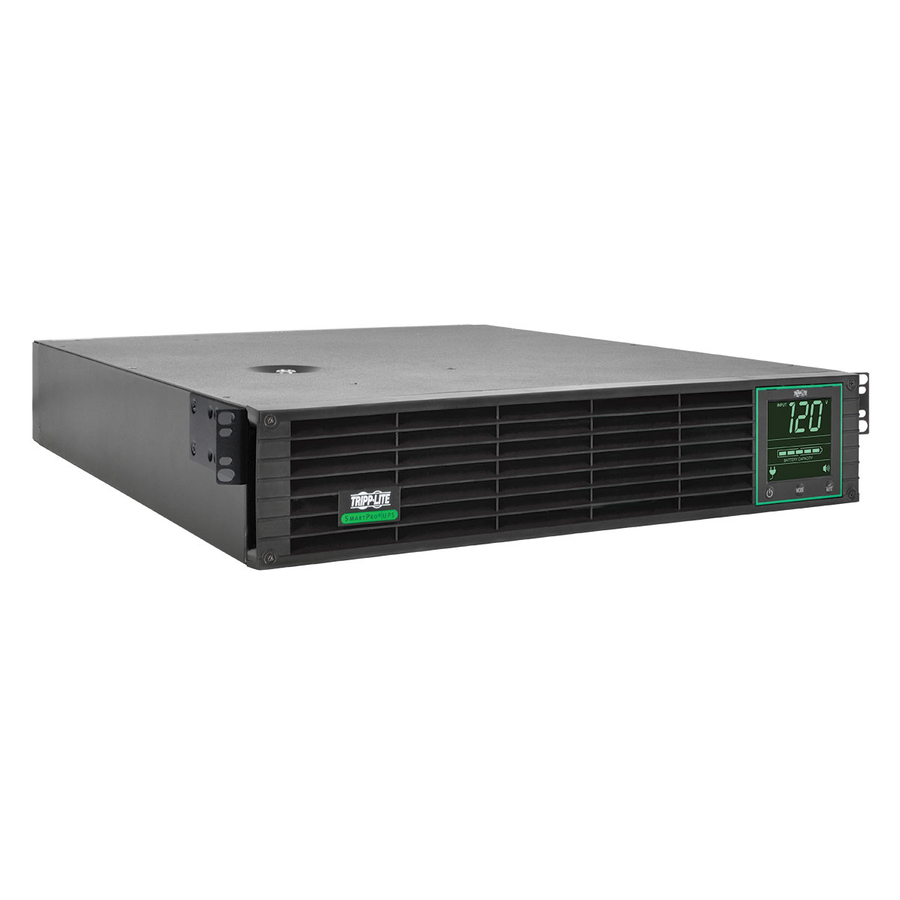

Tripp Lite by Eaton UPS SmartPro 120V 2.2kVA 1.92kW Line-Interactive Sine Wave UPS Lithium Iron Phosphate (LiFePO4) Batteries 2U LCD USB DB9
2200 VA/1920 W - 110 V AC, 115 V AC, 120 V AC - 5.10 Minute - 2U Rack-mountable - 5.10 Minute - 4 x NEMA 5-15/20R, 4 x NEMA 5-20 - Over Voltage, Under Voltage
- SKU
- SMART2200RM2UL
- Category
- General Purpose UPS
MSRP$3,938.72
$2,487.61
Save 37%Back ordered — ships when restocked.
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- SMART2200RM2UL
- Category
- General Purpose UPS
Overview
Protects Mission-Critical Rack-Mounted Equipment
• Provides fully regulated sine wave AC output for servers, network storage devices, telecom hardware and other applications where long battery lifespan is critical
• Audible alarm signals loss of utility power, overload and low battery
• 4 NEMA 5-15R & 4 NEMA 5-15/20R outlets

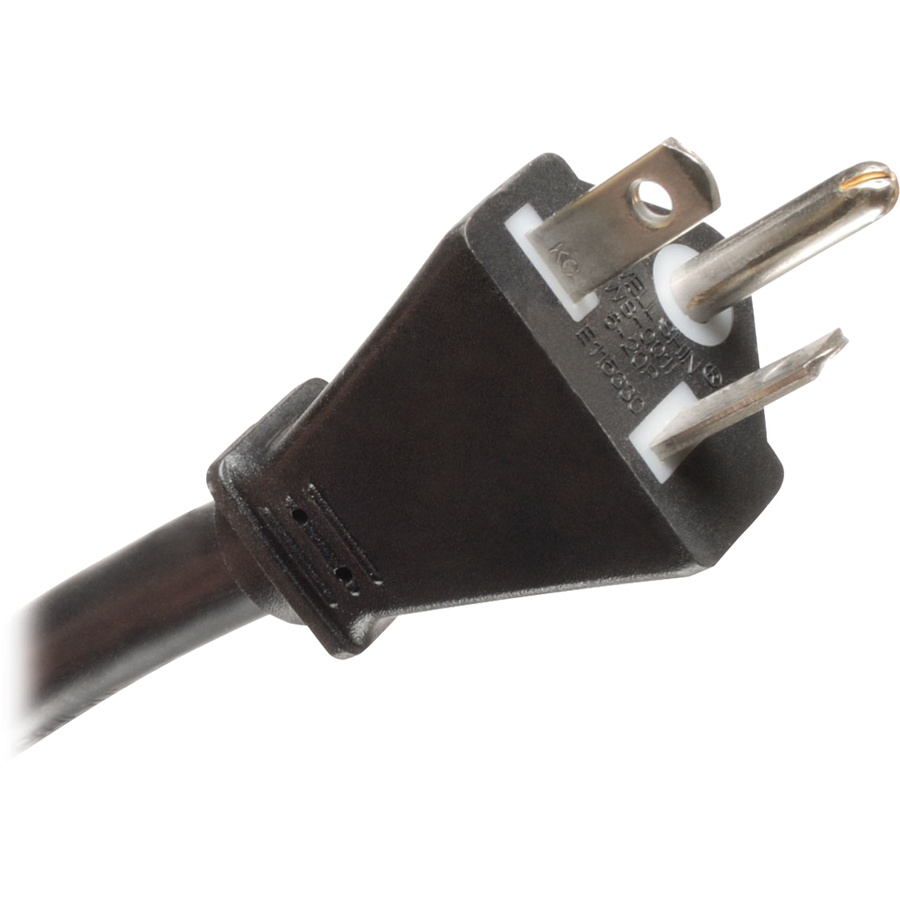

• 10-ft. (3.05 m) power cord with 120V NEMA 5-20P input
• 570-joule surge suppression rating
• 0.9 power factor rating
• 97% line-mode efficiency rating saves money in energy costs
Superior LiFePO4 Battery Backup Compared to Equivalent Lead Acid Battery
• More than 2x the service life
• Up to 3x more charge/discharge cycles
• Recharges to 100% capacity in less than 2 hr.
• Weighs 60% less, reducing overall UPS weight
• Supports half load up to 11.7 min. and full load up to 5.1 min.
2 Load Banks with Switchable Outlets
• Can control 2 outlets remotely to reboot equipment or shed nonessential loads
Automatic Voltage Regulation (AVR)
• Maintains 120V nominal output over input range of 83V-145V without using battery power
EMI/RFI Line Noise Filtering
• Removes electromagnetic and radio frequency interference that can disrupt or damage equipment's performance

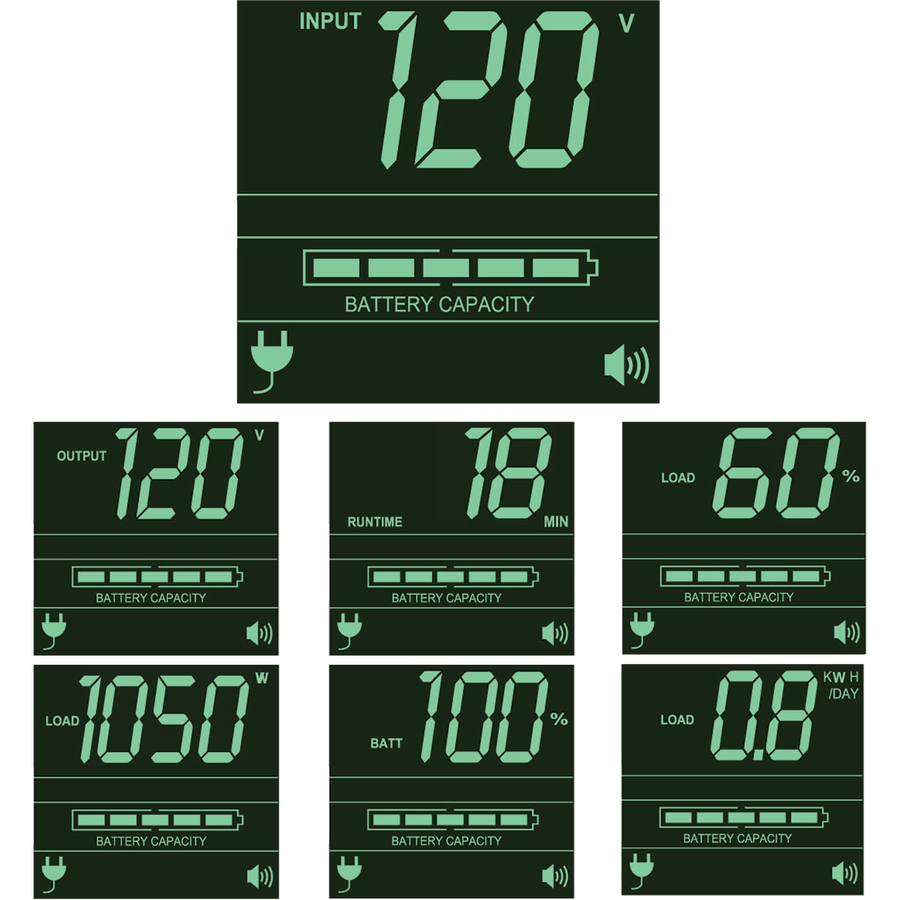

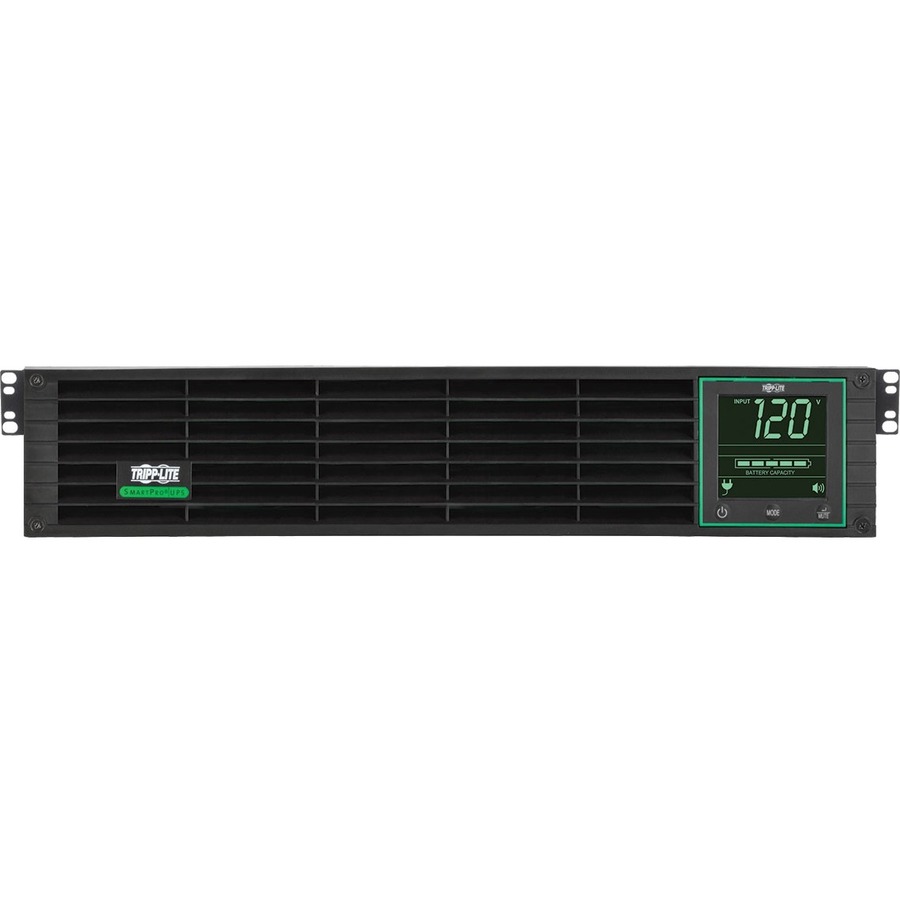

Interactive LCD Screen
• Front-panel LCD with detailed UPS and site power status and operating data
• Rotates for easy viewing in rack-mount or tower configurations
Optional Network Management Cards
• Compatible with Tripp Lite UPS management cards WEBCARDLX, SNMPWEBCARD and RELAYIOCARD
Communications Ports
• USB and DB9 ports enable data-saving unattended shutdown when used with Tripp Lite PowerAlert software (available via free download at www.tripplite.com/poweralert
• EPO port supports emergency shutdown in large facilities
Versatile Installation Options

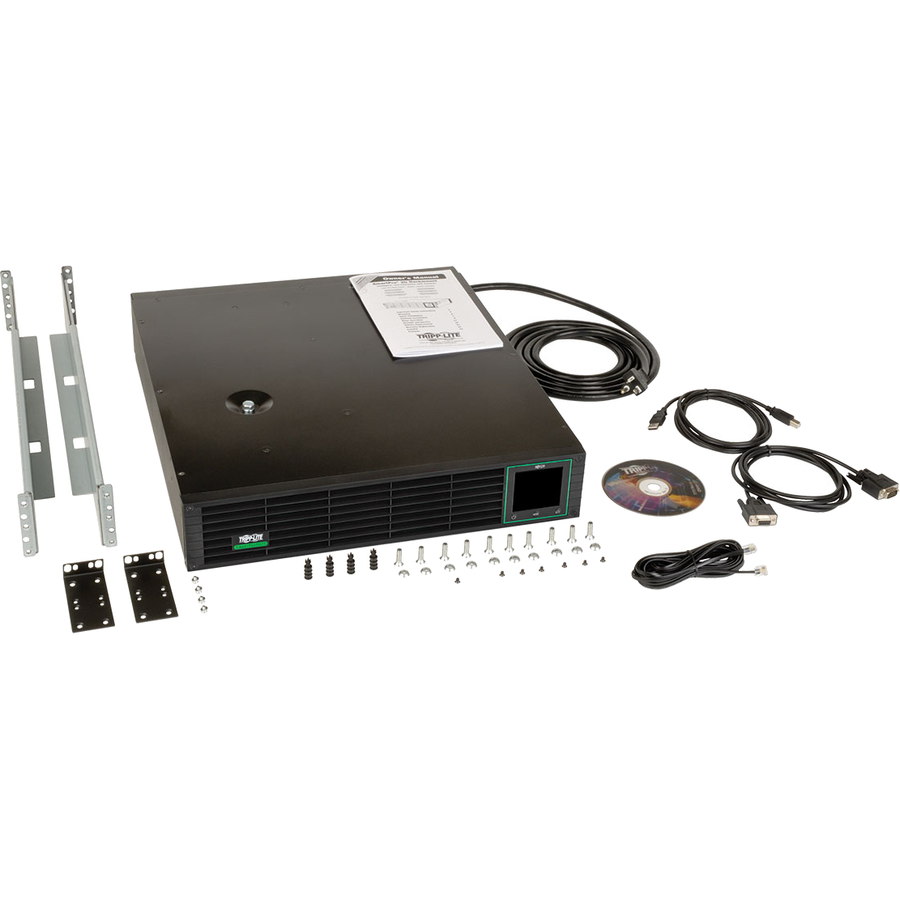

• Hardware included for 4-post mounting in 2U of EIA-standard 19 in. rack
• Mounts on wall or 2-post rack with optional 2POSTRMKITWM accessory
• Mounts in upright tower position with optional 2-9USTAND accessory
Backed by Tripp Lite's Ultimate Lifetime Insurance
• $250,000 Ultimate Lifetime Insurance covers any connected components
Warranty
Limited Warranty: 5 Year
About Eaton
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
Highlights
- LiFePO4 battery offers longer life, more cycles and faster recharge
- 97% line-mode efficiency rating saves money in energy costs
- 8 NEMA 5-15R outlets-2 switchable via network interface
- Compatible with Tripp Lite network management cards
- 11.7 min. runtime at half load; 5.1 min. at full load
Specifications
| Application/Usage | Server, Network Storage Device |
|---|---|
| Package Contents |
|
| Product Type | Line-interactive UPS |
| Circuit Breaker | Yes |
| Hot Swappable | Yes |
| Input Voltage | 120 V AC |
| Manufacturer Part Number | SMART2200RM2UL |
| Limited Warranty | 5 Year |
| Output Voltage | 110 V AC, 115 V AC, 120 V AC |
| Weight (Approximate) | 41.78 lb |
| Form Factor | Rack-mountable |
| Input Current | 16 A |
| Manufacturer | Eaton Corporation |
| Product Model | SMART2200RM2UL |
| Product Name | SmartPro SMART2200RM2UL 2200VA UPS |
| Product Line | SmartPro |
| Surge Energy Rating | 570 J |
| Thermal Dissipation | 393.59 W |
| Waveform Type | Pure Sine Wave |
| Rack Height | 2U |
| Brand Name | Tripp Lite series |
| Plug/Connector Type | NEMA 5-20P |
| Alarm | UPS StartUp, Power Failure, Low Battery, Overload, UPS Fault, Remote Shutdown |
| Country of Origin | China |
| Height | 3.43" |
| Width | 19.45" |
| Depth | 17.32" |
| Phase | Single Phase |
| Receptacle Type | NEMA 5-15/20R, NEMA 5-20 |
| Environmentally Friendly | Yes |
| USB | Yes |
| Maximum Operating Temperature | 122°F (50°C) |
| Serial Port | Yes |
| Backup/Run Time (Half Load) | 11.70 Minute |
| Backup/Run Time (Full Load) | 5.10 Minute |
| Load Capacity (VA) | 2200 VA |
| Load Capacity (Watt) | 1920 W |
| EMI/RFI Noise Filter | Yes |
| Transfer Time | 5 ms |
| Typical Battery Recharge Time | 1.40 Hour |
| Receptacle Detail | 4 x NEMA 5-15/20R, 4 x NEMA 5-20 |
| Sound Emission (A-Weighted) | 45 dB(A) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
