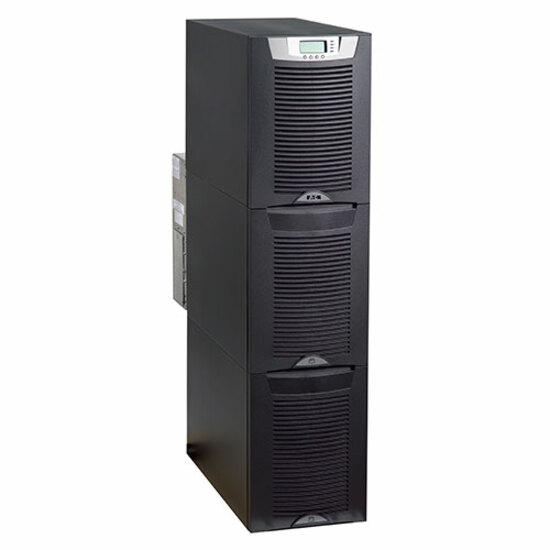

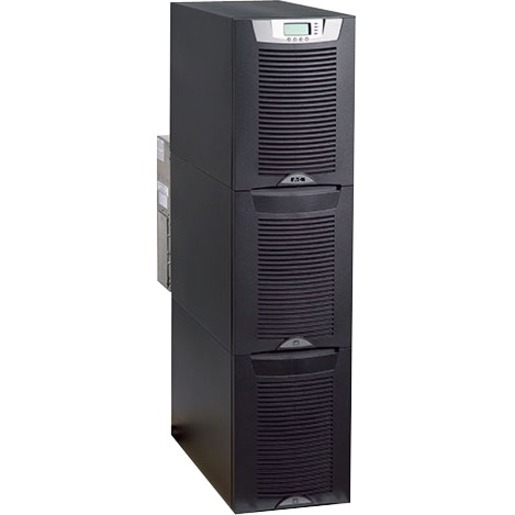

Eaton Powerware 9355 15KVA Tower UPS
Tower - 5 Minute Stand-by - 208 V AC, 220 V AC, 120 V AC, 127 V AC Input - 220 V AC, 208 V AC, 120 V AC, 127 V AC Output - Three Phase - Serial Port - LCD Display - 1 x RS-232 Receptacle(s)
- SKU
- KA1511230000010
- Category
- General Purpose UPS
MSRP$30,559.00
$20,605.86
Save 33%Back ordered — ships when restocked.
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- KA1511230000010
- Category
- General Purpose UPS
Overview
Reduces total cost of ownership
• More real power in less space with 0.9 output power factor
• Industry-leading power density with small footprint and more power capacity than comparable UPSs
• Scalable with 10 kVA models that can be upgraded with an additional 10 kVA of capacity
• Sleek tower design that includes internal batteries
Maximizes flexibility
• Power distribution module options
• Split phase architecture
• Enables paralleling of up to four 9355 UPSs for additional capacity and redundancy
Maximizes availability and reliability
• Extended battery runtime options
• Optional bypass to service UPS without disturbing the load
• Connectivity and software options for remote monitoring and management
Warranty
Limited Warranty: 1 Year
About Eaton
We're dedicated to improving people's lives and the environment with power management technologies that are more reliable, efficient, safe and sustainable. Every day, all around the world, people depend on technology, transportation, energy and infrastructure to live and work. With rapid growth in electrification, an energy transition driven by climate change and explosive growth in connectivity, we’re well positioned to solve the world’s toughest electrical and mechanical power management challenges. Because that’s what really matters. And we’re here to make sure it works.
Highlights
- Compact tower form factor offers up to 75 percent smaller footprint and 13 percent more power capacity than comparable UPSs for industry-leading power density

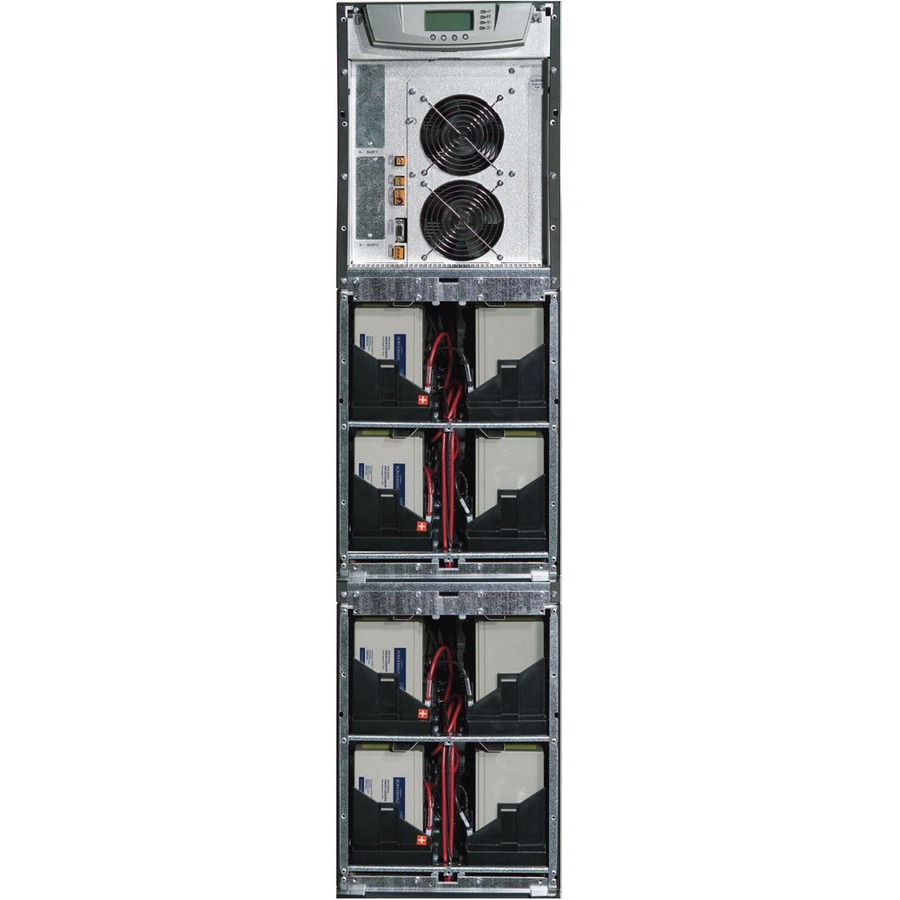

- All-in-one design with internal batteries and integrated power distribution module with maintenance bypass switch delivers a complete power protection solution in one box for simplified installation
- Double-conversion topology provides complete power protection, isolating valuable IT equipment from all nine of the most common power problems
- High 0.9 output power factor for more real power in less space
- Internal batteries on all standard configurations support up to 350 percent more runtime than comparable UPSs
- Scalable 10 kVA and 20 kVA configurations can be upgraded to provide 50 percent more power without additional hardware
- On-board, plug-and-play power distribution module allows for hardwired output or 15 different output receptacle options, enhancing flexibility and reducing installation costs
- Patented Powerware Hot Sync paralleling technology enables paralleling of up to four 9355 UPSs for additional capacity or redundancy
Specifications
| Application/Usage | Data Center, IT Infrastructure, Corporate, Telecommunication, Healthcare, Banking, Industrial, Retail |
|---|---|
| Battery Chemistry | Lead Acid |
| Product Type | Double Conversion Online UPS |

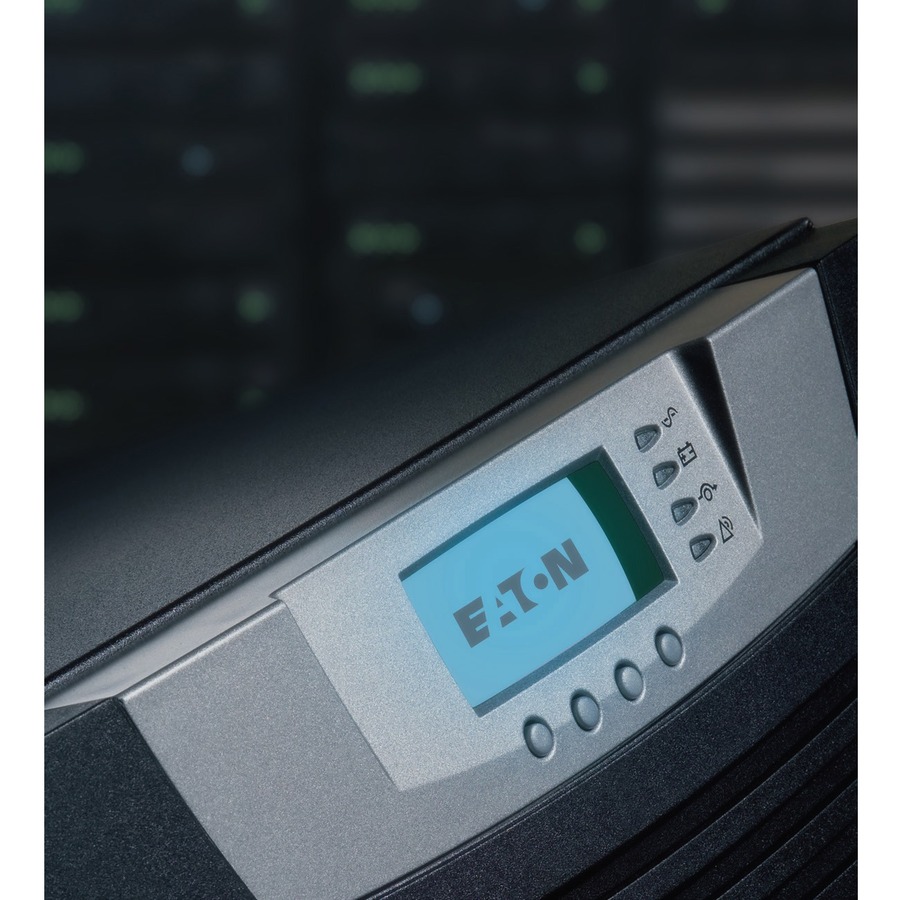

| Display | LCD |
| Input Voltage | 208 V AC, 220 V AC, 120 V AC, 127 V AC |
| Manufacturer Part Number | KA1511230000010 |
| Limited Warranty | 1 Year |
| Output Voltage | 220 V AC, 208 V AC, 120 V AC, 127 V AC |
| Weight (Approximate) | 373 lb |
| Form Factor | Tower |
| Status Indicators | LCD Indicators: Load Status Events Measurements Settings |
| Manufacturer | Eaton Corporation |
| Product Model | 9355 |
| Product Name | Powerware 9355 15KVA Tower UPS |
| Product Line | Powerware |
| Thermal Dissipation | 1501.11 W |
| Brand Name | Eaton |
| Alarm | Yes |
| Height | 32.20" |
| Width | 12" |
| Depth | 33.50" |
| Input Frequency | 65 Hz |
| Phase | Three Phase |
| Receptacle Type | RS-232 |
| Battery Capacity | 9000 mAh |
| Maximum Operating Temperature | 104°F (40°C) |
| Serial Port | Yes |
| Backup/Run Time (Full Load) | 5 Minute |
| Battery Characteristics | Maintenance-free, Sealed |
| Load Capacity (VA) | 15 kVA |
| Replaceable Battery | Yes |
| EPO Port | Yes |
| Storage Temperature | 32°F (0°C) - 77°F (25°C) |
| Output Power Factor | 0.9 |
| Receptacle Detail | 1 x RS-232 |
