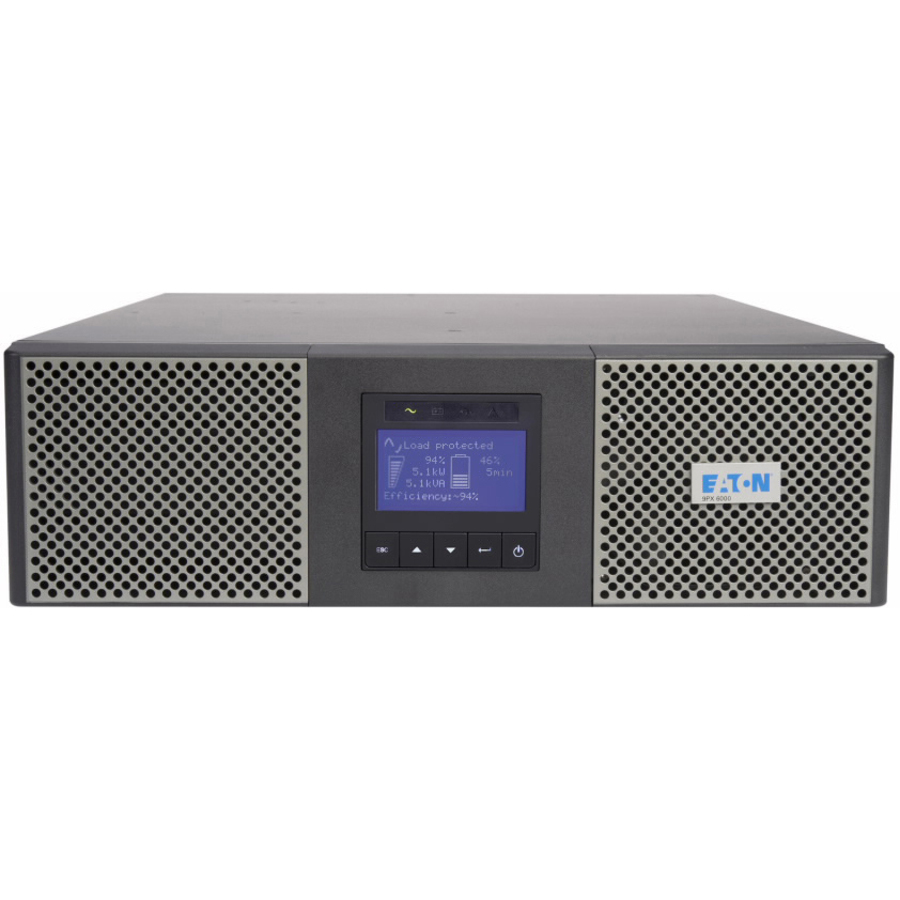

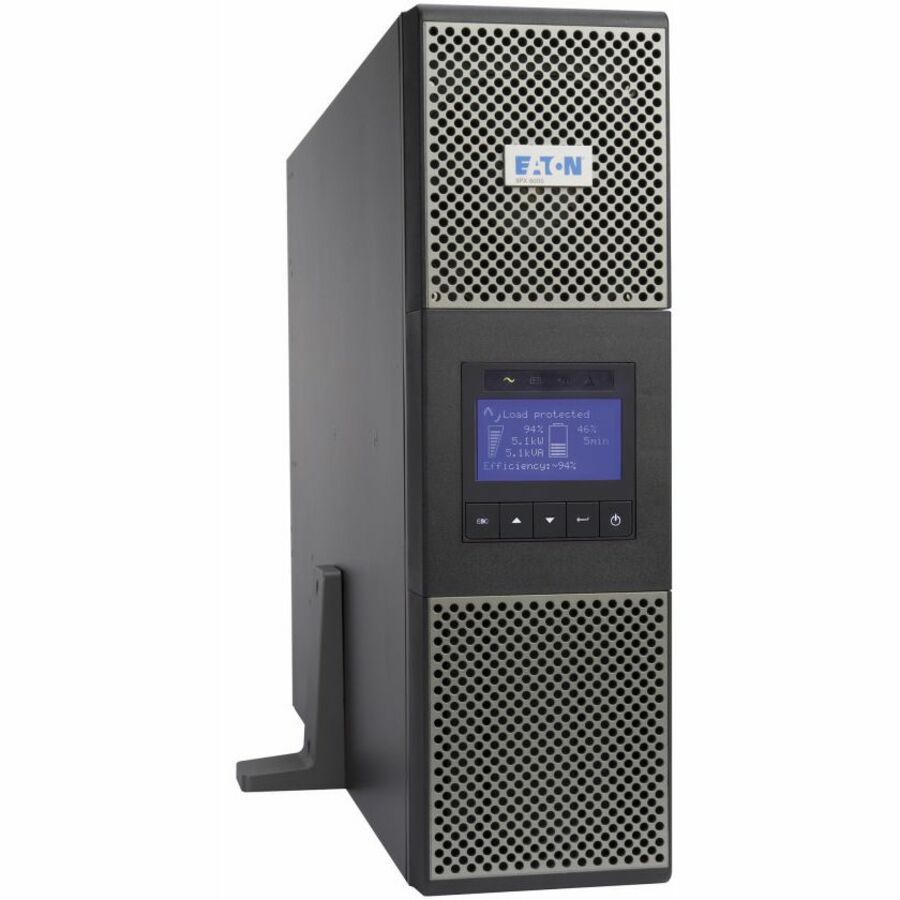

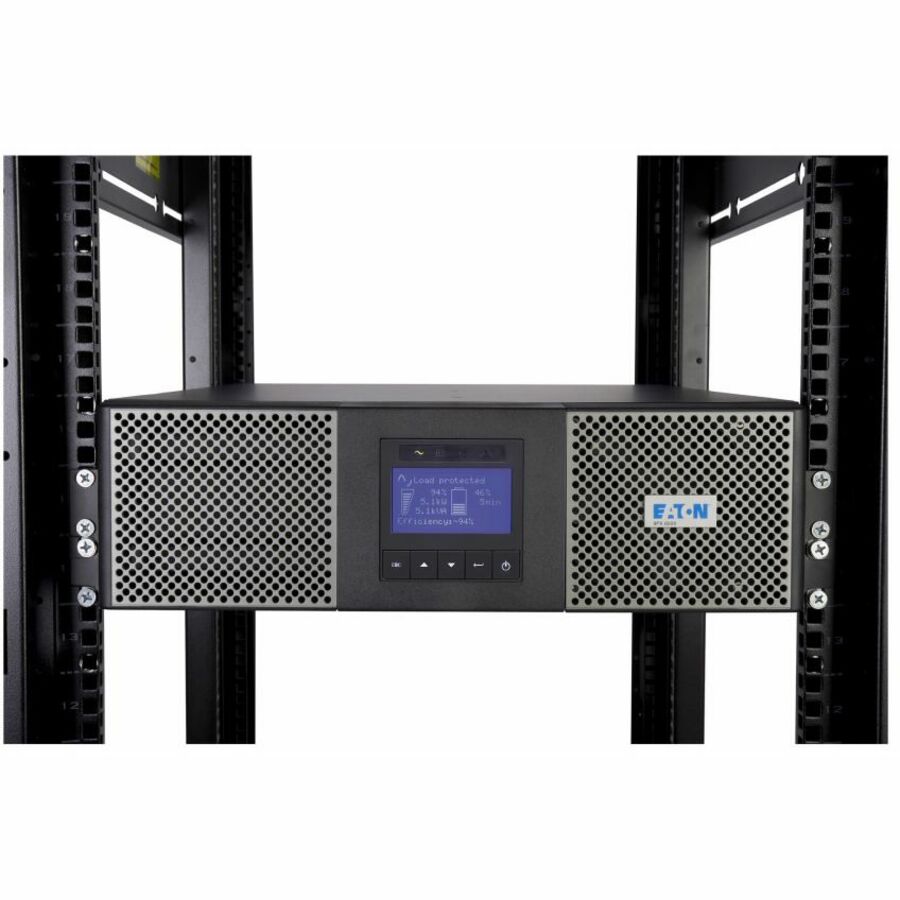

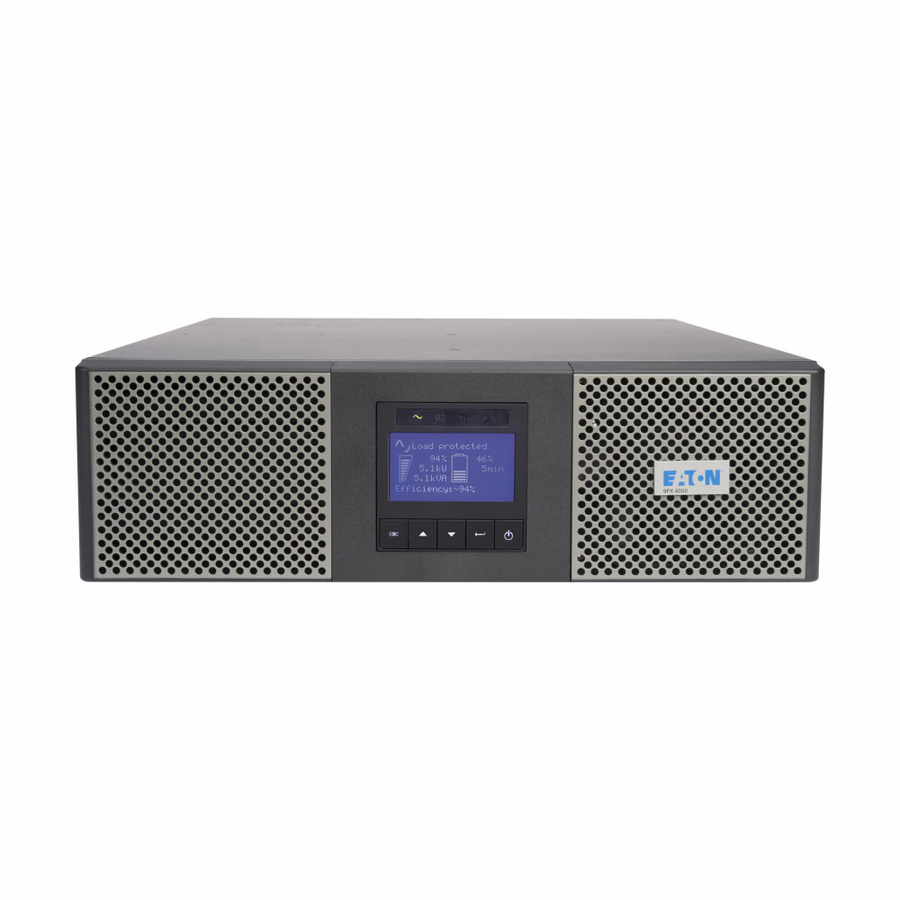

Eaton 9PX 3000VA 3000W 208V Online Double-Conversion UPS - L6-30P, 2 L6-20R, 2 L6-30R Outlets, Cybersecure Network Card, Extended Run, 3U Rack/Tower
3U Rack/Tower - 200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC Input - 200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC Output - 2 x NEMA L6-30R, 2 x NEMA L6-20R
- SKU
- 9PX3K3UN
- Category
- General Purpose UPS
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 9PX3K3UN
- Category
- General Purpose UPS
Overview
3kVA/3kW/208V Battery Backup for IT Installations and Edge Networks
This 9PX rack-mount online double-conversion UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage valuable IT equipment or destroy data. The 9PX3K3UN is superlative power management for education, commercial, financial or healthcare networking components, including Cisco switches and servers.
Expandable Internal Battery Backup Keeps You Operational Through Power Outages
The field-replaceable, hot-swappable valve regulated lead acid (VRLA) battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Exclusive ABM technology increases battery life by 50 percent and closely monitors battery health to provide advanced notice when batteries need replacing. You can also connect up to four extended battery modules (9PXEBM180RT, sold separately) for hours of extended runtime.
Included Gigabit Network Interface Offers 24/7 Remote Access
The NETWORK-M2 Gigabit network card enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. UPS firmware can also be flashed remotely through the NETWORK-M2 without dropping the load, so you don't have to plan for downtime. The card meets both UL 2900-1 and IEC 62443-4-2 standards for cybersecurity, which were developed to address the vulnerability of connected devices to known malware/exploits and to protect business from these risks. The optional Environmental Monitoring Probe Gen 2 (EMPDT1H1C2, sold separately) provides a variety of environmental monitoring capabilities, including temperature and humidity conditions.

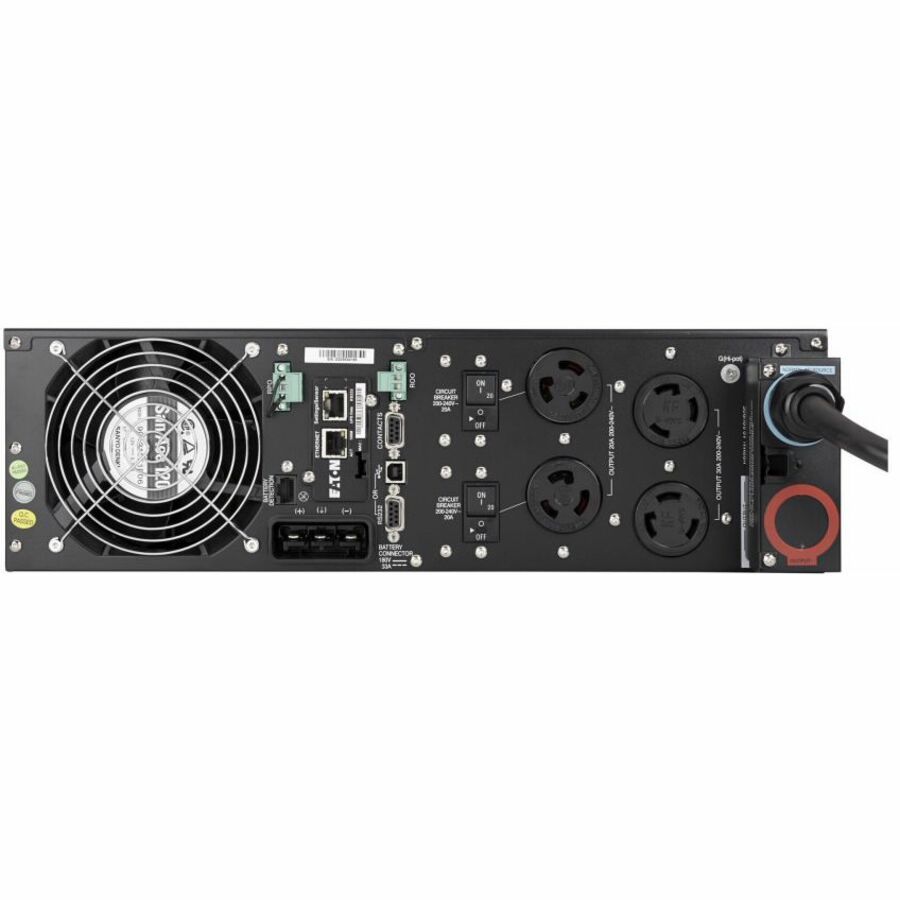

NEMA Outlets Protect Your Connected Components
Two L6-20R and two L6-30R managed outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise.
Warranty
Limited Warranty: 3 Year
About Eaton
We're dedicated to improving people's lives and the environment with power management technologies that are more reliable, efficient, safe and sustainable. Every day, all around the world, people depend on technology, transportation, energy and infrastructure to live and work. With rapid growth in electrification, an energy transition driven by climate change and explosive growth in connectivity, we’re well positioned to solve the world’s toughest electrical and mechanical power management challenges. Because that’s what really matters. And we’re here to make sure it works.
Highlights
- Keeps equipment running during outages to allow time for file saves and safe shutdown
- Included NETWORK-M2 Gigabit network card enables full remote access and control
- Exclusive ABM technology with 3-stage charging increases internal battery life by 50%

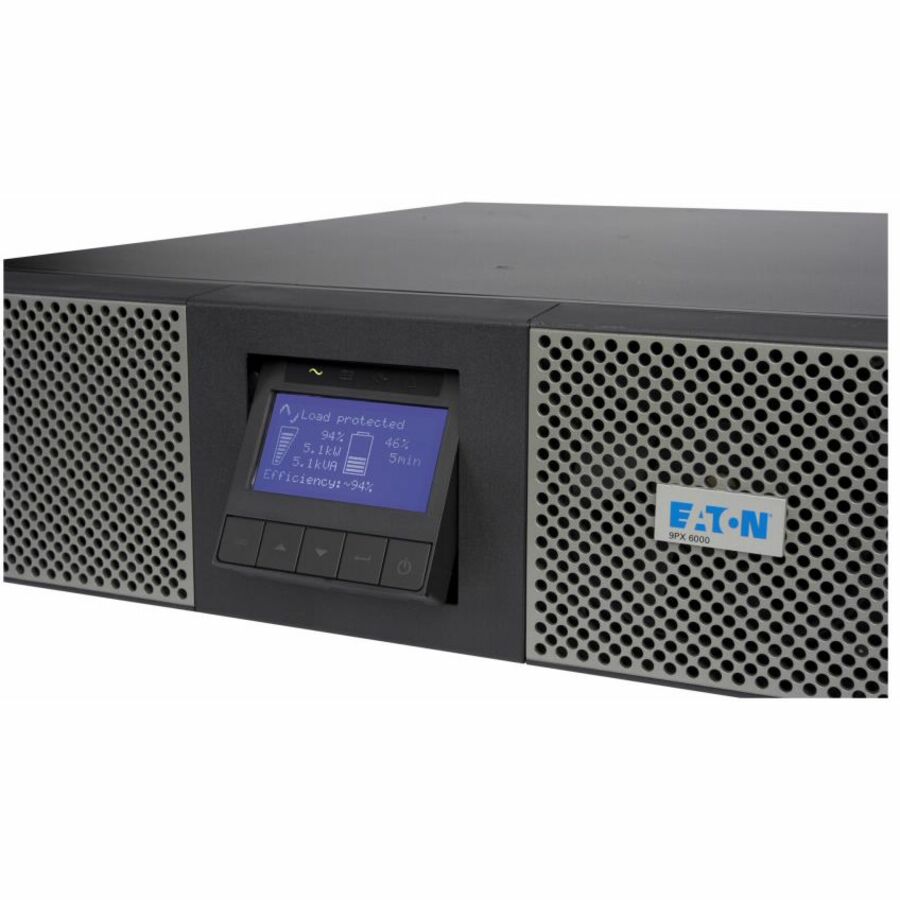

- Interactive LCD interface keeps you updated on critical load information in real time
- Optional extended battery modules allow extended runtime to keep equipment powered
Specifications
| Package Contents |
|
|---|---|
| Product Type | Double Conversion Online UPS |
| Input Voltage | 200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC |
| Manufacturer Part Number | 9PX3K3UN |
| Limited Warranty | 3 Year |
| Output Voltage | 200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC |
| Weight (Approximate) | 105.82 lb |
| Form Factor | Rack/Tower |
| Manufacturer | Eaton Corporation |
| Product Model | 9PX3K3UN |
| Product Name | 9PX UPS |
| Product Series | 9PX |
| Rack Height | 3U |
| Brand Name | Eaton |
| Country of Origin | Philippines |
| Height | 5.10" |
| Width | 17.30" |
| Depth | 28.40" |
| Receptacle Type | NEMA L6-30R, NEMA L6-20R |
| Environmentally Friendly | Yes |
| Load Capacity (VA) | 3000 VA |
| Load Capacity (Watt) | 3000 W |
| Energy Star | Yes |
| Transfer Time | 0 ns |
| Receptacle Detail | 2 x NEMA L6-30R, 2 x NEMA L6-20R |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
