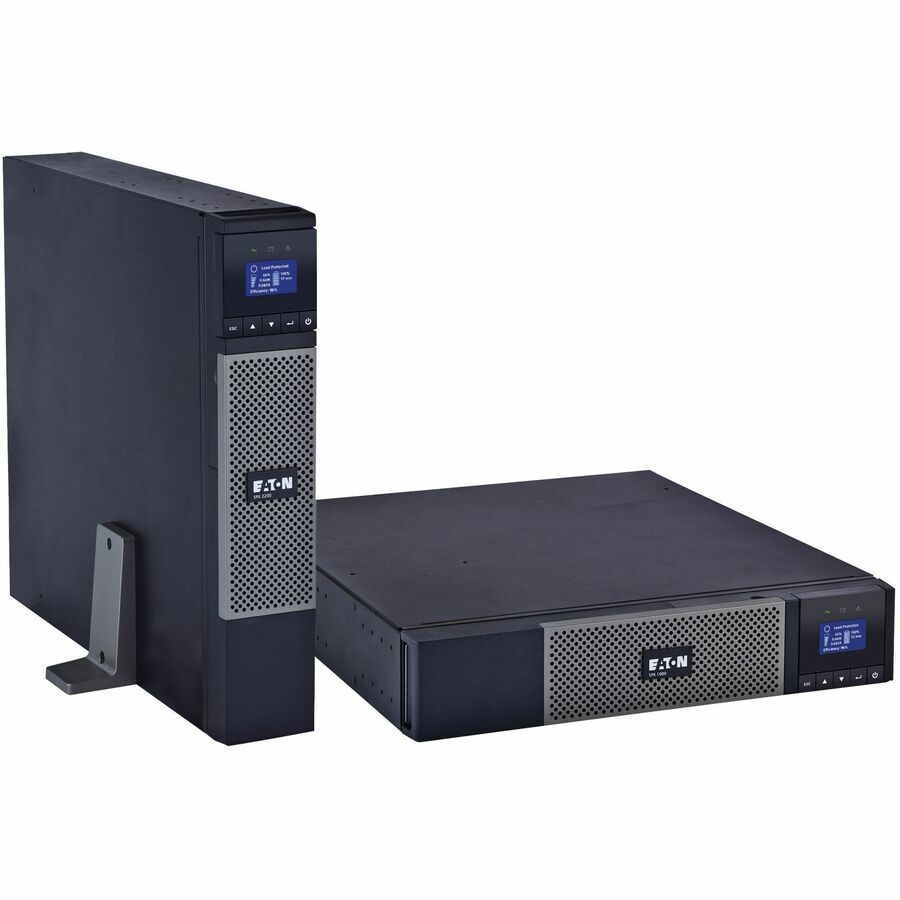

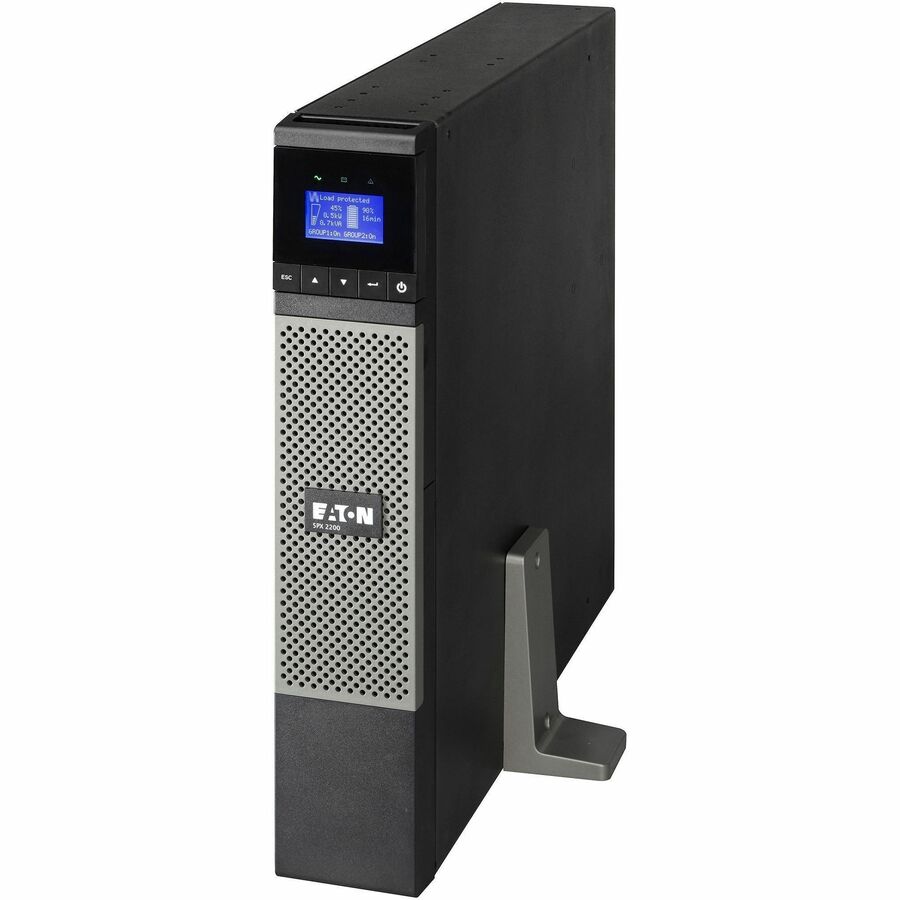

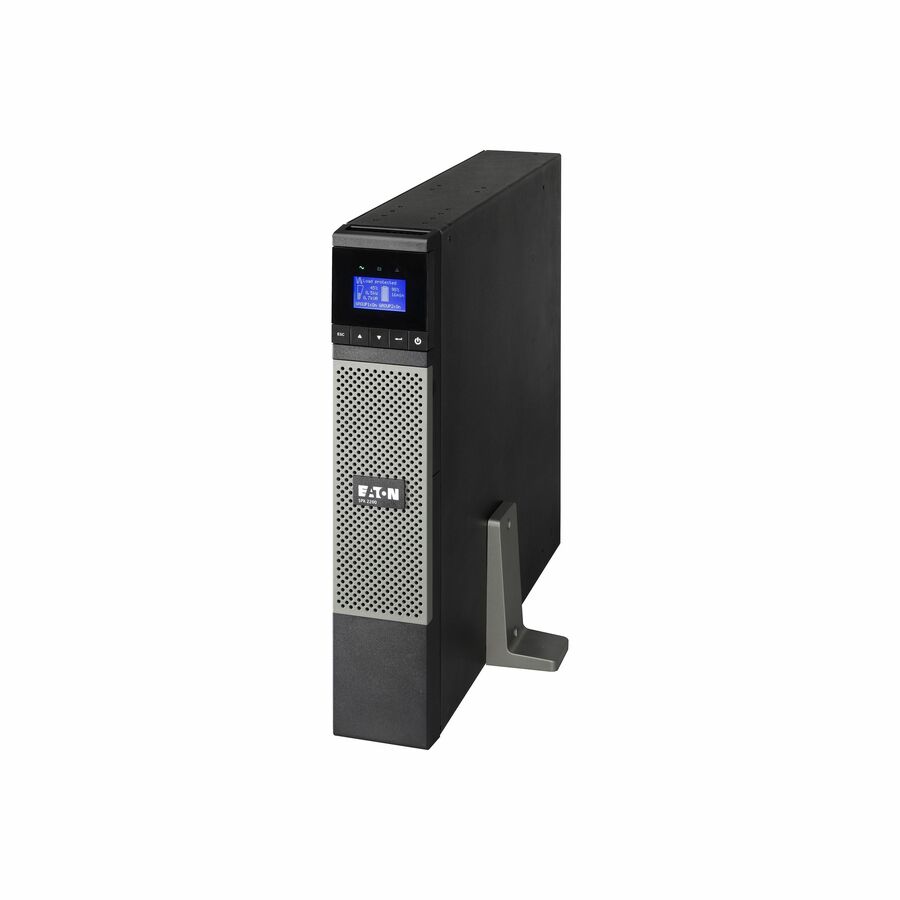

Eaton 5PX UPS 2200VA 1980 Watt 230V Network Card Optional 2U Rack/Tower UPS
Eaton

Eaton 5PX UPS 2200VA 1980 Watt 230V Network Card Optional 2U Rack/Tower UPS

2U Rack/Tower - 3 Minute Stand-by - 220 V AC Input - 265 V AC Output - 1 x IEC 60320 C13, 8 x IEC 60320 C19

SKU
5PX2200IRT
Category
General Purpose UPS

Request pricing

Confirmed with stock and TAA status before any payment.

Request a quote

Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
5PX2200IRT
Category
General Purpose UPS

Overview

The Eaton 5PX UPS is an integrated power management solution. Paired seamlessly with Intelligent Power Software Suite, the 5PX provides the tools you need to manage your equipment, even in virtualized environments. Designed with managed outlet segments, you can monitor energy consumption on the intuitive LCD screen. It also delivers more power than comparable UPSs and has an efficiency rating of up to 99%.

Warranty

Limited Warranty: 3 Year

About Eaton

We're dedicated to improving people's lives and the environment with power management technologies that are more reliable, efficient, safe and sustainable. Every day, all around the world, people depend on technology, transportation, energy and infrastructure to live and work. With rapid growth in electrification, an energy transition driven by climate change and explosive growth in connectivity, we’re well positioned to solve the world’s toughest electrical and mechanical power management challenges. Because that’s what really matters. And we’re here to make sure it works. ​

Highlights

  • Extends runtime by adding additional external battery modules
  • Monitors and manages power consumption through managed outlets

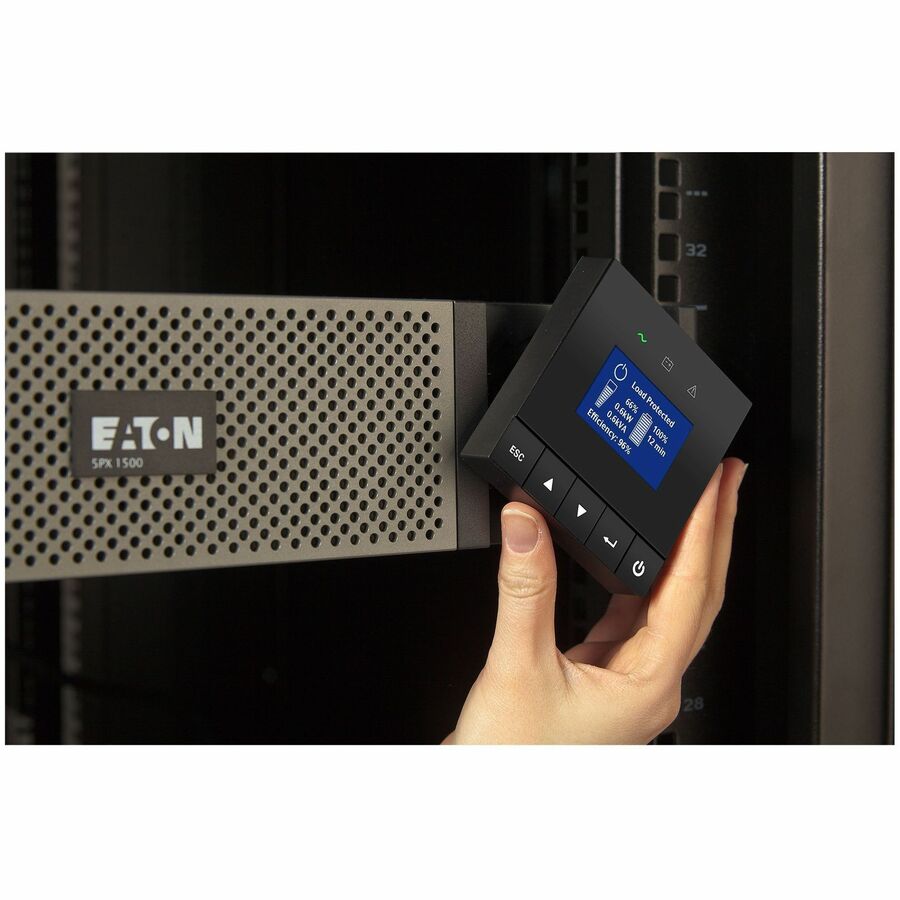

  • Enables you to customize UPS settings, view load and power consumption through the graphical interactive LCD screen interface
  • Fully integrates with Intelligent Power Software Suite for continuous up time of servers and virtual machines.
  • Provides more real power (watts) to protect more equipment and leave room for expanding IT systems
  • Extends battery service life by 50% with ABM technology
  • Protects you with a three-year warranty, which includes the battery
  • Helps save money and protect the environment through energy efficient operation (ENERGY STAR® qualified UPS)

Specifications

Battery ChemistryLead Acid
Package Contents
  • 5PX 2200 VA Tower/Rack Mountable UPS
  • Four-post Rail Kit
  • User Manual CD
  • Tower Pedestals
  • Intelligent Power Software Suite CD
  • Quick Start Guide
  • RS-232 Serial Cable
  • USB Cable
  • Phillips Head Screw Driver
  • 2 x IEC to IEC Jumper Cables
Software IncludedEaton Intelligent Power Software Suite
Product TypeLine-interactive UPS
Hot SwappableYes
Input Voltage220 V AC
Manufacturer Part Number5PX2200IRT
Limited Warranty3 Year
Output Voltage265 V AC
Weight (Approximate)63 lb
Form FactorRack/Tower
ManufacturerEaton Corporation
Product Model5PX2200IRT
Product Name5PX 2200 VA Tower/Rack Mountable UPS
Product Series5PX
Rack Height2U
Brand NameEaton
Plug/Connector TypeIEC 60320 C20
Country of OriginPhilippines
Height3.40"
Width17.40"
Depth20.60"
Receptacle TypeIEC 60320 C13, IEC 60320 C19
USBYes
Serial PortYes
Backup/Run Time (Half Load)8 Minute
Backup/Run Time (Full Load)3 Minute
Battery CharacteristicsMaintenance-free, Sealed
Load Capacity (VA)2200 VA
Load Capacity (Watt)1980 W
Transfer Time4 ms

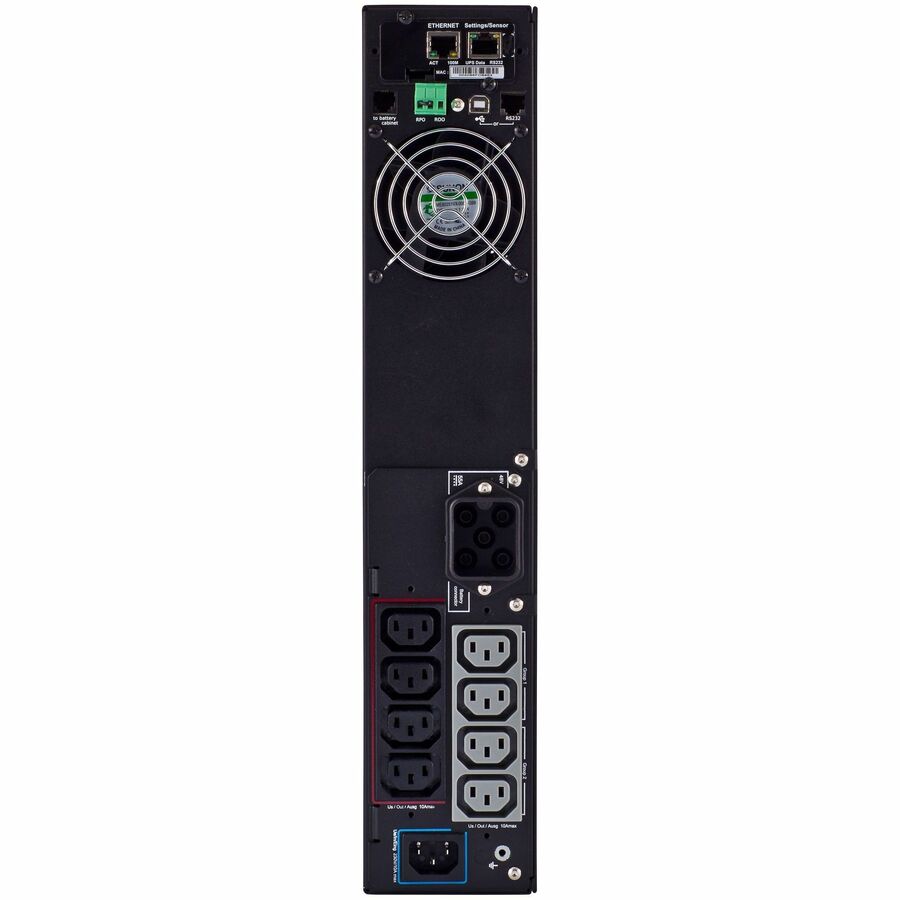

Receptacle Detail1 x IEC 60320 C13, 8 x IEC 60320 C19
