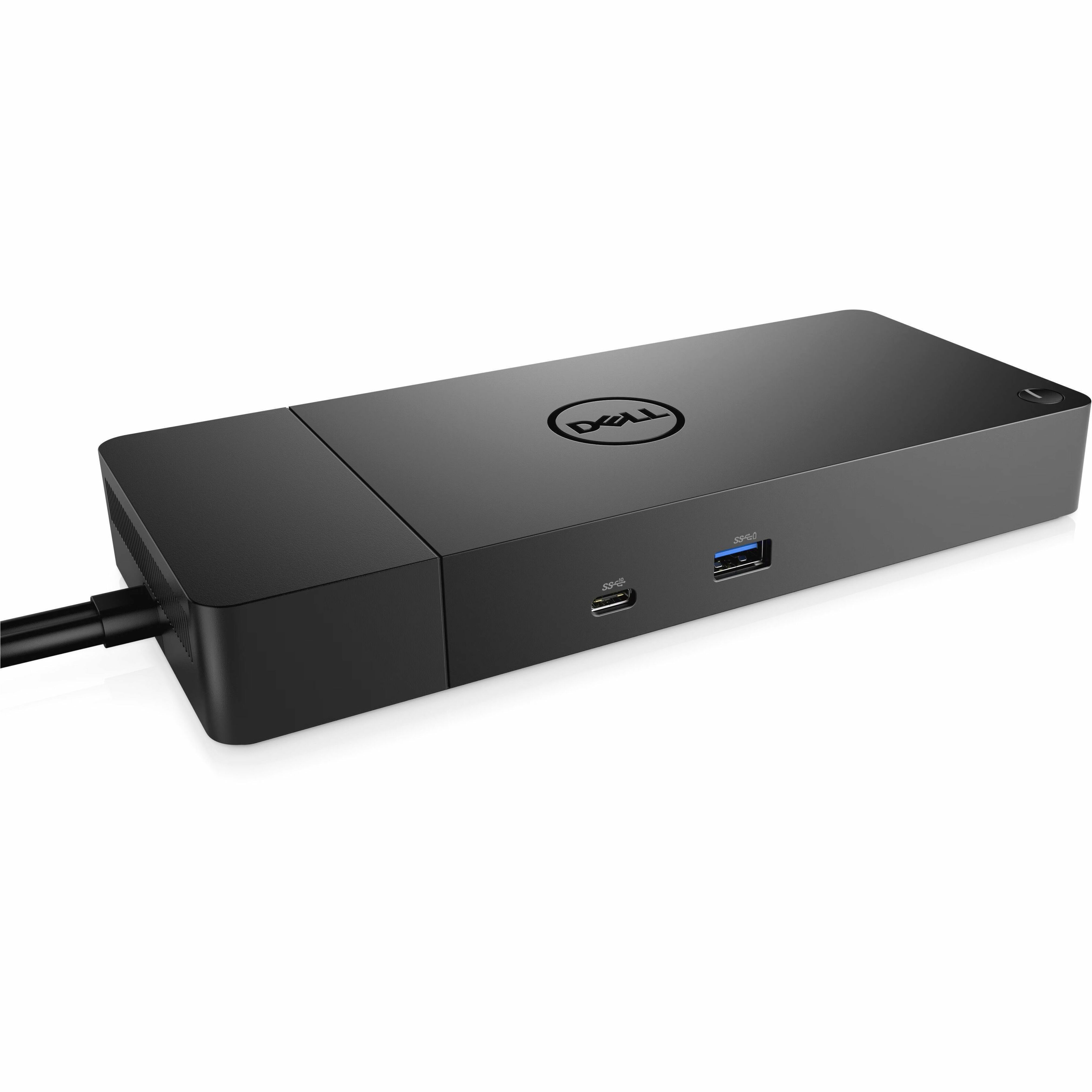

WD19DCS Docking Station
via dell.getuniqcli.com
- SKU
- WD19DCS
- Category
- Transceivers & Cables
List$547.37
$444.07
Save 19%In stock
- Genuine Dell through authorized distribution
- TAA country-of-origin screening before checkout
- GPC, PO and net terms accepted
Buying 5+? Volume pricing on a formal quote.
- SKU
- WD19DCS
- Category
- Transceivers & Cables
Overview
DELL SOURCING - NEW WD19DCS Docking Station - for Notebook, Workstation, Desktop PC, Monitor, Mobile Workstation - Charging Capability - 240 W - Dual USB Type C - 3 Displays Supported - FHD @ 60Hz, QHD @ 60Hz, 4K @ 60Hz, 8K @ 30Hz, 5K @ 60Hz - 1920 x 1080, 2560 x 1440, 3840 x 2160, 7680 x 4320, 5120 x 2880 - 5 x USB Ports - 3 x USB Type-A Ports - USB Type-A - 2 x USB Type-C Ports - USB Type-C - Network (RJ-45) - 1 x HDMI Ports - HDMI - 2 x DisplayPorts - DisplayPort - Wired - Gigabit Ethern (part number WD19DCS) is supplied by Uniqcli, an authorized Dell Technologies partner, in the Dell Docking Stations category. Ethernet Technology: Gigabit Ethernet. for Notebook, Workstation, Desktop PC, Monitor, Mobile Workstation - Charging Capability - 240 W - Dual USB Type C - 3 Displays Supported - FHD @ 60Hz, QHD @ 60Hz, 4K @ 60Hz, 8K @ 30Hz, 5K @ 60Hz - 1920 x 1080, 2560 x 1440, 3840 x 2160, 7680 x 4320, 5120 x 2880 - 5 x USB Ports - 3 x USB Type-A Ports - USB Type-A - 2 x USB Type-C Ports - USB Type-C - Network (RJ-45) - 1 x HDMI Ports - HDMI - 2 x DisplayPorts - DisplayPort - Wired - Gigabit Ethernet - 210W
- Wired connectivity technology provides a high-powered and dependable connection
- Charging capability provides a safer and more convenient charging experience
- USB type-C docking connector type offers a more refined power supply structure and safer to use connectivity
- Dual USB Type C host interface allows powerful and efficient transfer of data with maximum productivity
- Docking Station provides a dependable and fast charging solution for your notebook with maximum productivity
Key specifications
- Ethernet Technology
- Gigabit Ethernet
- HDMI
- Yes
- Number of HDMI Ports
- 1
- Network (RJ-45)
- Yes
- DisplayPort
- Yes
- Total Number of USB Ports
- 5
- Number of DisplayPorts
- 2
- USB Type-C
- Yes
Ask us about TAA-compliant configurations, current pricing, stock, and lead time.
Specifications
Network & Communication
| Ethernet Technology | Gigabit Ethernet |
|---|
Interfaces/Ports
| HDMI | Yes |
|---|---|
| Number of HDMI Ports | 1 |
| Network (RJ-45) | Yes |
| DisplayPort | Yes |
| Total Number of USB Ports | 5 |
| Number of DisplayPorts | 2 |
| USB Type-C | Yes |
| USB Type-C Detail | 2 x USB-C 3.2 Gen 2 |
| DisplayPort Version | 1.4 |
| Number of USB Type-C Ports | 2 |
| Number of USB Type-A Ports | 3 |
| USB Power Delivery | 210W |
| Number of USB 3.2 Gen 2 Type-C Ports | 2 |
| Number of USB 3.2 Gen 1 Type-A Ports | 3 |
| USB Type-A | Yes |
| Host Interface | Dual USB Type C |
Technical Information
| Number of Displays Supported | 3 |
|---|---|
| Supported Resolutions | 1920 x 1080, 2560 x 1440, 3840 x 2160, 7680 x 4320, 5120 x 2880 |
| Screen Mode Supported | FHD @ 60Hz, QHD @ 60Hz, 4K @ 60Hz, 8K @ 30Hz, 5K @ 60Hz |
| Management Features | MAC Address Pass-through, PXE Boot, Wake-on-LAN, Port Disablement, Wake-on-Dock Button, Dell Command Update (DCU) |
| Connectivity Technology | Wired |
| Charging Capability | Yes |
| Device Supported | Notebook, Workstation, Desktop PC, Monitor, Mobile Workstation |
Software
| Operating System Supported | Windows 10, Windows 11, Ubuntu 18.04, Red Hat Enterprise Linux |
|---|
Power Description
| Maximum Power Supply Wattage | 240 W W |
|---|
Miscellaneous
| Kensington Security Slot | Yes |
|---|
Physical Characteristics
| Height | 8.07" mm |
|---|---|
| Width | 3.54" mm |
| Depth | 1.14" mm |
| Weight (Approximate) | 1.29 lb g |
General Information
| Product Type | Docking Station |
|---|---|
| Product Model | WD19DCS |
| Packaged Quantity | 1 |
