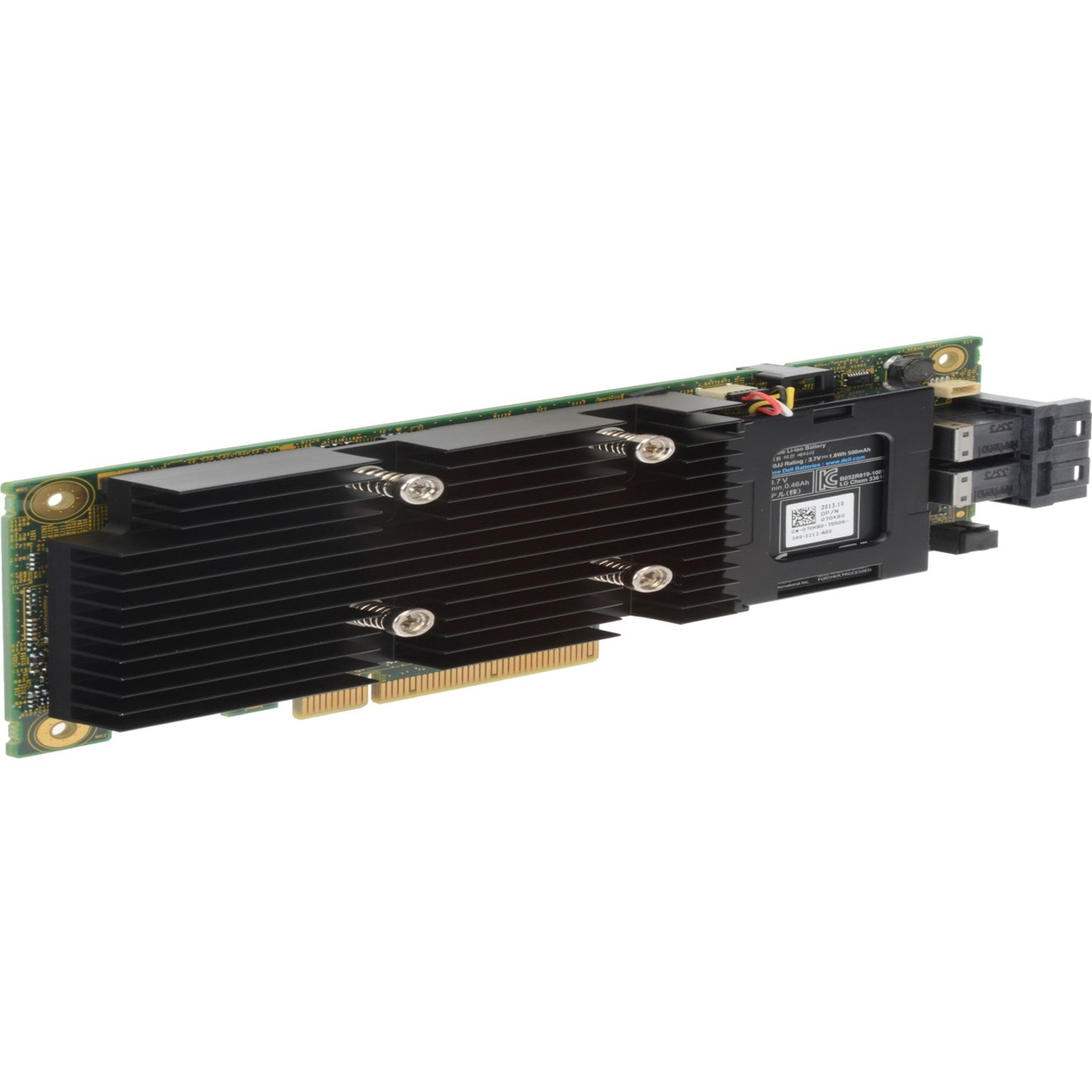

PERC H730P SAS Controller
Dell

PERC H730P SAS Controller

via dell.getuniqcli.com

SKU
YRPP6
Category
Software & Licenses

List$511.26

$414.77

Save 19%

Back ordered

Get a quote
  • Genuine Dell through authorized distribution
  • TAA country-of-origin screening before checkout
  • GPC, PO and net terms accepted

Buying 5+? Volume pricing on a formal quote.

SKU
YRPP6
Category
Software & Licenses

Overview

DELL SOURCING - NEW PERC H730P SAS Controller - 12Gb/s SAS, Serial ATA/600 - PCI Express 3. 0 x8 - Low-profile - Plug-in Card - RAID Supported - 0, 1, 5, 6, 10, 50, 60, JBOD RAID Level - Two internal HD Mini-SAS SFF8643 - 8 Total SAS Port(s) - 8 SAS Port(s) Internal - PC, Linux - 2 GB NV Cache - Supported Operating System (part number YRPP6) is supplied by Uniqcli, an authorized Dell Technologies partner, in the Dell SCSI/RAID Controllers category. Card Height: Low-profile. 12Gb/s SAS, Serial ATA/600 - PCI Express 3. 0 x8 - Low-profile - Plug-in Card - RAID Supported - 0, 1, 5, 6, 10, 50, 60, JBOD RAID Level - Two internal HD Mini-SAS SFF8643 - 8 Total SAS Port(s) - 8 SAS Port(s) Internal - PC, Linux - 2 GB NV Cache - Supported Operating System

  • SAS Controller offers maximum storage efficiency and convenience
  • 12Gb/s SAS controller type allows safe and productive storage expandability with maximum reliability
  • 0 RAID level for better cost-effectiveness and easy implementation with minimal effort required
  • Server device support for dependable storage expansion with optimal data transfer speed
  • Windows Server 2008 R2 SP1 OS support offers a reliable and simplified user-interface

Key specifications

Card Height
Low-profile
Height
2. 5" mm
Depth
6. 6" mm
Form Factor
Plug-in Card
Maximum Data Transfer Rate
9. 60 Gbit/s Bps
RAID Supported
Yes
Data Backup Type
NV Cache
Operating System Supported
Windows Server 2008 R2 SP1, Windows Server 2012, Windows Server 2012 R1, Windows Server 2012 R2, Red Hat Enterprise Linux 5. 8, Red Hat Enterprise Linux 6. 5, SUSE Linux Enterprise Server 10 SP4, SUSE Linux Enterprise Server 11 SP3, VMware ESXi 5. 1, VMware ESX 6. 0

Ask us about TAA-compliant configurations, current pricing, stock, and lead time.

Specifications

Physical Characteristics

Card HeightLow-profile
Height2.5" mm
Depth6.6" mm
Form FactorPlug-in Card

Technical Information

Maximum Data Transfer Rate9.60 Gbit/s Bps
RAID SupportedYes
Data Backup TypeNV Cache
Operating System SupportedWindows Server 2008 R2 SP1, Windows Server 2012, Windows Server 2012 R1, Windows Server 2012 R2, Red Hat Enterprise Linux 5.8, Red Hat Enterprise Linux 6.5, SUSE Linux Enterprise Server 10 SP4, SUSE Linux Enterprise Server 11 SP3, VMware ESXi 5.1, VMware ESX 6.0
FeaturesOnline RAID Level Migration (RLM), Online Capacity Expansion (OCE), Load Balancing, S.M.A.R.T. Support
Device SupportedServer, Storage System
RAID Levels0, 1, 5, 6, 10, 50, 60, JBOD
Controller Type12Gb/s SAS, Serial ATA/600
Number of Channels8
Host InterfacePCI Express 3.0 x8

Interfaces/Ports

Total Number of SAS Ports8
Number of SAS Ports (Internal)8
SAS Connector DetailsTwo internal HD Mini-SAS SFF8643

Memory

Cache Memory2 GB Byte

Miscellaneous

Platform SupportedPC, Linux

General Information

Product TypeSAS Controller
Product SeriesPERC
Product ModelH730P

Datasheet

Product datasheet (PDF)
