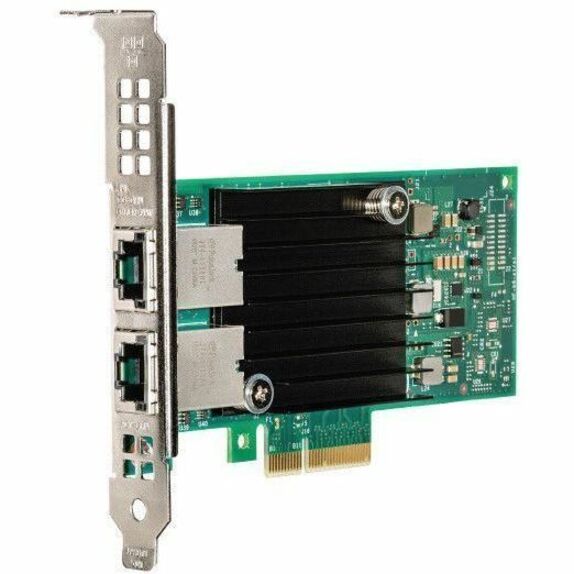

Intel X550 10 GbE Converged Network Adapter
Dell

Intel X550 10 GbE Converged Network Adapter

via dell.getuniqcli.com

SKU
FKHKC
Category
Server & Storage Options

List$652.31

$529.21

Save 19%

Back ordered

Get a quote
  • Genuine Dell through authorized distribution
  • TAA country-of-origin screening before checkout
  • GPC, PO and net terms accepted

Buying 5+? Volume pricing on a formal quote.

SKU
FKHKC
Category
Server & Storage Options

Overview

DELL SOURCING - NEW Intel X550 10 GbE Converged Network Adapter - PCI Express 3. 0 x4 - 10 Gbit/s Data Transfer Rate - 2 Port(s) - 2 - Twisted Pair - Full Height Bracket Height - 10GBase-T, 1000Base-T - Plug-in Card (part number FKHKC) is supplied by Uniqcli, an authorized Dell Technologies partner, in the Dell Network Interface Cards category. Maximum Operating Distance: 328. 08 ft mm. PCI Express 3. 0 x4 - 10 Gbit/s Data Transfer Rate - 2 Port(s) - 2 - Twisted Pair - Full Height Bracket Height - 10GBase-T, 1000Base-T - Plug-in Card

  • Low cost, low power, 10 GbE performance for the entire datacenter.
  • Intel's second generation, dual-port 10GBASE-T controller with integrated MAC and PHY.
  • Standard CAT 6a cabling with RJ45 connectors
  • Supports NBASE-T technology (2. 5 and 5. 0 GbE over CAT 5e).
  • Backward compatibility with existing 1000BASE-T networks simplifies the transition to 10 GbE.

Key specifications

Maximum Operating Distance
328. 08 ft mm
Maximum Data Transfer Rate
10 Gbit/s Bps
Media Type Supported
Twisted Pair
Number of Network (RJ-45) Ports
2
Total Number of Ports
2
Host Interface
PCI Express 3. 0 x4
Network Technology
10GBase-T, 1000Base-T
Environmental Compliance
Restriction of Hazardous Substances (RoHS)

Ask us about TAA-compliant configurations, current pricing, stock, and lead time.

Specifications

Media & Performance

Maximum Operating Distance328.08 ft mm
Maximum Data Transfer Rate10 Gbit/s Bps
Media Type SupportedTwisted Pair

Interfaces/Ports

Number of Network (RJ-45) Ports2
Total Number of Ports2
Host InterfacePCI Express 3.0 x4

Network & Communication

Network Technology10GBase-T, 1000Base-T

Miscellaneous

Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Device SupportedServer

Physical Characteristics

Bracket HeightFull Height
Form FactorPlug-in Card

Technical Information

Ethernet Controller ManufacturerIntel
Ethernet Controller ModelX550
FeaturesPlug and Play, UEFI Support, Single Root I/O Virtualization (SR-IOV), IPv4, IPv6, Extended Message-Signaled Interrupts (MSI-X), User Datagram Protocol (UDP), Virtual Extensible LAN (VXLAN), Network Virtualization using Generic Routing Encapsulation (NVGRE), VLAN Filtering, FCoE Support, VLAN Support, Quality of Service (QoS), Data Plane Development Kit (DPDK), Firmware Upgradable, Receive Side Sca

General Information

Product Type10Gigabit Ethernet Card

Datasheet

Product datasheet (PDF)
