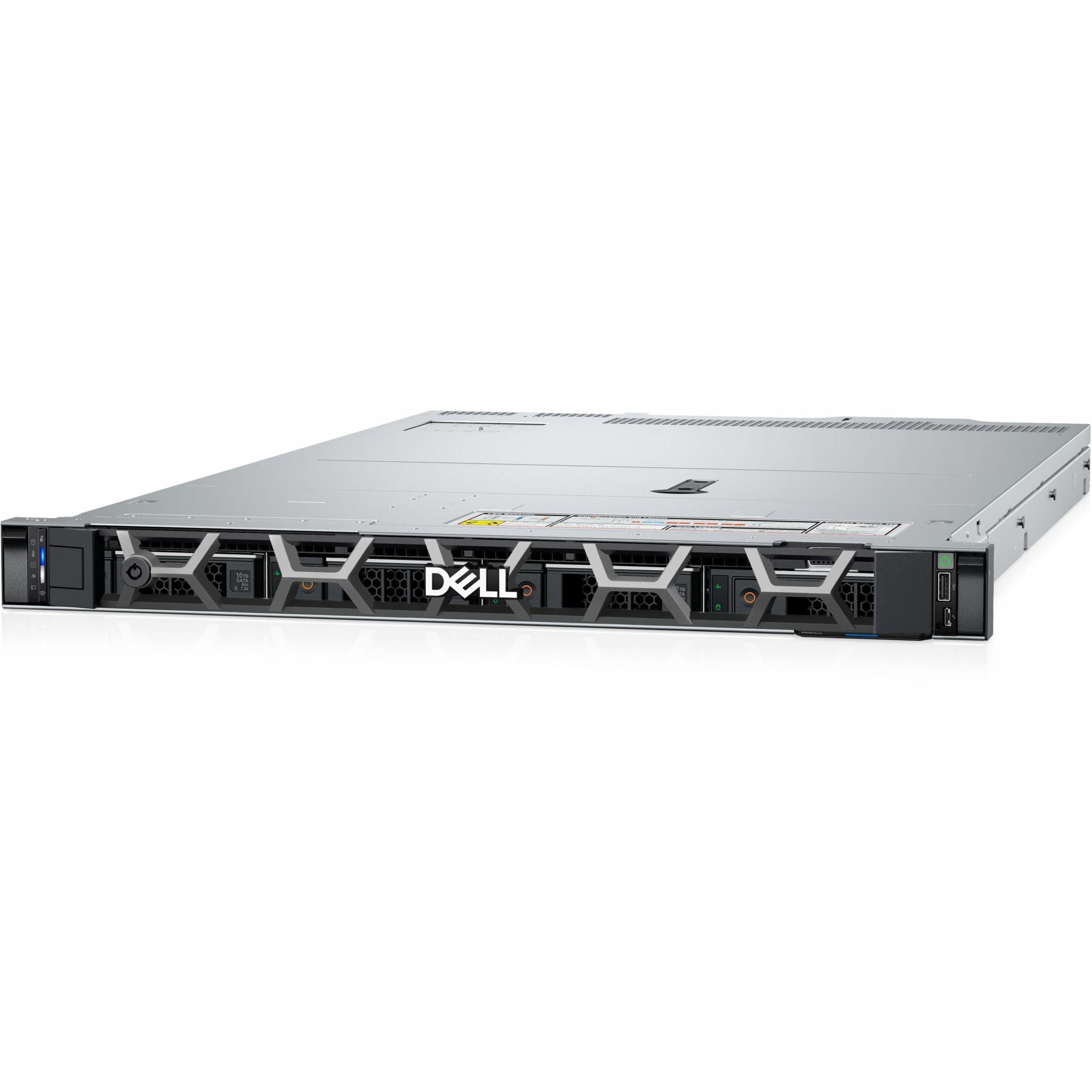

Dell PowerEdge R660xs 1U Rack-mountable Server
via dell.getuniqcli.com
- SKU
- VXN4R
- Category
- Desktops & Workstations
List$28,368.73
$18,340.02
Save 35%Back ordered
- Genuine Dell through authorized distribution
- TAA country-of-origin screening before checkout
- GPC, PO and net terms accepted
Buying 5+? Volume pricing on a formal quote.
- SKU
- VXN4R
- Category
- Desktops & Workstations
Overview
Dell PowerEdge R660xs 1U Rack-mountable Server - 1 Xeon Gold 5412U 2. 10 GHz - 32 GB RAM - 480 GB SSD - Intel Chip - 2 Processor Support - 1. 50 TB RAM Support - DDR5 SDRAM - Gigabit Ethernet - 8 x Total Bay(s) - 8 x SFF Bay(s) - 2 x 800 W - Redundant Power Supply (part number VXN4R) is supplied by Uniqcli, an authorized Dell Technologies partner, in the Dell Servers category. Cache: 45 MB Byte. Best choice in balanced and dense compute for the most popular IT applications | Buy the performance and density you need The new Dell PowerEdge R660xs is a 1U, two-socket rack server. Buy the best fit in dense performance with this purpose-built 1U system. Focused on delivering the latest technology to power the most popular applications and workloads used by businesses today, including virtualization, scale out-database and high performance compute. All delivered in a thoughtfully crafted platform that will provide dense compute that fits in your current infrastructure. Easily configurable Add up to two 5th generation Intel® Xeon® Scalable processors with up to 28 cores and 4th generation Intel® Xeon® Scalable processors with up to 32 cores per socket for faster performance Accelerate in-memory workloads with up to 16 DDR5 RDIMMS up to 5200 MT/sec Improve data throughput and reduce latency with support up to 5 I/O devices (up to 3 PCIe slots, 1 OCP 3. 0 networking slot, and 1 dedicated PERC slot) Storage options include up to 4x 3. 5" HDDs/SSDs; or up to 10x 2. 5" HDDs/SSDs/NVMe A breeze to cool Thoughtfully designed to fit in your current air-cooled infrastructure Alleviate the worry about expensive liquid cooling retrofitting to your data center Sychronize your workload needs with a tailored performance configuration that is air-cooled Minimize the carbon footprint of your data center by better matching the system power consumption with anticipated workload requirements Cyber Resilient Architecture for Zero Trust IT environment & operations Security is integrated into every phase of the PowerEdge lifecycle, including protected supply chain and factory-to-site integrity assurance. Silicon-based root of trust anchors end-to-end boot resilience while Multi-Factor Authentication (MFA) and role-based access controls ensure trusted operations. Increase efficiency and accelerate operations with autonomous collaboration The Dell OpenManage? systems management portfolio delivers a secure, efficient, and comprehensive solution for PowerEdge servers. Simplify, automate and centralize one-to-many management with the OpenManage Enterprise console and iDRAC. Sustainability From recycled materials in our products and packaging, to thoughtful, innovative options for energy efficiency, the PowerEdge portfolio is designed to make, deliver, and recycle products to help reduce the carbon footprint and lower your operation costs. We even make it easy to retire legacy systems responsibly with Dell Technologies Services. Rest easier with Dell Technologies Services Maximize your PowerEdge Servers with comprehensive services ranging from Consulting, to ProDeploy and ProSupport suites, Data Migration and more - available across 170 locations and backed by our 60K+employees and partners.
- 2 processors supported for optimal performance and maximum reliability in mission-critical server environments
- With 32 GB memory, users can multitask between applications smoothly, preserving responsiveness and efficiency
- 480 GB SSD offers ample space for important documents, files, and critical data, ensuring reliability and quick access
- 800 W power supply unit (PSU) fulfills system power needs, ensuring smooth operation under heavy workloads
- Xeon Gold 2. 10 ghz processor delivers strong performance for work and entertainment needs
Key specifications
- Cache
- 45 MB Byte
- Processor Core
- Tetracosa-core (24 Core)
- Number of Processors Supported
- 2
- Number of Processors Installed
- 1
- Processor Model
- 5412U
- Processor Speed
- 2. 10 GHz Hz
- Processor Type
- Xeon Gold
- Additional Warranty Information
- Next Bus. Day 39MO(Disti SNS), 39 Month(s) Next Bus. Day (Disti SNS), 40 Month(s)
Ask us about TAA-compliant configurations, current pricing, stock, and lead time.
Specifications
Processor
| Cache | 45 MB Byte |
|---|---|
| Processor Core | Tetracosa-core (24 Core) |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 1 |
| Processor Model | 5412U |
| Processor Speed | 2.10 GHz Hz |
| Processor Type | Xeon Gold |
Warranty
| Additional Warranty Information | Next Bus. Day 39MO(Disti SNS), 39 Month(s) Next Bus. Day (Disti SNS), 40 Month(s) |
|---|---|
| Limited Warranty | 40 Month Month |
Chipset
| Chipset Manufacturer | Intel |
|---|
Power Description
| Number of Power Supplies Installed | 2 |
|---|---|
| Redundant Power Supply | Yes |
| Hot Swappable Power Supply | Yes |
| Maximum Power Supply Wattage | 800 W W |
| Plug/Connector Type | NEMA 5-15P to C13 |
| Input Voltage | 120 V AC V AC, 230 V AC V AC |
I/O Expansions
| Number of Internal 2.5" Bays | 8 |
|---|---|
| Number of Total Expansion Bays | 8 |
| Number of SFF Bays | 8 |
| PCI Express Details | 1 CPU Configuration: Up to 2 PCIe slots (1 x16 Gen4 + 1 x8 Gen5); 2 CPU configuration: Up to 3 PCIe Gen4 slots (1 x16 Gen4 + 2 x8 Gen4) or up to 2 PCIe Gen5 slots (1 x16 Gen5 + 1 x8 Gen5) |
| Riser Card | Riser Config 3, Low Profile, 1x16 LP Slots (Gen4) |
Network & Communication
| Ethernet Technology | Gigabit Ethernet |
|---|
Memory
| Number of Occupied Memory Slots | 2 |
|---|---|
| Memory Technology | DDR5 SDRAM |
| Error Checking | ECC |
| Maximum Memory Supported | 1.50 TB Byte |
| Signal Processing | Registered (Buffered) |
| Standard Memory | 32 GB Byte |
Physical Characteristics
| Height | 1.7" mm |
|---|---|
| Width | 19" mm |
| Depth | 29.5" mm |
| Rack Height | 1U |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 42.88 lb g |
Operating System
| Operating System Supported | Ubuntu Server, Hyper-V, Windows Server, Red Hat Enterprise Linux, SuSE Linux Enterprise Server |
|---|
Miscellaneous
| Security Features | Cryptographically signed firmware Data at Rest Encryption (SEDs with local or external key mgmt) Secure Boot Secure Erase Secured Component Verification (Hardware integrity check) Silicon Root of Trust System Lockdown (requires iDRAC9 Enterprise or Datacenter) TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
|---|---|
| Package Contents | PowerEdge R660xs Server 2 X NEMA 5-15P to C13 Wall Plug, 125 Volt, 15 AMP, 10 Feet (3m), Power Cord, North America ReadyRails A11 drop-in/stab-in Slide Combo Rails Without Cable Management Arm PowerEdge R660xs, 8x2.5, Short Drive Shipping Material |
Controllers
| Controller Model | Front PERC H755 Front Load |
|---|
Interfaces/Ports
| VGA | Yes |
|---|---|
| Network (RJ-45) | Yes |
| Remote Management | Yes |
| Total Number of USB Ports | 3 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.0 Ports | 1 |
| Remote Management Controller | iDRAC9, Datacenter 16G |
General Information
| Product Type | Server |
|---|---|
| Product Model | R660xs |
Storage
| Solid State Drive Interface | Serial ATA/600 |
|---|---|
| Total Solid State Drive Capacity | 480 GB Byte |
Datasheet
