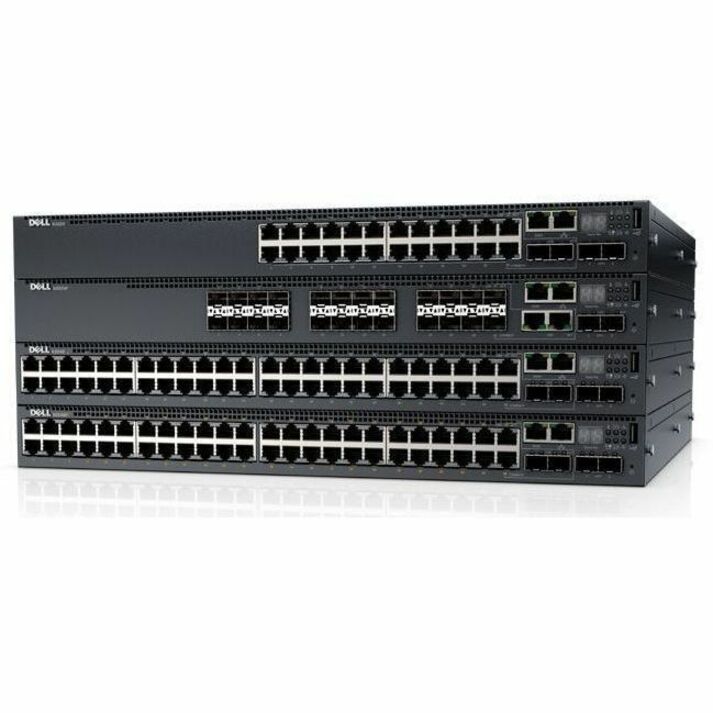

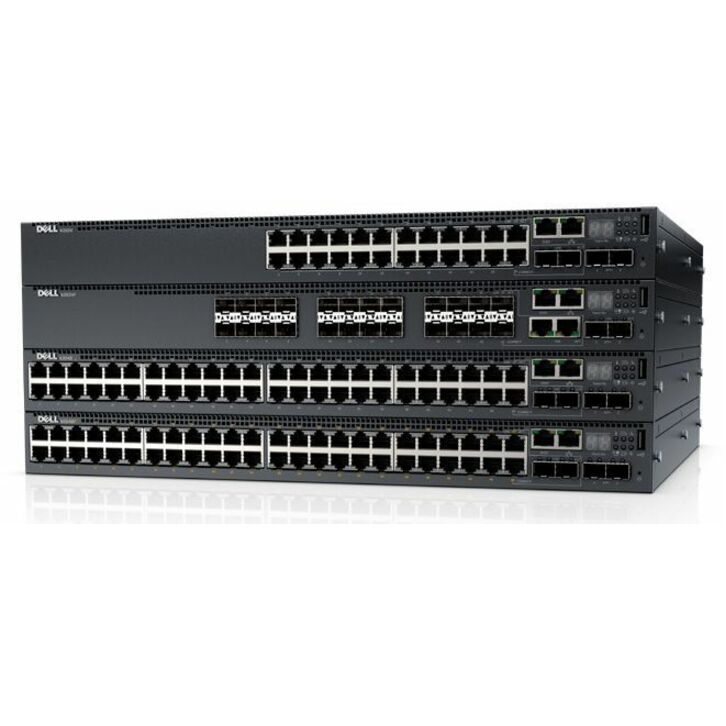

Dell Ingram Micro Sourcing N3048ET-ON Layer 3 Switch
via dell.getuniqcli.com
- SKU
- N3048ET-ON
- Category
- Transceivers & Cables
List$4,341.31
$3,522.02
Save 19%Back ordered
- Genuine Dell through authorized distribution
- TAA country-of-origin screening before checkout
- GPC, PO and net terms accepted
Buying 5+? Volume pricing on a formal quote.
- SKU
- N3048ET-ON
- Category
- Transceivers & Cables
Overview
Dell Ingram Micro Sourcing N3048ET-ON Layer 3 Switch - 50 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 1000Base-X, 10GBase-X, 10/100/1000Base-T - 3 Layer Supported - 2 SFP Slots - 74. 80 W Power Consumption - Optical Fiber, Twisted Pair - 1U - Rack-mountable, Rail-mountable - TAA Compliant (part number N3048ET-ON) is supplied by Uniqcli, an authorized Dell Technologies partner, in the Dell Switches & Bridges category. Manageable: Yes. 50 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 1000Base-X, 10GBase-X, 10/100/1000Base-T - 3 Layer Supported - 2 SFP Slots - 74. 80 W Power Consumption - Optical Fiber, Twisted Pair - 1U - Rack-mountable, Rail-mountable - TAA Compliant
- Layer 3 Switch ensures productivity by providing an efficient, hassle-free connection
- Cascade to other network devices through the uplink port to expand your local area network
- Increases the stack bandwidth of the stack port further than that of a single port
- Features 50 networking ports to meet the requirements of the most demanding workgroups
- Can work as layer 3 routing for scalable network design
Key specifications
- Manageable
- Yes
- Maximum Data Transfer Rate
- 1. 25 GB/s Bps
- Ethernet Technology
- Gigabit Ethernet, 10 Gigabit Ethernet
- Media Type Supported
- Optical Fiber, Twisted Pair
- Network Technology
- 1000Base-X, 10GBase-X, 10/100/1000Base-T
- Network (RJ-45)
- Yes
- Uplink Port
- Yes
- Stack Port
- Yes
Ask us about TAA-compliant configurations, current pricing, stock, and lead time.
Specifications
Management & Protocols
| Manageable | Yes |
|---|
Media & Performance
| Maximum Data Transfer Rate | 1.25 GB/s Bps |
|---|---|
| Ethernet Technology | Gigabit Ethernet, 10 Gigabit Ethernet |
| Media Type Supported | Optical Fiber, Twisted Pair |
| Network Technology | 1000Base-X, 10GBase-X, 10/100/1000Base-T |
Interfaces/Ports
| Network (RJ-45) | Yes |
|---|---|
| Uplink Port | Yes |
| Stack Port | Yes |
| Total Number of Network Ports | 50 |
| Port/Expansion Slot Details | 48 x Gigabit Ethernet Network, 2 x 10 Gigabit Ethernet Expansion Slot, 2 x Gigabit Ethernet Network, 2 x Gigabit Ethernet Expansion Slot |
Network & Communication
| Layer Supported | 3 |
|---|
I/O Expansions
| Number of SFP Slots | 2 |
|---|---|
| Number of SFP+ Slots | 2 |
| Shared SFP Slot | Yes |
| Total Number of Expansion Slots | 4 |
| Expansion Slot Type | SFP, SFP+ |
Miscellaneous
| TAA Compliant | Yes |
|---|---|
| Energy Star | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE), Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
Physical Characteristics
| Compatible Rack Unit | 1U |
|---|---|
| Form Factor | Rack-mountable, Rail-mountable |
| Weight (Approximate) | 13.89 lb g |
Power Description
| Redundant Power Supply Supported | Yes |
|---|---|
| Power Consumption | 74.80 W W |
| Power Source | Power Supply |
General Information
| Product Type | Layer 3 Switch |
|---|---|
| Product Series | N3000 |
| Product Model | N3048ET-ON |
Datasheet
