For Meeting Room, Video Conferencing, Audio Conferencing, University, Huddle Space - Small Room Size Supported - 3840 x 2160 Video (Live) - 4K - 30 fps - 3 x Network (RJ-45) - 3 x HDMI In - 2 - USB - Gigabit Ethernet - Wireless LAN - Bracket Mount, Wall Mountable, Display Mount, Tabletop, Surface Mountable
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine Crestron Electronics through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

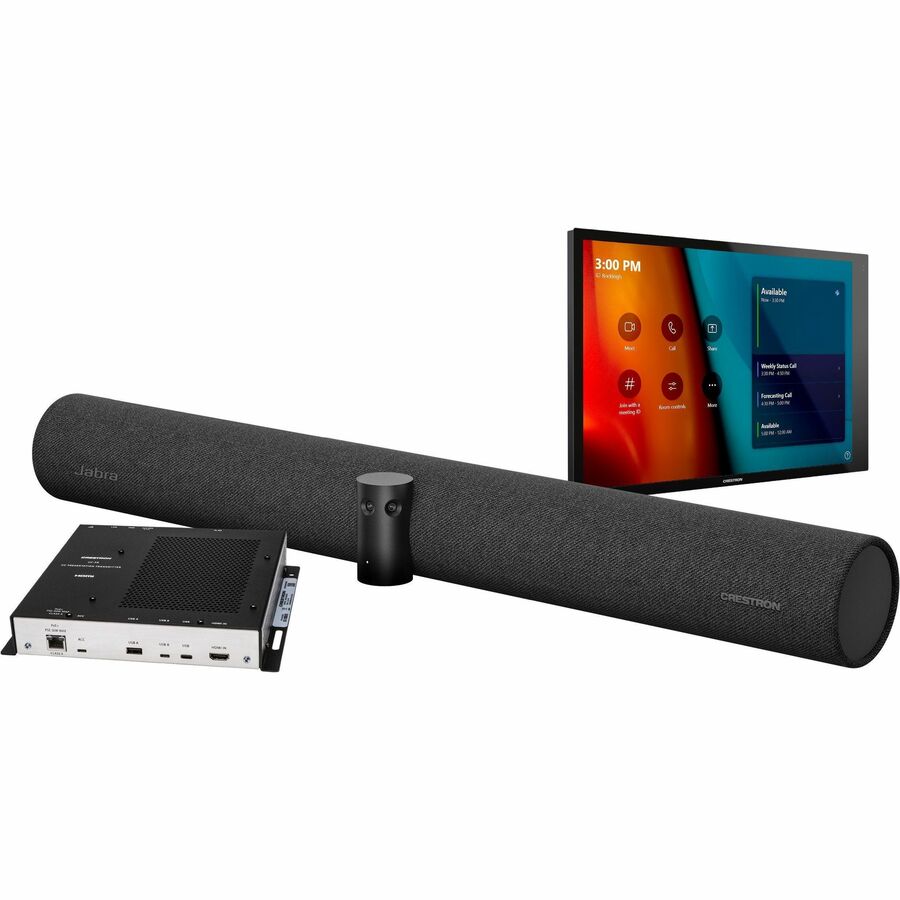

The UC-BX31-T-WM Crestron Flex advanced wall mount conferencing system provides a small room video conference solution for use with Microsoft Teams® software. It supports up to three video displays1 (not included) and features a wall mount touch screen, Jabra® PanaCast® 50 video bar for Crestron Flex systems, UC bracket assembly, UC presentation transmitter, PoE injector, and cables.
Native Microsoft Teams® Software Experience
The UC-BX31-T-WM system features Microsoft Teams® Rooms conferencing software that enables audio and video connectivity for easy collaboration and content sharing
Intuitive User Interface
With a large 10.1 in. (257 mm) capacitive touch screen display, the Crestron® wall mount touch screen (TSW-1070) provides superior conferencing control in meeting rooms, huddle spaces, and executive offices. The touch screen also offers optional control of room lighting, shades, thermostats, and other equipment
Simplified Deployment
The UC Bracket Assembly provides preassembled components on one ready-to-mount bracket to simplify installation. The assembly can be mounted on a wall, or it can be attached to the rear of the display device.
Wall Mount Options
Using the bracket provided, the touch screen is easily installed over a 2-gang or 3-gang US electrical box, or a 2-gang European or UK electrical box. A security latch option is included to deter unauthorized removal of the touch screen.
High-Definition Video Conferencing with Impressive Audio
High-quality speakers and microphones deliver exceptional full-duplex performance from the Jabra PanaCast 50 video bar for Crestron Flex systems (UC-SB-P50). Three built-in conferencing cameras capture the room in panoramic 4K resolution with a seamless 180° horizontal field of view.
Bring Your Own Device (BYOD)
Conference room visitors can connect their laptop to the Crestron Flex system to use their own UC conference platform. The UC Presentation Transmitter (UC-PR) switches to the connected laptop's UC platform and returns to the native platform when disconnected.
Enterprise-Grade Security
Crestron Flex is an enterprise-grade solution that is ideally equipped for mass deployment throughout any sized corporate, university, medical, military, or government facility
| Application/Usage | Meeting Room, Video Conferencing, Audio Conferencing, University, Huddle Space |
|---|---|
| Product Type | Video Conference Equipment |
| Camera Resolution | 13 Megapixel |
| Manufacturer Part Number | 6512616 |
| Features | Multi-touch Screen, Capacitive Touch Screen |
| Form Factor | Bracket Mount, Wall Mountable, Display Mount, Tabletop, Surface Mountable |
| Manufacturer | Crestron Electronics, Inc |
| Product Model | UC-BX31-T-WM |
| Product Name | Flex UC-BX31-T-WM Video Conference Equipment |
| Network Technology | 100/1000Base-T, 100Base-TX |
| Product Line | Flex |
| Brand Name | Crestron |
| Operating System Supported | Windows |
| Maximum Frame Rate | 30 fps |
| Wireless LAN | Yes |
| Ethernet Technology | Gigabit Ethernet |
| USB | Yes |
| Number of Network (RJ-45) Ports | 3 |
| Network (RJ-45) | Yes |
| Number of HDMI Inputs | 3 |
| Number of HDMI Outputs | 2 |
| Total Number of Cameras | 3 |
| HDMI In | Yes |
| Maximum Video Resolution (Live) | 3840 x 2160 |
| Graphics Modes (Live) | 4K |
| Room Size | Small |
| Product Color | Black |
| Field Of View (FOV) Angle | 180° |
| Unified Communications Platform | Microsoft Teams |
