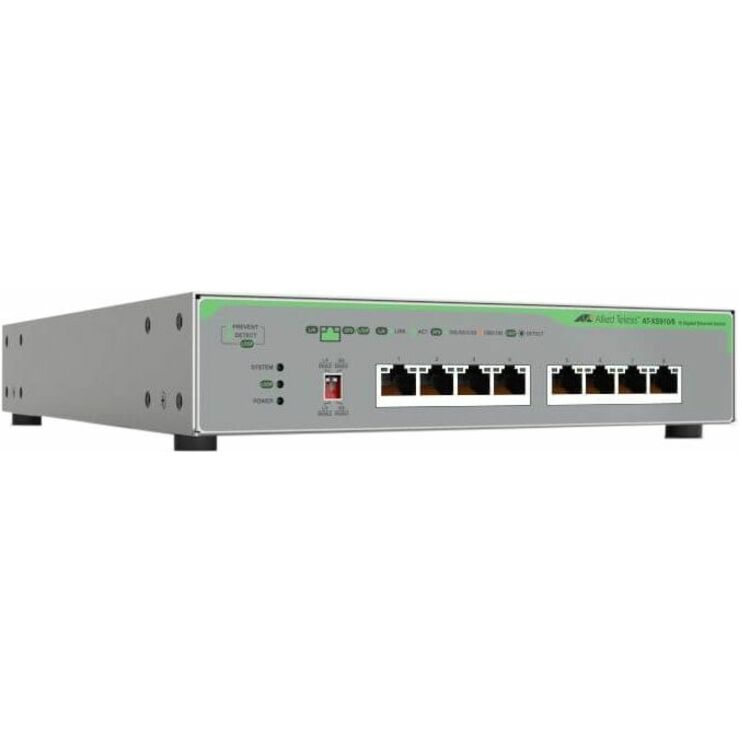

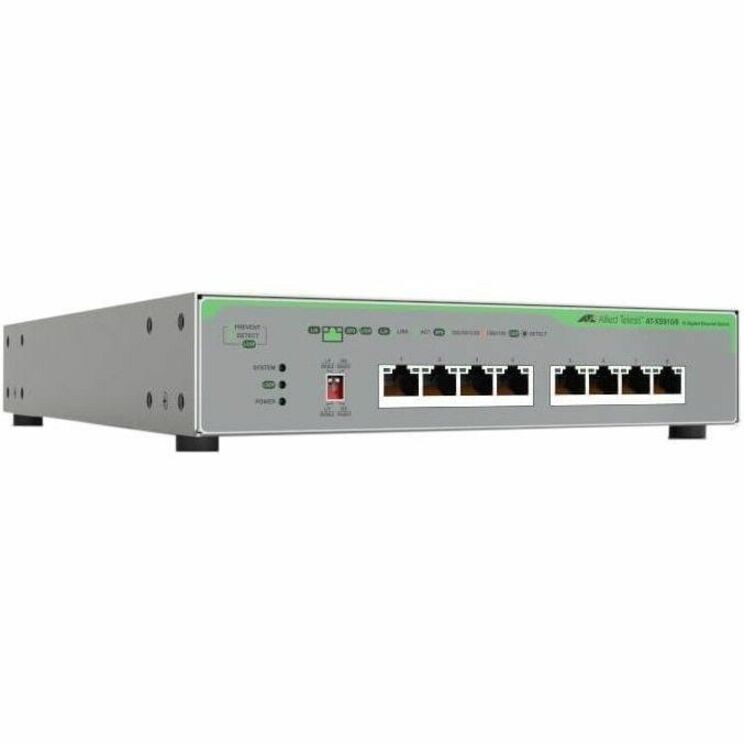

Allied Telesis CentreCOM XS910/8 10 Gigabit Ethernet Unmanaged Switch
8 Ports - 10 Gigabit Ethernet - 10GBase-T - 2 Layer Supported - Twisted Pair - Compact, Rack-mountable, Wall Mountable - 2 Year Limited Warranty
- SKU
- AT-XS910/8-10
- Category
- Switches & Bridges
MSRP$1,144.00
$954.91
Save 17%Back ordered — ships when restocked.
Genuine Allied Telesis through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- AT-XS910/8-10
- Category
- Switches & Bridges
Overview
The Allied Telesis XS910/8 offers high-speed unmanaged switching solutions for small networks, with connectivity up to 10Gbps to support today's high-bandwidth interactive applications. A fanless, compact design provides silent operation for flexible deployment.
Overview
The XS910/8 unmanaged switch provides reliable and seamless connectivity at the edge of modern networks, with plug-and-play installation for easy deployment.
The XS910/8 features 8 x 100M/1/2.5/5/10G ports, and uses auto-negotiation to automatically optimize the link speed to maximize performance.
High speed
As technology advances, many IoT devices and a variety of content platforms delivering videos, images and sounds require more power at the edge of network. The XS910/8 delivers speeds of up to 10G to meet these growing demands.
Loop detection
The XS910/8 provides network loop detection by periodically sending Loop Detection Frames (LDF). If a loop is detected, the switch will automatically block the offending port to stop broadcast storms from affecting network performance. Once the loop is resolved, the port is unblocked.
Energy Efficient Ethernet
The XS910/8 switch is eco-friendly, supporting IEEE 802.3az Energy Efficiency Ethernet (EEE). When EEE is enabled, power consumption is reduced on ports with low activity. Not only does this help the planet by reducing the carbon footprint of each switch, it also lowers the Total Cost of Ownership (TCO) to the user, as the device costs less to run, and features improved reliability.
DIP switches
The XS910/8 has a set of DIP switches on the front panel, which simplify configuration by enabling users to easily enable or disable features such as Loop Guard and Energy Efficient Ethernet.
Flexible deployment
The XS910/8 switch is fanless, providing silent operation. A reliable steel chassis guarantees high endurance. Furthermore, its relatively compact design allows easy switch placement in work spaces and on desktops, with no interruption to network users.
Highlights
- Effectively reduces downtime with improved network performance
- Features 8 networking ports to easily establish a local network or expand your existing one
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- Compact form factor allows hassle-free and easy usage with increased efficiency
- The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
- Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Specifications
| Package Contents |
|
|---|---|
| Product Type | Ethernet Switch |
| Input Voltage | 120 V AC, 230 V AC |
| Manufacturer Part Number | AT-XS910/8-10 |
| Power Source | Power Supply |
| Limited Warranty | 2 Year |
| Layer Supported | 2 |
| Weight (Approximate) | 4.63 lb |
| Features | Fanless |
| Form Factor | Compact, Rack-mountable, Wall Mountable |
| Manufacturer | Allied Telesis, Inc |
| Product Model | XS910/8 |
| Product Name | CentreCOM XS910/8 10 Gigabit Ethernet Unmanaged Switch |
| Network Technology | 10GBase-T |
| Product Line | CentreCOM |
| Brand Name | Allied Telesis |
| Height | 1.7" |
| Width | 8.3" |
| Depth | 10.8" |
| Manageable | No |
| Environmentally Friendly | Yes |
| Number of Power Supplies Supported | 1 |
| Number of Power Supplies Installed | 1 |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network (RJ-45) | Yes |
| Stack Port | No |
| Media Type Supported | Twisted Pair |
| Total Number of Network Ports | 8 |
| PoE (RJ-45) Port | No |
| Port/Expansion Slot Details | 8 x 10 Gigabit Ethernet Network |
| Networking Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3az |
| Product Material | Steel |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), China Restriction of Hazardous Substances (China RoHS) |
More Switches & Bridges from Allied Telesis

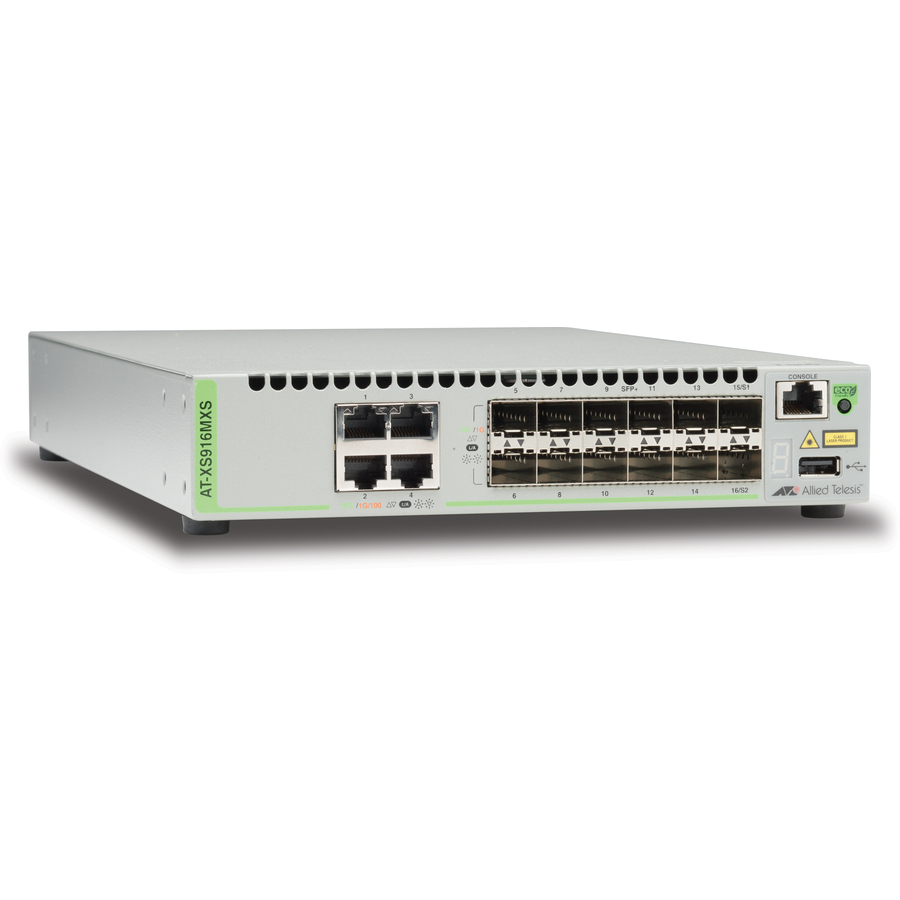

View the Allied Telesis catalog →- Allied TelesisAllied Telesis 12 SFP/SFP+ Slot Stackable Switch with 4-Port 100/1000/10G Base-T (RJ-45) - 4 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 10GBase-X, 10GBase-T - 3 Layer Supported - Modular - Twisted Pair, Optical Fiber - 1U - Rack-mountableAT-XS916MXS-10
$3,092.75

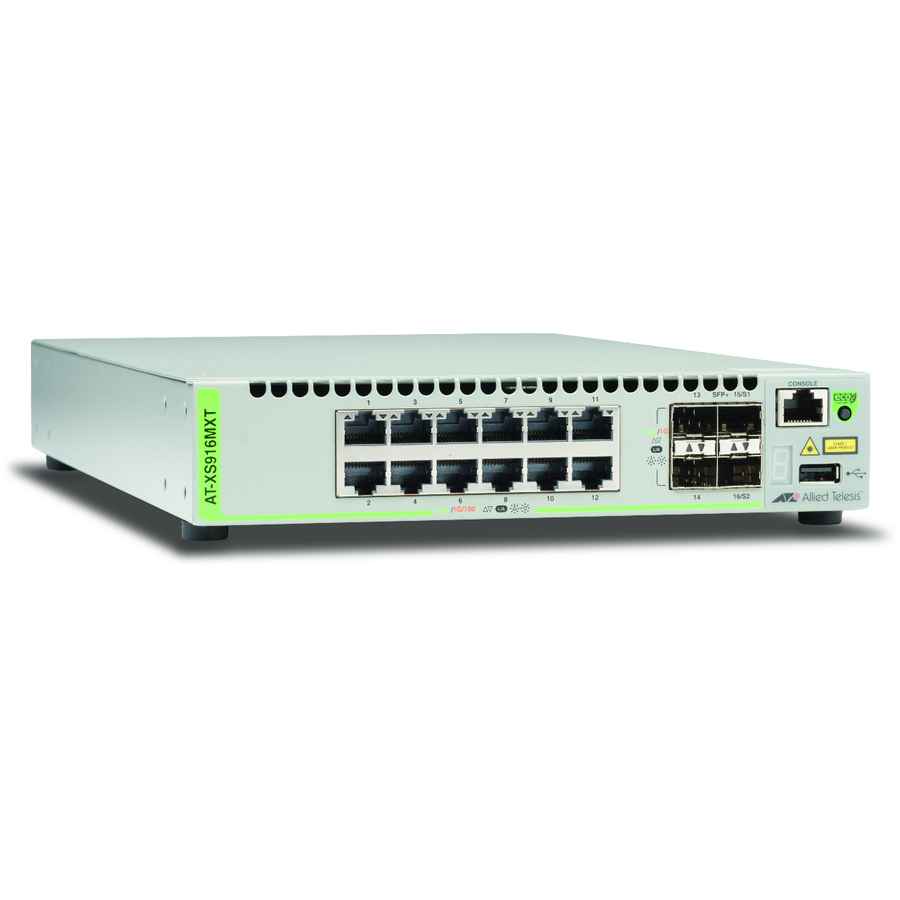

Back ordered - Allied TelesisAllied Telesis 12-Port 100/1000/10G Base-T (RJ-45) Stackable Switch with 4 SFP/SFP+Slot - 12 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 10GBase-X, 10GBase-T - 3 Layer Supported - Modular - Twisted Pair, Optical Fiber - 1U - Rack-mountableAT-XS916MXT-10
