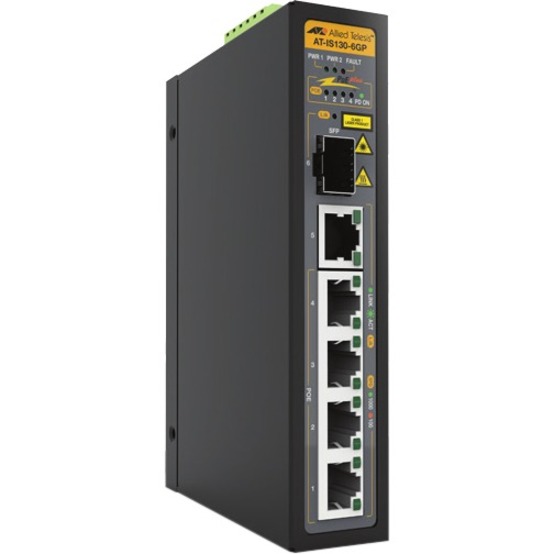

Allied Telesis Industrial Un-Managed Layer 2 Switch, PoE+ Support
5 Ports - 2 Layer Supported - Modular - 1 SFP Slots - Optical Fiber, Twisted Pair - DIN Rail Mountable, Wall Mountable
- SKU
- AT-IS130-6GP-80
- Category
- Switches & Bridges
MSRP$823.00
$687.92
Save 16%Back ordered — ships when restocked.
Genuine Allied Telesis through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- AT-IS130-6GP-80
- Category
- Switches & Bridges
Overview
The Allied Telesis IS130 multipurpose unmanaged Layer 2 switches are ideal for Smart Cities applications, harsh industrial environments, and any situation where tough and reliable devices are required.
With a wide operating temperature range of between -40°and 75°C, the IS130 switches tolerate demanding environments, such as those found in industrial and outdoor deployments.
Performance
These high-performing, cost-effective switches meet the stringent performance requirements of today's industrial networks. Featuring support for up to 2K MAC addresses, the IS130 Series is ideal for edge networking.
Gigabit and Fast Ethernet
The IS130 Series SFP port supports both Gigabit and Fast Ethernet Small Form-Factor Pluggables (SFPs). This makes the IS130 Series ideal for environments where Gigabit fiber will be phased-in over time, and allows for uninterrupted connectivity to the legacy 100FX hardware while it is upgraded to Gigabit Ethernet.
Support for both SFP speeds allows organizations to stay within budget as they migrate to faster technologies.
Power over Ethernet
The IS130-6GP is a Power over Ethernet Power Sourcing Equipment (PoE PSE) device, which is compliant with IEEE802.3af and IEEE802.3at standards
Each port supplies either 15.40W PoE with 12.95W available to the powered device, or 30.00W PoE+ with 25.50W available to the powered device.
PoE sourcing is the ideal solution to support many devices, including:
• Pan, Tilt and Zoom (PTZ) cameras with heating/cooling fans for outdoor applications
• Enhanced infrared lighting
• Lighting controllers
• LED lighting fixtures
• Remote Point of Sale (POS) kiosks
Highlights
- Effectively increases available bandwidth on your network
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 5 ports
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- DIN Rail Mountable form factor for added reliability and dependability
- The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Optical Fiber media support ensures maximum convenience and great usability
Specifications
| Product Type | Ethernet Switch |
|---|---|
| Manufacturer Part Number | AT-IS130-6GP-80 |
| Power Source | Power Adapter |
| Layer Supported | 2 |
| Weight (Approximate) | 1.10 lb |
| Form Factor | DIN Rail Mountable, Wall Mountable |
| Manufacturer | Allied Telesis, Inc |
| Product Model | IS130-6GP |
| Product Name | Industrial Un-Managed Layer 2 Switch, PoE+ Support |
| Network Technology | 10/100/1000Base-T, 1000Base-X |
| Product Series | IS130 |
| Brand Name | Allied Telesis |
| Expansion Slot Type | SFP |
| Country of Origin | China |
| Height | 5.5" |
| Width | 1.2" |
| Depth | 3.7" |
| Manageable | No |
| Ethernet Technology | Gigabit Ethernet |
| Number of SFP Slots | 1 |
| Modular | Yes |
| Media Type Supported | Optical Fiber, Twisted Pair |
| Total Number of Network Ports | 5 |
| Port/Expansion Slot Details | 5 x Gigabit Ethernet Network, 1 x Gigabit Ethernet Expansion Slot |
| Total Number of Expansion Slots | 1 |
